SPH Engineering Cerulean Surveyor 240-16 MBES (multibeam echosounder)

SPH Engineering Cerulean Surveyor 240-16 MBES (multibeam echosounder)

Enquire for Prices and Availability - Secure Yours Now

  • Free UK Delivery (Orders Over £100)
  • Price Checked (Best Price Guarantee)
  • UK Based (Approved Dealer)
Description:

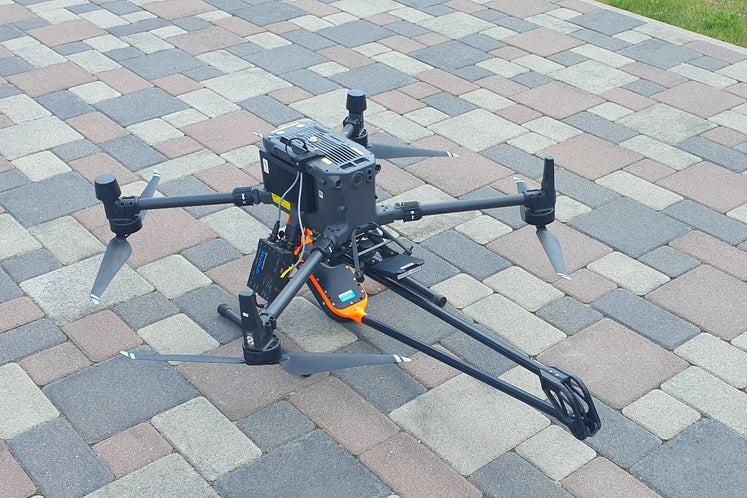

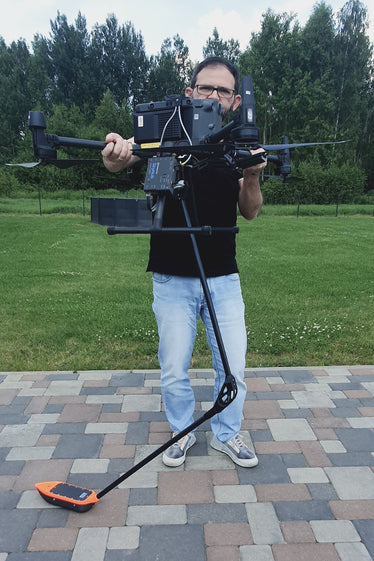

The Surveyor 240-16 Multibeam Echo Sounder (240 kHz MBES) is a compact, high-performance 240 kHz Multibeam Echo Sounder (MBES) designed for UAV-based hydrographic surveys. Optimised for seamless integration with UAVs like the DJI M300/M350/M400 RTK series, this unit is ideal for shallow water mapping and precision bathymetry missions.

This MBES features a 4° along-track transmit beam, 80° cross-track transmit beam, and a 16-element receive array. Unlike conventional beamforming systems, Surveyor leverages an advanced angle-of-arrival (AoA) estimation algorithm to deliver sub-degree angular resolution—resulting in significantly improved spatial resolution and target discrimination across a wide 80° swath.

Surveyor typically identifies 10–15 acoustic targets per ping within the swath, with accurate position and depth calculations based on precise range and AoA measurements. It includes a built-in IMU for pitch and roll correction, with heading and GPS coordinates sourced from the drone’s flight controller.

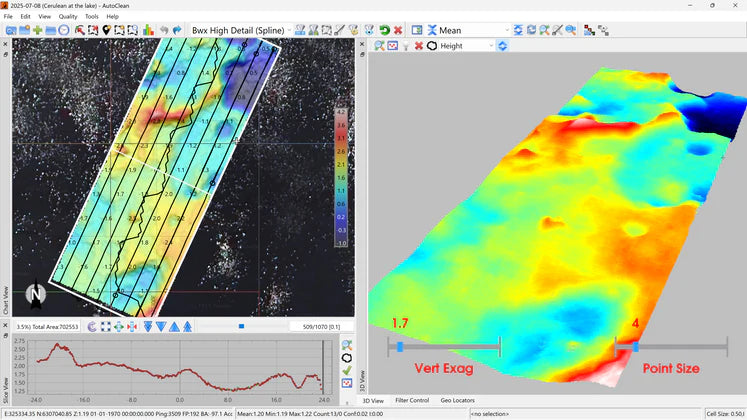

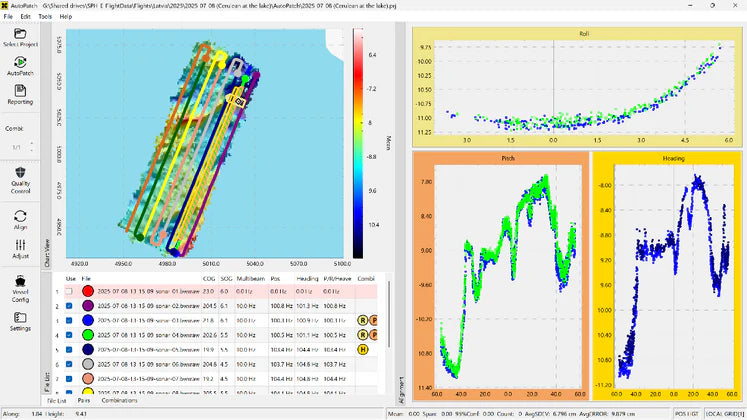

Note: Additional components (e.g., SkyHub, altimeter, GNSS input, UAV mounting, data logging, and visualization software) are required for full deployment. A tailored bundle can be quoted on request.

Key Features:
  • Acoustic Frequency: 240 kHz
  • Range: 0.5 to 50 meters
  • Transmit Beam: 4° along-track, 80° cross-track
  • Receive Array: 16 elements
  • Cross-Track Beam Width: 7° (conventional), 1° (AoA)
  • Range Resolution: 0.5% of the range
  • Swath Detection: 10–15 targets per ping
  • Built-in IMU: Pitch and roll
  • Ethernet Interface + SkyHub Connector

Specifications:

Parameter Value
Sensor Type Multibeam Echo Sounder (MBES)
Acoustic Frequency 240 kHz
Range 0.5 – 50 m
Along-Track TX Beam
Cross-Track TX Beam 80°
Receive Array 16 Elements
Beam Width (Conventional)
Angular Resolution (AoA) <1°
Range Resolution 0.5% of range
Echo Sounder Weight (Air) 1.8 kg
Total System Weight (Air) 2.4 kg
Interfaces Ethernet, SkyHub connector
HS Code 90158040

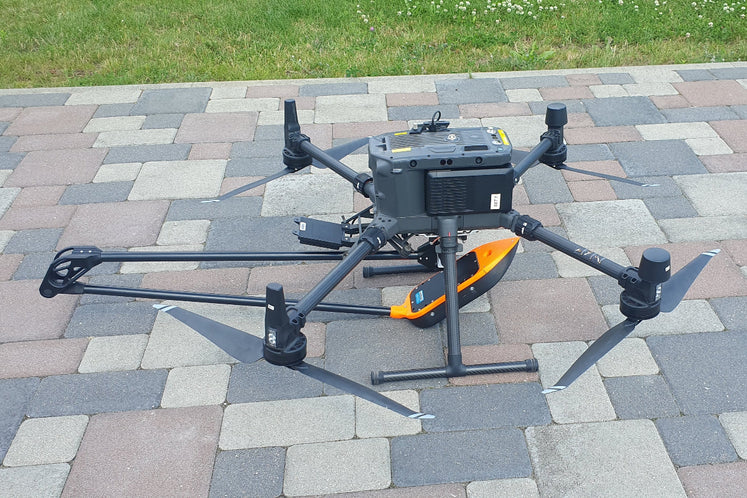

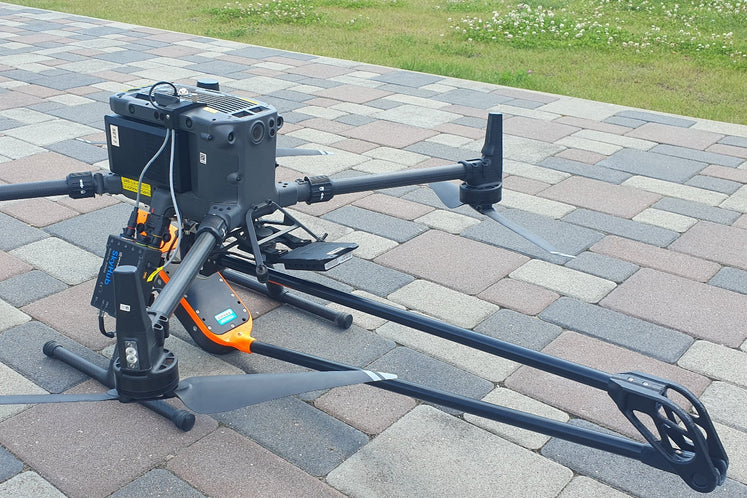

Compatible Drones:

DJI Matrice 300 RTK

DJI Matrice 350 RTK

DJI Matrice 400 RTK

Pixhawk-based UAVs (of comparable payload capacity)

What’s Included:

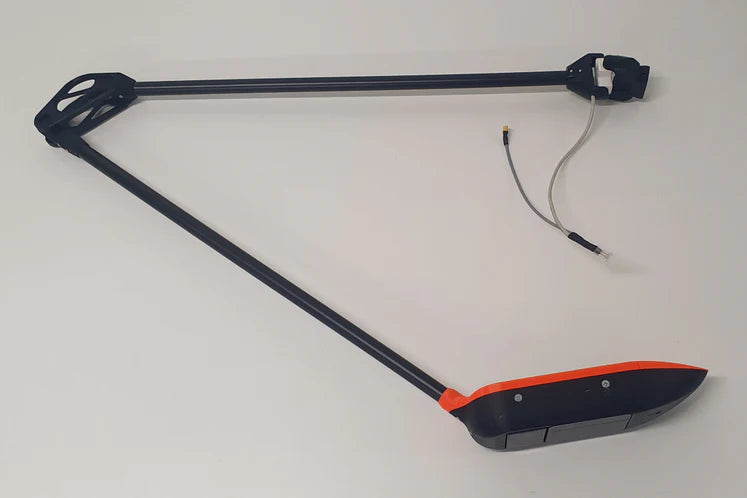

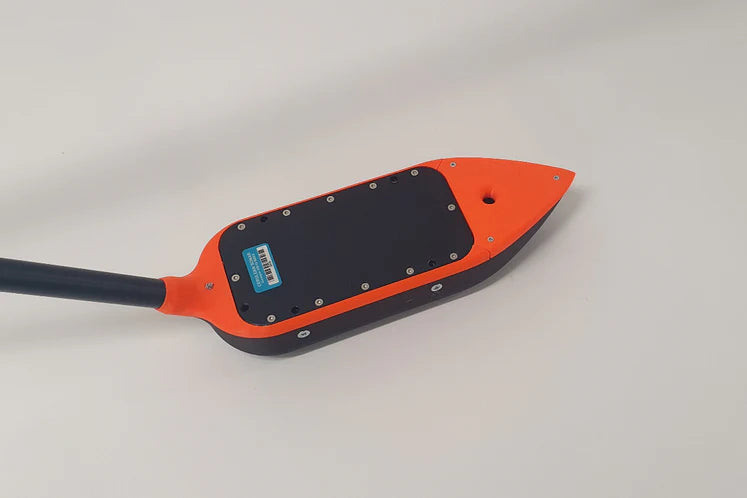

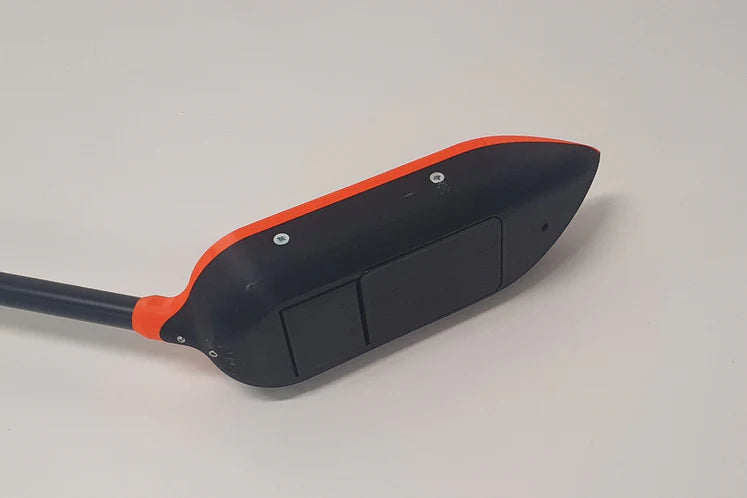

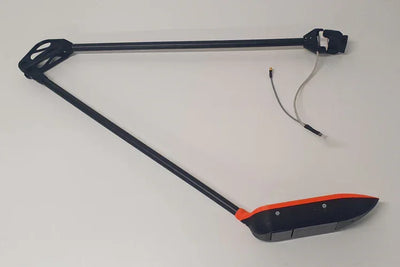

Surveyor 240-16 Multibeam Echo Sounder

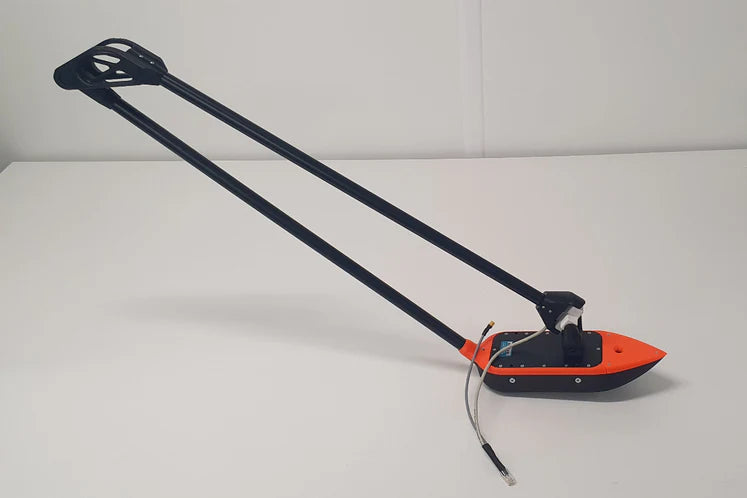

Foldable UAV mounting kit

Ethernet connector for SkyHub

Full System Integration available on request. Contact us for a quote including required accessories, software, and support.

Tags: multibeam, MBES, hydrographic, drone sonar, UAV echo sounder, bathymetry, 240kHz, angle of arrival, SkyHub compatible
