Cerulean Sonar Omnitrack USBL ROV/USV Positioning System

Overview

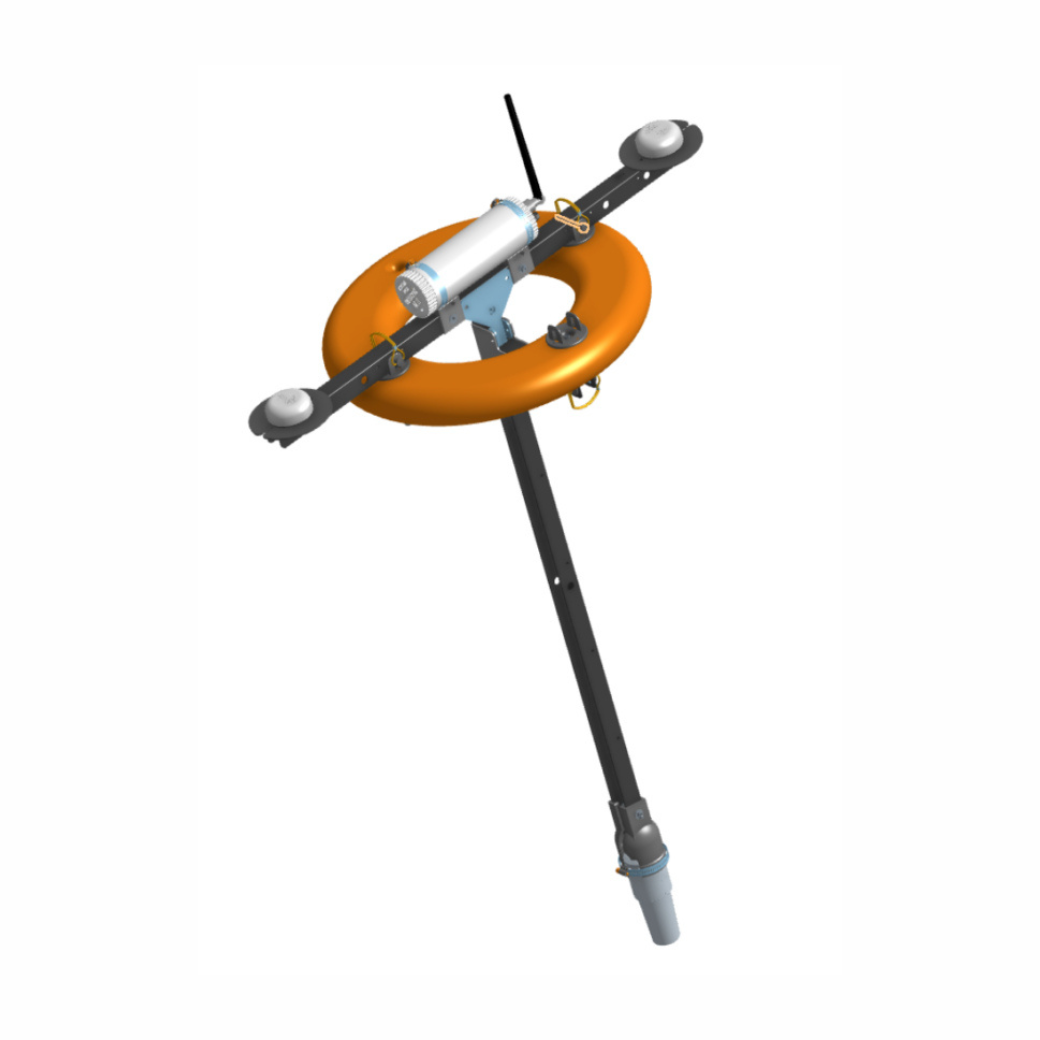

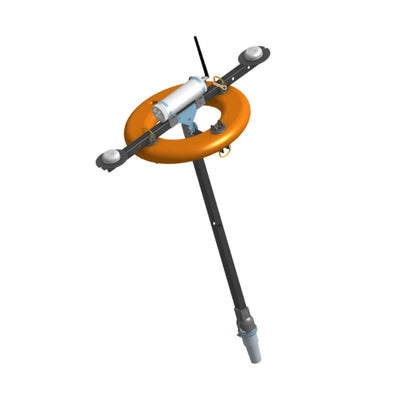

Cerulean Sonar Omnitrack ROV Positioning System The Omnitrack is Cerulean’s next-gen USBL-based underwater positioning solution, built around a ring-buoy surface module that houses a powerful ROVL Mk III transceiver, plus dual GNSS receivers—for rock-solid heading and global positioning. It’s optimized for easy integration with systems like BlueROV and ArduSub, but it’ll work stand-alone too.

Key Features

• Effortless Setup & Drift-Free Tracking

• The ROVL Mk III transceiver eliminates crystal calibration and mission-start distance sync—just power up and go.

• GNSS-Based Heading & Position

• Dual GNSS receivers override the need for magnetometers, avoiding all that magnetic interference hassle. If GNSS fails (e.g. under a roof or structure), the fallback magnetometer kicks in—so you’re never totally blind.

Spec

Precision You Can Count On

• Seamless Deployment Design

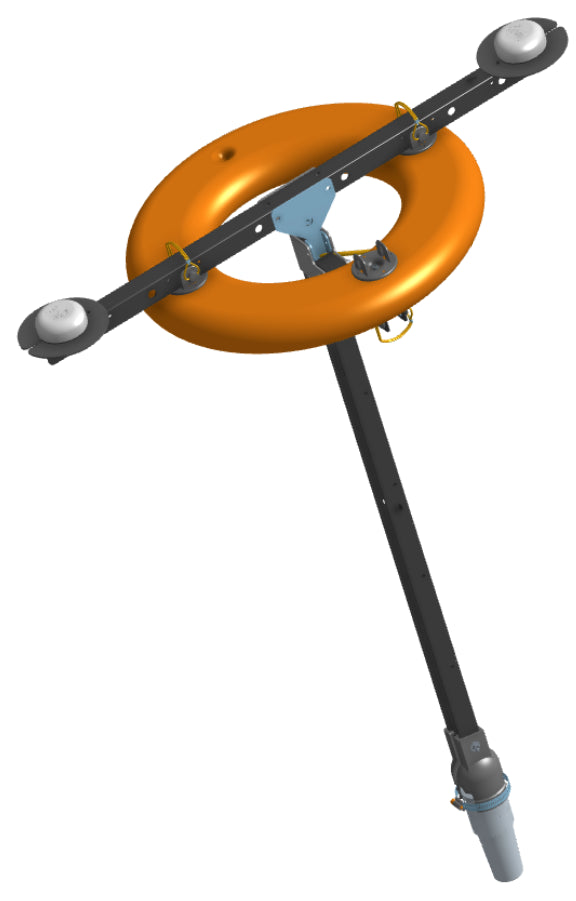

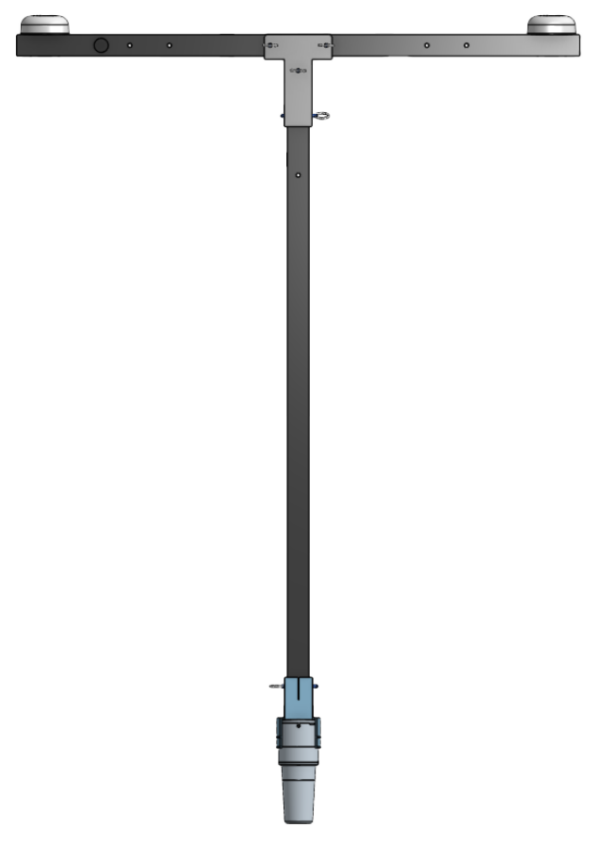

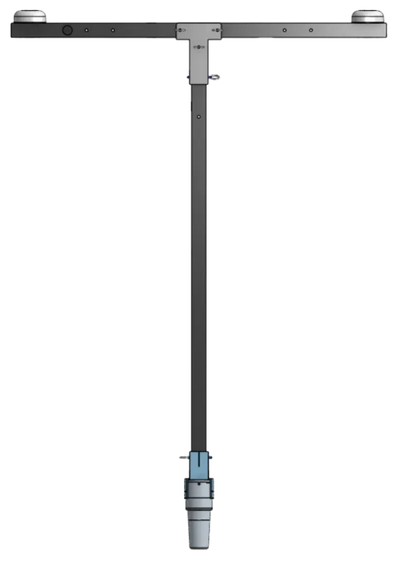

• Collapsible “T-frame” design with detachable flotation ring makes launching from boats or piers fast and painless. Ethernet and power run over a single CAT5+ cable.

• Built-In Integration

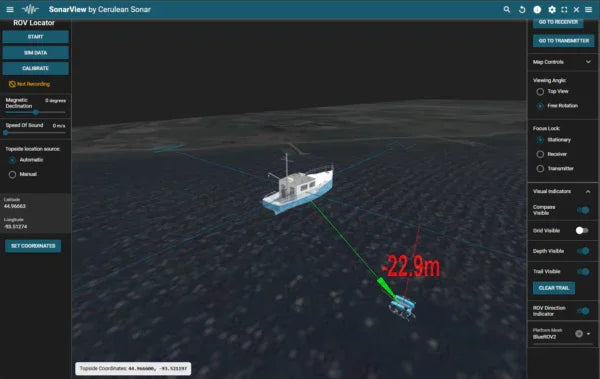

• Plug directly into BlueROV via mavlink2rest. When paired with Tracker-650 DVL and ArduSub, you get fused positioning with zero drift. Prefer your software? No problem—Cerulean’s SonarView will handle it fine in standalone mode.

Contents

Included in the Box

• Ring Buoy Frame with mounting hardware
• ROVL Mk III Surface Module (Ethernet-capable transceiver + transponder + ROV mount)
• Dual GNSS Compass Antennae
• Basic Maintenance Tool Kit
• One of two tether options:

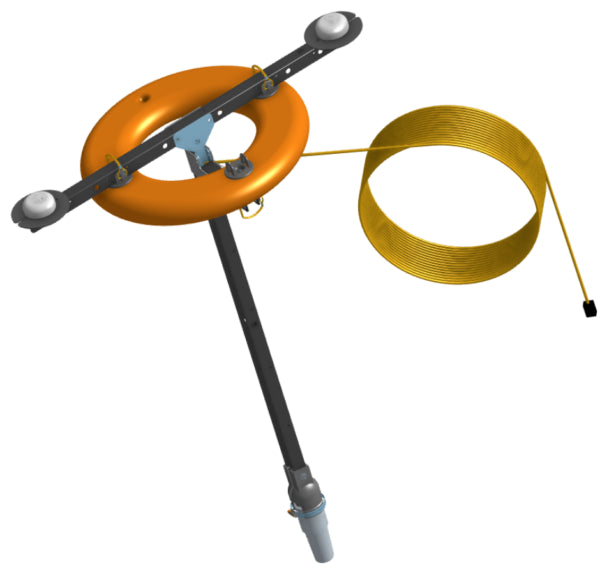

• Wired: 25 m Ethernet PoE tether + PoE Kit (power + data over CAT5)
• Wireless: Long-range Wi-Fi Module + Battery

Options

Variant Options

1. Wired Omnitrack

Includes a 25 m Power-Over-Ethernet tether and PoE kit—ideal for reliable, low-latency operation when tether length isn’t an issue.

2. Wireless Omnitrack

Comes with a long-range Wi-Fi module and battery—no tether required, gives more deployment flexibility, but brings potential for wireless interference or setup complexity.

Why It's a Smart Buy

• Zero calibration headaches: Skip the fiddly crystal syncing.
• Immune to magnet junk: Dual GNSS means no more magnetic heading errors.
• Modular & flexible: Choose wired or wireless deployment with ease.
• Easy to integrate—or go stand-alone: Works with BlueROV/ArduSub or Cerulean’s own tools.
• Sturdy & fairly rated: 300 m depth capability paired with accurate, drift-free tracking makes it a badass piece of kit.
