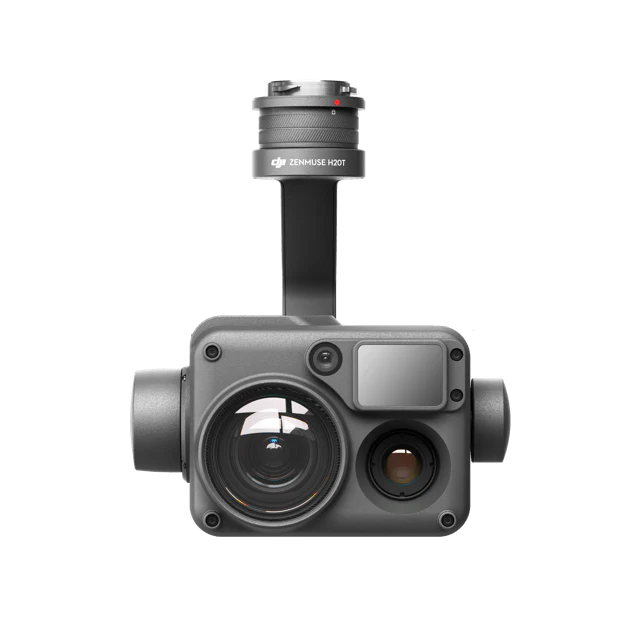

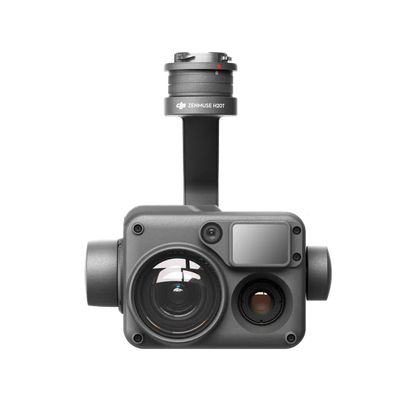

DJI Zenmuse H20T Thermal Camera

The DJI Zenmuse H20T is the flagship thermal and visual camera payload for the DJI Matrice 300/350 RTK series. With a powerful mix of sensors—including a 640x512px radiometric thermal camera, 20MP zoom camera, 12MP wide-angle camera, and laser rangefinder—the H20T delivers fast, high-accuracy data capture for critical missions.

Whether you’re inspecting infrastructure, locating heat signatures in emergency response, or surveying hazardous environments, the H20T simplifies complex workflows and delivers results in real time.

Ideal Applications:

• Infrastructure inspection (powerlines, solar farms, wind turbines)
• Emergency response (firefighting, SAR, police ops)
• Industrial site monitoring
• Wildlife monitoring and environmental survey
• Asset security & perimeter sweeps

Tech Specs:

Thermal Resolution: 640×512 @ 30Hz

Thermal Lens FOV: 40.6° × 32.5°

Thermal Accuracy: ±2°C or ±2%

Zoom Camera: 1/1.7” CMOS, 20MP, 23× hybrid optical zoom

Wide Camera: 1/2.3” CMOS, 12MP, 82.9° FOV

Laser Rangefinder Range: 3–1200 m (±1 m accuracy)

Weight: ~828g

Operating Temp: -20°C to 50°C

In the Box:

DJI Zenmuse H20T Camera

Gimbal Protector

Storage Case

Documentation

Compatible Platforms:

DJI Matrice 300 RTK

DJI Matrice 350 RTK
