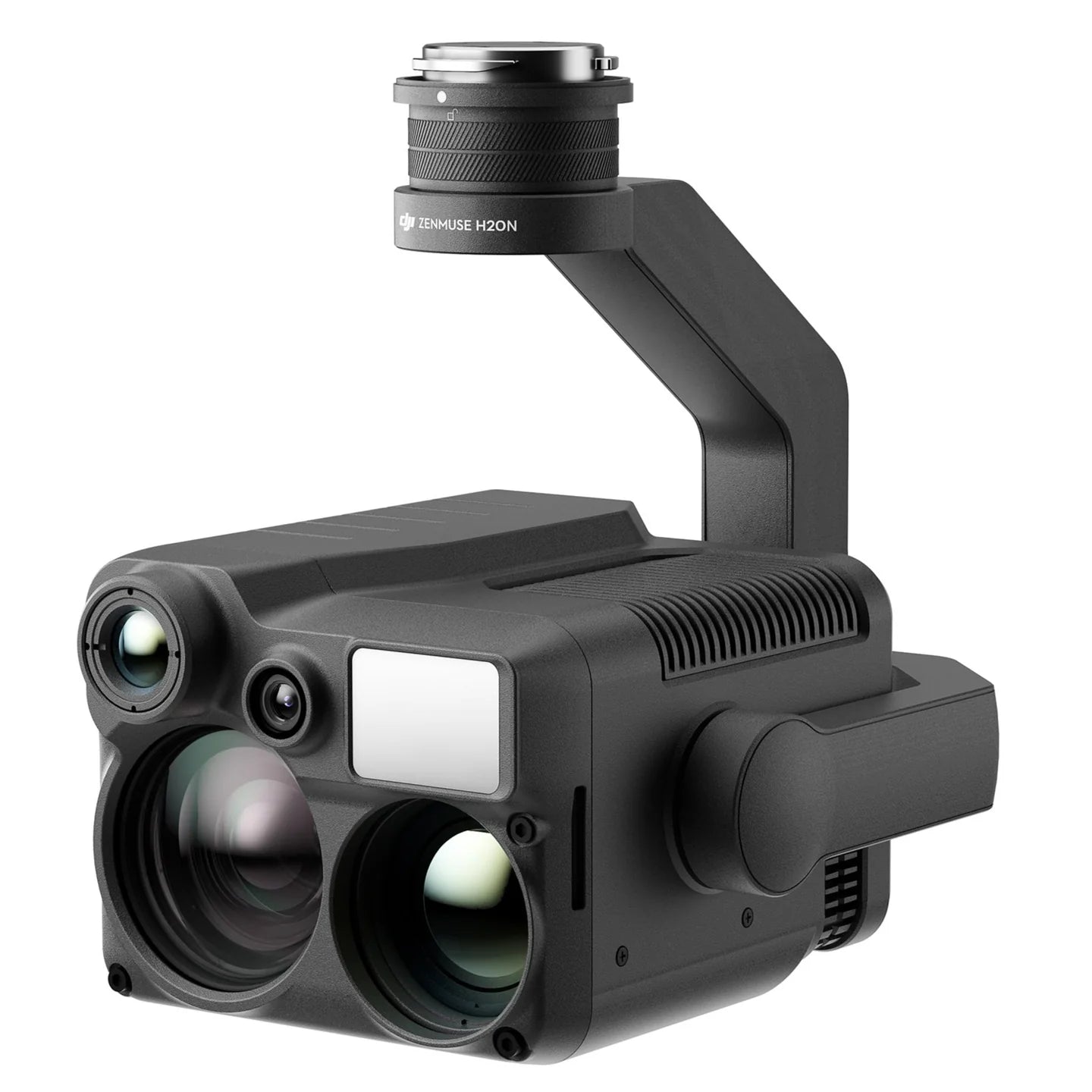

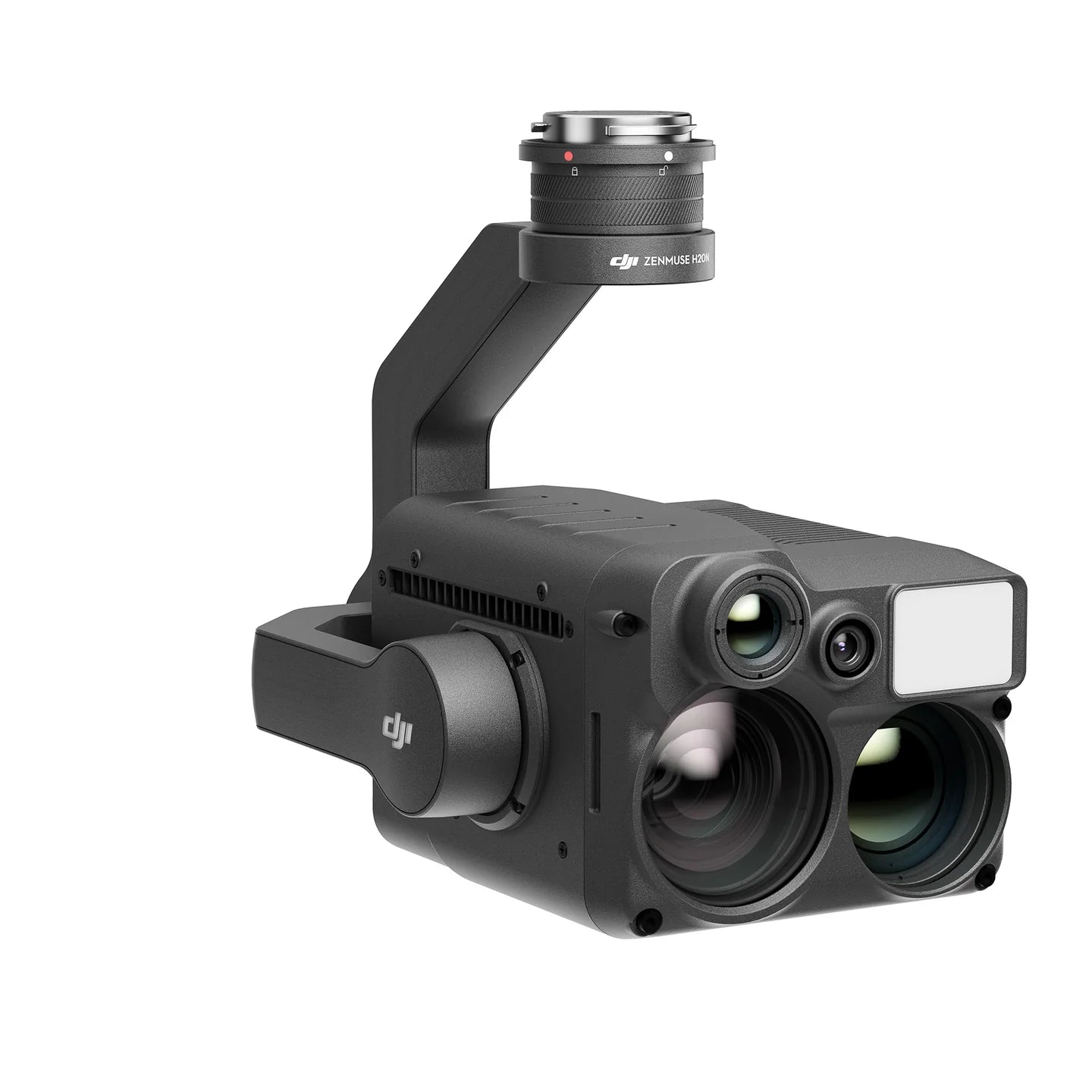

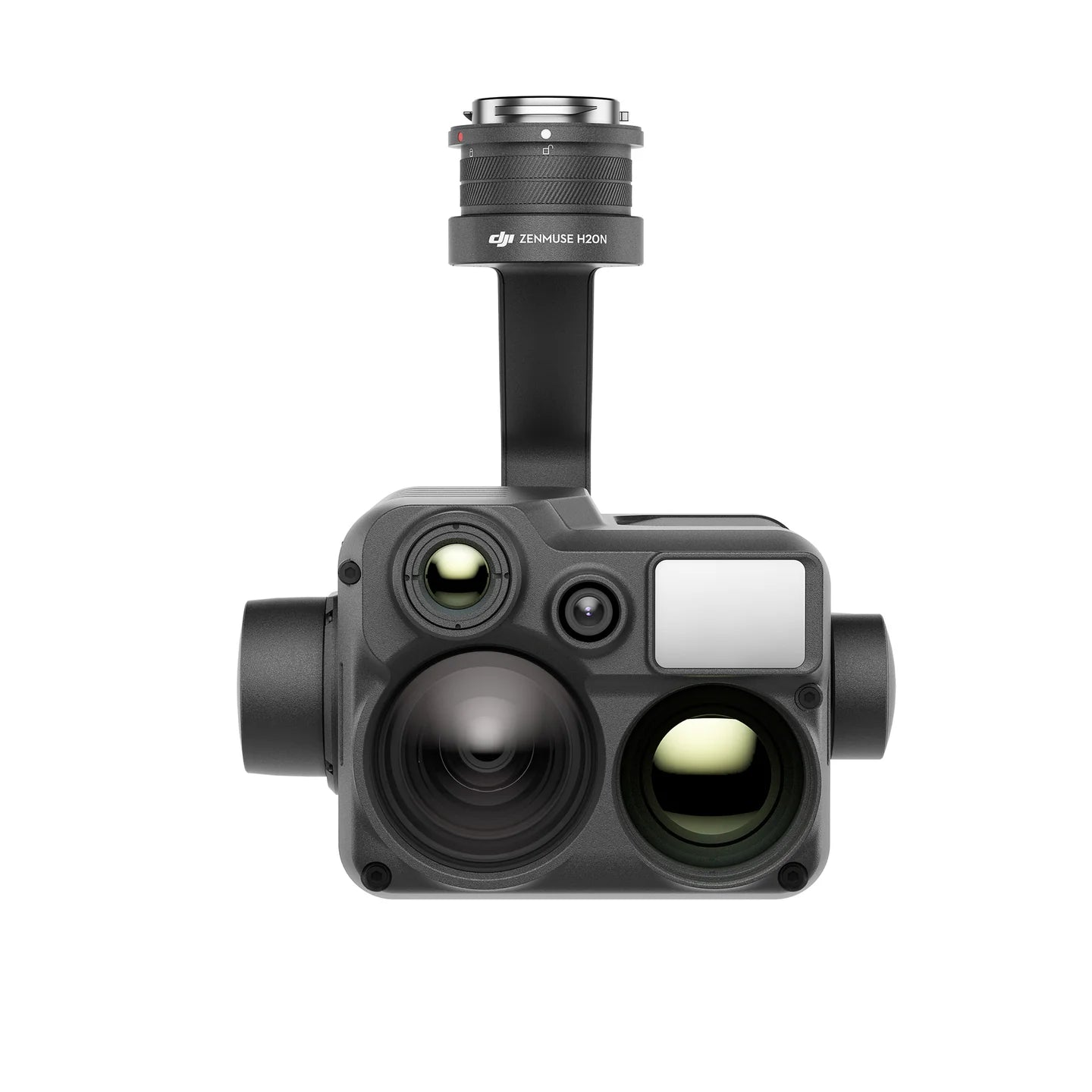

DJI Zenmuse H20N Camera

See in the Dark. Operate with Precision.
The DJI Zenmuse H20N is a powerful multi-sensor payload designed for the DJI Matrice 300 RTK, engineered specifically for nighttime operations, low-light missions, and thermal surveillance. With dual thermal sensors (640×512), starlight-enhanced zoom and wide cameras, and a laser rangefinder, the H20N delivers unmatched situational awareness day or night.

In the Box:

1x DJI Zenmuse H20N Payload

Lens Cleaning Cloth

Transport Case

Quick Start Guide

Compatibility:
✅ DJI Matrice 300 RTK
❌ Not compatible with DJI M30/M350 or non-Matrice platforms

Key Features:

Dual Thermal Cameras (Wide + Zoom)

• • Resolution: 640×512

  • Zoom: 2× optical, 8× digital

  • Temperature Measurement Accuracy: ±2°C or ±2%

  • Color palettes and isotherms for precision thermal readings

Starlight Night Vision Sensors

• • High-sensitivity zoom and wide cameras (optimized for low-light)

  • Ideal for nighttime SAR, surveillance, and inspections

  • 20× hybrid optical zoom / 128× max zoom

Laser Rangefinder

• • Range: 3–1200 m

  • Accuracy: ±(0.2 m + D×0.15%)

  • Pinpoint coordinates of subjects or hazards

Multiple Display Modes

• • Side-by-side thermal + visual

  • Picture-in-picture (PiP)

  • Sync zoom between thermal and optical views

Rugged & Mission-Ready

• • IP44-rated weather resistance

  • Operating Temperature: -20°C to 50°C

  • Fully compatible with DJI M300 RTK & DJI Pilot app
