TrueView 540 LiDAR

Name: TrueView 540 LiDAR
Brand: True View
SKU: FTV1001443A00T
Price: 55000.00 GBP
Availability: OutOfStock

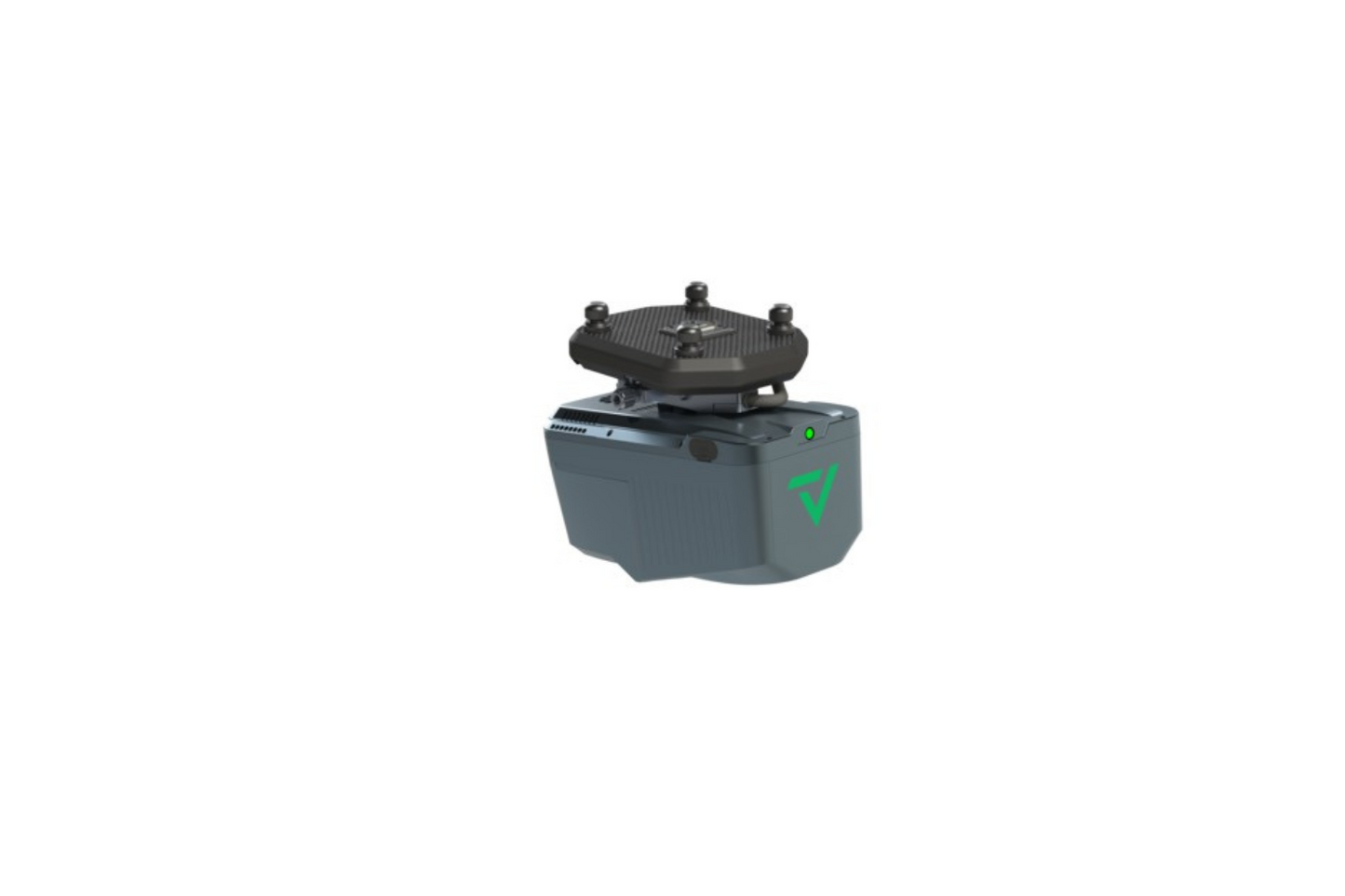

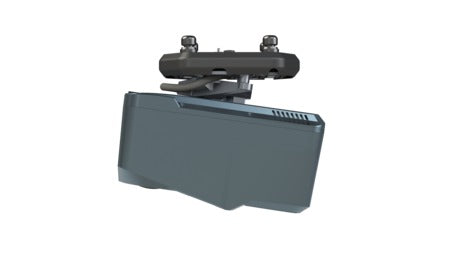

TrueView 540 LiDAR

£55,000.00

Sale Sold out

Taxes included.

Quantity

Free UK Delivery (Orders Over £100)
Price Gurantee (Beat Any Price)
UK Based (Approved Dealer)

The TrueView 540 Sets a New Standard for Accuracy and Quality in the 500 Series, Making High-end LiDAR More Accessible Than Ever.

GeoCue and CHC Navigation bring the most efficient and flexible high-end LiDAR to North America with the new TrueView 540. This next generation of LiDAR elevates our mid-range sensor line, offering enhanced density, improved accuracy, and precision, thereby producing a superior point cloud. The TrueView 540 provides users with a Engineering grade sensor powered by LP360 at a mid-range price, marking a significant advancement in LiDAR accessibility and performance.

What's included with TrueView 540:

TrueView 540 by CHCNAV LiDAR Payload

GNSS Antenna

Sensor Hardcase

Concentric Target

LP360 Drone Processing Software includes Strip Align, Photo, 3D Accuracy Add Ons

Support

1 year of hardware and software support

2 days of included training at our Huntsville, AL office

Find our more

Data Collection	LiDAR + Imagery
Laser Scanner	CHCNAV single beam laser scanner - 1535 nm wavelength
LiDAR Returns	Up to 8
LiDAR Range - Usable	400 m for targets with > 20% reflectivity
Positioning and Orientation System	CHC
Pulse Repetition Rate	Up to 500 kHz
Scanner Performance	Precision: 5 mm Accuracy: 15 mm
GNSS/INS Performance	Position: 10-20 mm Angle: 0.006° Roll/Pitch, 0.019° Heading
System Performance	The TV540 incorporates CHC's PPK navigation solution combined with the scanner's 5 mm repeated ranging accuracy, the system achieves exceptional absolute accuracy from 2 to 5 cm.
Camera Sensor	45 MP Global Shutter Full frame Camera
System Operation Temperature Range	-20° to 50° C
Mass	1.9 Kg for the payload only 2.15 Kg with accessories
