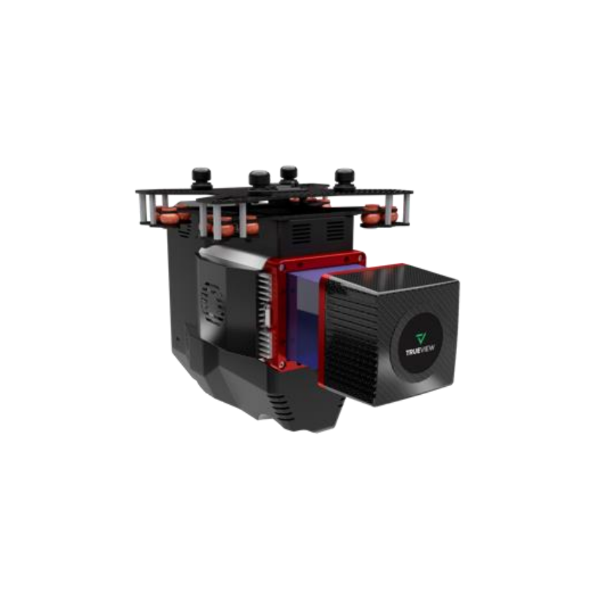

TrueView 655 LiDAR

Free UK Delivery (Orders Over £100)
Price Gurantee (Beat Any Price)
UK Based (Approved Dealer)

Spec Sensor : Riegl MiniVUX-3 UAV Lidar Range : 100 m with target >20% reflectivity Lidar Beams / Return : up to 5 by outgoing pulse Field of View : 120° Pulse repetition rate : up to 300000 pulse / s within active FOV Position and Orientation system : Applanix APX-15 Accuracy : Better than 3cm RMSE 3 x Camera Sensors : Sony 1” CMOS IMX-183 1’’ mechanical shutter, hardware mid-exposure pulse, 20MP, RGB

Whats in the box Sensor USB Control Box GNSS Antenna Sensor Hardcase Processing software Perpetual LP360 Drone / Strip Align / Photo Add-On Unlimited Single Base Processing Support The TrueView® 655/660 is GeoCue’s third generation RIEGL integration built with the miniVUX-3UAV and triple mapping cameras (right, left, nadir) for high accuracy mapping with excellent vegetation penetration and wire detection in a lightweight payload package. In addition, you can upgrade to high-resolution Sony RX1R2 or Sony a7r imaging camera for even higher performance.One year of hardware & software support included On-Line training Download Brochure Here

More Info

Delivery

Free UK Delivery Over £100

Finance

Finance available on this product - Simple and low cost. For more information Contact us
