Tersus

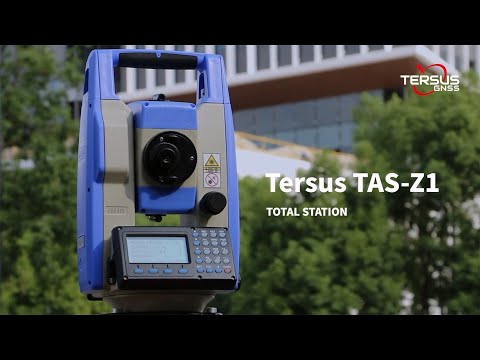

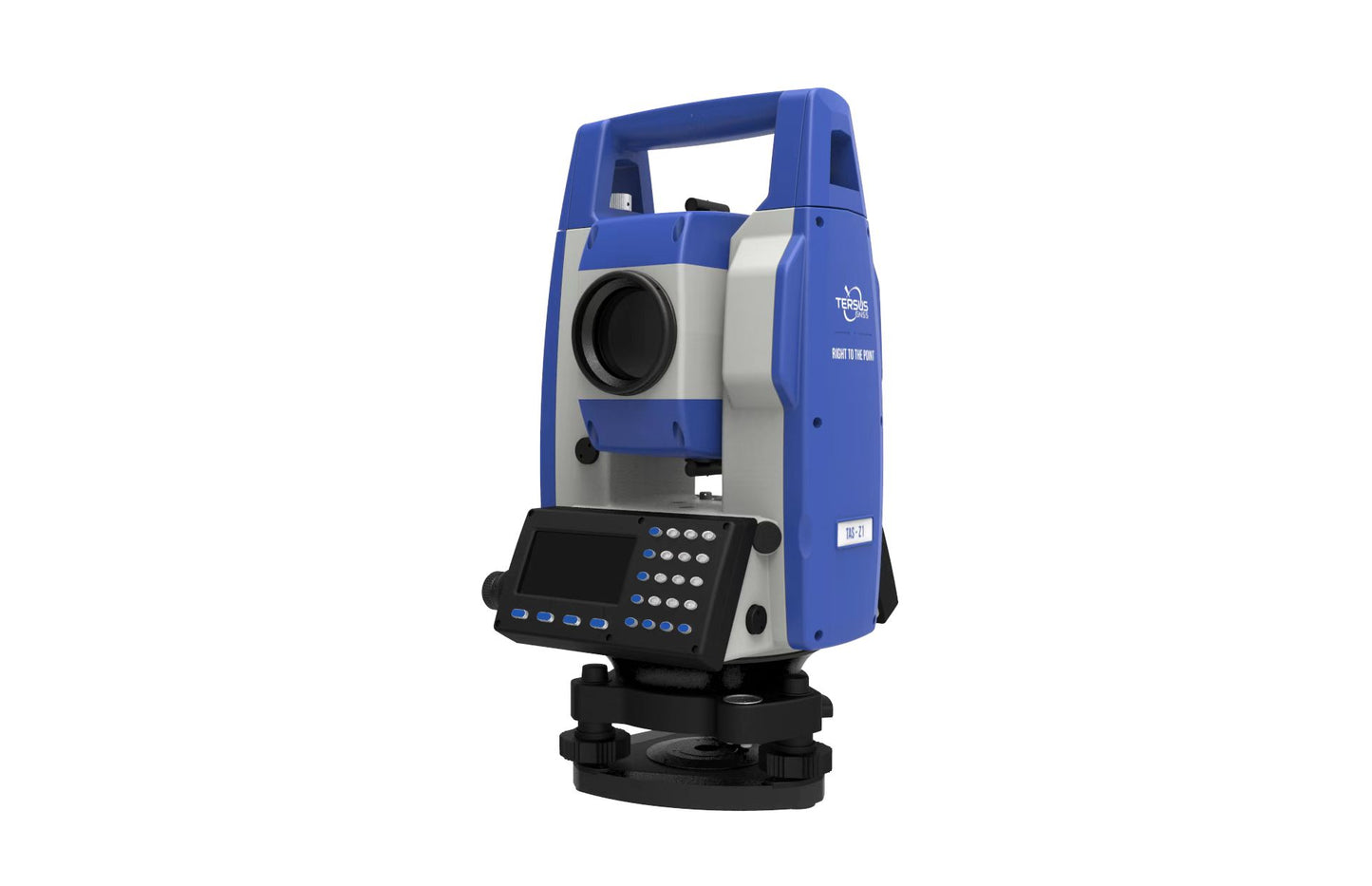

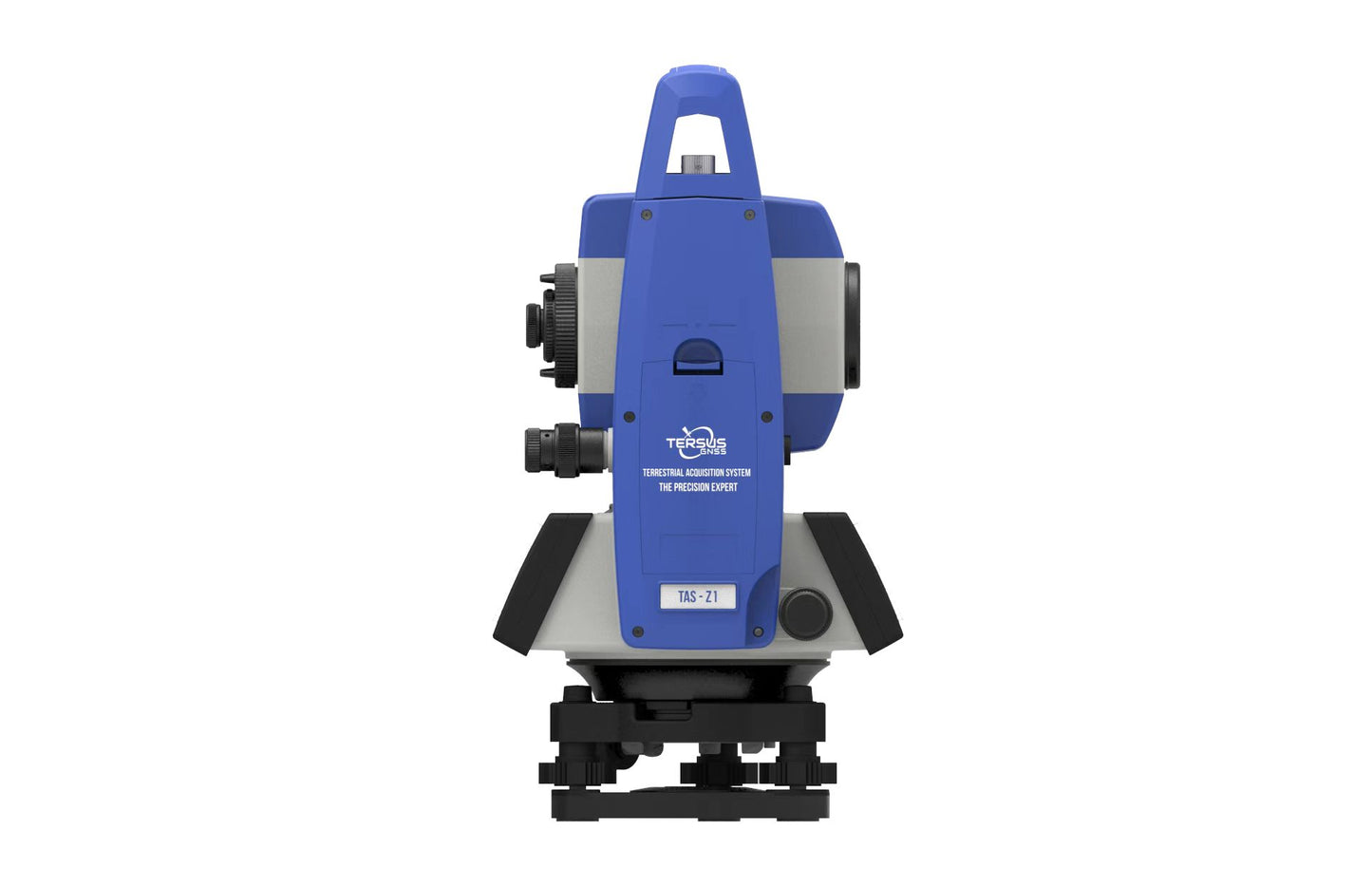

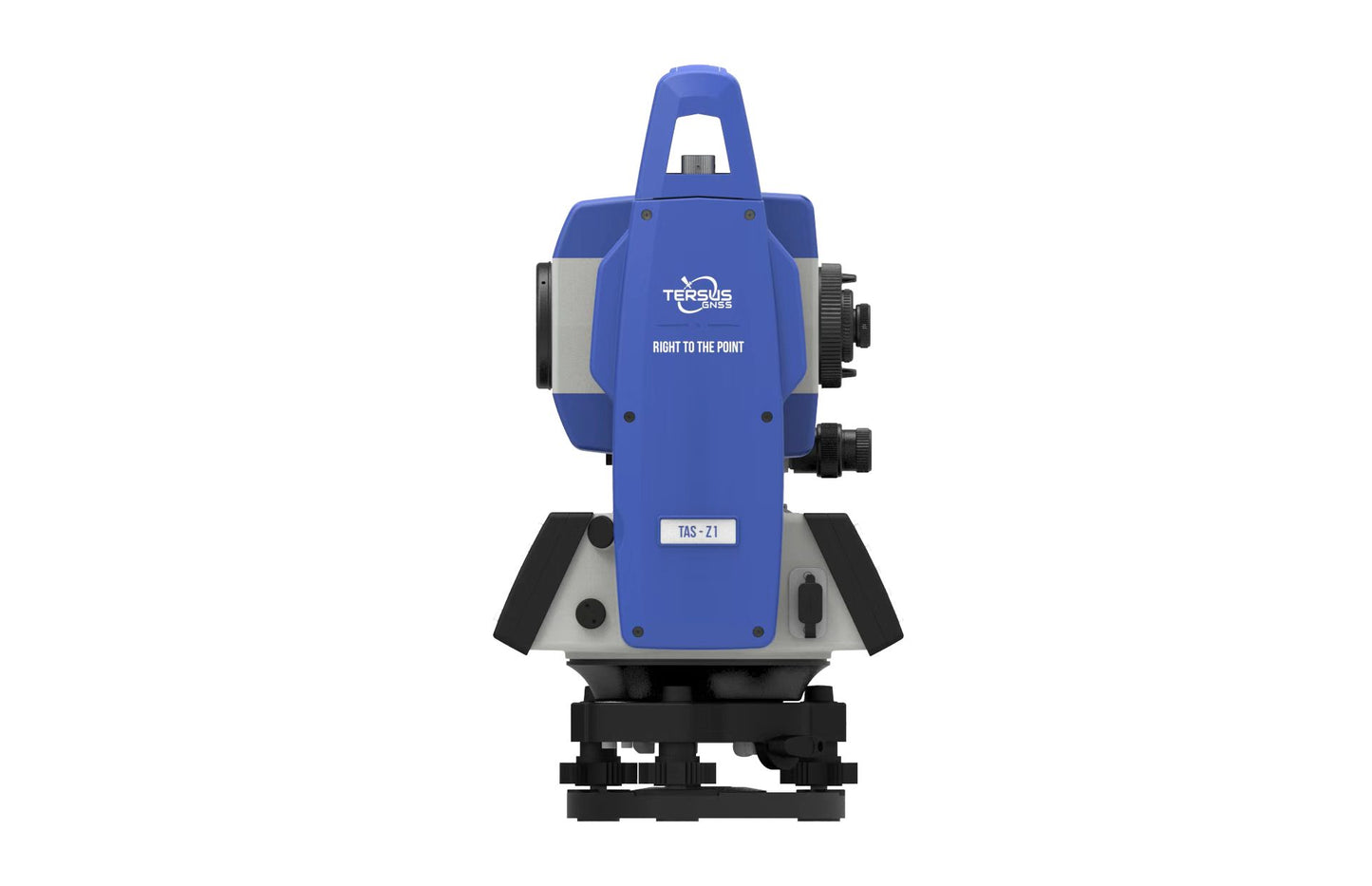

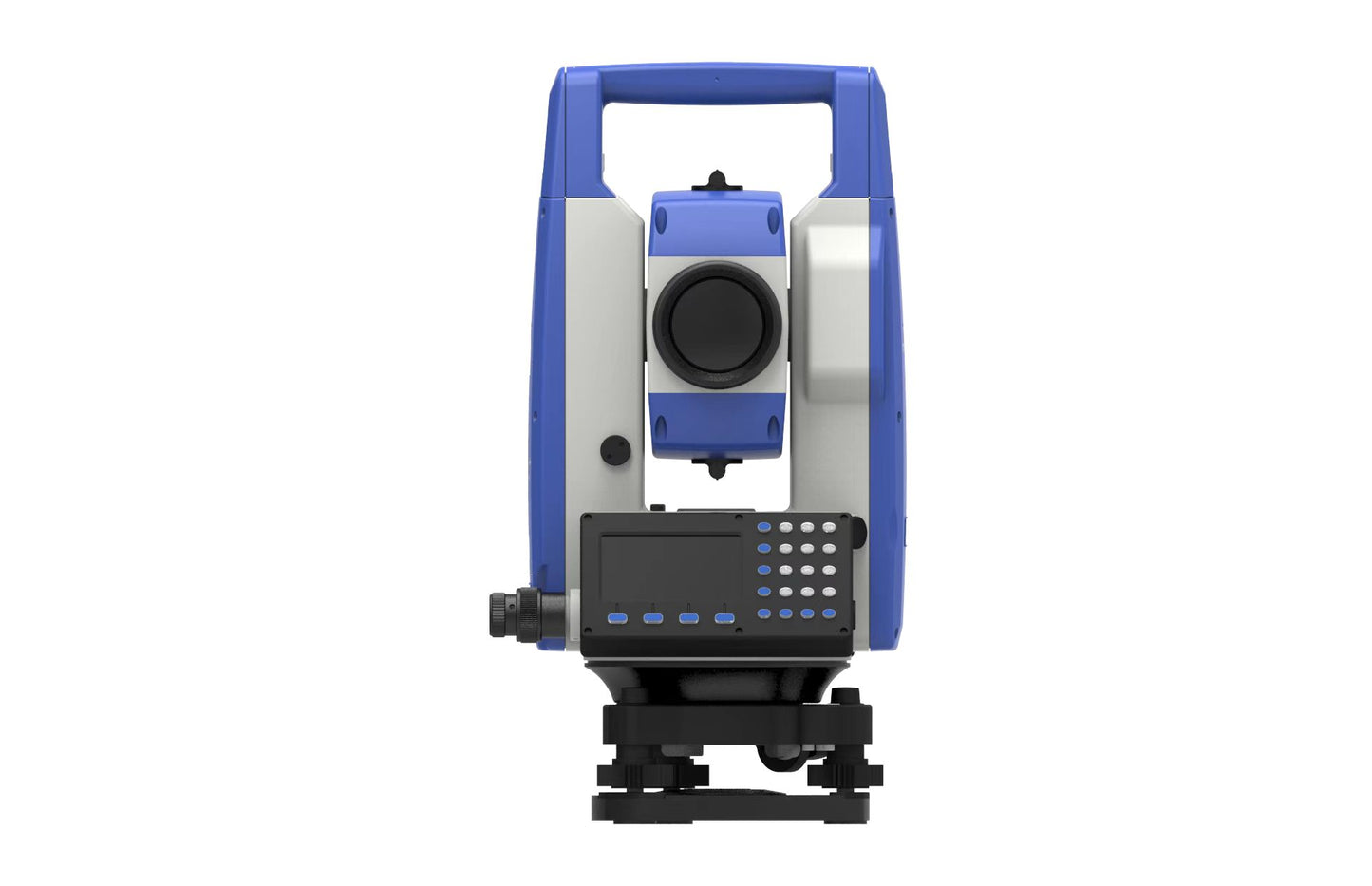

Tersus GNSS TAS-Z1 Total Station

Tersus GNSS TAS-Z1 Total Station

Regular price £2,350.00
Regular price Sale price £2,350.00
Sale Sold out
Taxes included.
  • Free UK Delivery (Orders Over £100)
  • Price Gurantee (Beat Any Price)
  • UK Based (Approved Dealer)

Tersus GNSS TAS-Z1 Total Station adopts a new ranging system, with a longer measurement range and faster speed. Laser pointing technology on the same vertical axis provides more accurate alignment. Full number + letter keyboard for faster input. The latest circuit design reduces battery power consumption. A brand new ranging circuit system adopts an ultra-low noise broadband amplifier with independent intellectual property rights, greatly improving measurement accuracy. Dual-face keyboards with buttons illumination to minimize mistakes provide optimum viewing and convenience under any environmental conditions.

Tersus GNSS TAS-Z1 Total Station Key Features

Reduce noise interference: The noise phase analysis method is used to greatly reduce the interference of various noises on the phase measurement results under bad weather and small-signal conditions
Shorter precision measurement ruler: 150MHz modulation frequency, shorter precision measurement ruler, and higher accuracy at the same signal-to-noise ratio and phase discrimination resolution
Higher accuracy: The new optical path design fully isolates the transmitting and receiving optical signals, ensuring high accuracy
Convenient data processing: Support EXCEL table data and DAT data import and export
Intuitive data display: It can display 19-bit code and the road stakeout point information is clear at a glance
Work faster: Add known point files, all projects can call known point coordinates

Find out more

Rental Plans Also Available - Find out more

More Info

Performance Distance Measurement:-Range: Single prism: 5000m Reflective sheet (60mm ×60mm): 1000m Non-prism(1): 1000m-Accuracy: Single prism: 2mm+2ppm Reflective sheet (60mm ×60mm): 2mm+2ppm Non-prism: 3mm+2ppm-Measuring Time:
Prism fine: 0.3s Prism tracking: 0.1s Non-prism: 0.3~3s
