Tersus

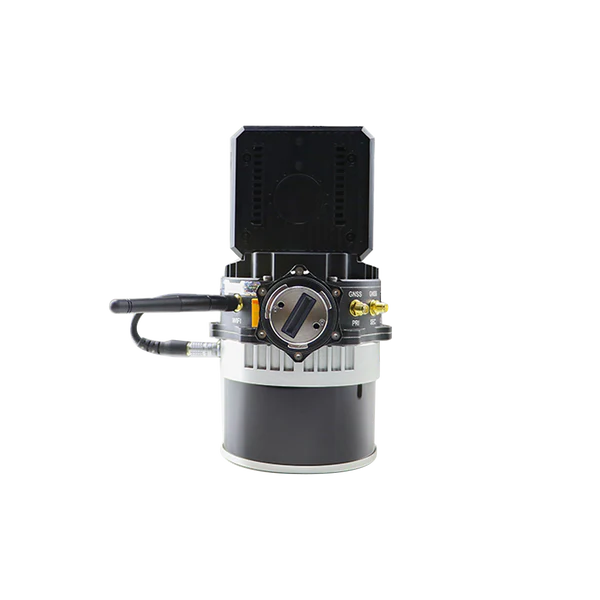

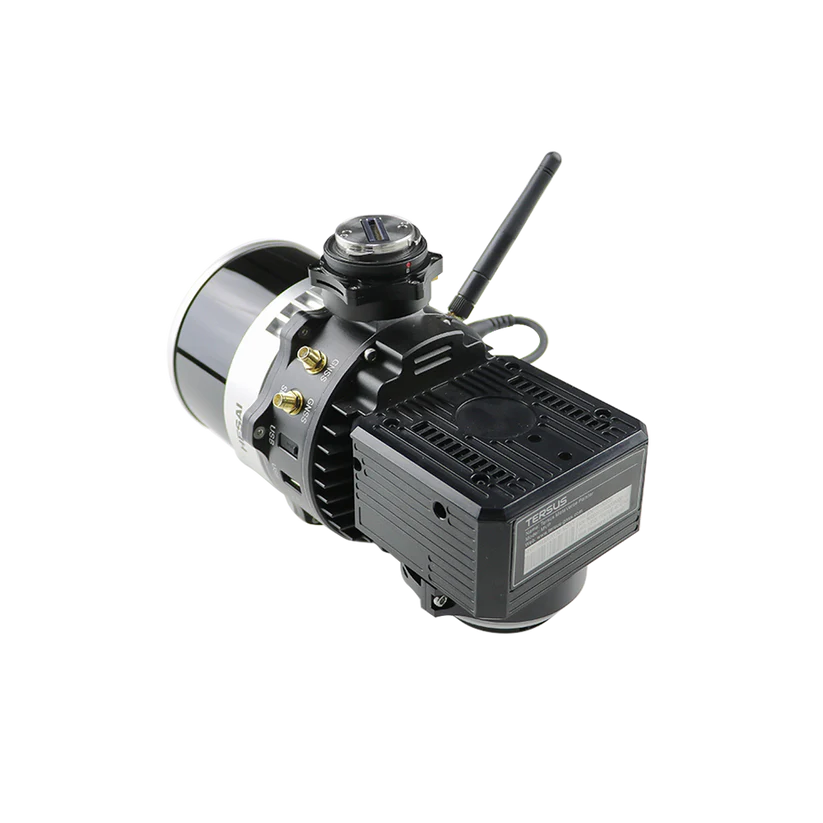

Tersus MetaVerse Painter (MVP)

Tersus MetaVerse Painter (MVP)

Regular price £40,000.00
Regular price Sale price £40,000.00
Sale Sold out
Taxes included.
Model
  • Free UK Delivery (Orders Over £100)
  • Price Gurantee (Beat Any Price)
  • UK Based (Approved Dealer)

The Tersus MetaVerse Painter (Tersus MVP for short) was designed as a cost-effective solution for extremely accurate mobile mapping applications. It utilizes a high-performance GNSS Aided Inertial Navigation System (INS) with Tersus patented RTK/PPK single or dual antenna GNSS receiver, integrated with a Linux-based processing platform

System Platform

Weight 1.17kg (without camera)
  1.70kg (with camera)
Power Supply / Voltage DC 9 ~ 36 V
Power Consumption 3) 17 W without camera, 24W with SONY camera
Operating Temperature -10℃ ~ +40℃
Storage Temperature -40℃ ~ +85℃
Data Storage 256GB USB, up to 1TB

Scanner Performance (based on Hesai Pandar XT32)

Laser Class Class 1 Eye Safe
Wavelength 905 nm
Operating Principle TOF 1)
Measurement Range 0.05 to 120 m
Field of View (Horizontal) 360°
Horizontal Resolution 0.09°(5Hz)
  0.18°(10Hz)
  0.36°(20Hz)
Field of View (Vertical) 31°(-16°~ +15°)
Vertical Resolution
Frame Rate 5 Hz, 10 Hz, 20 Hz
Returns supported Single Return (Last, Strongest, First)
  Dual Returns
Max. Effective Measurement Rate 640,000 pts/ sec (single return)
1,280,000 pts/ sec (dual returns)
LiDAR Accuracy/ Precision 10 mm / 5mm
Point Cloud Precision 3-5cm  (dependent  on  LiDAR,  taken  on  the  same  target  @  50  m
AGL)
Note: 1) Distance measurement: Time of Flight (TOF), distance to the object can be measured by calculating
the time between laser emission and receipt.

GNSS / IMU Performance

Positioning Accuracy (RMS) 0.5cm+1ppm (PPK)
  1cm+1ppm (RTK)
GNSS data rate Up to 100Hz
IMU data rate Up to 2000Hz
Roll & Pitch Accuracy <0.01°Pitch & Roll
Heading Accuracy <0.05°Heading

Optional Accessories

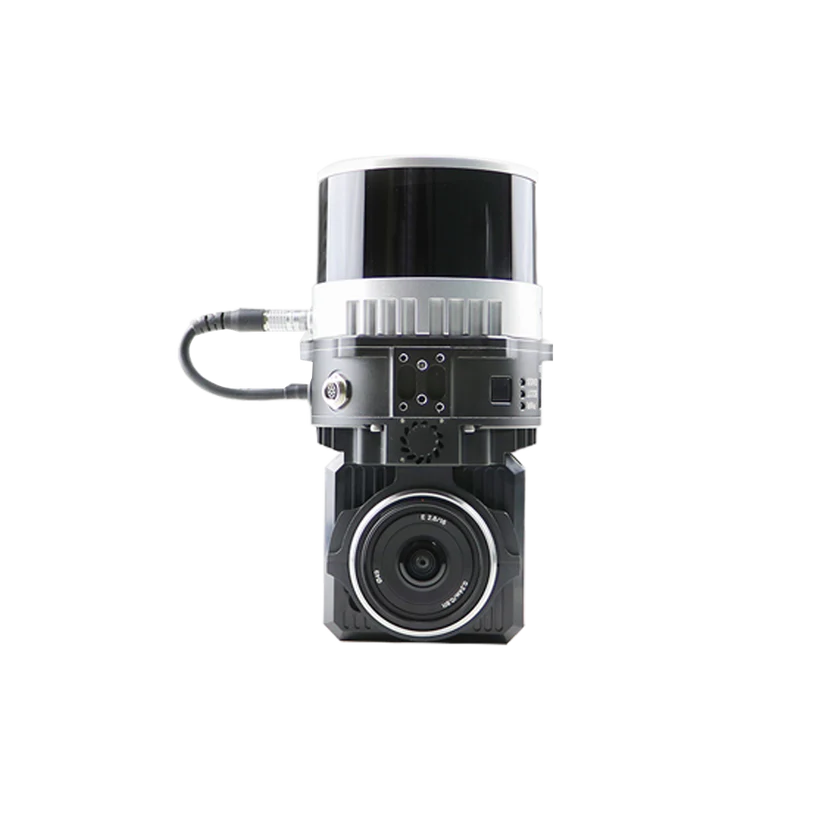

Camera RGB Camera
  Thermal Camera
DJI Skyport Adapter
Vibration Isolator

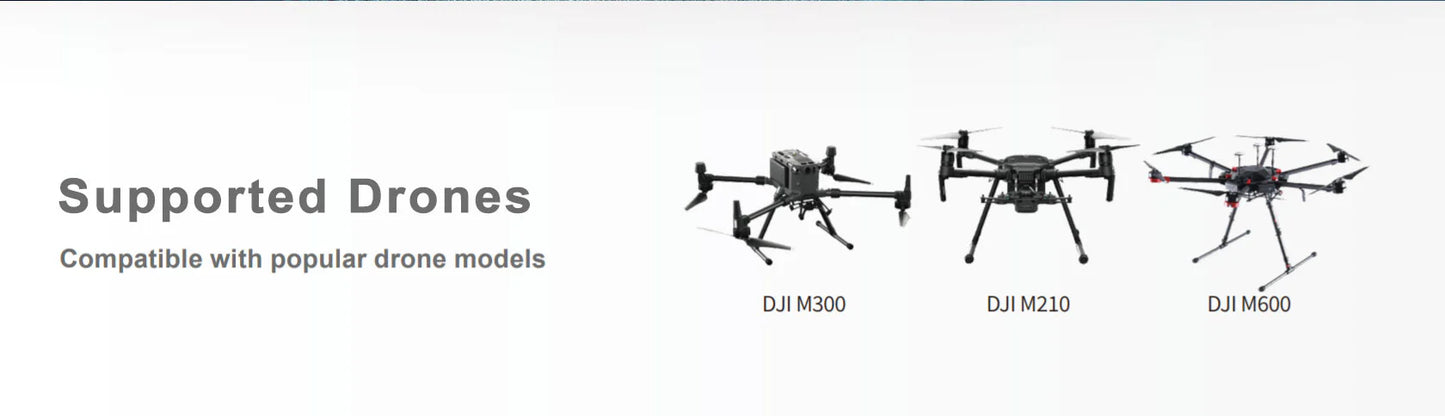

Antenna Mounts Aerial Mount for drone
  Vehicle Mount (Single/Dual ANT)

Find out more

Rental Plans Also Available - Find out more

More Info

MVP is a mobile mapping system that can rapidly capture rich geospatial data while mounted on mobile platforms. As a cost-effective and high-precision mobile mapping application, it utilizes the high-performance GNSS-aided inertial navigation system (INS) and Tersus's patented GNSS receiver and supports RTK/PPK processing. You can choose between two models available, both of which can meet different requirements in the field.

Delivery

Free UK Delivery Over £100

Finance

Finance available on this product - Simple and low cost. For more information Contact us
