Tersus GNSS LUKA GNSS Receiver

Tersus GNSS LUKA GNSS Receiver

Enquire for Prices and Availability - Secure Yours Now

Free UK Delivery (Orders Over £100)
Price Checked (Best Price Guarantee)
UK Based (Approved Dealer)

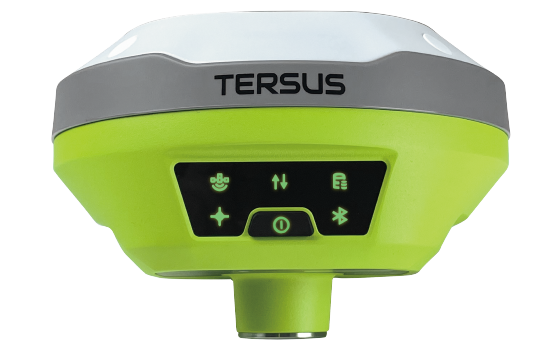

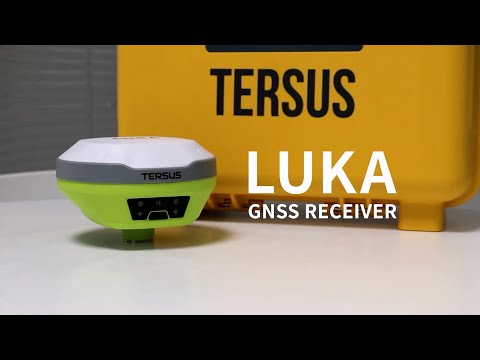

LUKA GNSS Receiver – precision meets portability 🧭

🔧 Why You'll Love It

Upgrade your surveying game with the LUKA GNSS Receiver—designed for professionals who refuse to compromise on accuracy or field efficiency.

Ultra‑compact & lightweight: At just 132 × 68 mm and ~827 g, LUKA fits in your hand—no more lugging around heavy gear
Centimetre‑level accuracy: Achieves horizontal RTK precision of 8 mm + 1 ppm, and even down to 2.5 mm + 0.1 ppm static

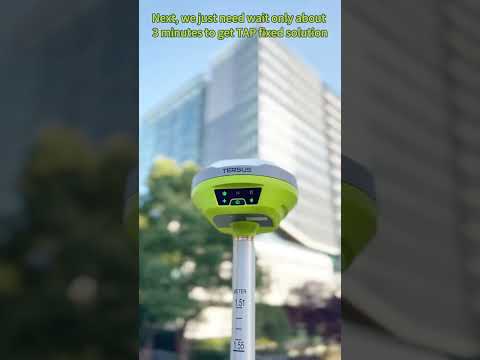

Fixes in seconds: With 1568‑channel multi‑constellation tracking, it locks onto your position fast—with TTFF as quick as 4 s
Calibration‑free tilt compensation: Survey at any pole angle—even up to 110°—without manual levelling or magnetic interference messing up your readings.

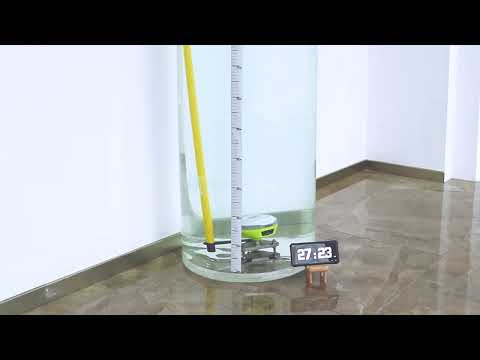

Rugged & reliable: IP68-rated, MIL‑STD‑810G tested, and built to survive 2 m drops onto concrete—your go-to tool for tough environments
All‑day battery: A 7000 mAh internal cell gives you up to 19 hours of surveying time—plus fast 3‑hr charging and external power bank support
Flexible connectivity: Built-in UHF radio (410–470 MHz), 4G LTE, Wi‑Fi, Bluetooth, NFC, USB‑C—all the links you need for correction data and device pairing

Variants

🏗 Variants for Every Need

Choose what suits your workflow:

Ultimate: Includes IMU for tilt compensation + UHF radio
Ultimate w/o UHF: IMU, but without UHF
Basic: UHF radio standard, no IMU
Basic w/o UHF: Core RTK capability

All variants support full multi‑frequency tracking (GPS L1/L2/L5, BeiDou, GLONASS, Galileo, QZSS) with robust SBAS coverage.

🛠 Perfectly Paired with NUWA & TC80

Link LUKA to the TC80 controller running the free NUWA field software:

Full DWG/DXF/KML integration for CAD, road stakeout, AR‑guided staking, measurement graphics, cloud sync
Roam seamlessly between online/offline maps
Sync data to Tersus Geo Office 2 (TGO2) for post‑processing, road design, PPK, and topographic workflows

Spec

📊 Tech Specs at a Glance

Feature	Spec
GNSS	1568‑channel; GPS/Beidou/GLONASS/Galileo/QZSS; SBAS
Accuracy	RTK: 8 mm + 1 ppm (H), 15 mm + 1 ppm (V)
Tilt Accuracy	≤2 cm up to 60°, RMS ≤3.7 cm at 110°
Battery	7000 mAh, 19 hr runtime
Connectivity	UHF 410‑470 MHz, LTE bands 1/3/7/8/20/28A/38/40/41, Wi‑Fi b/g/n, Bluetooth 4.1, NFC
Durability	IP68, –40 °C to +70 °C, 2 m drop, MIL‑STD‑810G
Storage	8 GB internal
Dimensions/Weight	132 × 68 mm, ~827 g

🌍 Ideal For

Land & topographic surveying
Construction and civil engineering layout
Precision agriculture and environmental mapping
UAV & mobile GIS base positioning
Any task where portability, ruggedness, and accuracy count

💡 Bottom Line

The LUKA GNSS Receiver gives you next‑gen tilt‑compensated RTK accuracy in a compact, all‑weather package that lasts all day. Stop fussing with levelling—focus on getting the job done.

Ready to elevate your fieldwork? Talk to AlphaGeo for pricing, bundle options (including TC80 & NUWA), and local deployment support.
