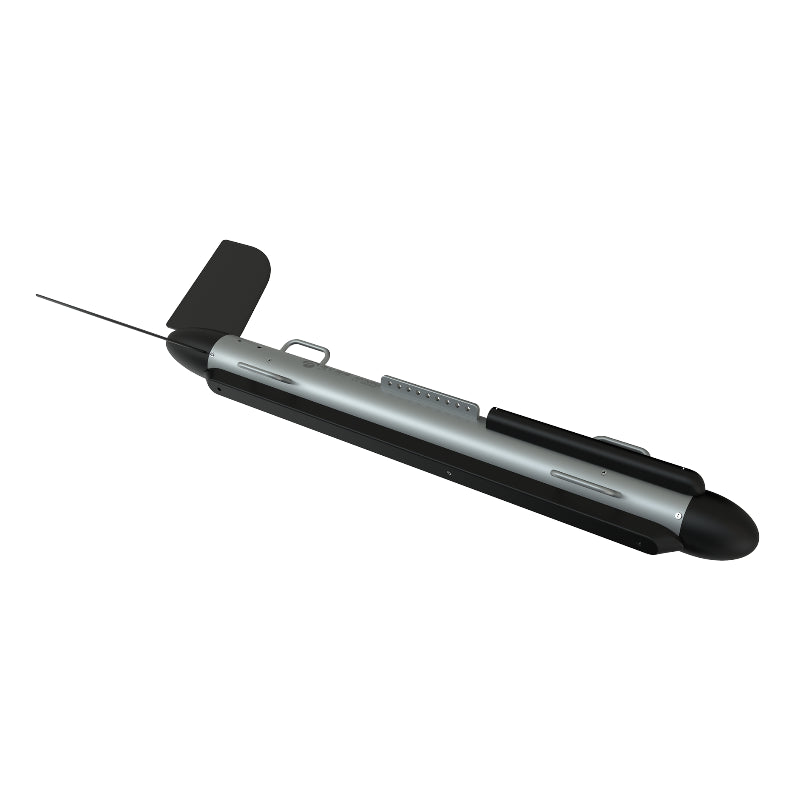

Hydro-Tech SS3060 Dual Frequency Side Scan Sonar Tow fish, 300/600kHz

Hydro-Tech SS3060 Dual Frequency Side Scan Sonar Tow fish, 300/600kHz

Available to Order - Enquire Now

  • Free UK Delivery (Orders Over £100)
  • Price Guarantee (Beat Any Price)
  • UK Based (Approved Dealer)
Hydro-Tech SS3060 Dual Frequency Side Scan Sonar Tow fish, 300/600kHz

High Resolution: With 60kHz bandwidth signal, SS3060 adopt pulse compression or very short pulse transmission to improve the ranging resolution in the vertical track direction from the system level and so improve image resolution.

Dual Frequency working at the same time: 300kHz is for bigger range and 600kHz for high resolution, they would not interfere with each other.

Clear Near or Far: With variable aperture dynamic focusing technology to enhance image field depth and effectivly resolve side scan sonar traditional near field blur problem, SS3060 scanning image is very clear no matter near field or far away.

Delicate image: innovative image equalization technology is adopted to enhance image contrast and present the terrain background image in high-definition.

Diversified Applications: Cable and pipeline survey, hydrological survey, archaeological survey, ocean energy and mining resources survey, environmental protection investigation and port safety, etc

Specifications

Model ES900M ES900 ES450 ES4590
Working Frequency 900kHz 900kHz 450kHz 450/900kHz
Across-track Beam Width 0.4° 0.2° 0.3° 0.2°
Along-track Beam Width 40° 50° 50° 50°
Max Slant Range 75m 75m 150m 150m / 75m
Along Track Resolution 0.14m@20m



0.35m@50m

0.07m@20m



0.17m@50m

0.26m@75m

0.26m@50m



0.52m@100m

0.78m@150m

450kHz



0.17m@50m

0.34m@100m

0.51m@150m

900kHz

0.07m@20m

0.17m@50m

0.26m@75m

Across Track Resolution 1cm 1cm 1.25cm 2cm@450kHz



1cm@900kHz

Max Working Depth 1000m
