£17,970.00
  • Lightweight, drone-mounted GPR for high-resolution subsurface profiling and object detection.
  • New Generation high-speed controller with real-time sampling (RTS) for clean, high SNR data.
  • Fully compatible with DJI M300/M350 RTK for snow, ice, and shallow subsurface surveys.
Package
Package: Payload Only
Need Support Financing The Product?

Simple and low cost finance available on this product. For more information click here.

Looking For A Free Demo?

If your seeking a free demo of the product before you buy please click here.

Want To Rent This Product?

Rental plans are also available for this product. To learn more click here.

Free UK Delivery - Orders Over £100

Enjoy our high-quality products and get free UK delivery on orders over £100. For smaller orders, it's just an £8 flat rate.

Price Checked - Best Price Guarantee

Enjoy the best prices guaranteed on all our products. Shop confidently knowing you're getting unbeatable deals.

UK Based - Approved Dealer

Discover a wide selection of premium UK-based products from our approved dealership. Trust in over a decade of expertise.

Product details

Product Info

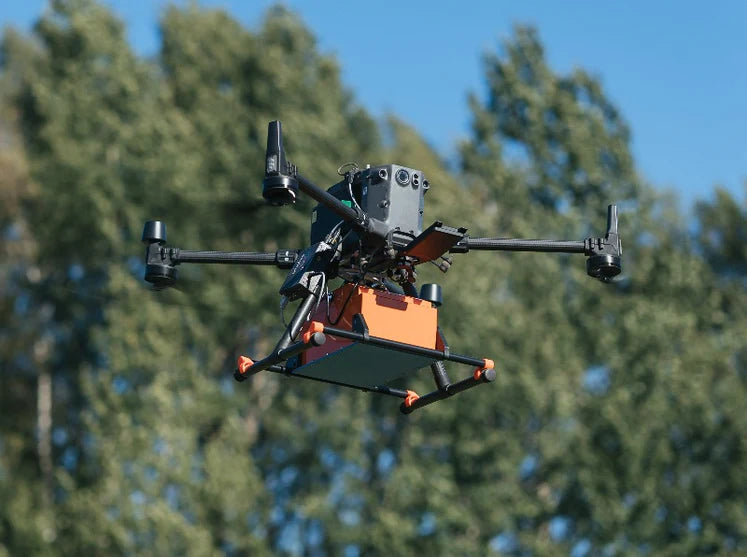

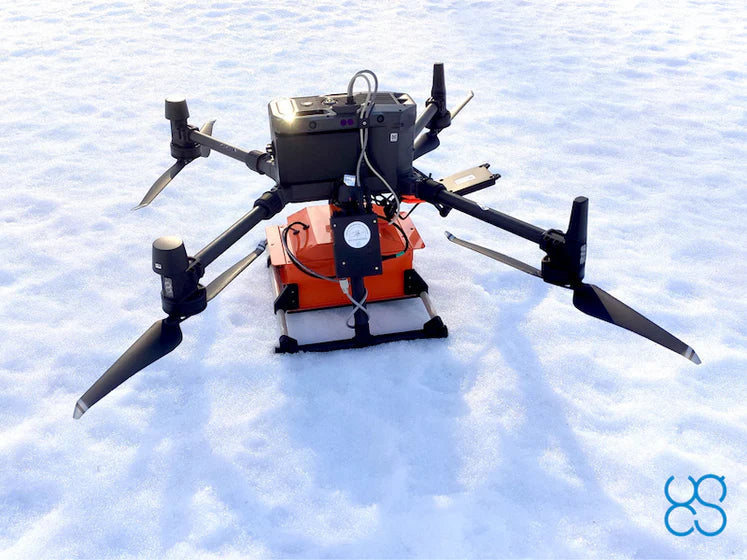

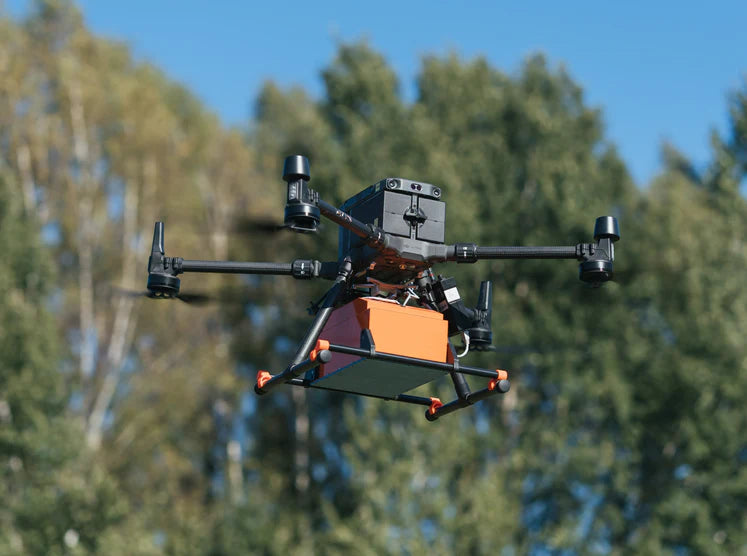

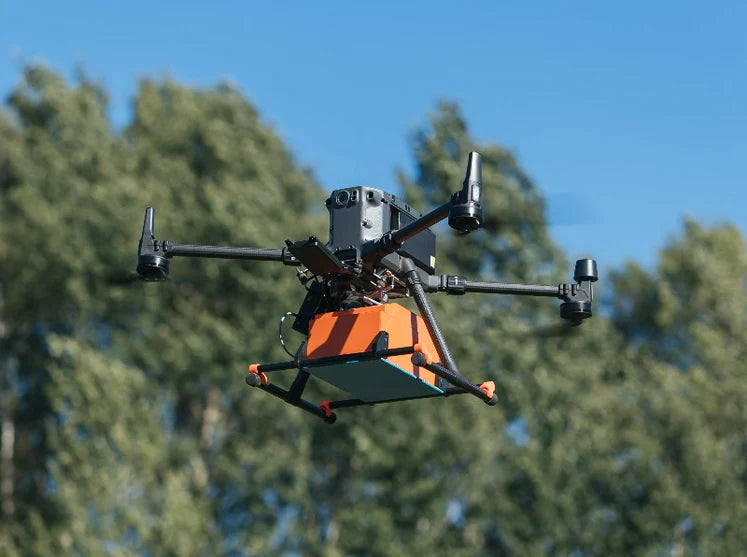

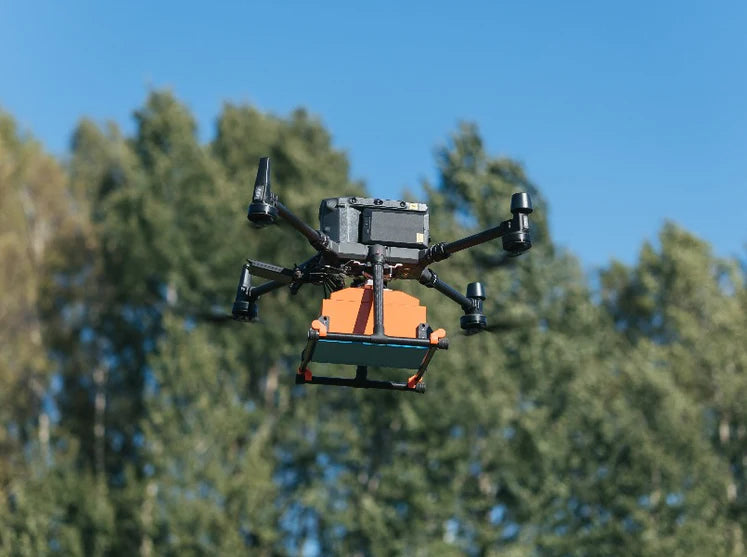

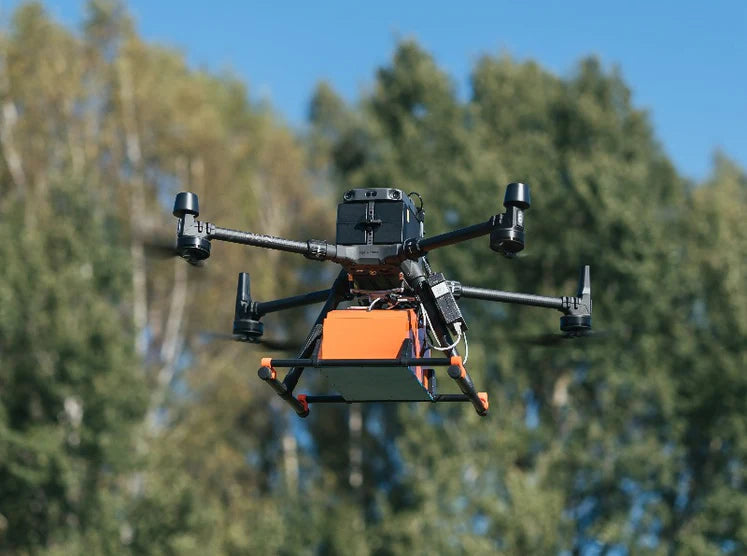

The Radar Systems Zond Aero 1000 “NG” is a lightweight, next-generation ground-penetrating radar (GPR) system designed specifically for UAV integration, ideal for applications such as snow and ice profiling, buried object detection, and environmental subsurface mapping.

The “NG” (New Generation) model introduces a high-speed real-time sampling controller, delivering data with exceptionally low noise and high resolution. Operating at a centre frequency of 1000 MHz, it provides detailed near-surface imaging to depths of several meters, making it highly effective for environmental and geotechnical applications.

When paired with SPH Engineering’s SkyHub onboard computer and UgCS EXPERT software, the system enables fully automated terrain-following GPR missions with synchronized data collection and visualization. The Zond Aero 1000 NG can also be used in terrestrial mode using its integrated Li-ion power source and Wi-Fi connectivity.

Payload-Only Kit Includes:

Zond Aero 1000 NG GPR system (1000 MHz centre frequency)
Prism 2 Data Acquisition & Processing Software
NANUK protective transport case (also supports ground use)
Integrated 99 Wh Li-Ion battery (for terrestrial use)
Wi-Fi router (for ground use)
Charger and tow rope (for ground surveys)
Mounting kit for DJI M300/M350 RTK drone

Complete UAV Integration Kit Includes:
Zond Aero 1000 NG GPR System
SkyHub onboard computer hardware
Radar altimeter for True Terrain Following
SkyHub 3 smart cable assembly for DJI M300/M350 RTK
UgCS EXPERT perpetual software license
SkyHub software packages for GPR and Terrain Following
Assembly, testing, and integration support (or remote setup)
Airborne GPR training course

Key Specifications

Centre Frequency: 1000 MHz
Max Depth Penetration: Up to several meters (varies by material)
Weight: ~2 kg (sensor only)
Power: 99 Wh Li-Ion (ground use) or UAV power feed
Data Output: Real-time data via Prism 2 software
UAV Compatibility: DJI M300/M350 RTK (mounts for others available)

Key Features

1. Real-Time High-Resolution Sampling: Next-gen RTS technology provides superior subsurface imaging clarity.

2. Lightweight & UAV-Optimized: Engineered for easy integration with mid-sized drones like the DJI M300/M350 RTK.

3. Dual-Use Capability: Operates seamlessly in both UAV and ground-based configurations for flexible fieldwork.

4. Turnkey GPR Workflow: Compatible with SkyHub and UgCS EXPERT software for automated mission planning and true terrain following.
