  • High-Precision Shallow-Water Bathymetry – Compact echo sounders designed for ultra-shallow, vegetated, and sediment-rich environments.
  • Single or Dual-Frequency Operation – Select high-resolution scanning or deep penetration for bottom and sediment profiling.

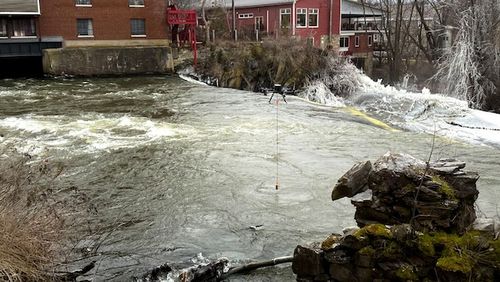

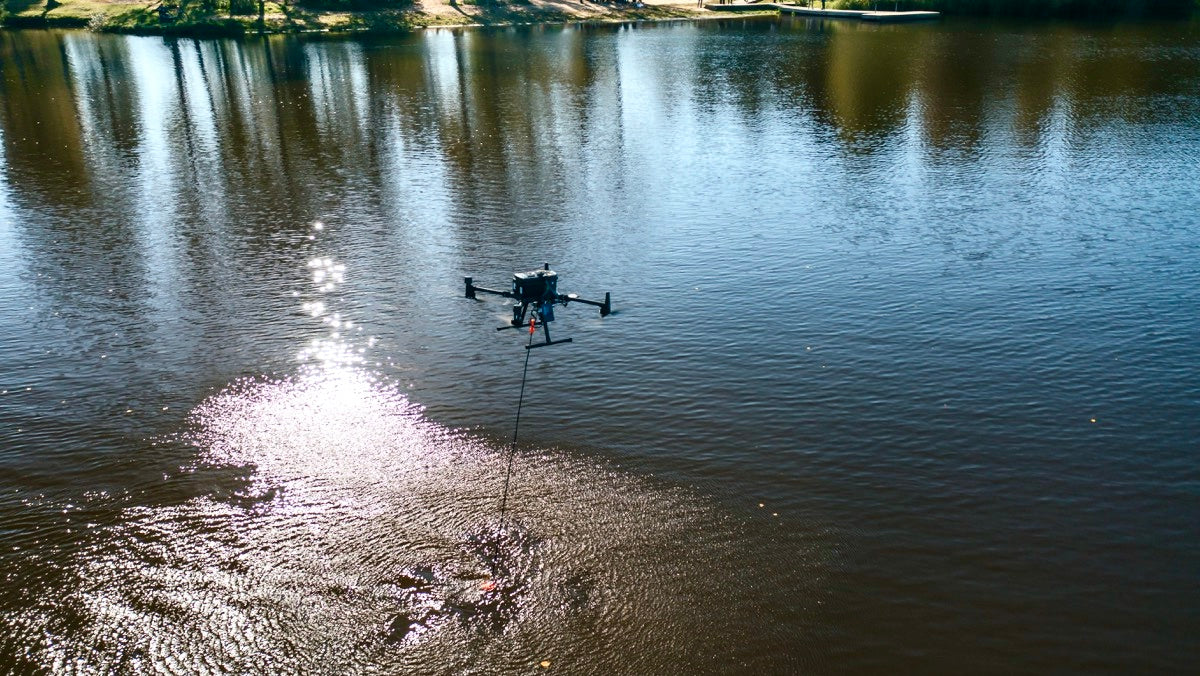

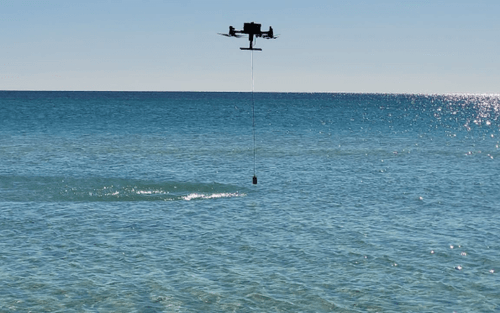

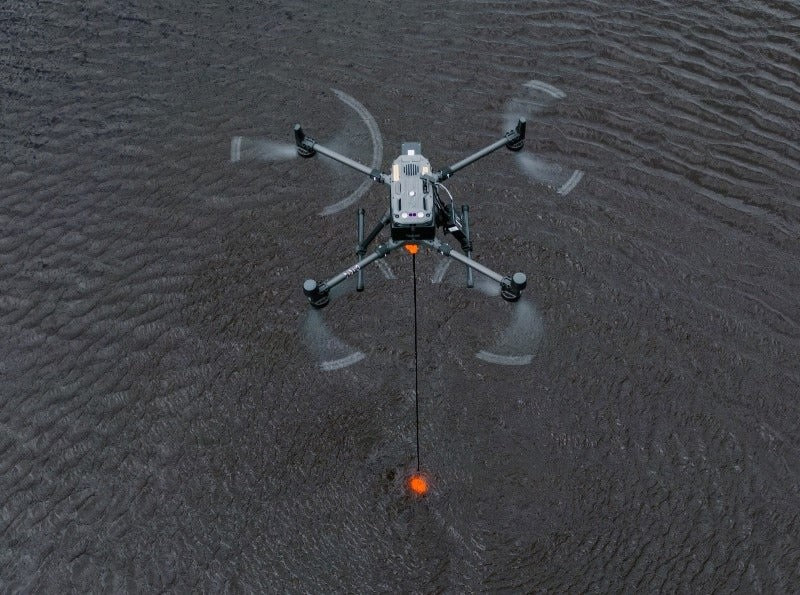

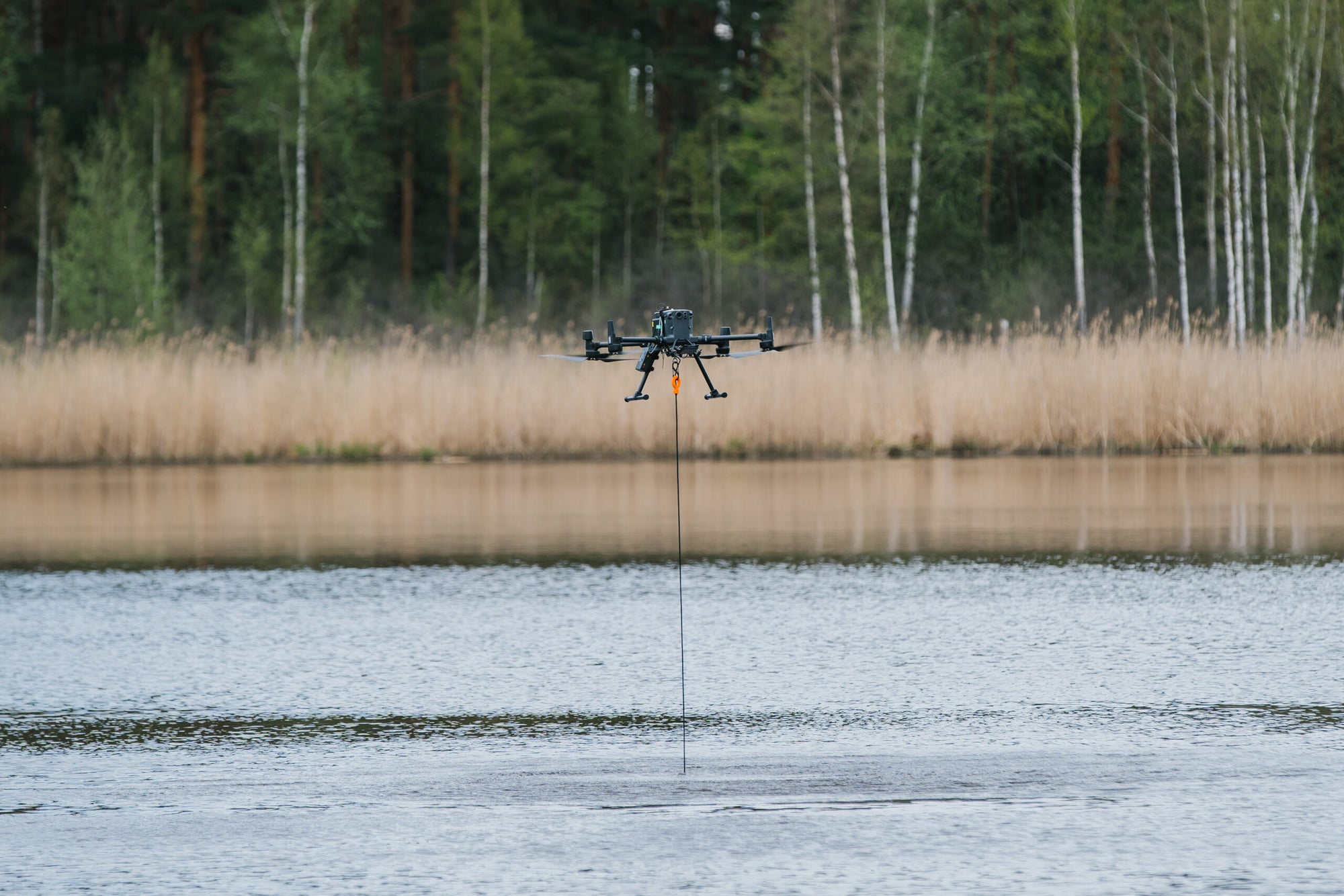

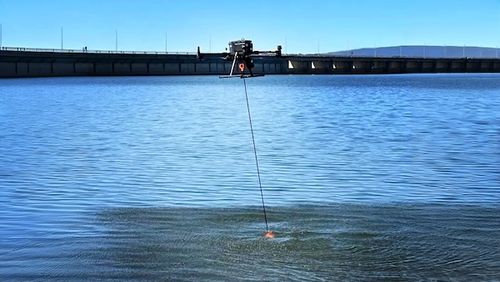

  • Lightweight & Versatile Integration – Compatible with USVs, ROVs, and UAV platforms for efficient field deployment.
Model
Model: ECT 400S single-frequency

Scroll Down To See Package Comparison

Request Quote
Need Support Financing The Product?

Simple and low cost finance available on this product. For more information click here.

Looking For A Free Demo?

If your seeking a free demo of the product before you buy please click here.

Want To Rent This Product?

Rental plans are also available for this product. To learn more click here.

Free UK Delivery - Orders Over £100

Enjoy our high-quality products and get free UK delivery on orders over £100. For smaller orders, it's just an £8 flat rate.

Price Checked - Best Price Guarantee

Enjoy the best prices guaranteed on all our products. Shop confidently knowing you're getting unbeatable deals.

UK Based - Approved Dealer

Discover a wide selection of premium UK-based products from our approved dealership. Trust in over a decade of expertise.

Product Info

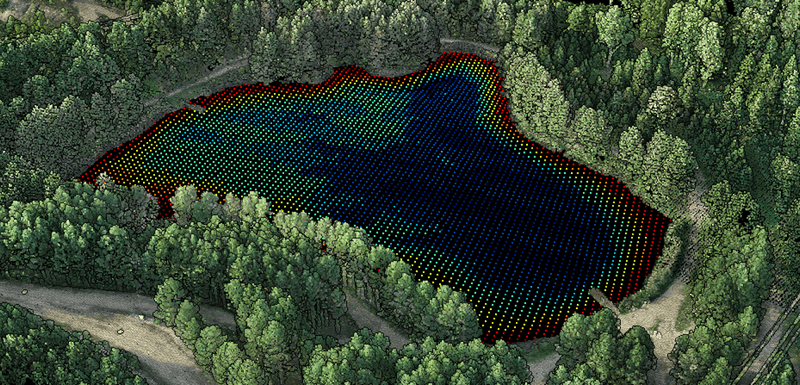

The EchoLogger ECT-series offers a scalable solution for shallow-water hydrographic surveys, environmental monitoring, and bathymetry in challenging bottom conditions. All models feature a compact and lightweight construction, making them ideal for USVs, ROVs, and UAV-integrated sonar payloads. Choose from single-frequency high-resolution or dual-frequency penetration-capable models to match your operational environment—from clean, ultra-shallow ponds to sediment-heavy reservoirs and weed-covered lakes. With real-time depth output, integrated tilt & temperature sensors (D24S/D052S), and compatibility with leading survey navigation software, EchoLogger sounders deliver dependable bathymetric data whether you're profiling soft sediments, measuring true bottom depth, or navigating through variable aquatic vegetation.

Key Features

1. Compact & Lightweight – Purpose-built for USVs, ROVs, and small platforms where payload efficiency matters.

2. Single & Dual-Frequency Options – Choose high-resolution or vegetation/sediment penetration depending on survey requirements.

3. Reliable Bottom Detection – Dual-frequency units differentiate vegetation, soft organic layers, and hard bottom.

4. Field-Proven Durability – Designed for real-world survey environments, including turbid, weedy, and sediment-heavy waters.

Delivery

Free UK Delivery is available on all orders over £100.

Orders under £100 have a fixed delivery price of £8.

Delivery takes around 4-5 weeks to most UK addresses, except for in stock items, as below.

In-Stock Items Only - Delivery will be made in 2-3 working days. Next Day Delivery is also available to UK mainland addresses for £30 per order, order By 12pm, Mon to Fri to receive next day.

Conditions - Some locations outside mainland UK may incur additional charges, which are representative of the extra cost that we get charged by the courier. Delivery is available to Europe and some Worldwide locations. Contact us directly on sales@alphageouk.com if you need any help or have questions, before you order.

Model Comparison

Find the perfect model for your needs.

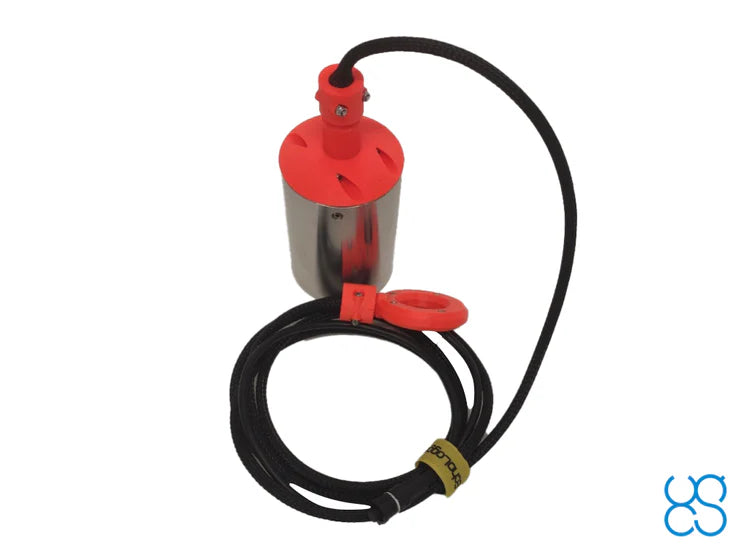

ECT 400S

High-frequency, single-beam echosounder for clean-bottom shallow surveys where vegetation is minimal.

What's included

  • ECT 400S echo sounder (450 kHz)

  • Power/data connector cable
  • Mounting bracket / hardware (platform dependent)
  • Quick-start configuration guide

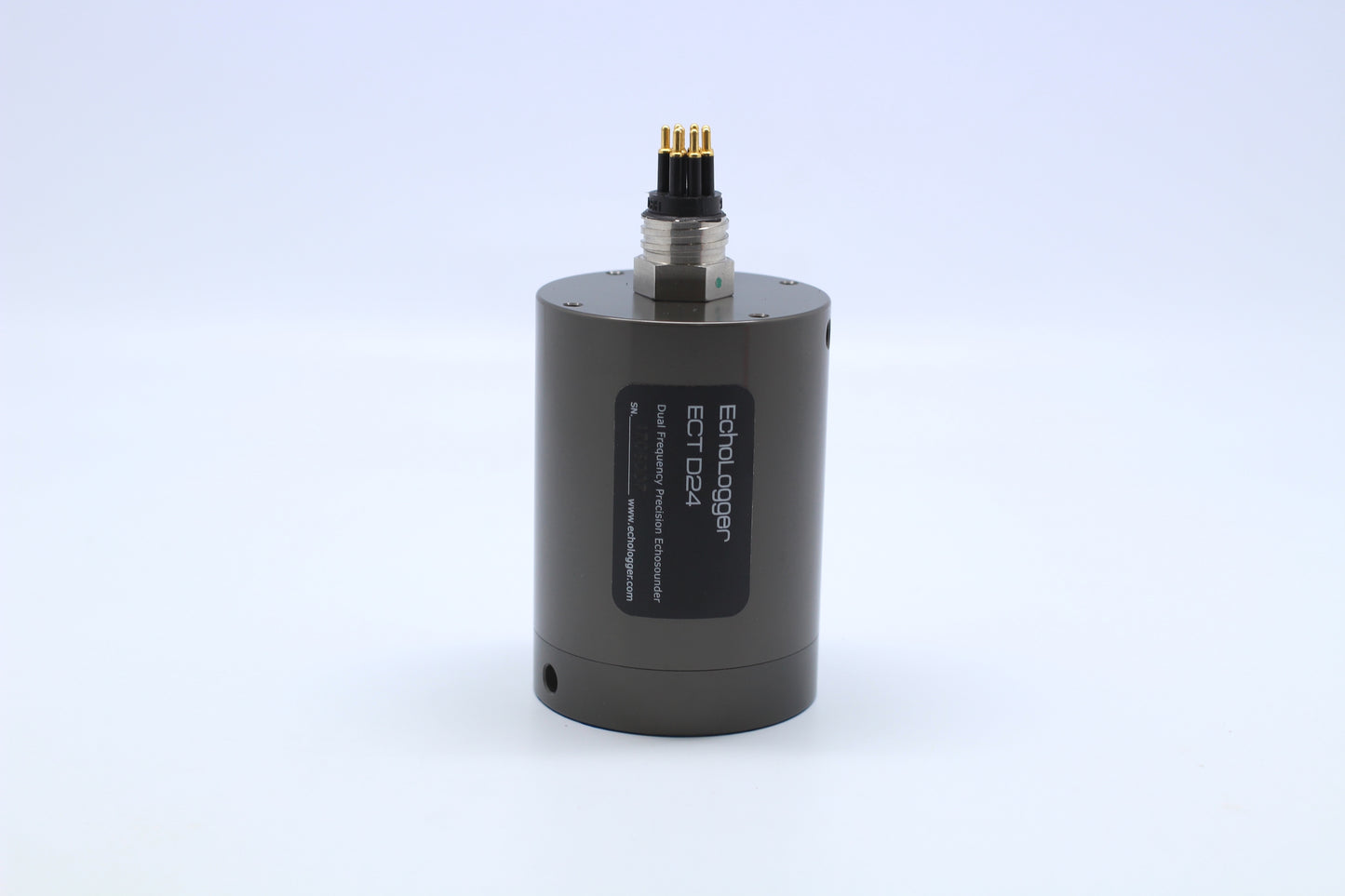

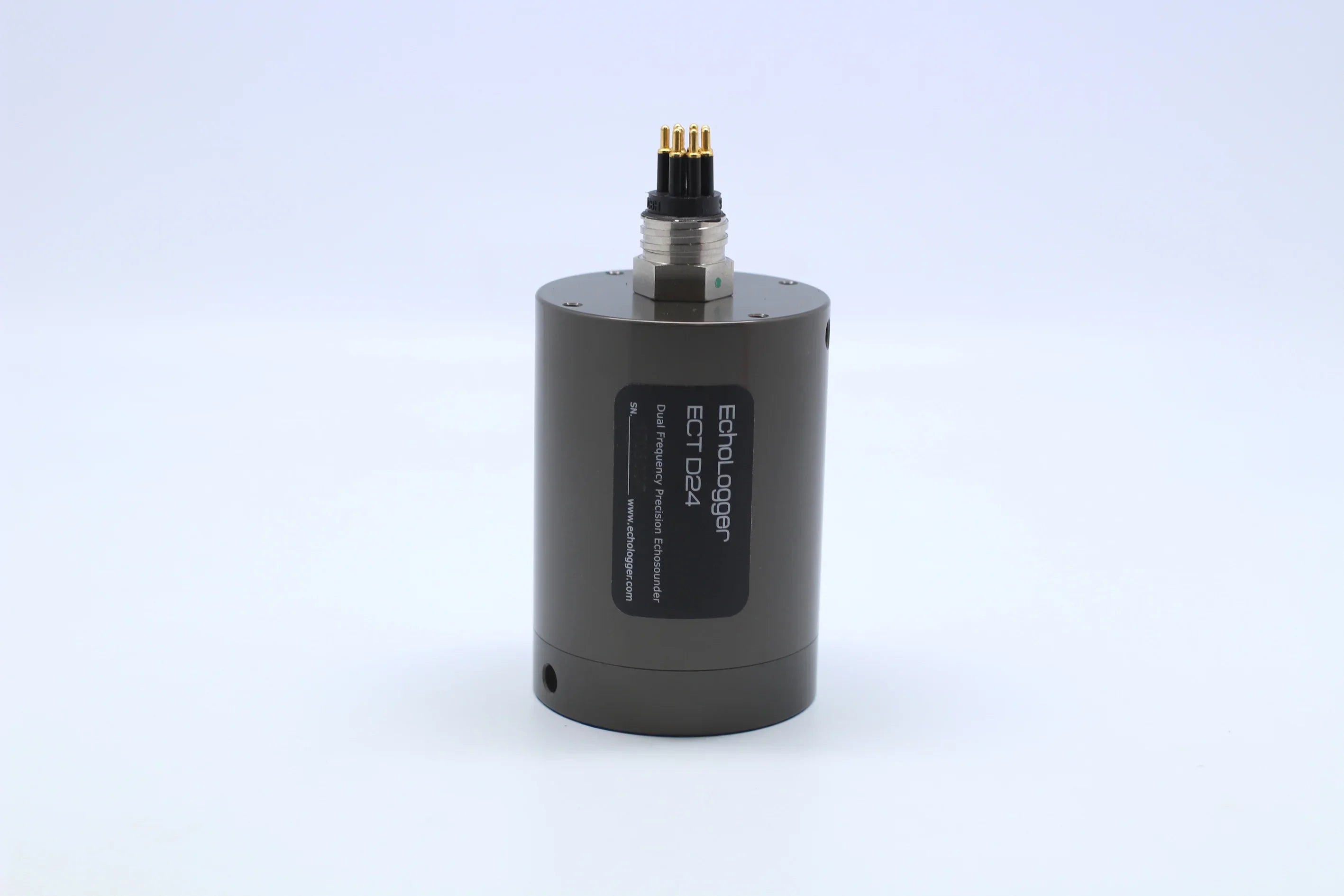

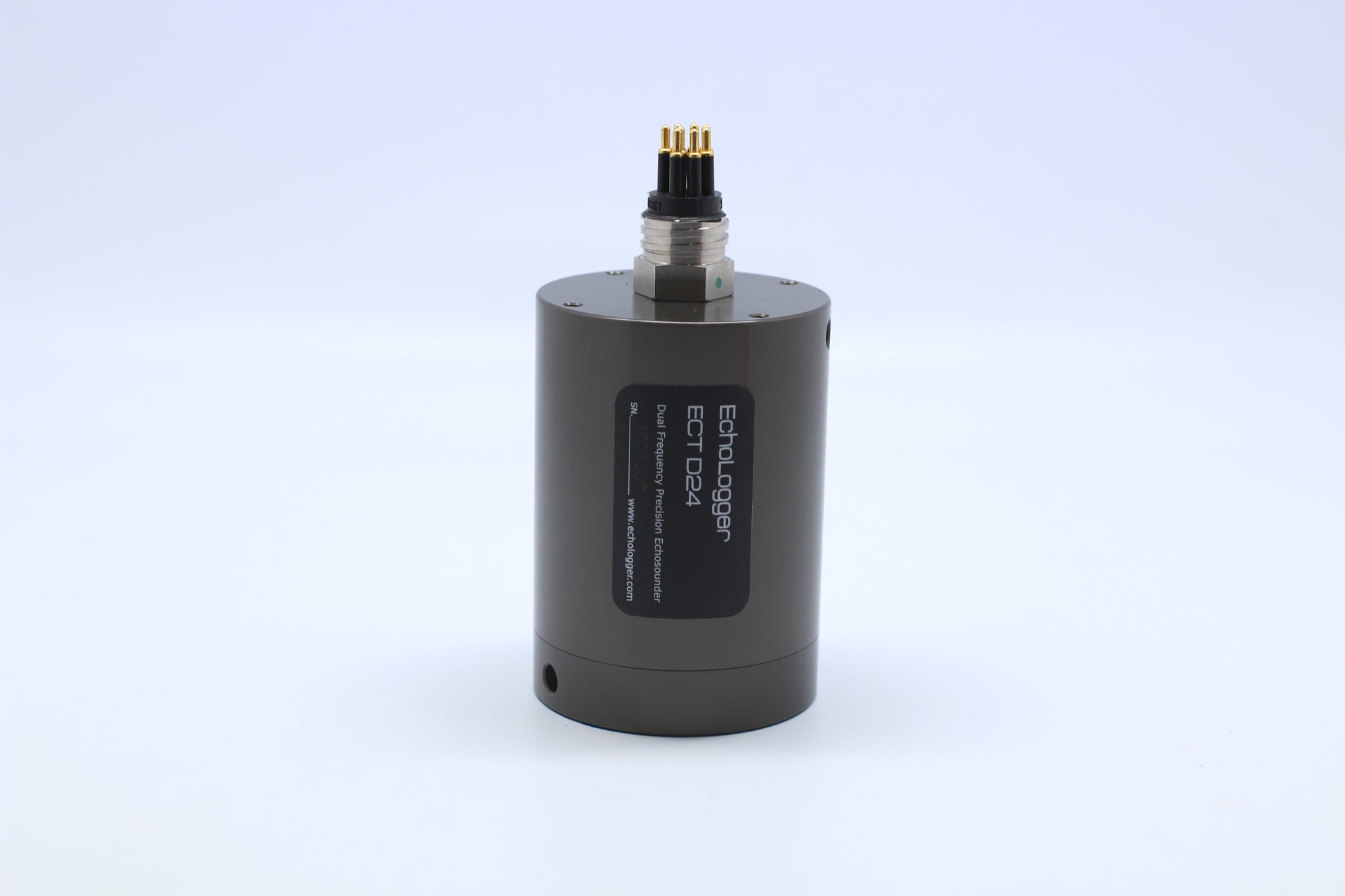

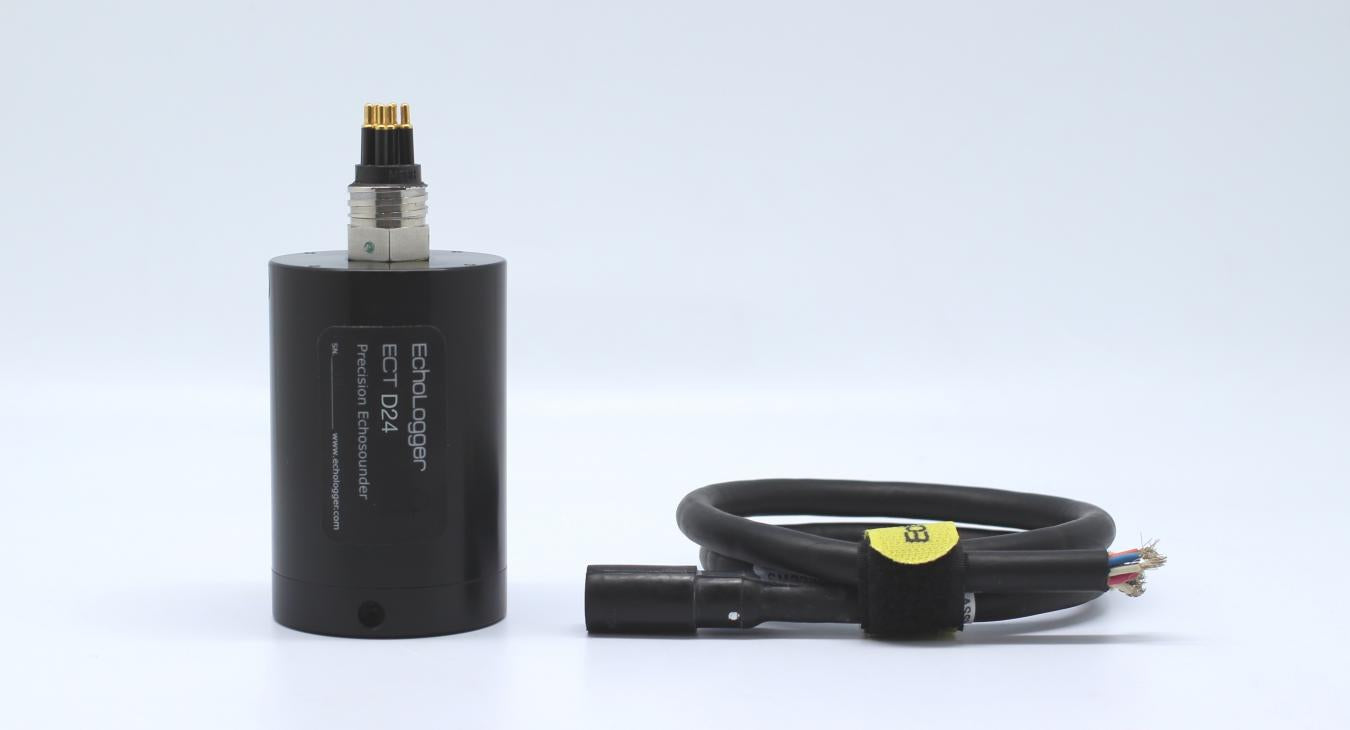

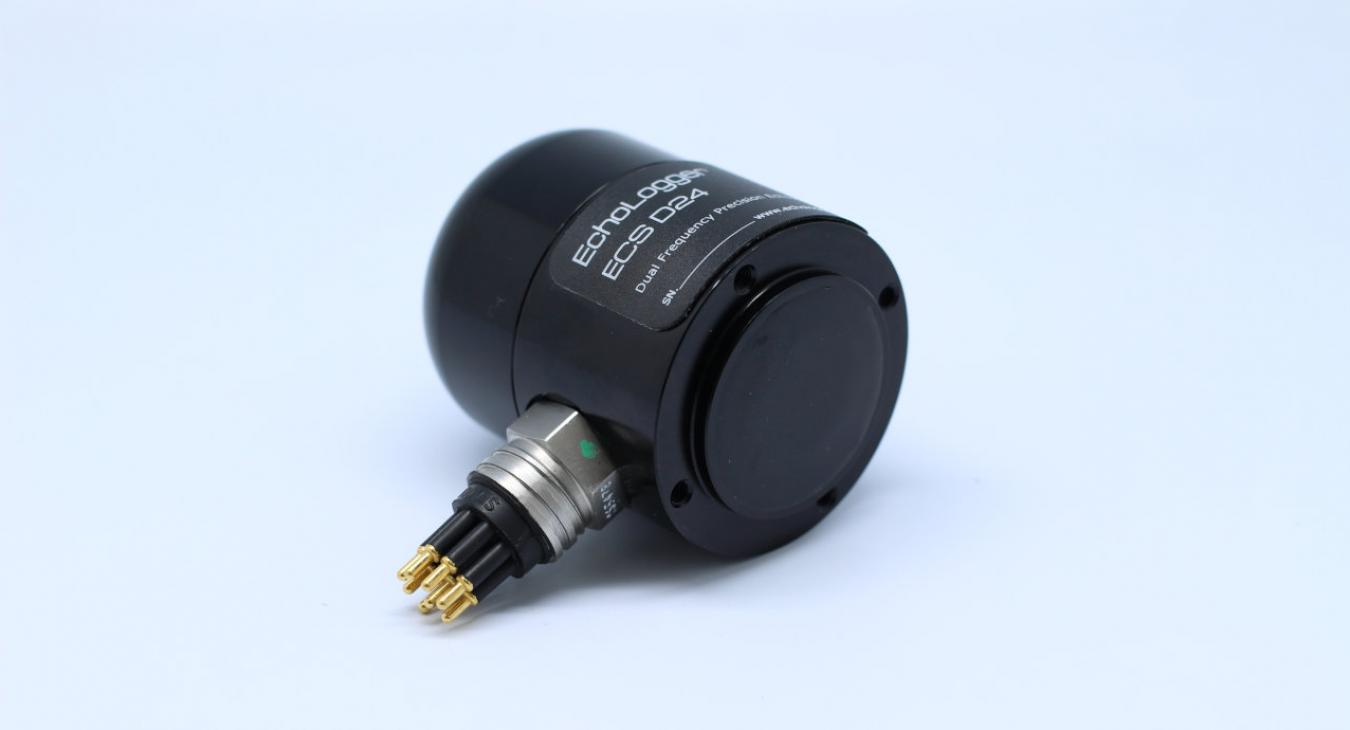

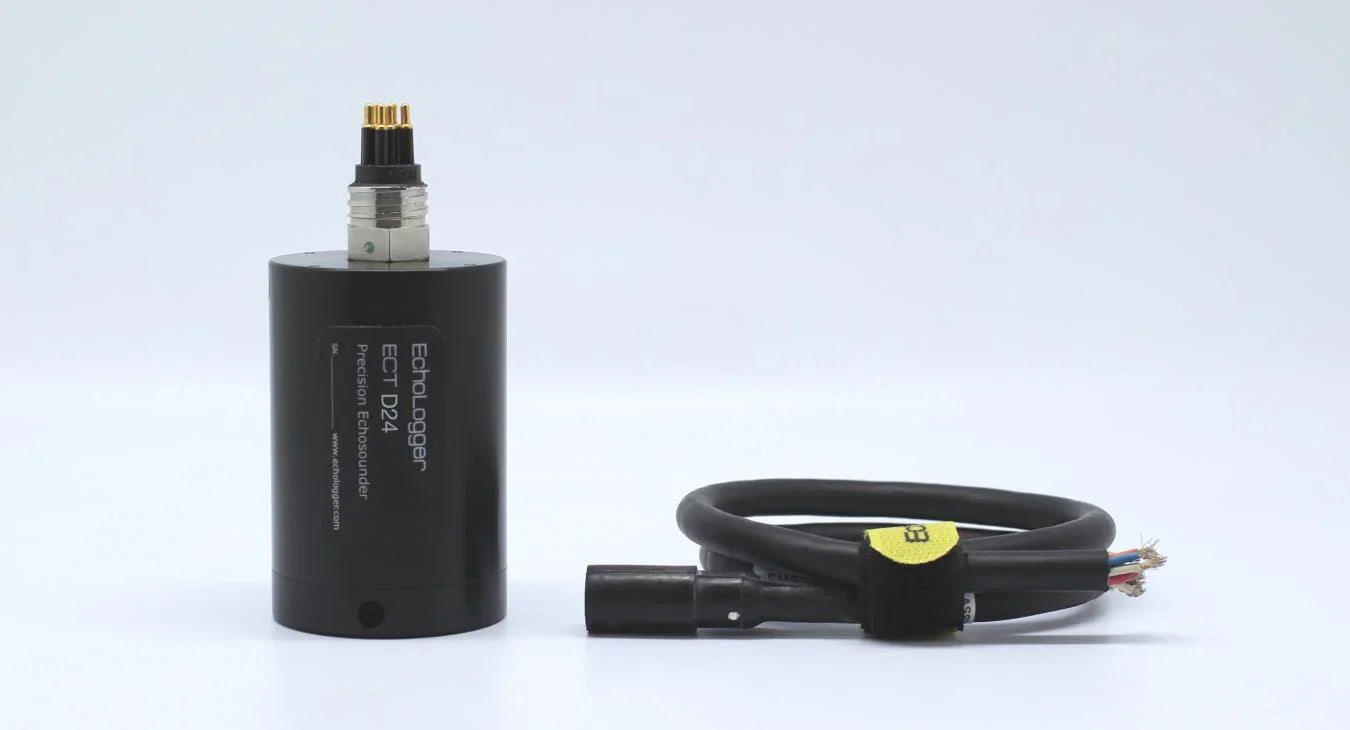

ECT D24S

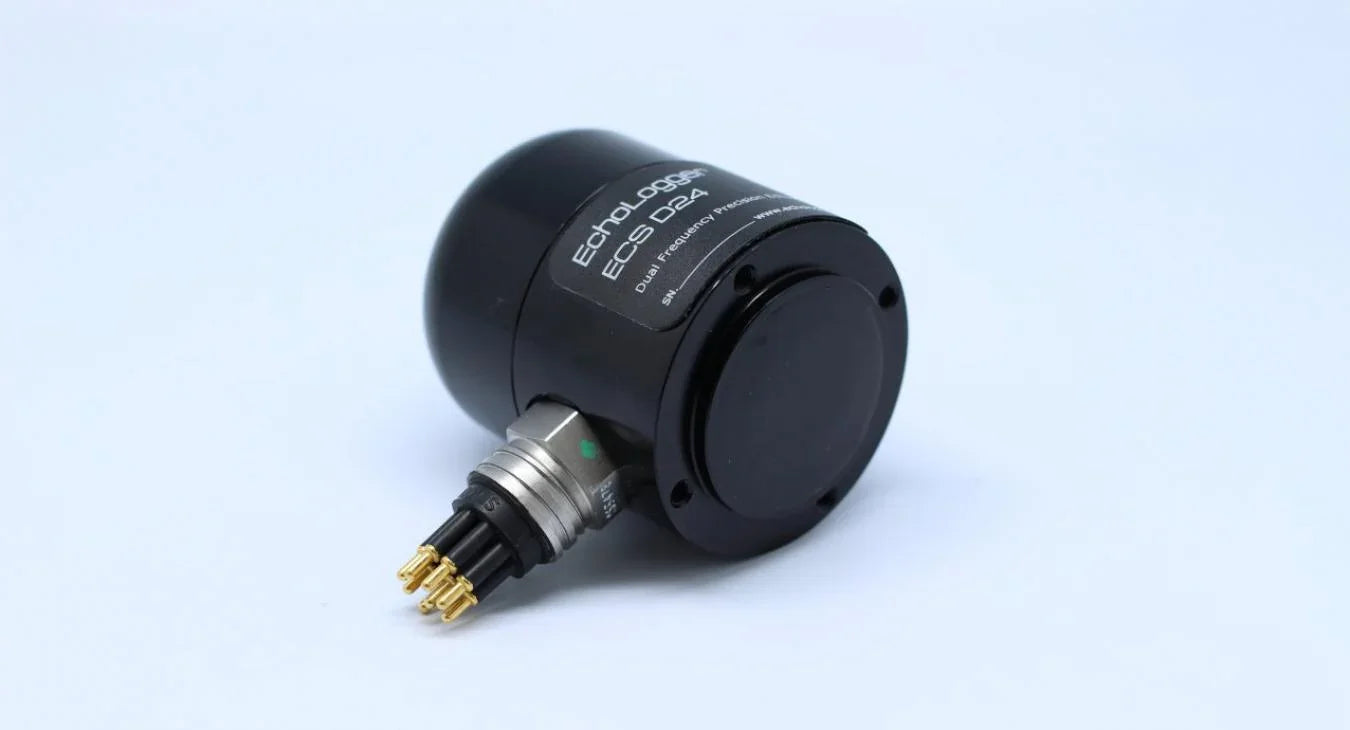

Dual-frequency system (200/450 kHz or 200/50 kHz) for light-vegetated and soft organic environments, with integrated tilt & temperature sensing.

What's included

  • ECT D24S dual-frequency echo sounder (200/450 kHz or 200/50 kHz)Integrated tilt and temperature sensor

  • Power/data connector cable
  • Mounting hardware
  • Calibration & data parameter setup guide

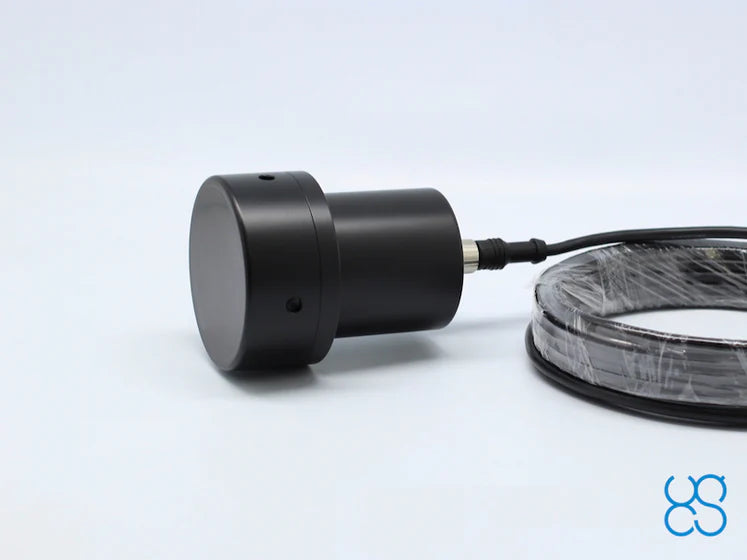

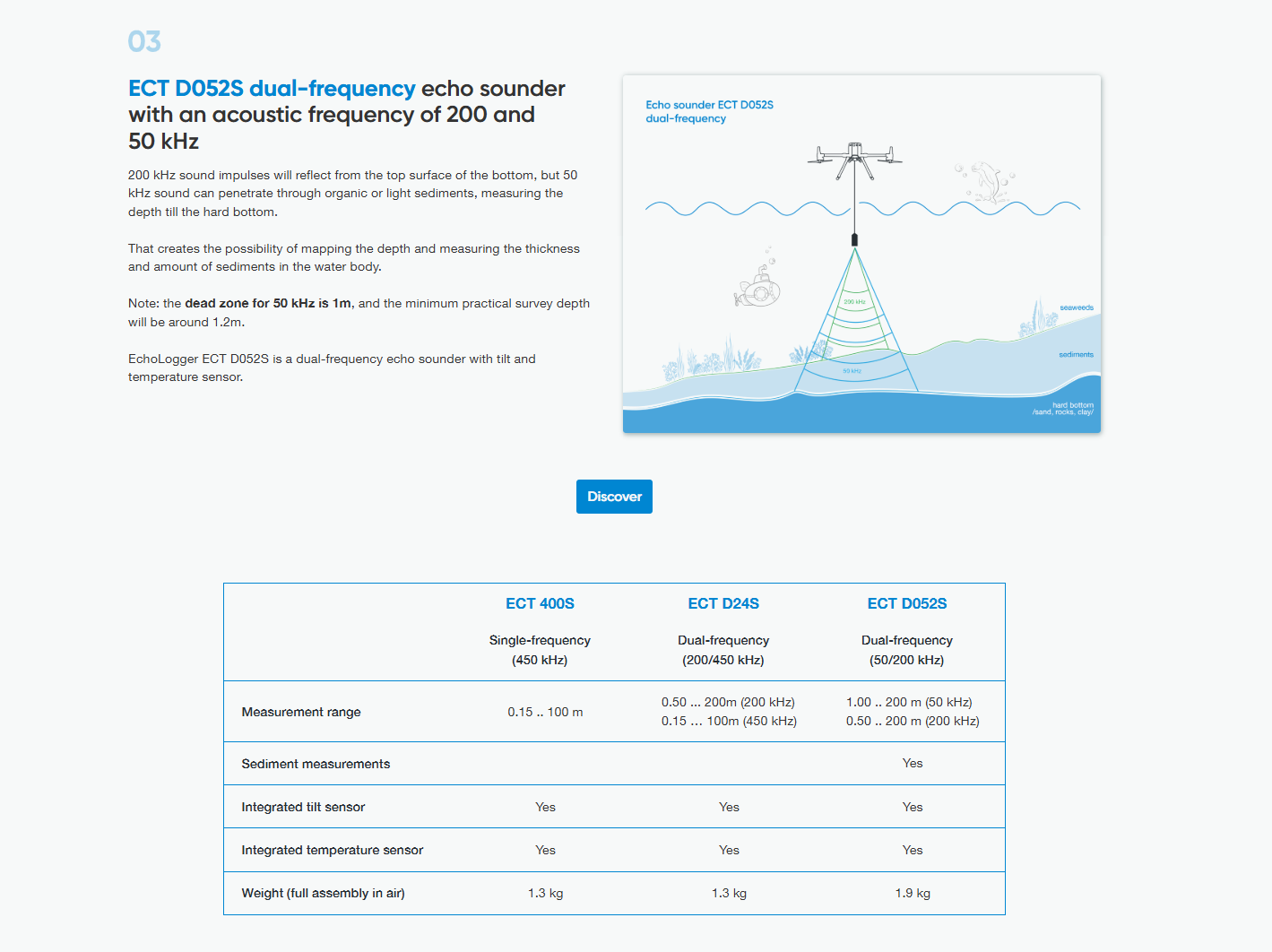

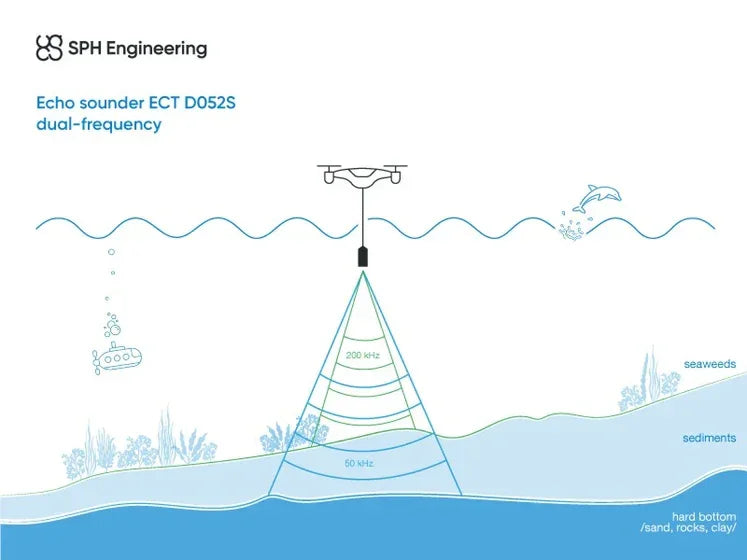

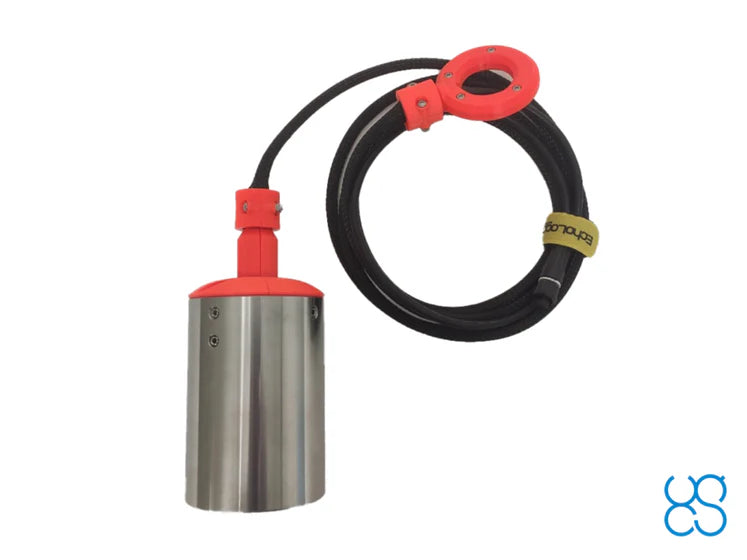

ECT D052S

Dual-frequency (200/50 kHz) for sediment-thickness mapping and deep penetration to hard bottom below organic layers.

What's included

  • ECT D052S dual-frequency echo sounder (200/50 kHz)

  • Integrated tilt and temperature sensor
  • Power/data connector cable
  • Mounting hardware
  • Sediment profiling data interpretation guide

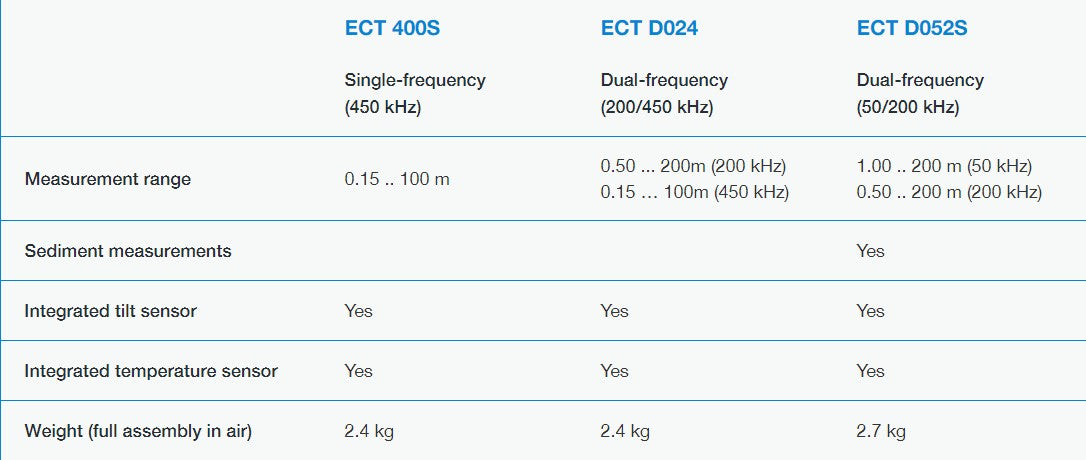

Product Specifications

Specification Details
Operating Frequencies 450 kHz (ECT 400S) / 200 & 450 kHz or 200 & 50 kHz (ECT D24S) / 200 & 50 kHz (ECT D052S)
Minimum Operating Depth ~0.3 m (ECT 400S) → ~0.8–1.2 m (ECT D24S/D052S depending on frequency)
Dead Zone ~0.15 m (450 kHz) → ~0.5–1.0 m (200/50 kHz)
Vegetation Handling None (ECT 400S) → Partial (ECT D24S) → Full Penetration (ECT D052S)
Sediment Penetration No penetration (ECT 400S) → Light/Moderate (ECT D24S) → Full sediment profiling (ECT D052S)
Sensors (Additional) None (ECT 400S) → Tilt & Temperature included (ECT D24S & D052S)
