Excellent Obstacle-Crossing Ability

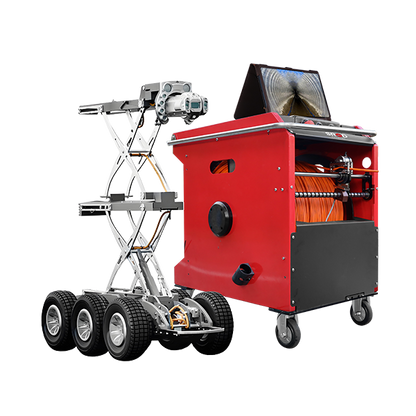

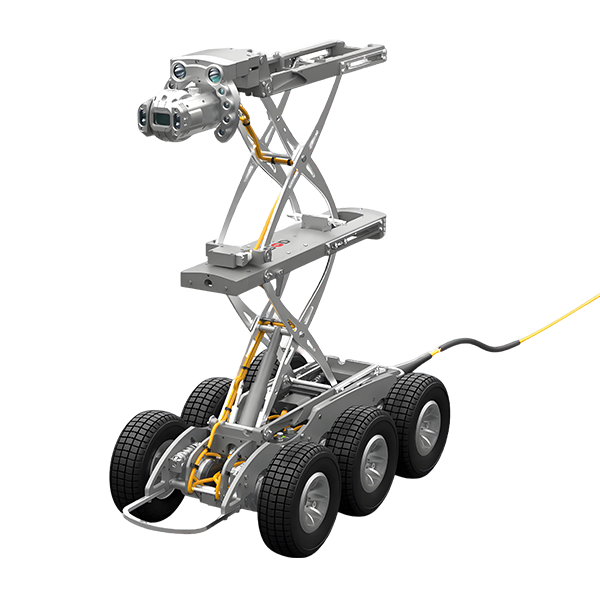

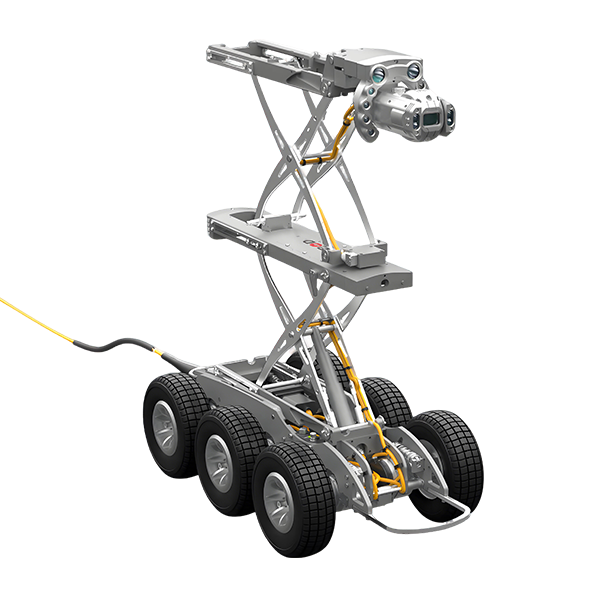

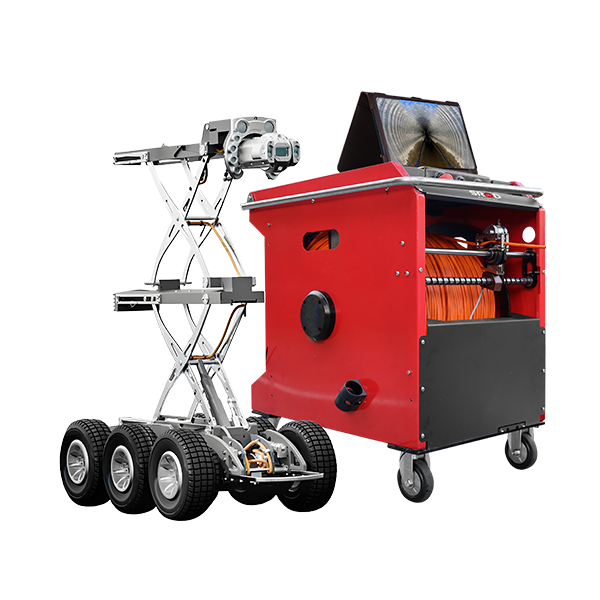

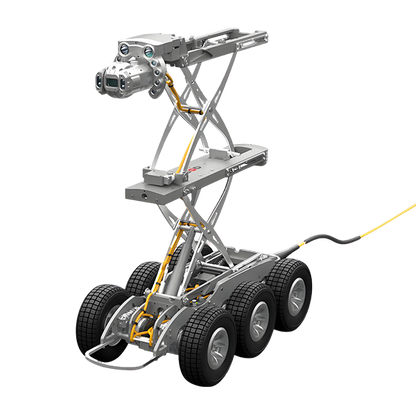

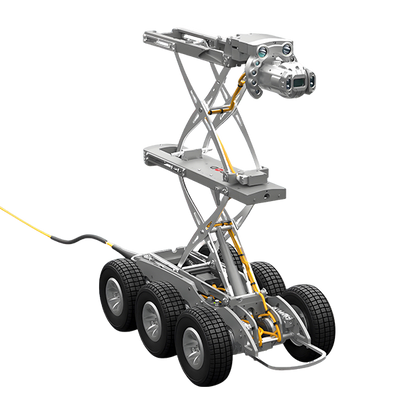

The S300YL long-distance pipeline inspection robot consists of a crawler, a long-distance cable reel, a portable tablet control terminal and a software system. It is mainly used for pipeline network inspection of large urban pipelines and box culverts, with a maximum inspection distance of 1000 meters. It possesses excellent obstacle-crossing capabilities and achieves low-latency transmission of detection data over long distances.

  • IP68 - Protection Level
  • 1000m - Longest Inspection Distance
  • 35° - Maximum Climbing Ability
  • 210W - Digital High-Definition Camera
Request Quote
Need Support Financing The Product?

Simple and low cost finance available on this product. For more information click here.

Need More Info or Demonstration?

Demos and technical support are available from our UK team before you buy - more info.

Product Info

Six-Wheel Drive
The power chassis is equipped with high-power in-wheel motors, with a drive motor power of up to 6×210W, providing strong towing capacity and adapting to various complex terrains

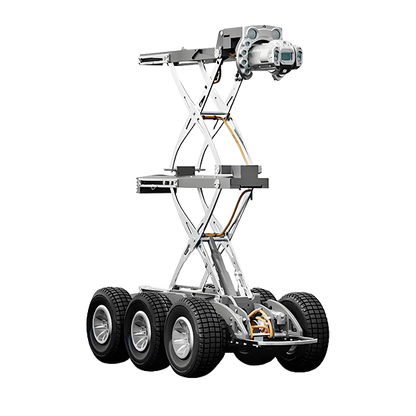

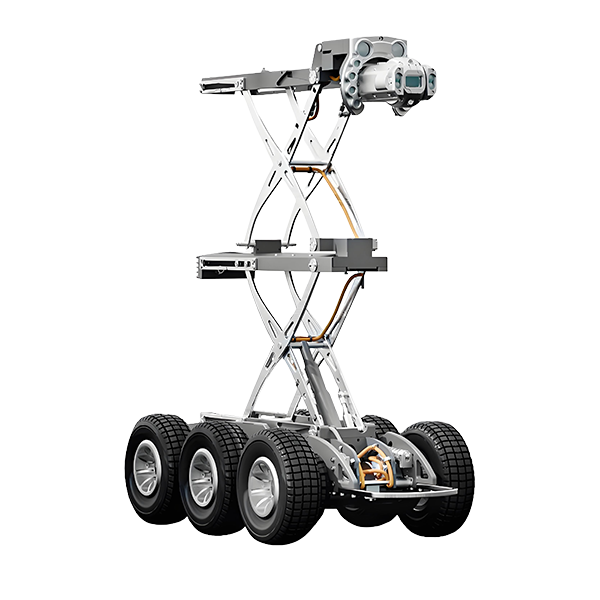

Extra-High Lifting Range
The lifting frame features a double X-shaped design, with a lifting height of up to 600mm, makingit
suitable for inspecting pipes of different sizes

Ultra-Long Distance Inspection
With a built-in 15h long-lasting battery, it can easily handle ultra-long-distance detection of 500-1000 meters

Modular Design
The lifting frame, wheel set, and front-mounted battery are detachable or replaceable, facilitating daily maintenance and adapting to different pipe diameters

HD PTZ Camera
210W pixel zero-latency digital HD camera, 360° surround scan lens, one-click defogging

Portable Tablet Control Terminal
High-definition IPS full-view display, easy to carry, and simple interface operation

Key Features

Scope Of Application - DN300mm-3000mm
Defogging - With one-button defog function
Obstacle Surmounting Ability - Maximum climbing ability up to 35°
Protection Level - IP68
Camera Unit - Resolution: 2800x1840, 210W pixel non-delay high-definition camera
Drive - Six-wheel drive, the drive motor power can reach 6×210W
Zoom - 10×optical, 16×digital

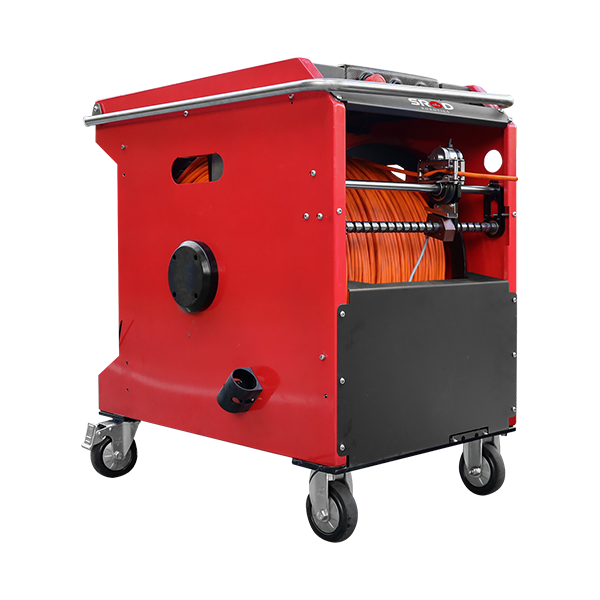

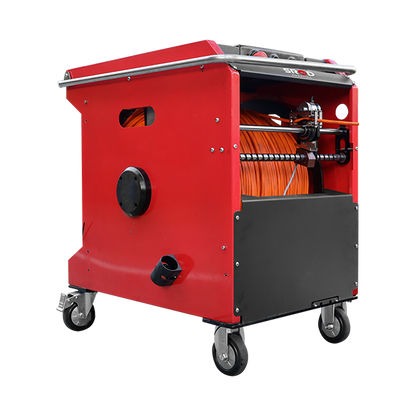

Wire Take-Up Vehicle - Built-in 15h long-life battery, easily handles 500-1000m ultra-long distance inspection
Lifting Height - Featuring a dual X-type design, the lifting height reaches up to 600 mm
Cable Length - 500m, 1000m or customized
Positioning - Real-time positioning via high-precision GPS positioning system
Battery - Equipped with a built-in front-mounted battery, effortlessly handling long-range inspection
Illumination - Main light 8×2W, Auxiliary light 10×3.5W
PTZ Control - 360° axially, 270° radially
Width Measurement - With laser width measurement function
Weight Of Winding Vehicle - 125kg (including cable)
