Powerful, narrow pipes, unobstructed Flow

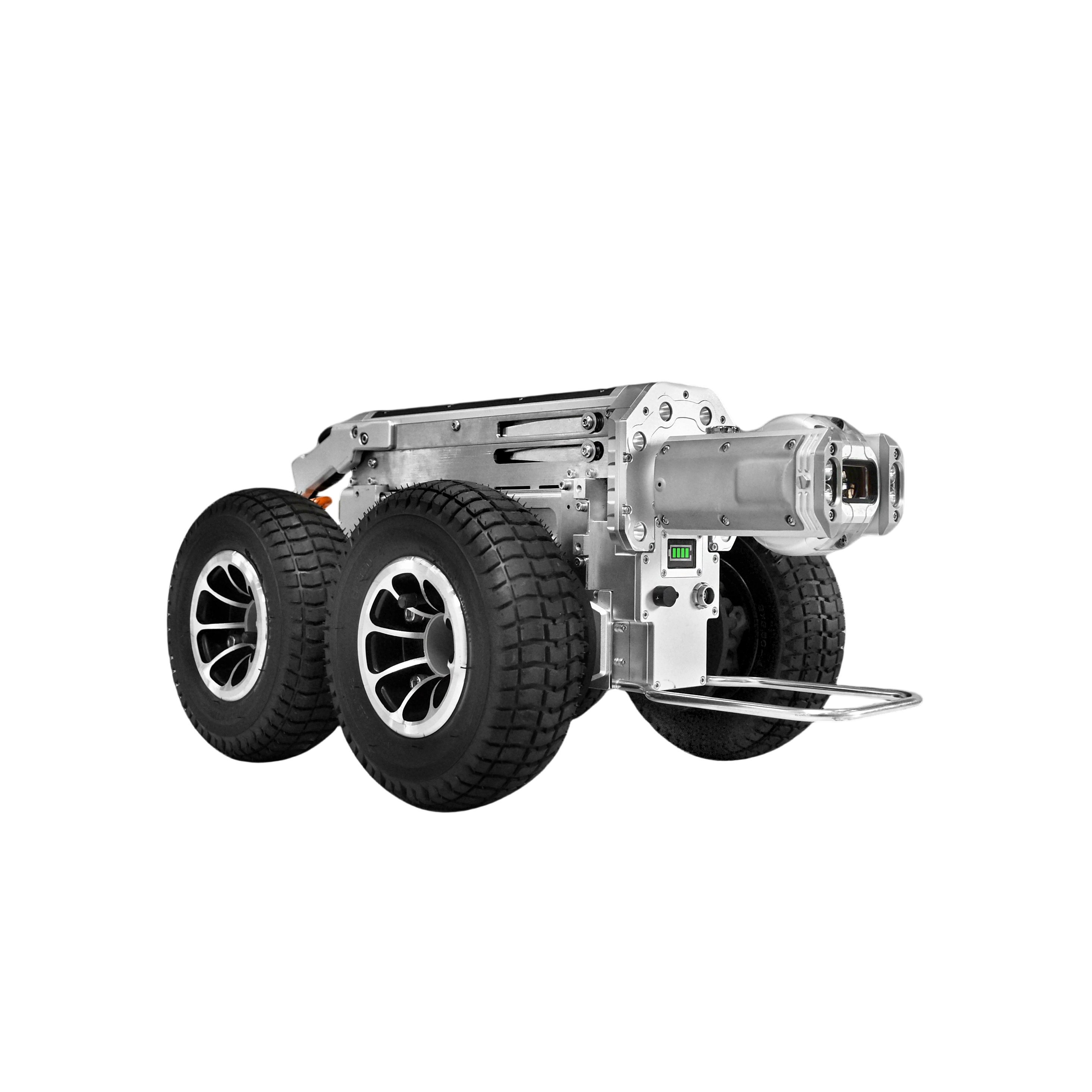

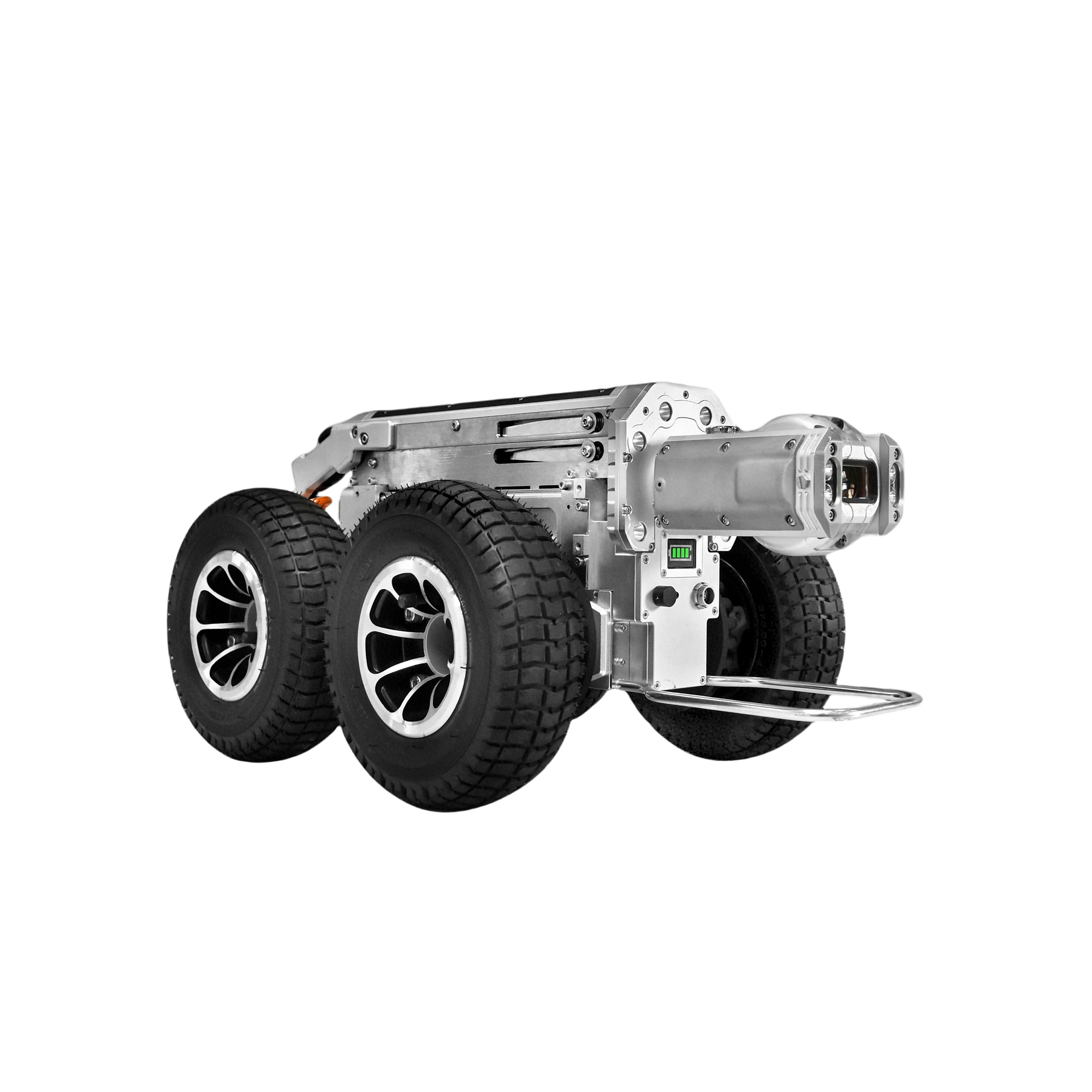

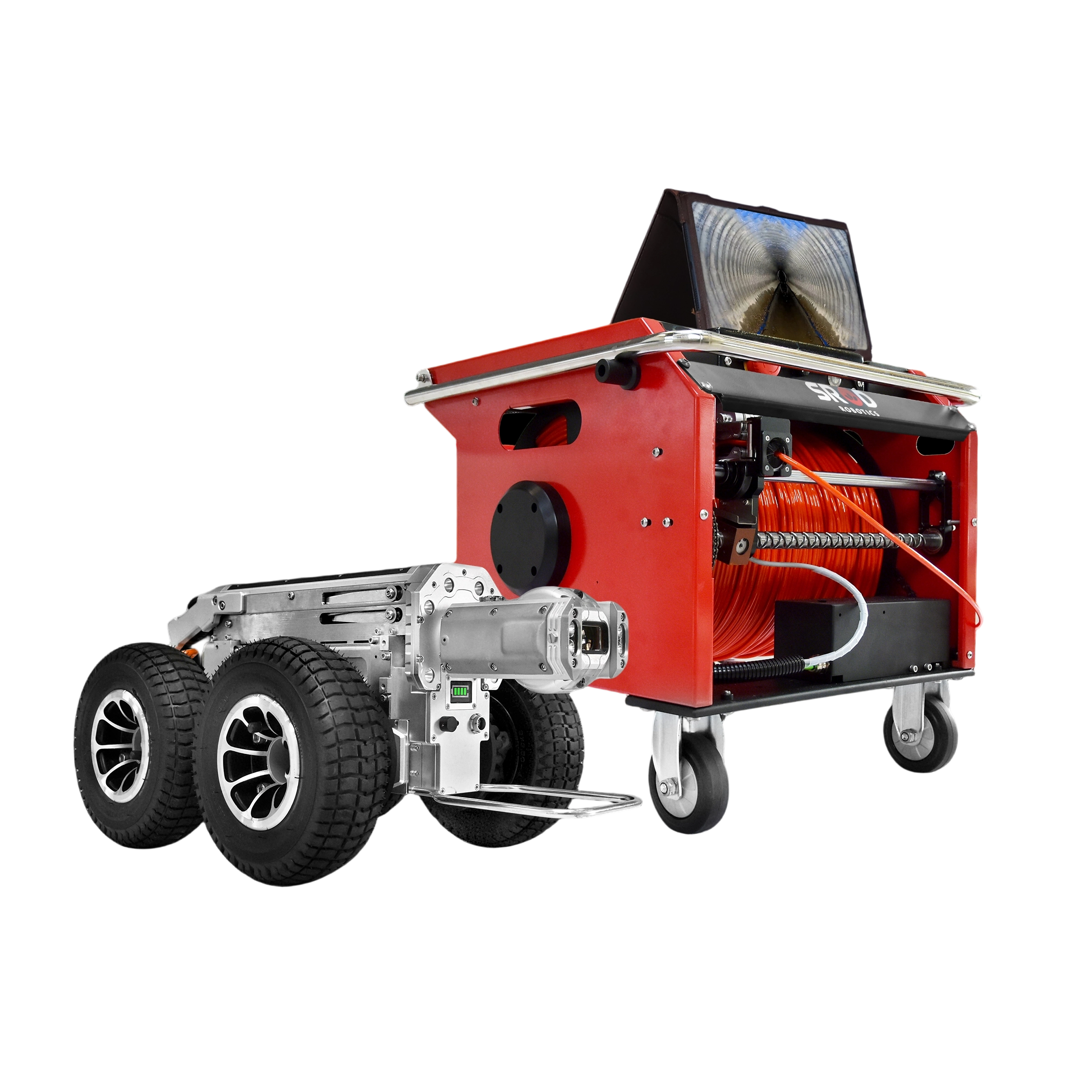

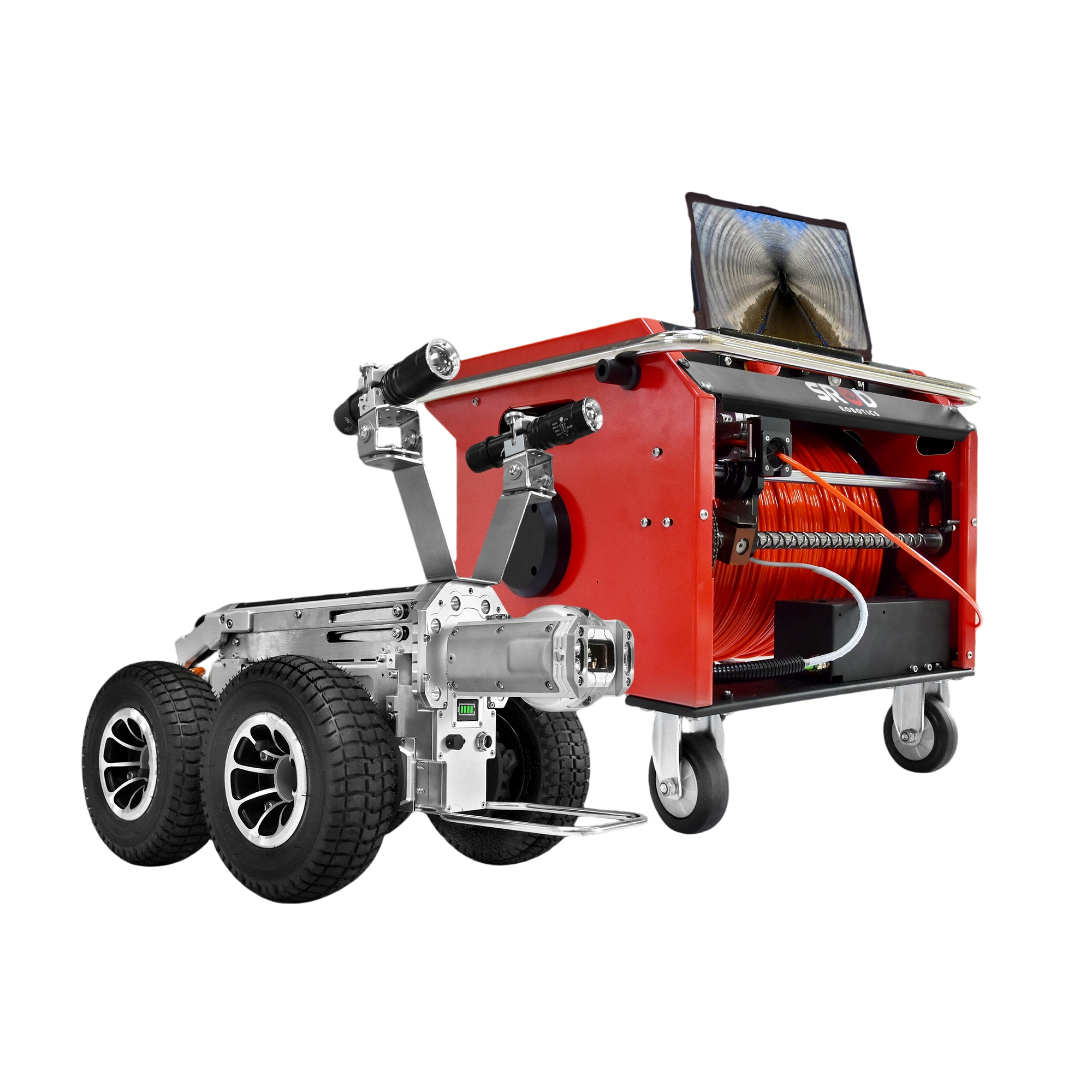

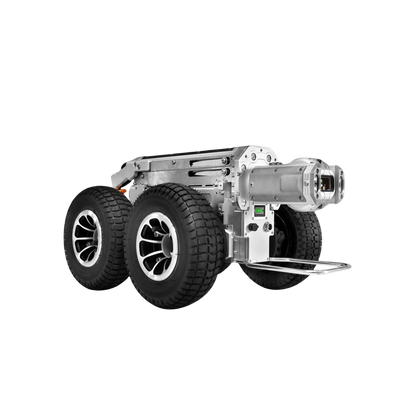

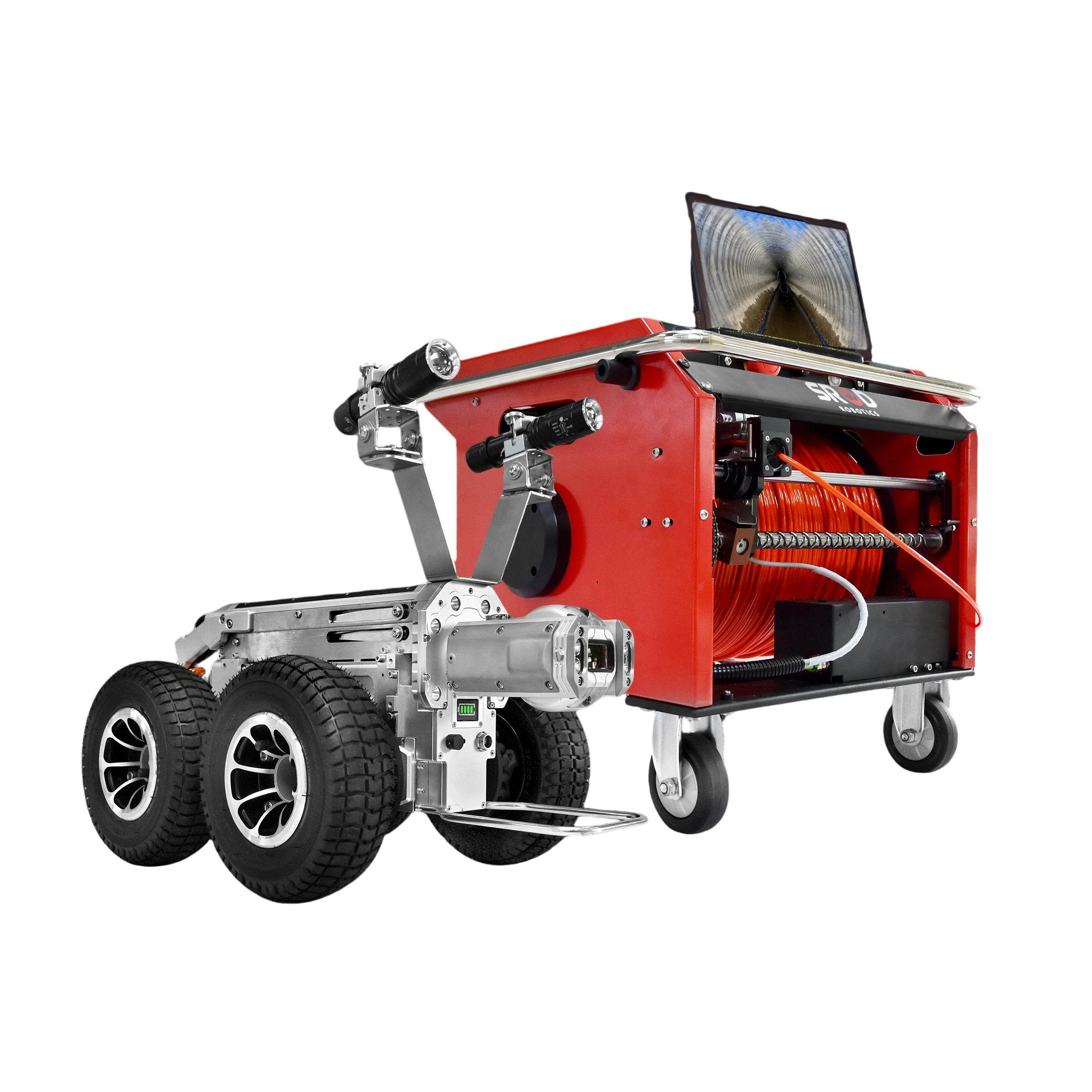

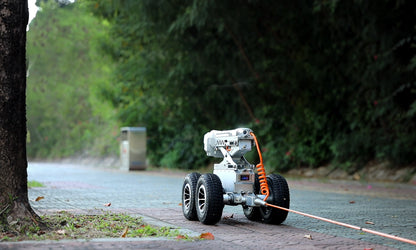

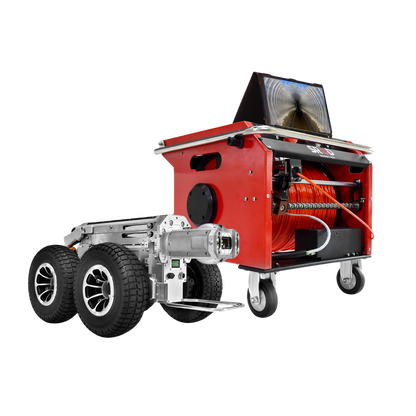

The S300Y Medium-to-Long Distance Pipeline Inspection Robot consists of a crawler, a long-distance cable reel, a portable tablet control terminal and a software system. It is mainly used for pipeline network inspection in urban drainage pipes, box culverts, underground channels and industrial and oil and gas pipelines. It can inspect pipes as small as DN300 and as far as 500 meters. It has excellent obstacle-crossing capabilities and can detect various problems such as pipe blockage, rupture, corrosion, and leakage .

  • IP68 - Protection Level
  • 500m - Longest Inspection Distance
  • 35° - Maximum Climbing Ability
  • 210W - Digital High-Definition Camera
Request Quote
Need Support Financing The Product?

Simple and low cost finance available on this product. For more information click here.

Need More Info or Demonstration?

Demos and technical support are available from our UK team before you buy - more info.

Product Info

Mid-To-Long-Range Inspection

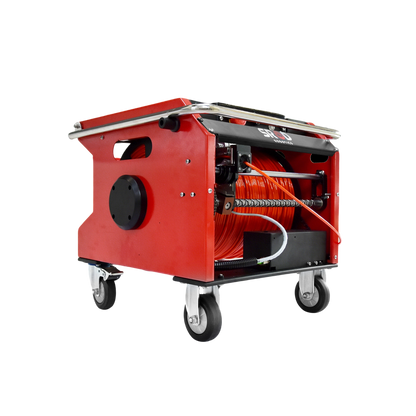

The robot is equipped with a quick-release front-mounted battery and a 500-meter cable reel, easily handling medium- to long-distance inspection

High-Inspection Pan-Tilt Camera
2.1MP zero-latency digital HD camera (5MP optional), 360° surround scan lens, one-click defogging

High Reliability
Dustproof, waterproof, and explosion-proof; four independently sealed compartments; IP68 protection rating; stable and reliable

Minimum Capacity DN300

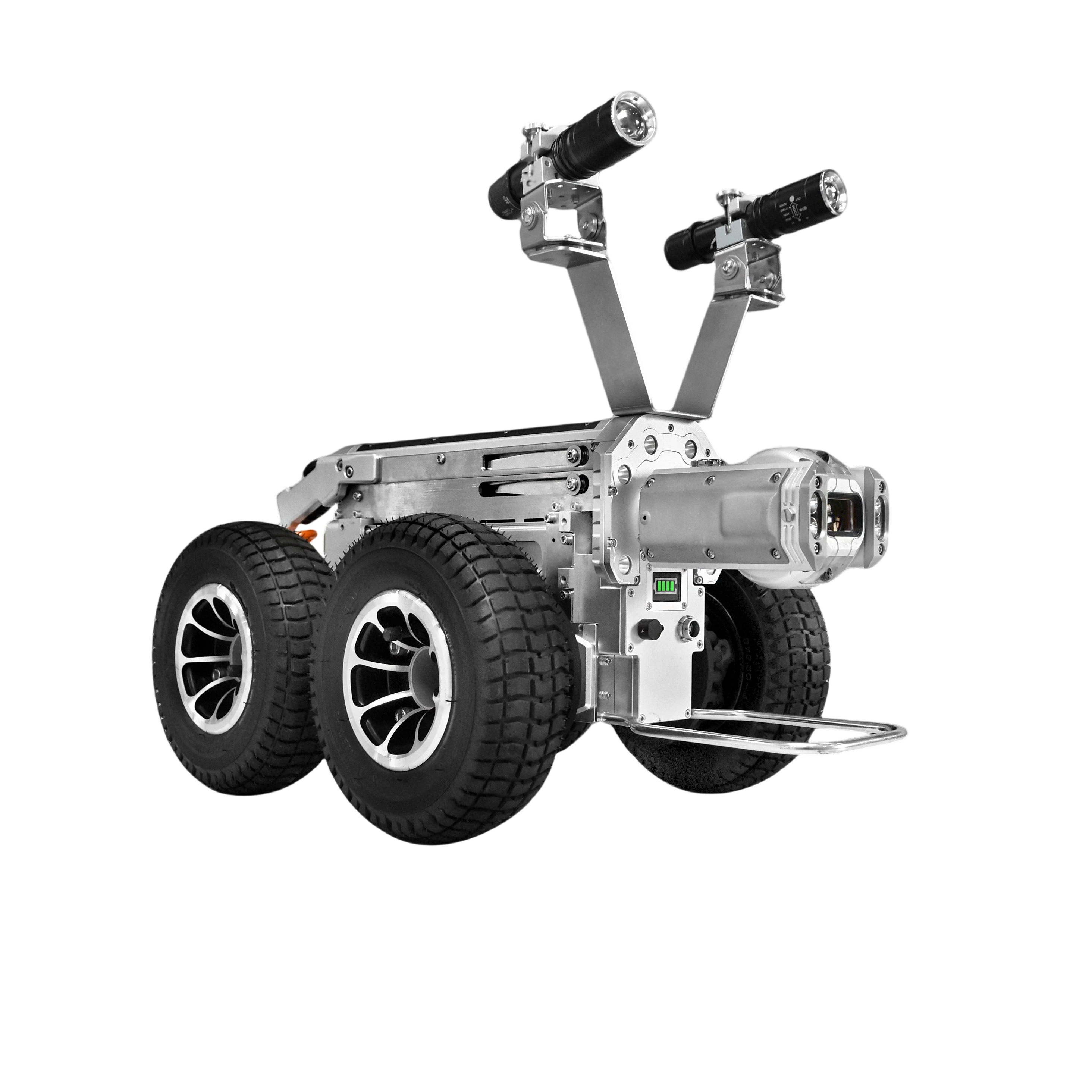

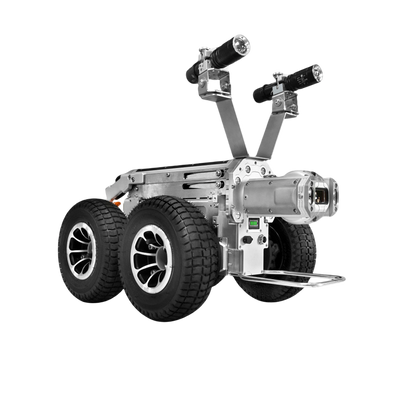

Equipped with a small wheel set, it can access DN300 pipes; it supports extension lights and beacon positioning and tracking modules, each of which can be replaced individually for easy disassembly and maintenance

Portable Tablet Control Terminal
High-definition IPS full-view display, easy to carry, and simple interface operation

Powerful Engine
Maximum climbing ability up to 35 degrees; powerful and stable, easily overcoming obstacles up to 100mm thick

Key Features

Scope Of Application - DN300mm-3000mm
Cable Winding Vehicle - Built-in high-capacity lithium battery, can work continuously for 8-10 hours
Obstacle Surmounting Ability - Maximum climbing ability up to 35°
Protection Level - IP68
Front And Rear View Cameras - Front: 210W, Rear: 210W
Drive - Dual-motor drive, 2×80W, powerful performance
Zoom - 10×optical, 16×digital
Lens Protection - The front of the vehicle is equipped with a detachable anti-collision probe to prevent damage to the nose from external forces
Lifting Height - Up to 200mm
Cable Length - 500m or customized
PTZ Control - 360° axially, 270° radially
Meter - Absolute encoder, real-time distance display
Illumination - Main light 8×2W, fill light 6×3.5W
Controller Type - Tablet terminal (industrial-grade terminal optional)
Width Measurement - Equipped with laser width measurement function
Defogging - Equipped with one-button defogging function
