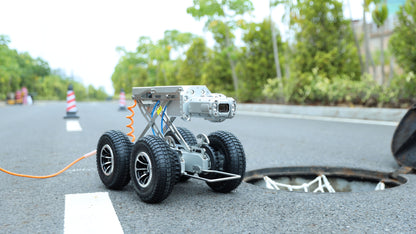

Narrow and long pipe network, unobstructed

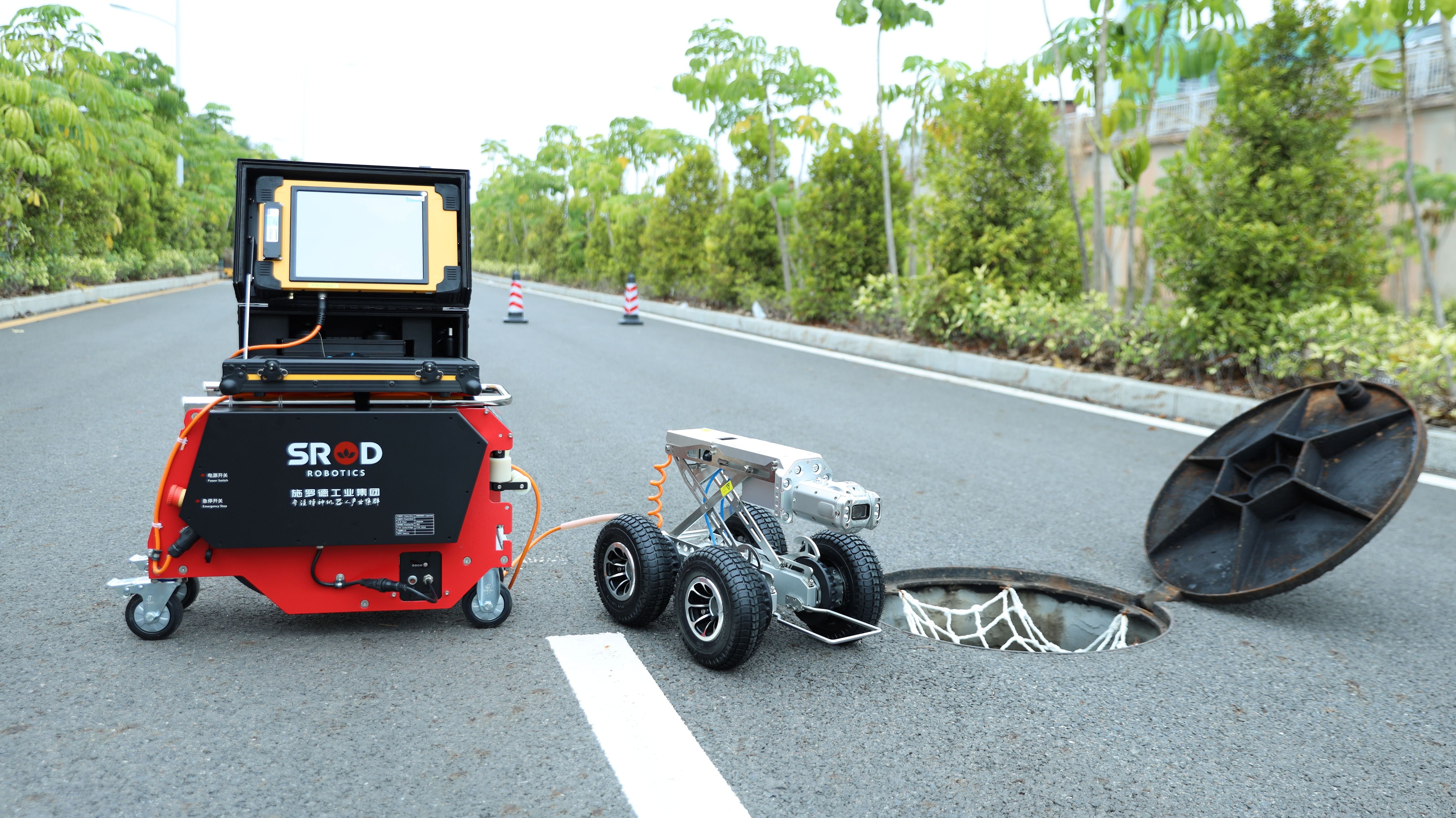

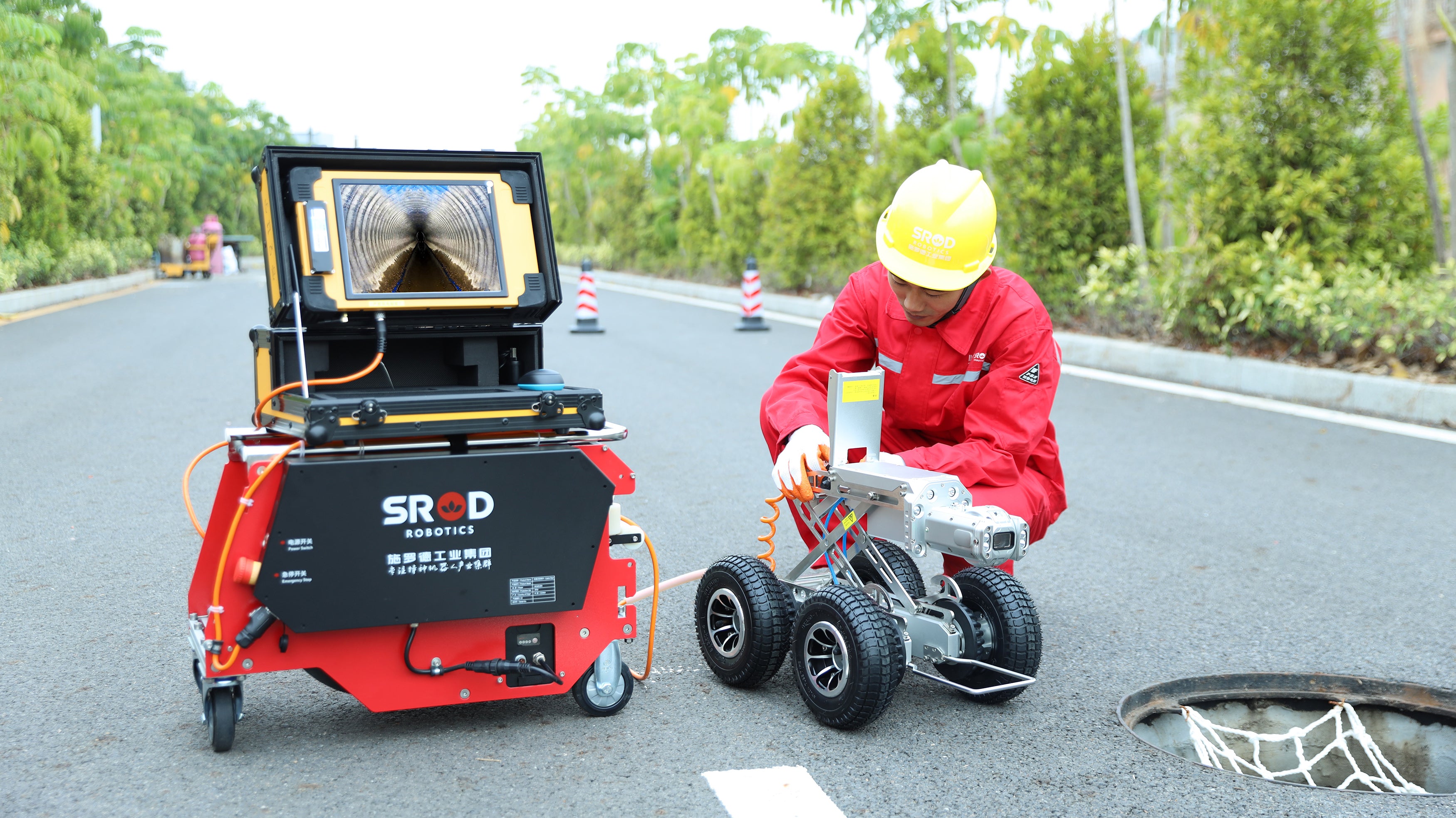

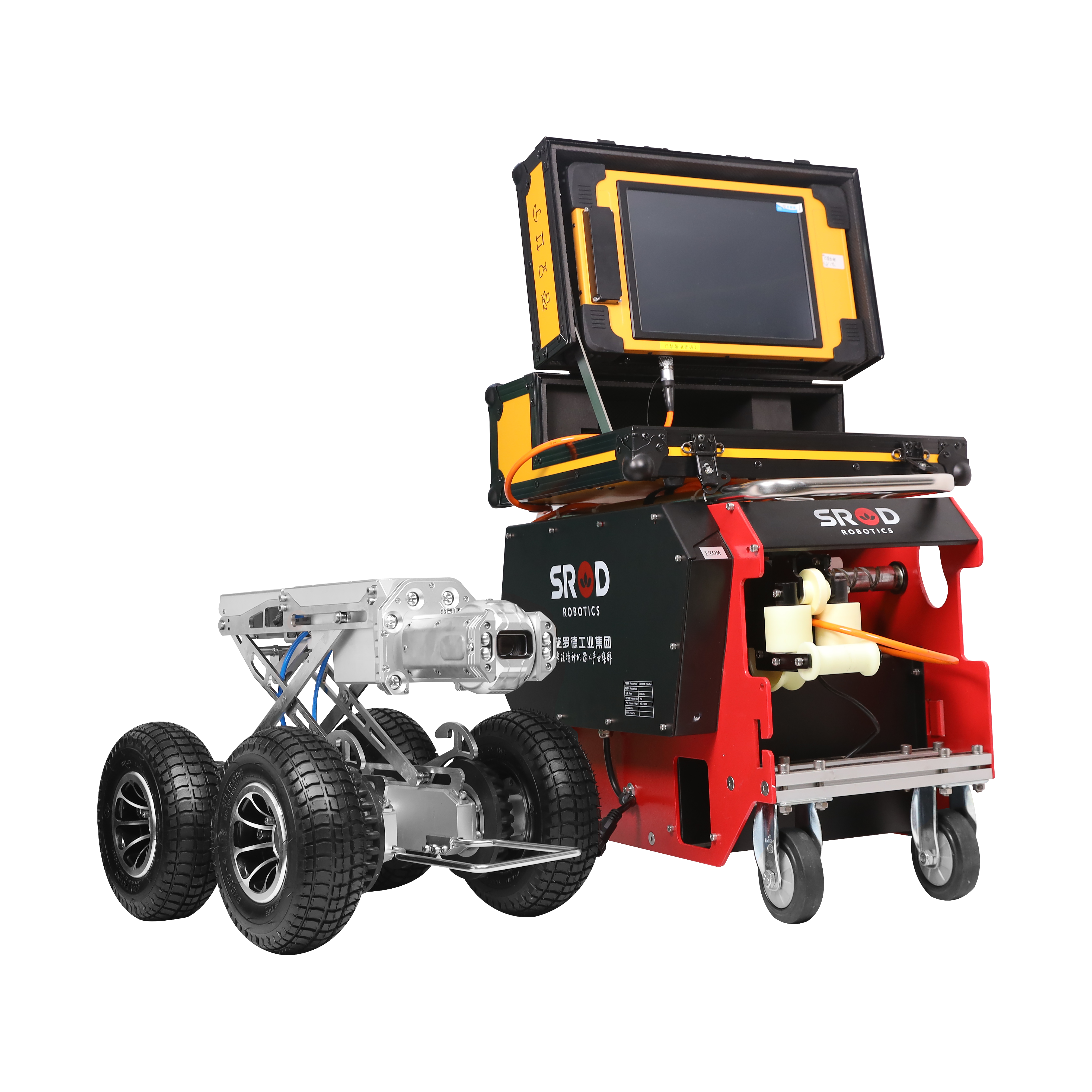

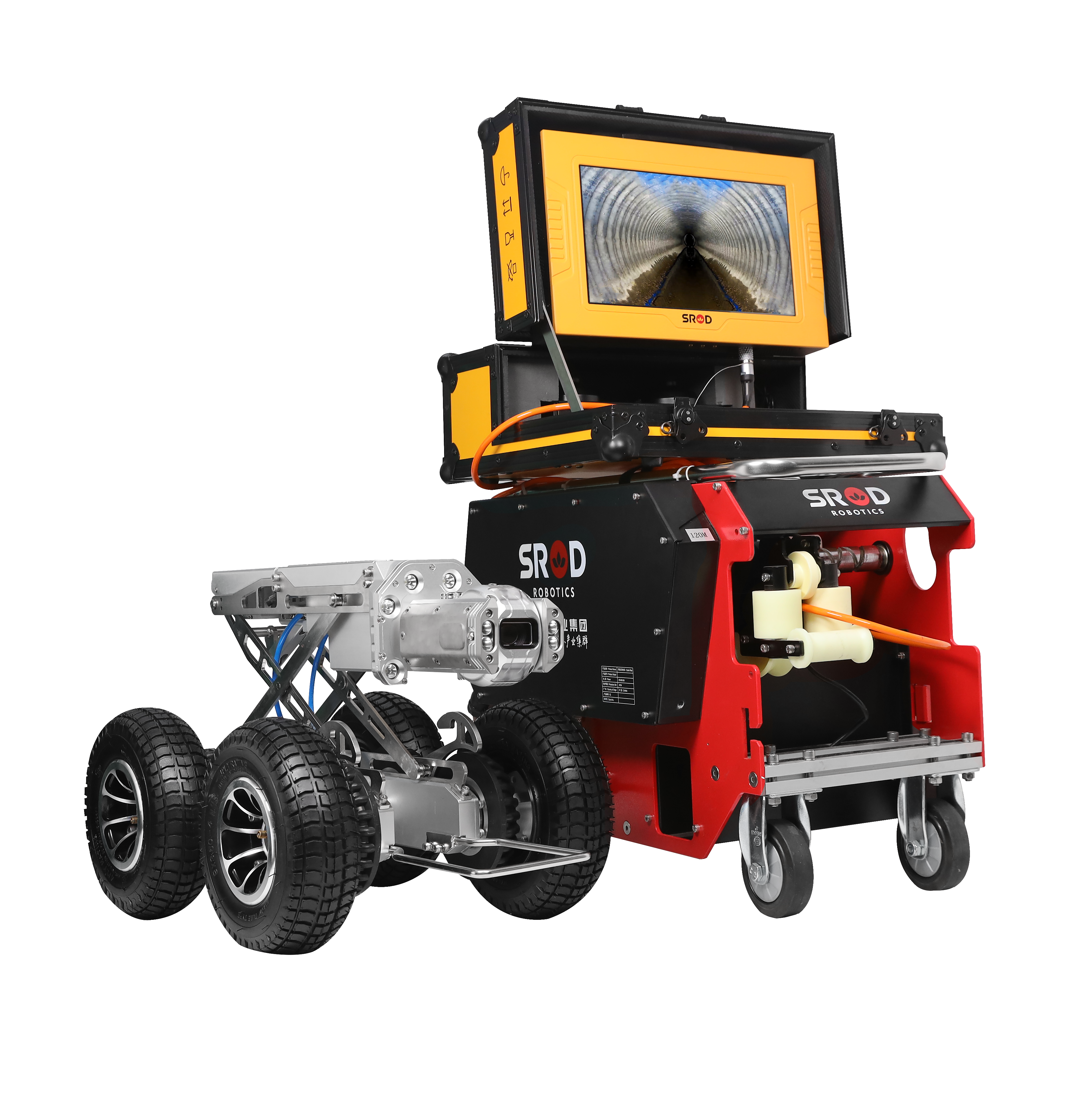

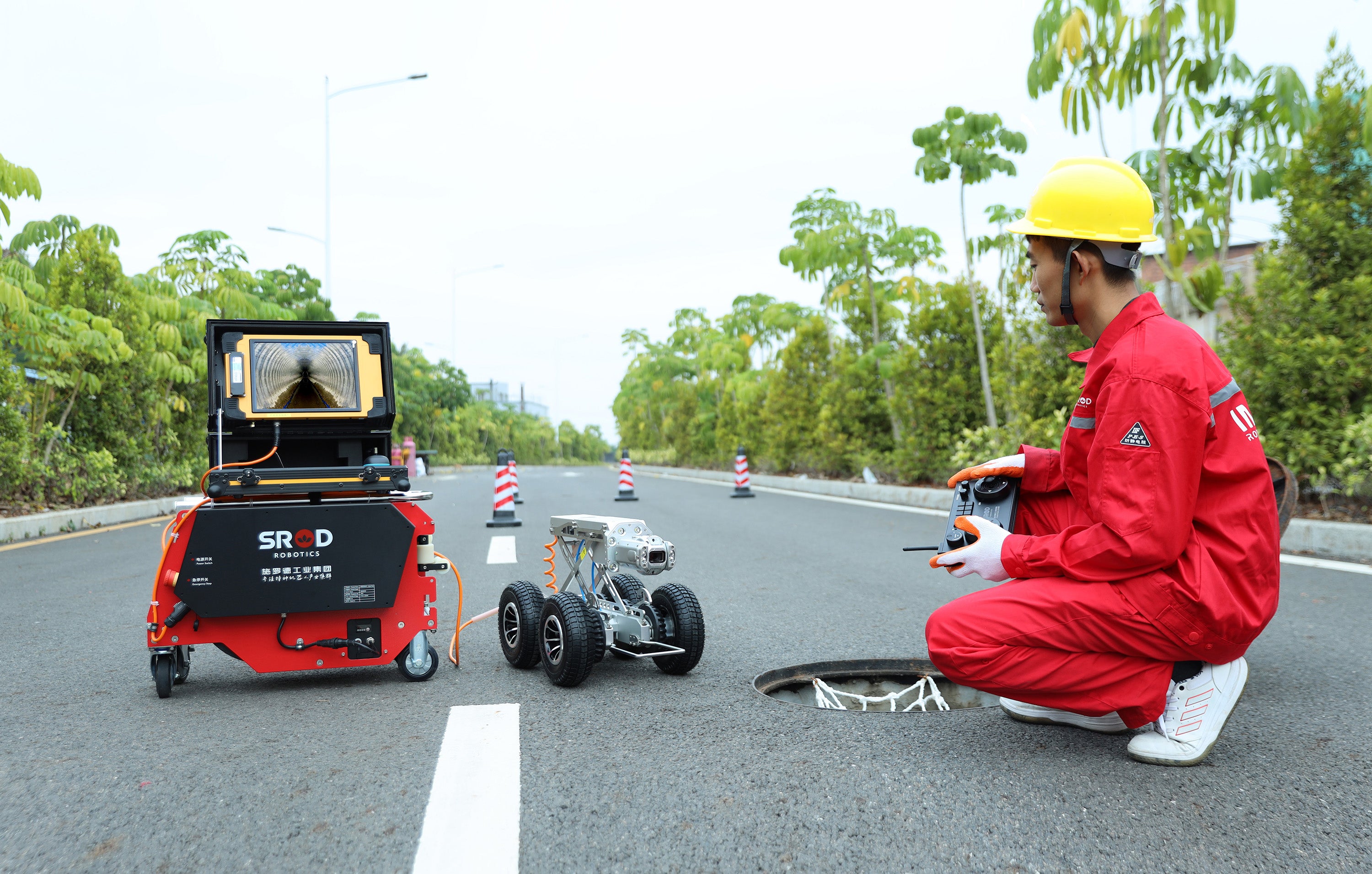

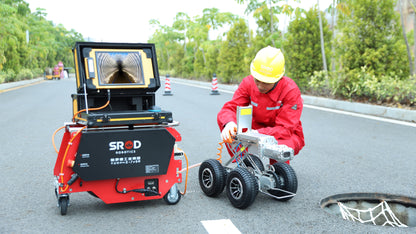

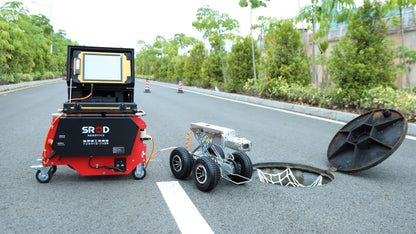

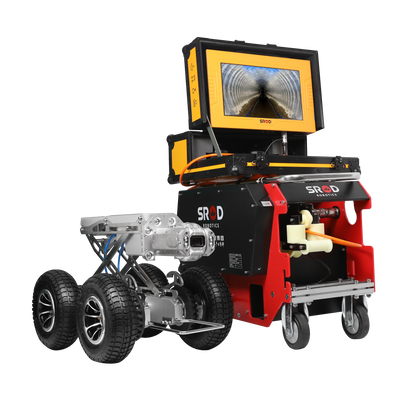

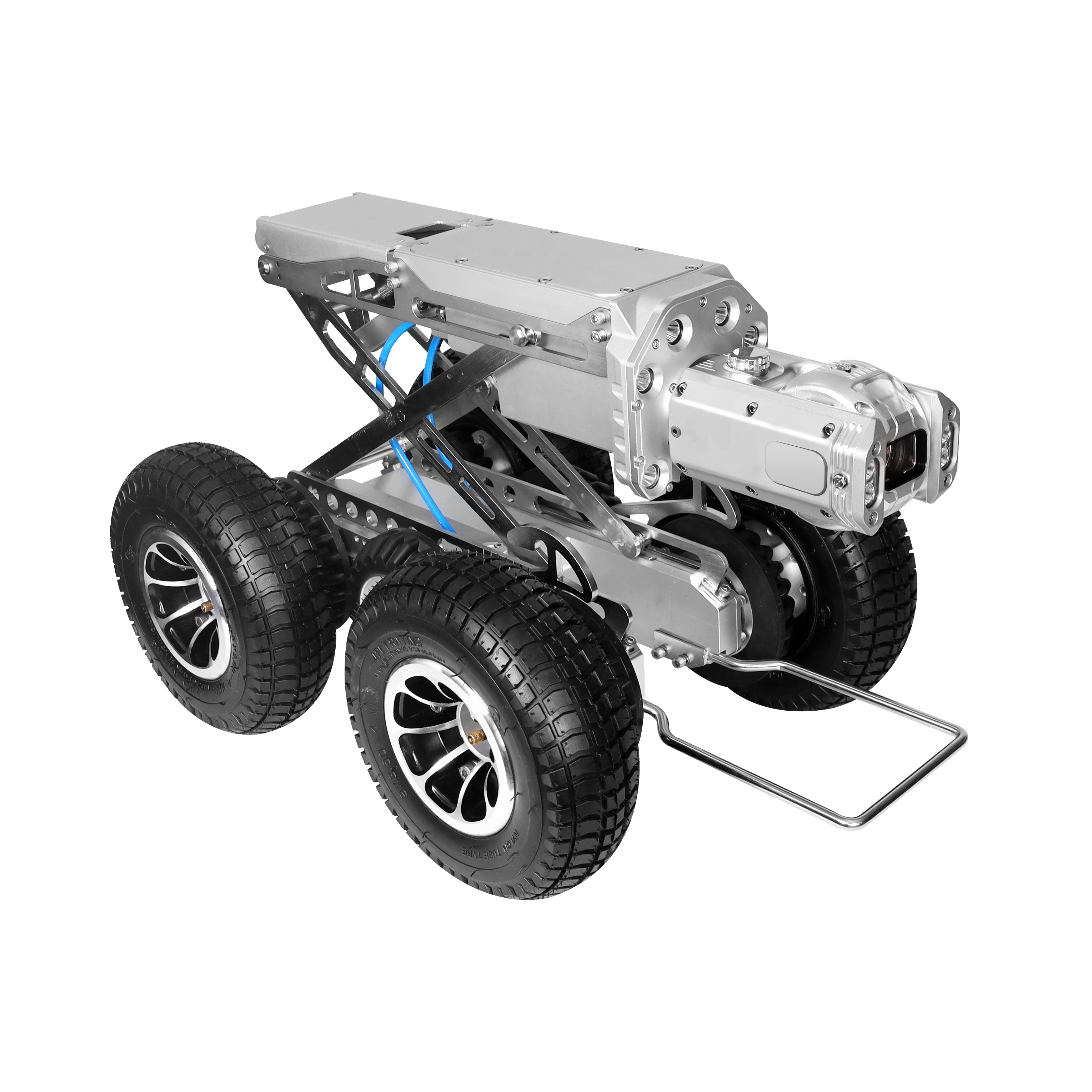

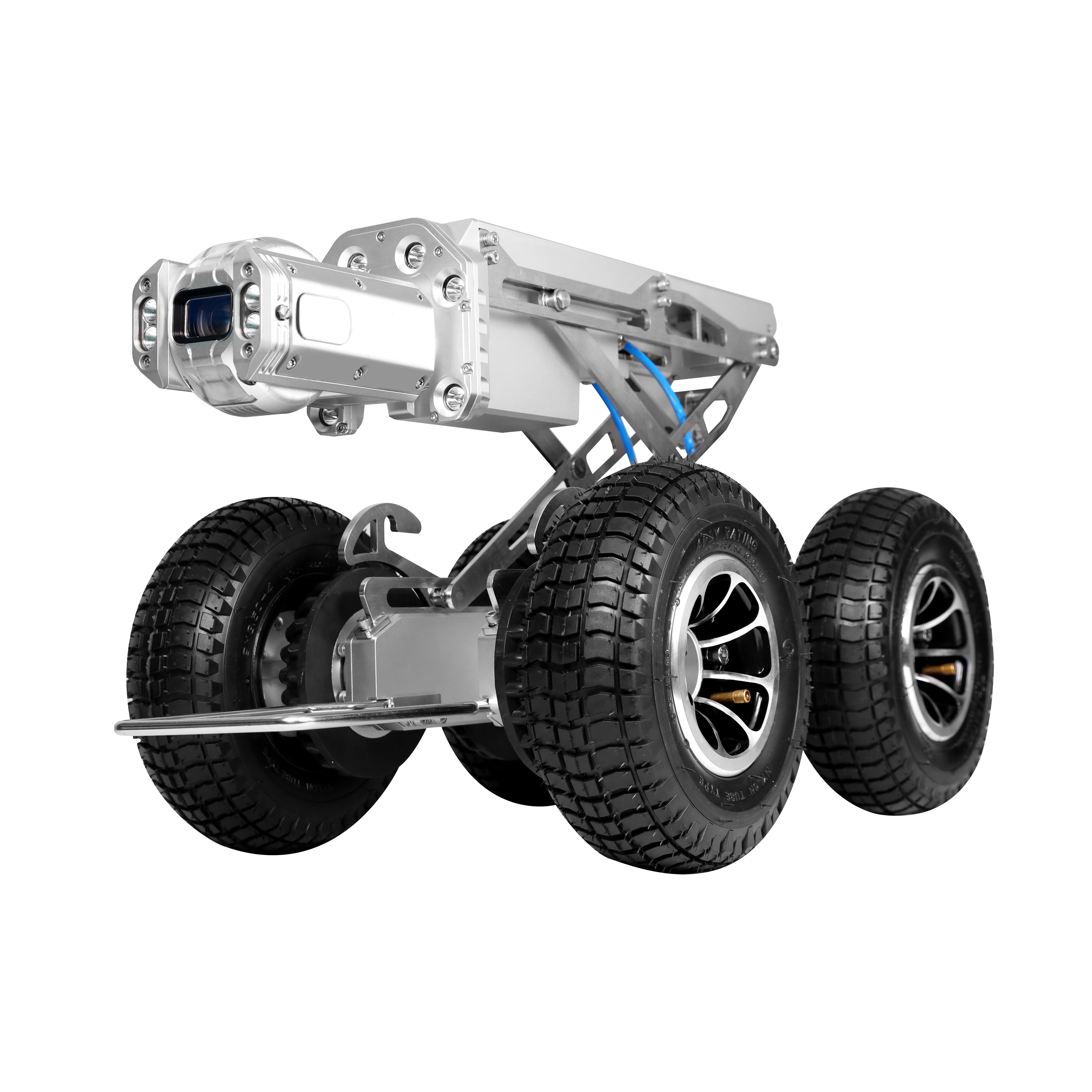

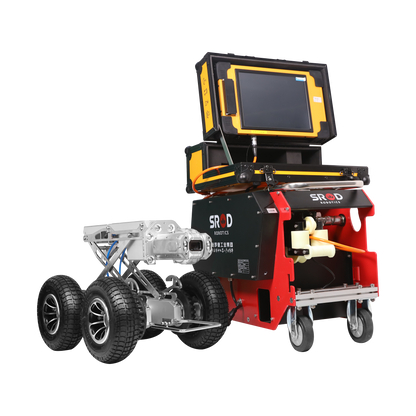

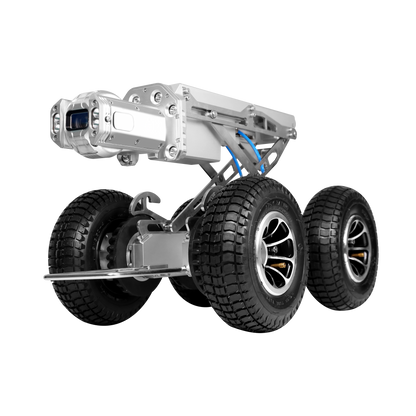

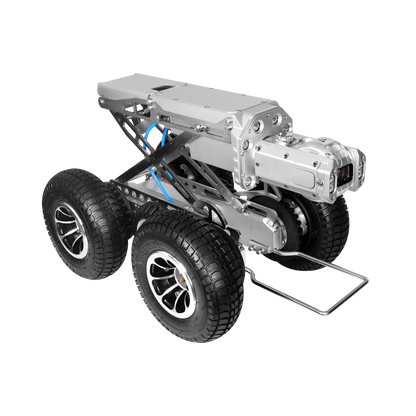

The S300EHD Pipeline Inspection Robot mainly consists of a camera, the crawler body, a cable reel, an intelligent control terminal and a computer software control system. Employing industrial-grade high resolution colour camera units, it continuously and in real-time records the actual conditions inside the pipes. Based on the video data captured by the camera system, The nature of the defects in the pipeline is determined and analysed, providing a reliable technical basis for the next step of maintenance, dredging and repair.

  • IP68 - Protection Level
  • 1090F1 - High-Definition Camera
  • GPS - High-Precision Positioning
  • 8-10h - Ultra-Long Battery Life
Request Quote
Need Support Financing The Product?

Simple and low cost finance available on this product. For more information click here.

Need More Info or Demonstration?

Demos and technical support are available from our UK team before you buy - more info.

Product Info

Comprehensive Testing
360° pipe wall inspection with no blind spots; radial rotation (manual) can be automatically adjusted to 230°; axial rotation can be automatically (manually) adjusted to 360°

Camera System Upgrade
New features include laser width measurement and one-click defogging; 360° lens scanning with freely controllable rotation angle; independently sealed camera head with air pressure indicator; and 8 high- brightness LEDs for clearer image quality

Modular Compartment Design
The S300E adopts a modular compartmentalized design, with two compartments independently sealed, making installation simple, maintenance convenient and equipment parts highly interchangeable

Centimeter-Level Meter Positioning
A centimeter-level high-precision meter measuring device accurately locates the robot's position

Dual HD Information Acquisition
It uses digital high-definition cameras at both the front and rear, with a completely upgraded front
camera for higher-definition images

Sealed Dustproof And Waterproof Technology
With over a decade of experience in sports sealing and waterproofing technology, it has IP68 protection rating

Key Features

Scope Of Application - DN300mm-3000mm
Lens Protection - The front of the vehicle is equipped with a detachable anti-collision probe to prevent damage to the nose from external forces
Obstacle Surmounting Ability - Maximum climbing ability up to 45°
Protection Level - IP68
Camera Unit - Resolution: 1920x1080, 2.1MP high-definition camera with no latency
Drive - Six-wheel drive, powerful engine, and a maximum load capacity of 50kg
Zoom - 10×optical, 12×digital camera

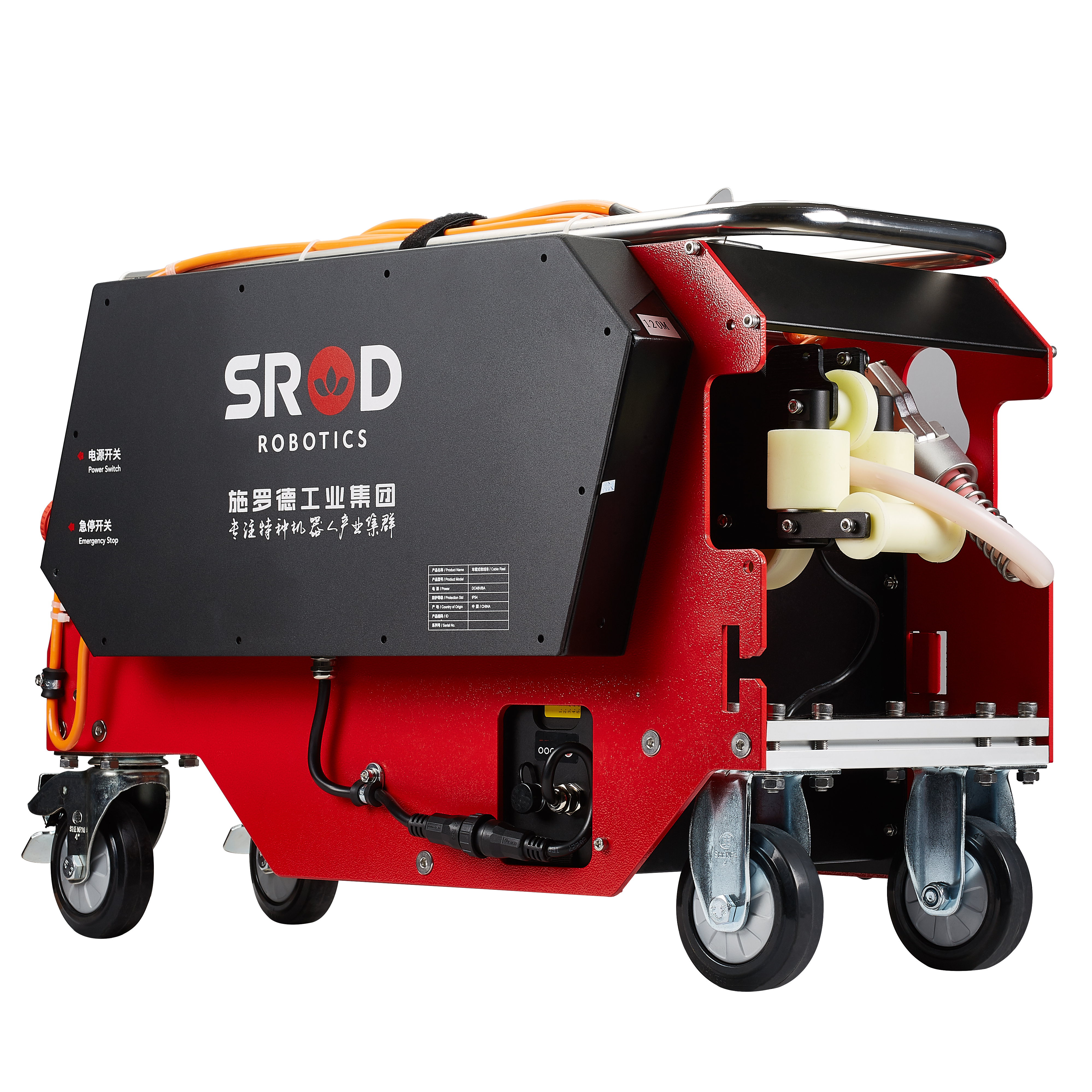

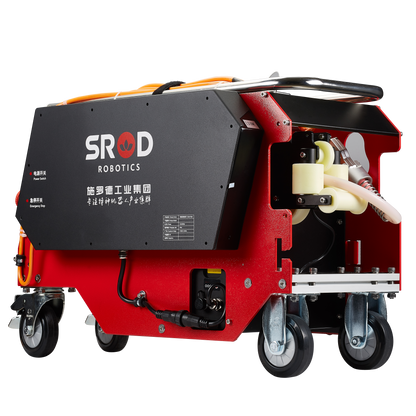

Cable Winding Vehicle - Built-in high-capacity lithium battery, can work continuously for 8-10 hours
Lifting Method - Special "X" type electric lift, the lifting frame can reach a maximum height of 250mm
Cable - 12-core special tensile-resistant cable, available in lengths of 120~300m
Location Function - Equipped with a high-precision GPS positioning system, real-time positioning
Meter - Built-in high-precision electronic encoder; meter readings are continuously displayed on the control unit
Illumination - High brightness LED, 8×2W
Anti-Rollover Design - The superimposed wheel hubs and built-in anti-rollover software alarm function provide real-time animation simulation of the crawler's posture inside the pipe (forward and backward tilt angles, left and right tilt angles, and lifting platform height)
Width Measurement - Equipped with laser width measurement function
Defogging - Equipped with one-button defogging function
