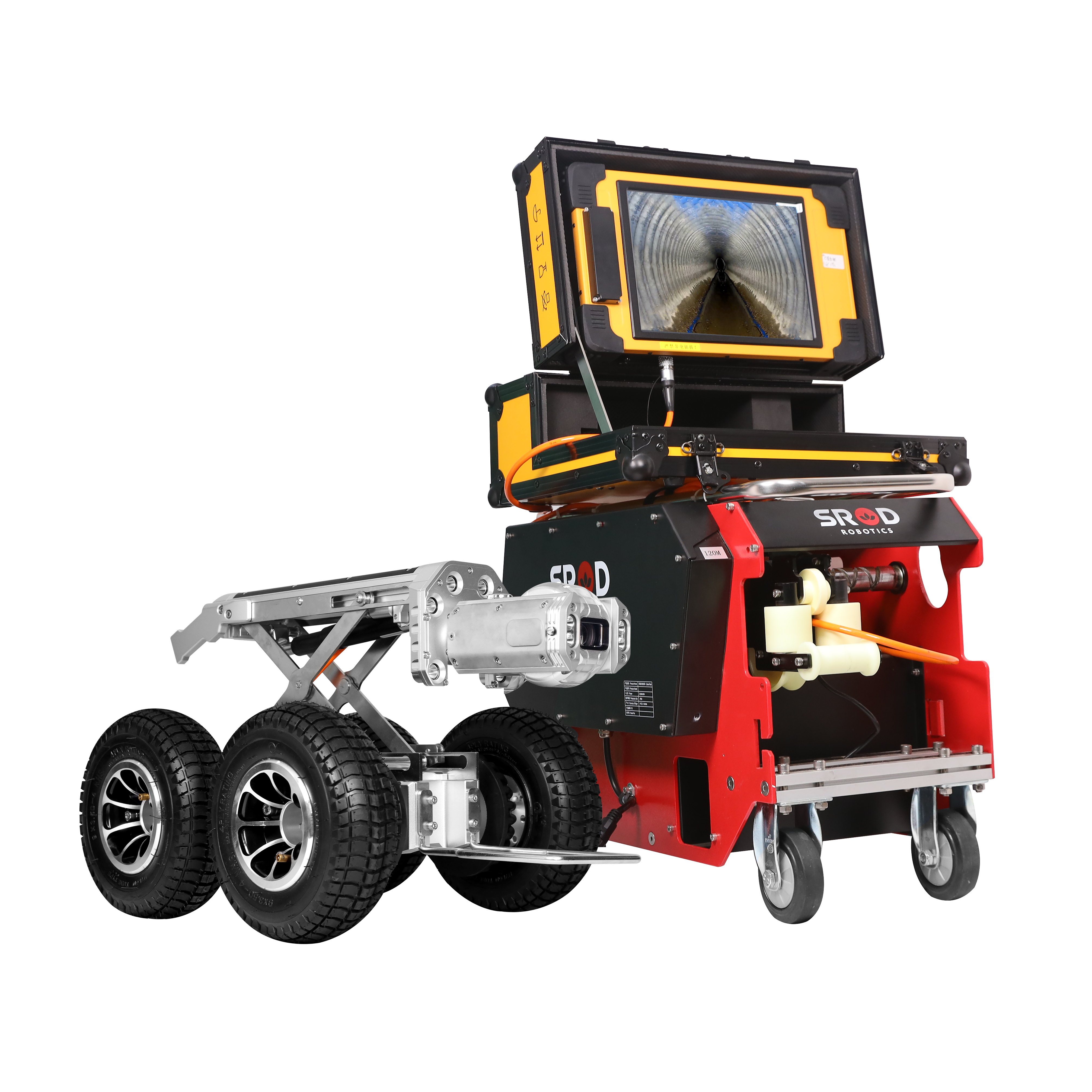

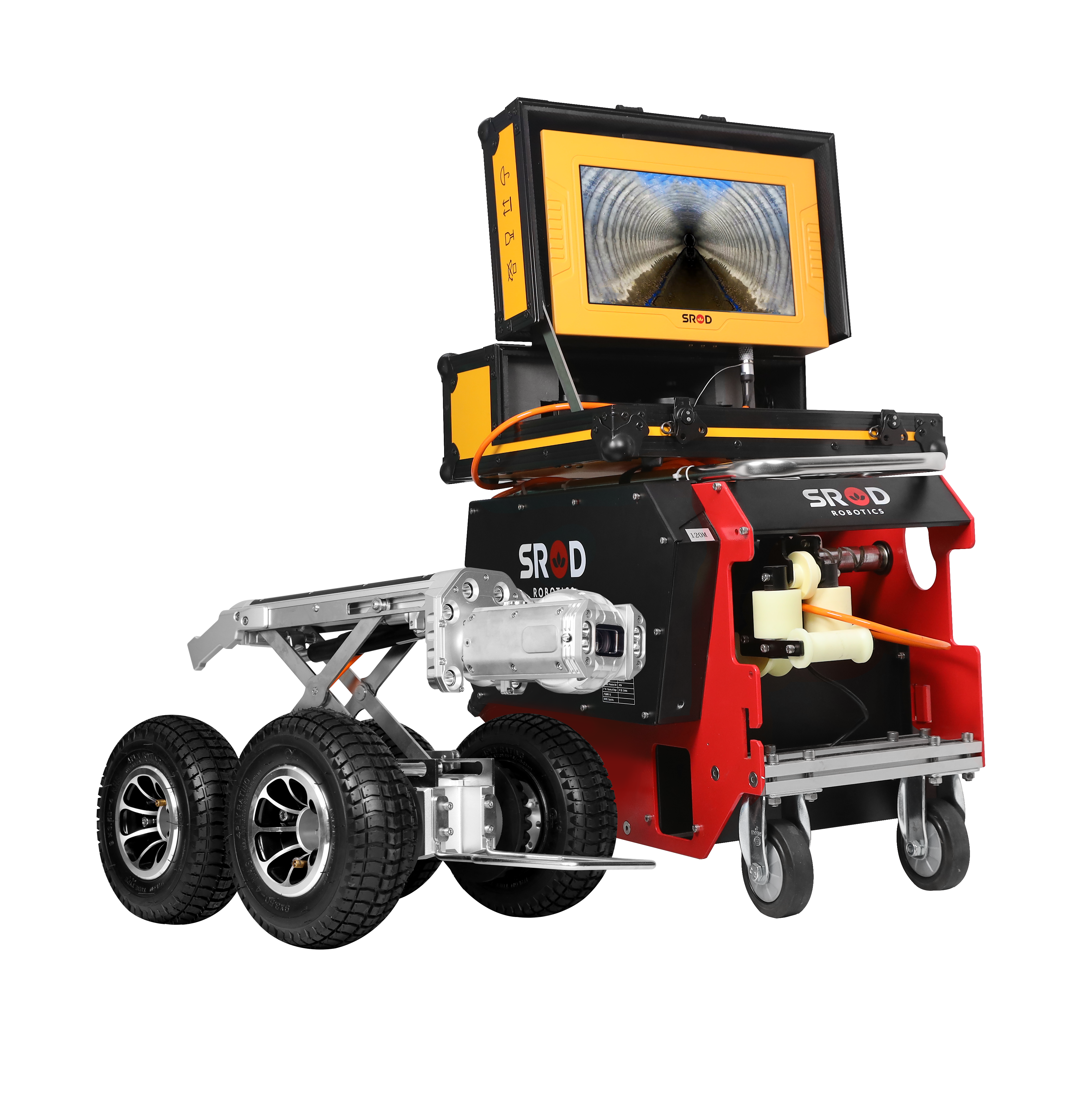

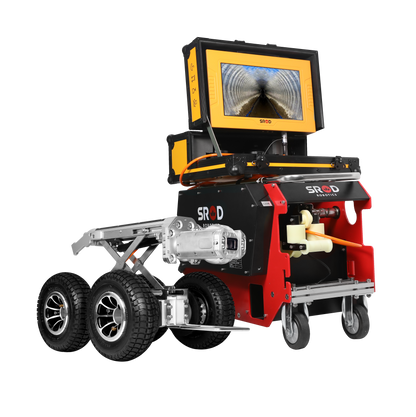

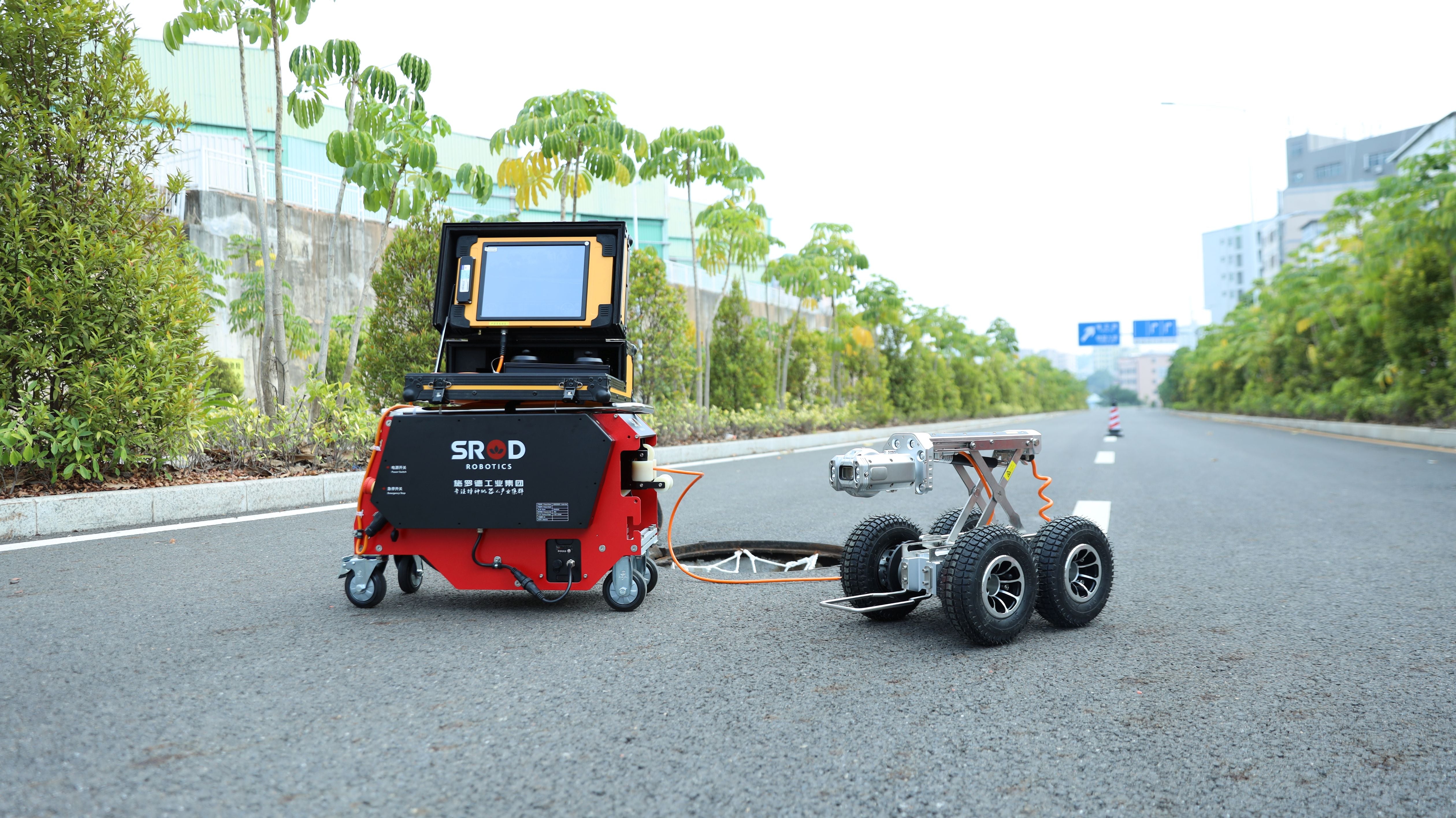

S200CHD Pipeline Inspection Robot

High-definition, smooth operation, superior inspection performance

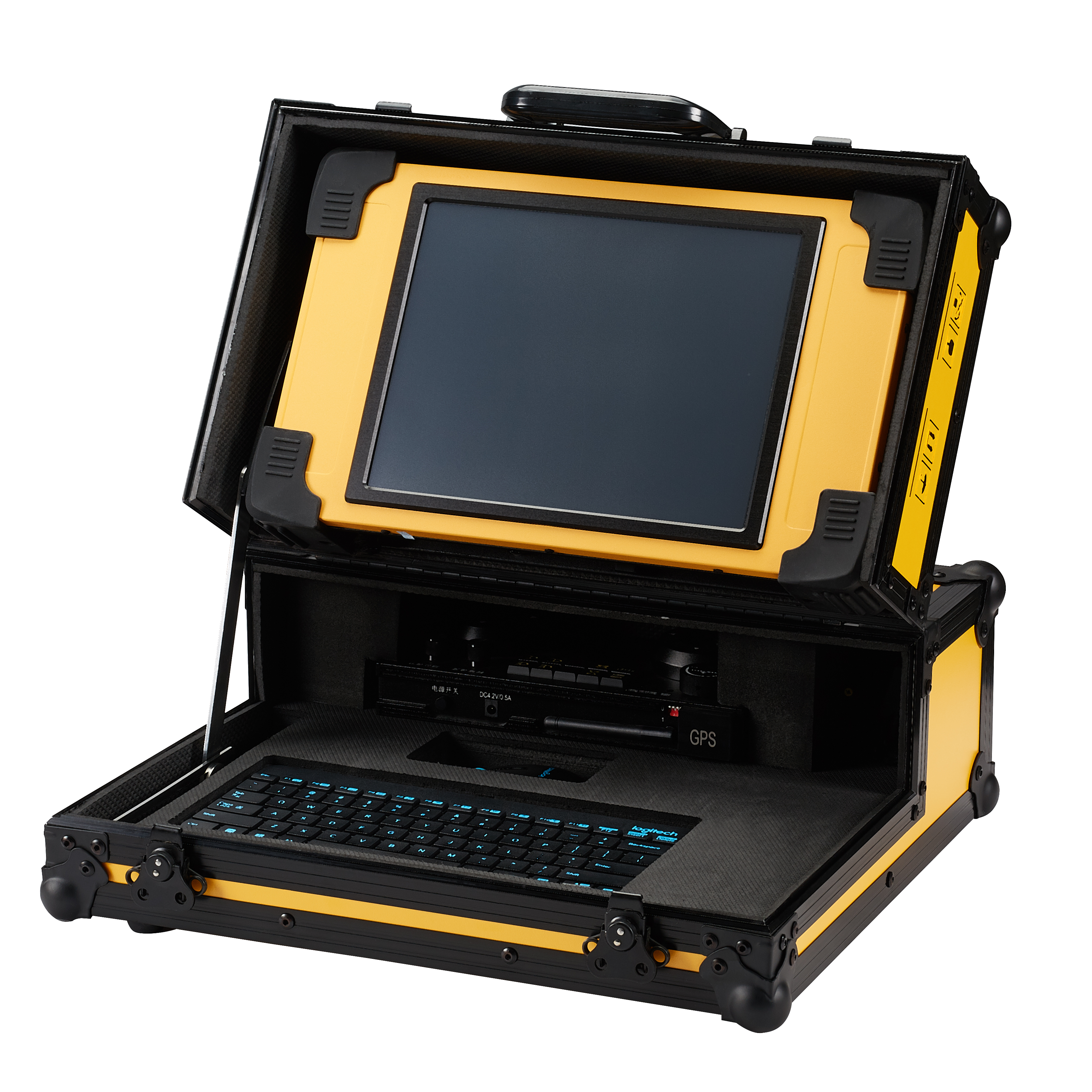

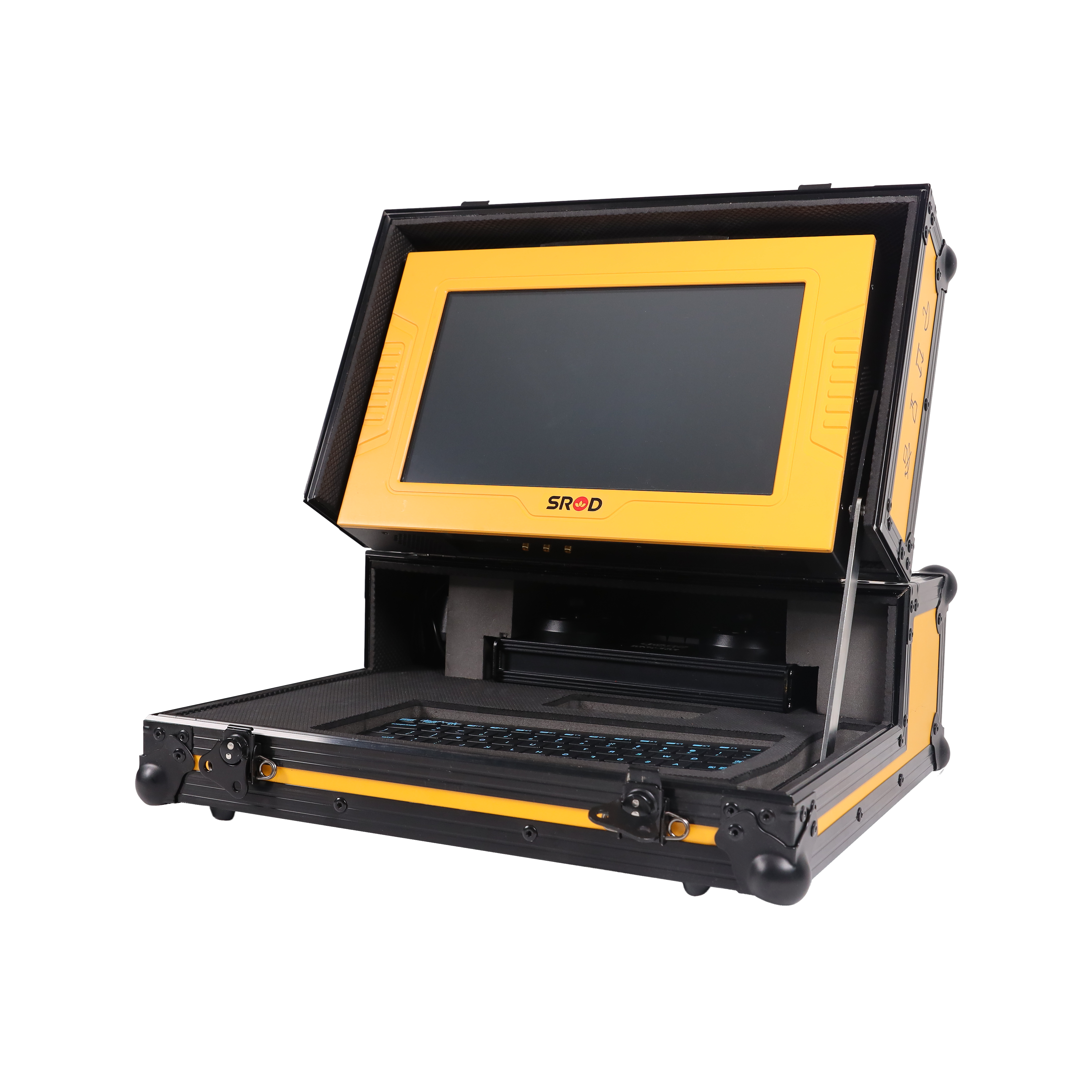

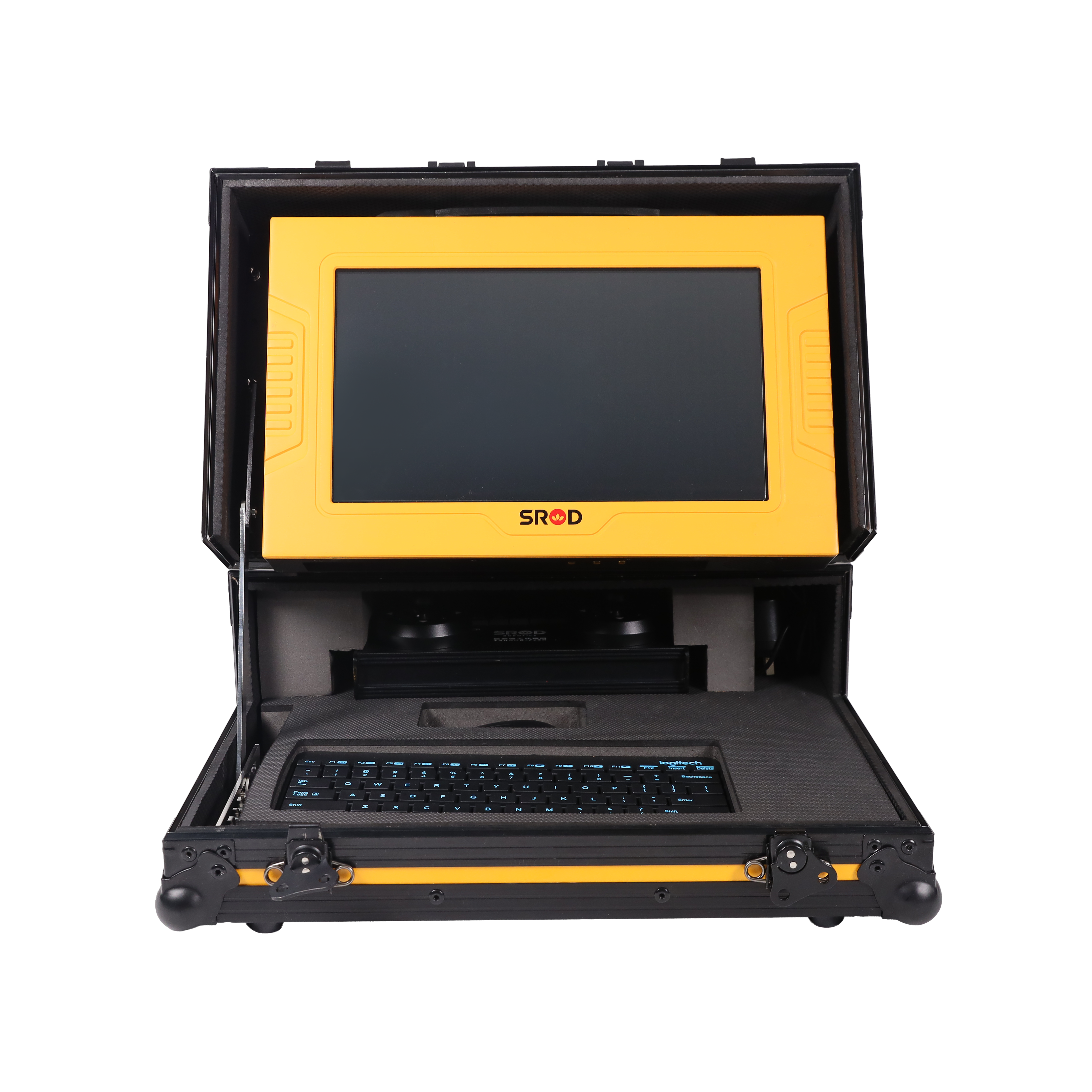

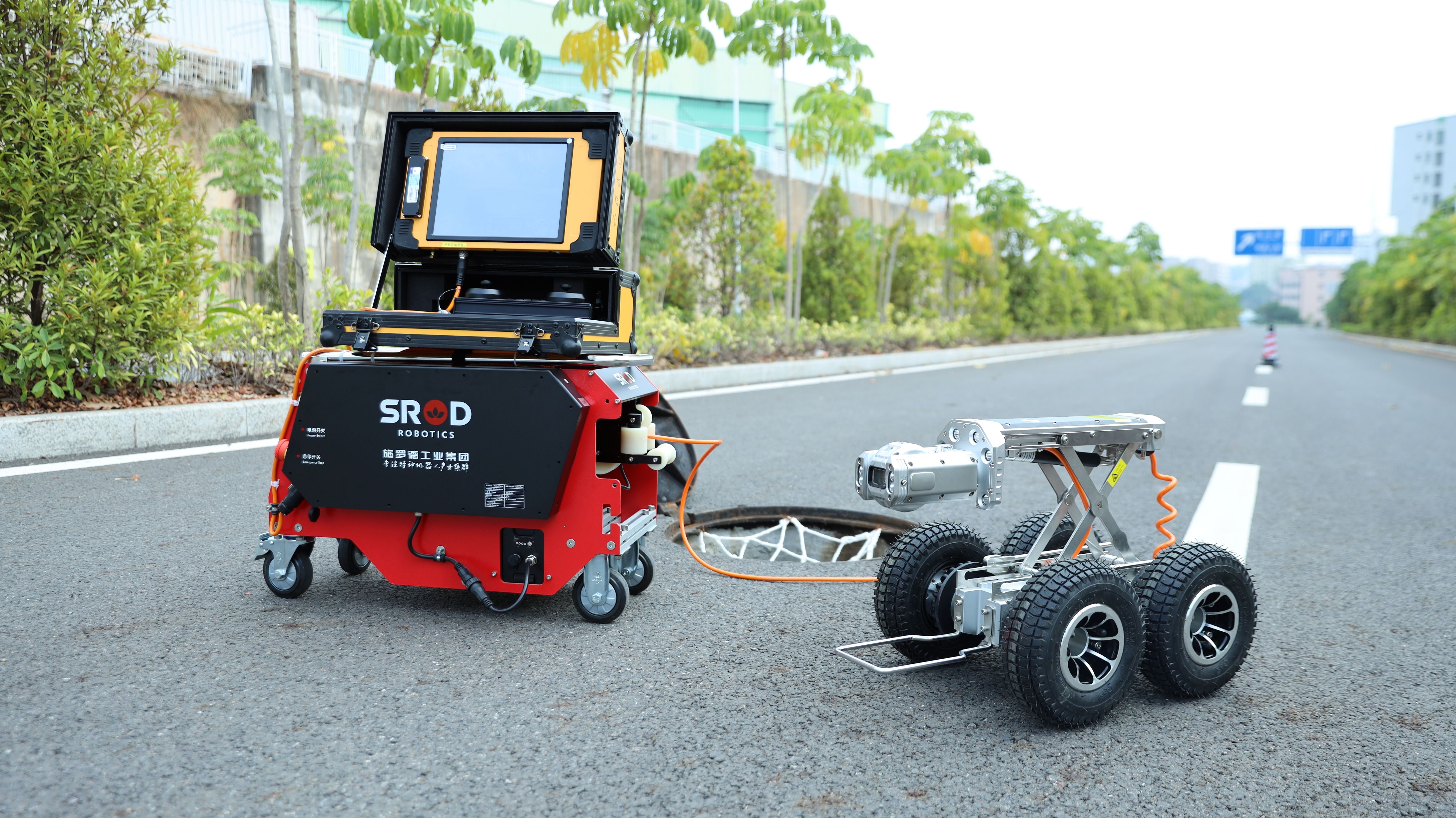

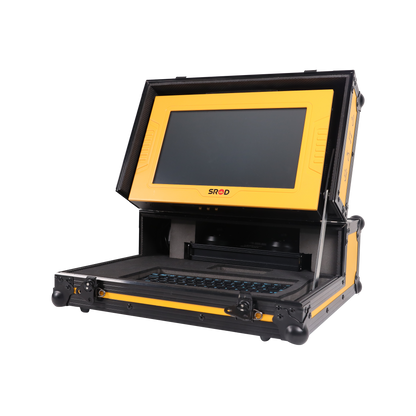

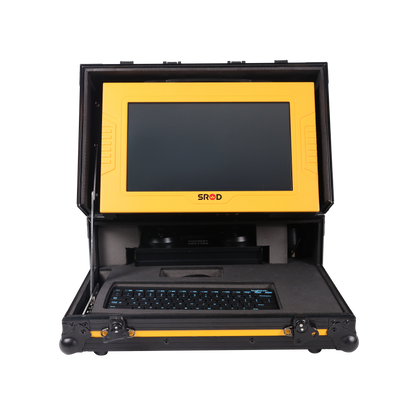

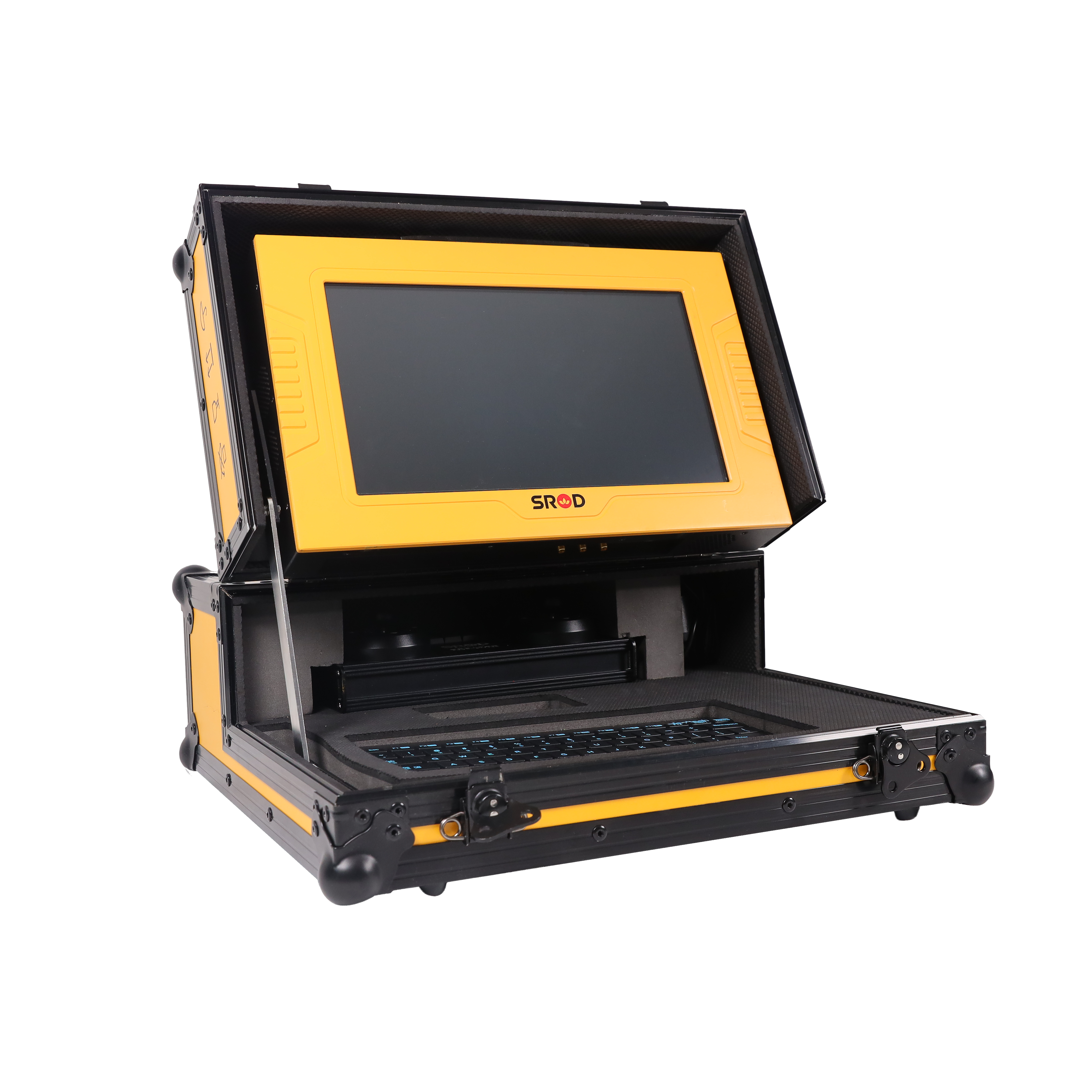

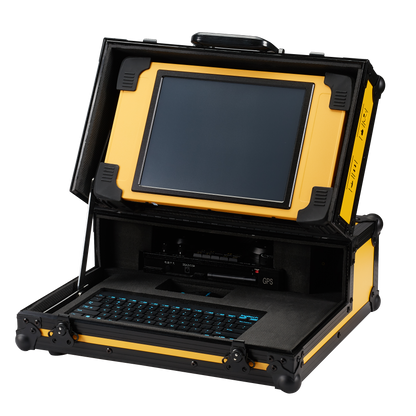

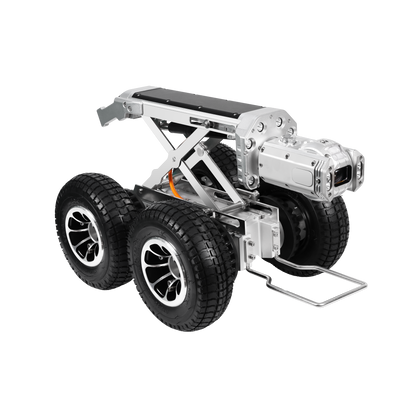

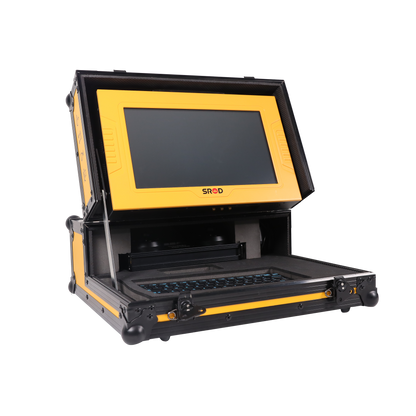

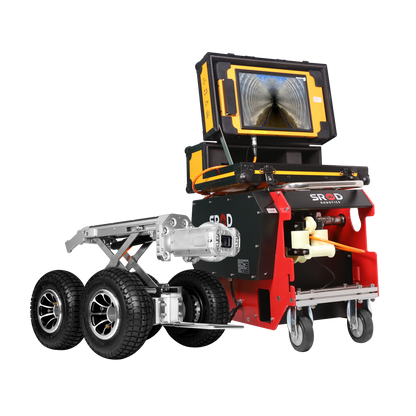

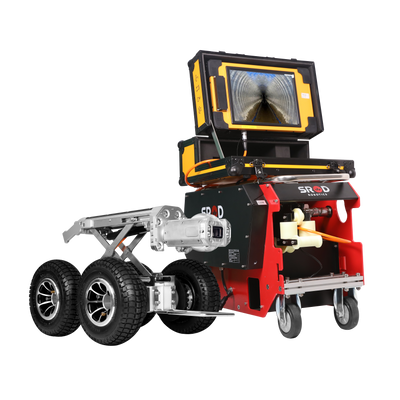

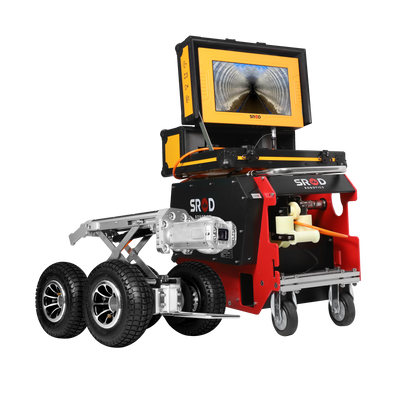

The S200CHD pipeline inspection robot uses an intelligent wheeled motion mechanism as its platform. It employs an industrial-grade high-resolution colour camera unit, motion posture detection unit and intelligent control video recording terminal, along with a powerful lighting source and a high-precision meter-counting cable rewinding device. It can enter the pipeline to record video, capture images of defects, record defect location information and output professional pipeline inspection reports.

IP68 - Protection Level
1090F1 - High-Definition Camera
GPS - High-Precision Positioning
8-10h - Ultra-Long Battery Life

Product variants

Request Quote

Share:

Share

Need Support Financing The Product?

Simple and low cost finance available on this product. For more information click here.

Need More Info or Demonstration?

Demos and technical support are available from our UK team before you buy - more info.

Product Info

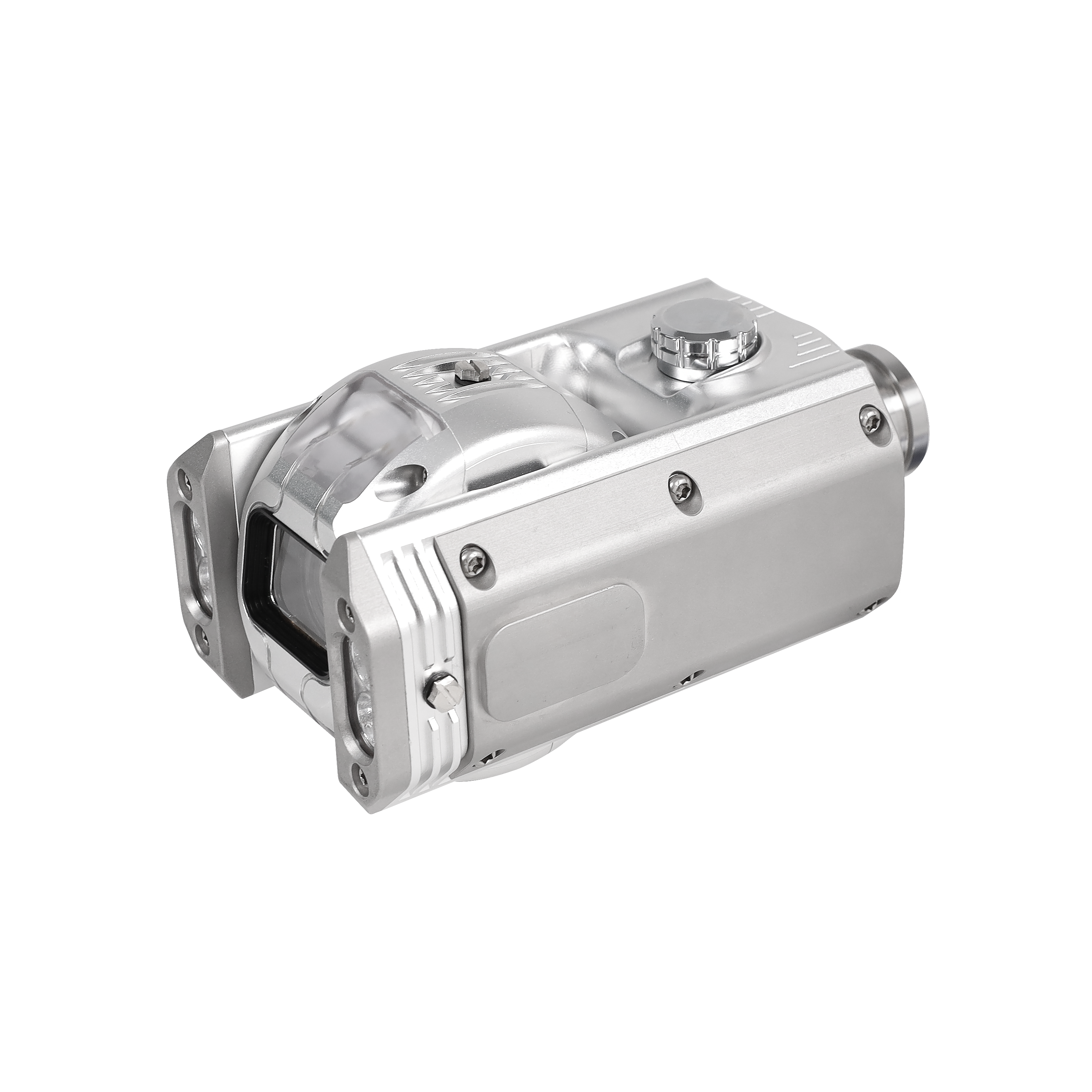

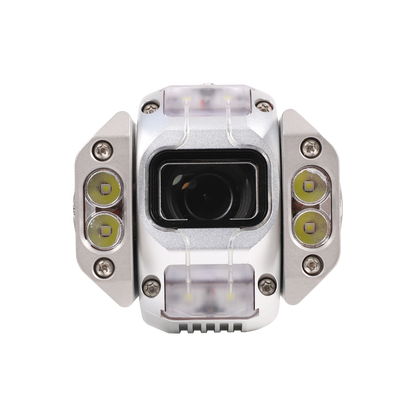

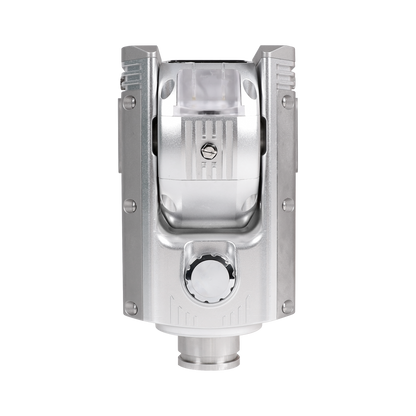

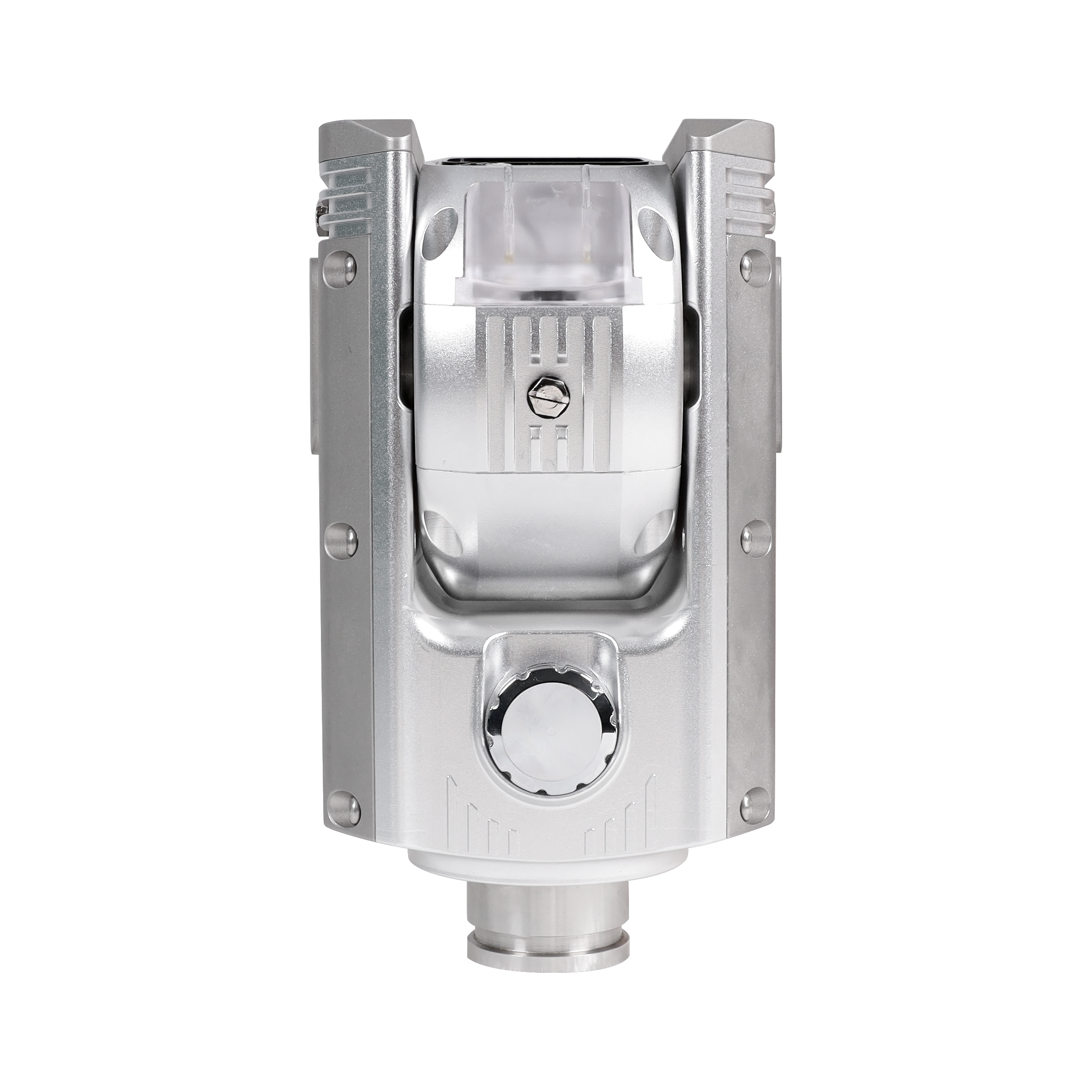

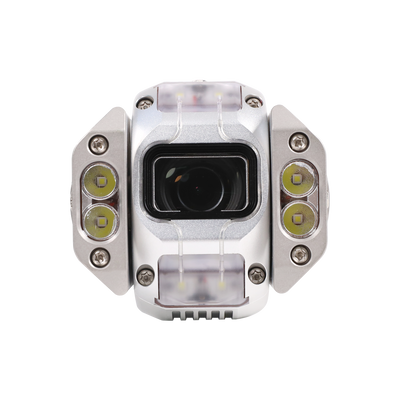

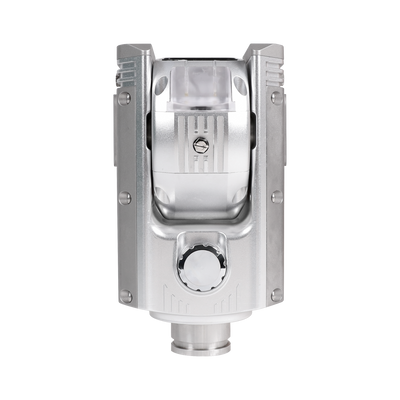

New Camera System Upgrade

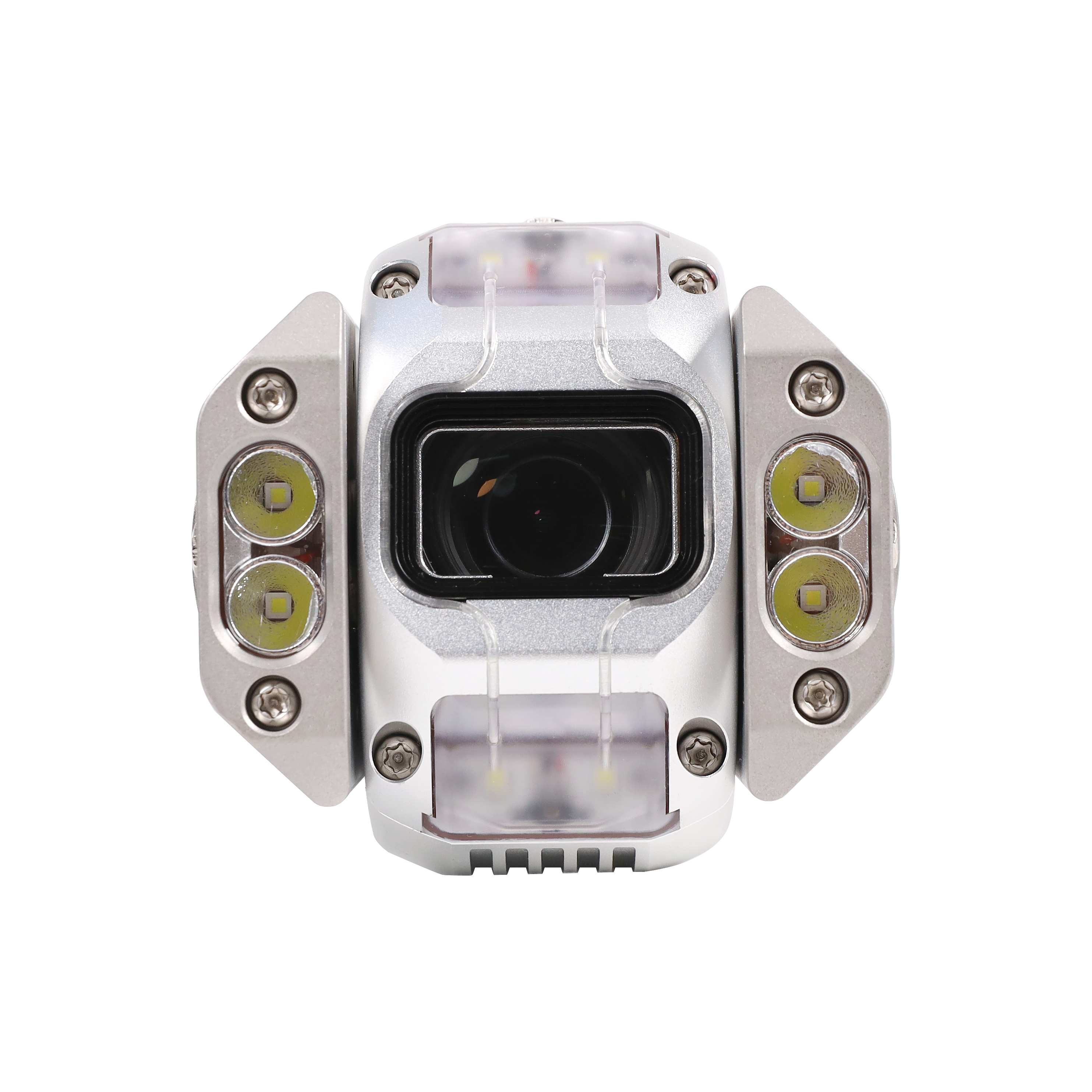

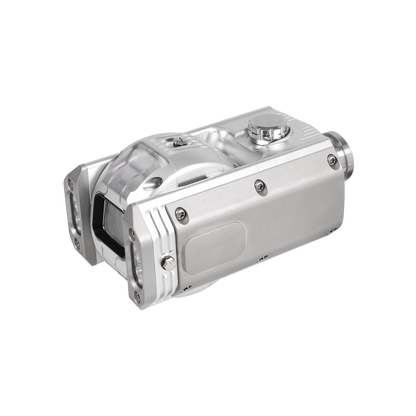

Newly added laser width measurement and one-key defog function; the lens can scan 360° to achieve arbitrary control of the rotation angle; the head is independently sealed and equipped with an air pressure indicator light; 8 high-brightness lights provide clearer image quality

Modular Compartment Design
The S200C adopts a modular compartment design with two compartments that are independently sealed. It is easy to install, maintain, and has excellent interchangeability between equipment accessories

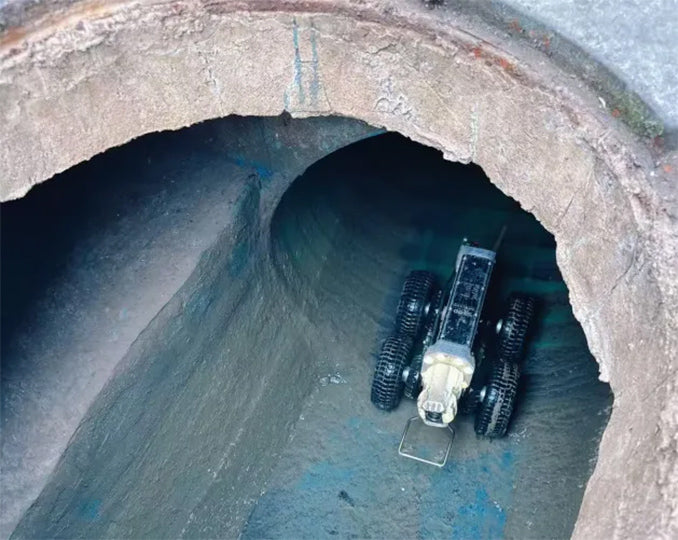

Comprehensive Inspection
360° pipe wall detection without blind spots, radial rotation (manual) can be automatically adjusted 230°, axial rotation can be automatically (manually) adjusted 360°

Centimeter-Level Positioning
Centimeter-level high-precision meter device to accurately locate the robot's position

Sealed Dust and Water Proof Technology
More than ten years of experience in sports sealing and waterproofing technology, reaching IP68 protection level

Dual High-Definition Information Collection
Digital high-definition acquisition cameras are used at both the front and rear, and the front camera has been completely upgraded to provide higher-definition image

Key Features

Scope Of Application - DN200mm-3000mm
Lens Protection - The front of the vehicle is equipped with a detachable anti-collision probe to prevent the nose from being damaged by external forces
Obstacle Surmounting Ability - Maximum climbing ability up to 40°
Protection Level - IP68
Camera Unit - Resolution: 1920x1080, 210W pixel non-delay high-definition camera

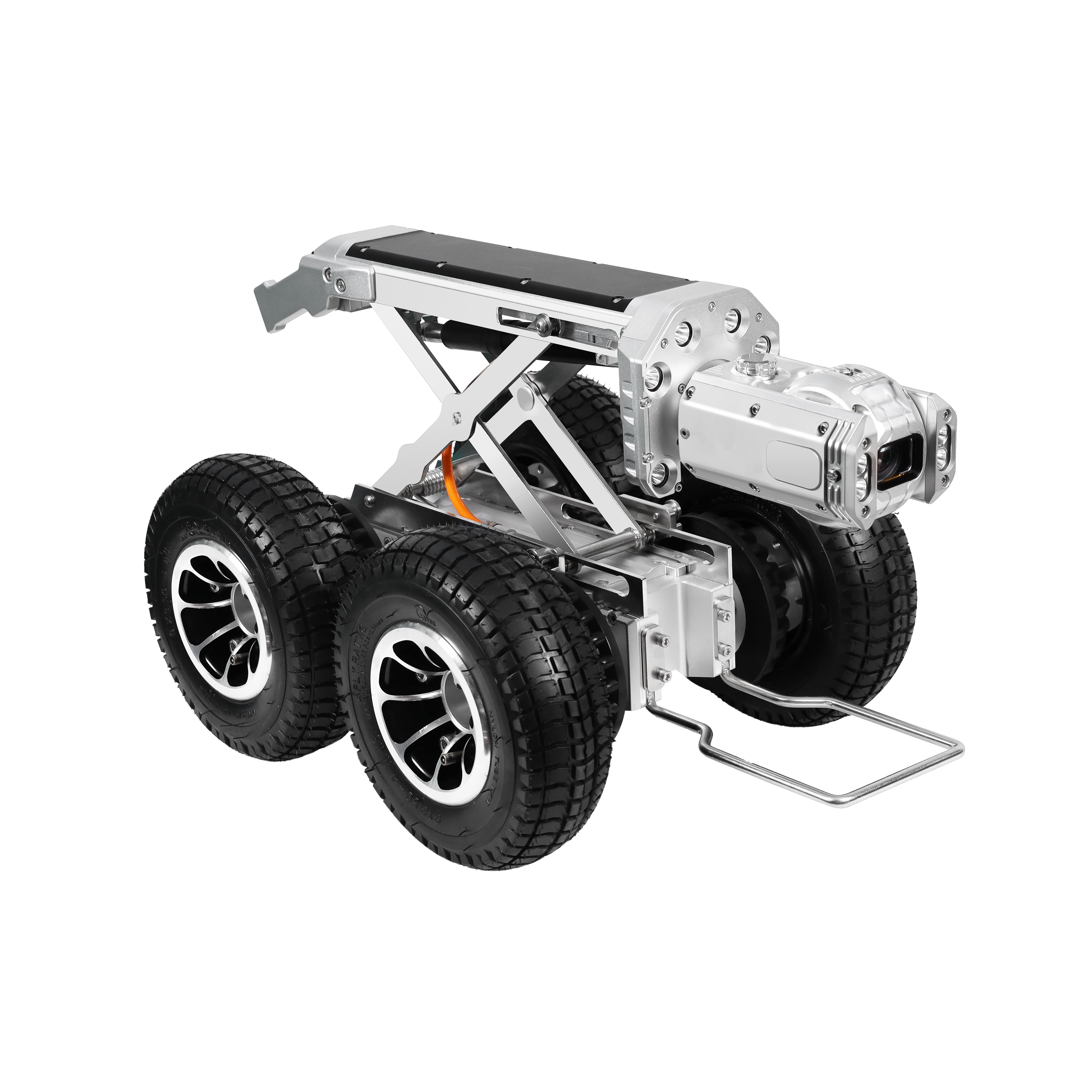

Drive - Six-wheel drive, maximum load capacity up to 50kg
Zoom - 10×optical, 12×digital camera

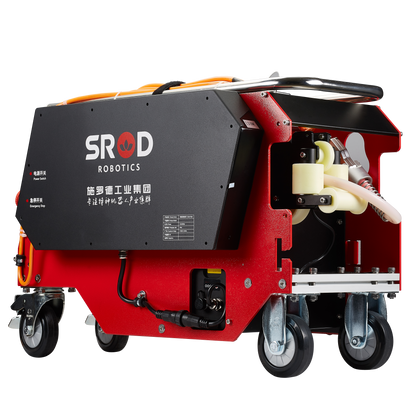

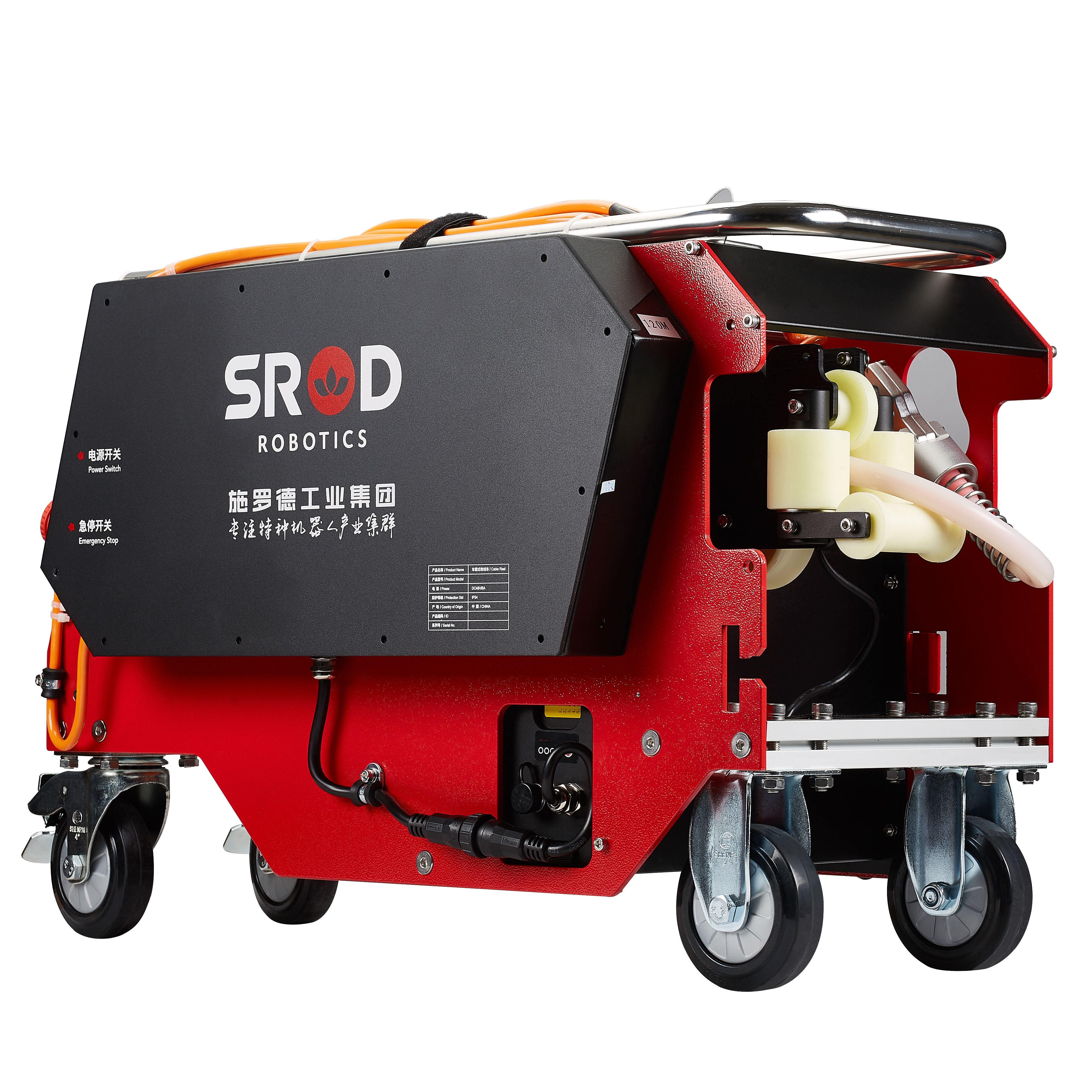

Wire Take-Up Vehicle - Manual, electric take-up (optional)
Lifting Method - "X" type electric lifting frame, with large lifting torque, can easily lift the equipment, the lens lift is 200mm
Cable - 12-core special tensile cable, optional cable length 120~300m
Positioning - Real-time positioning via high-precision GPS positioning system
Meter - Built-in high-precision electronic encoder, the meter value is continuously displayed on the control unit
Illumination - High brightness LED, 8×2W
Anti-Rollover Design - Superimposed wheel hub and built-in anti-rollover software alarm function, real-time animation simulation to display the crawler's posture inside the pipeline (front and rear tilt angle, left and right tilt angle, lifting platform height)
Width Measurement - With laser width measurement function
Defogging - With one-button defog function
