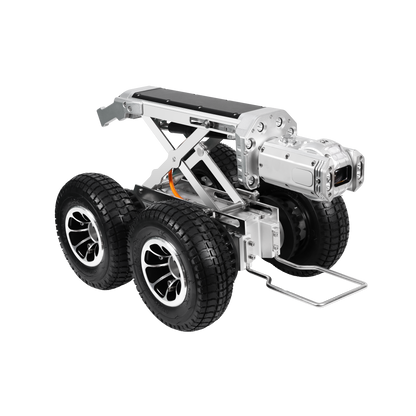

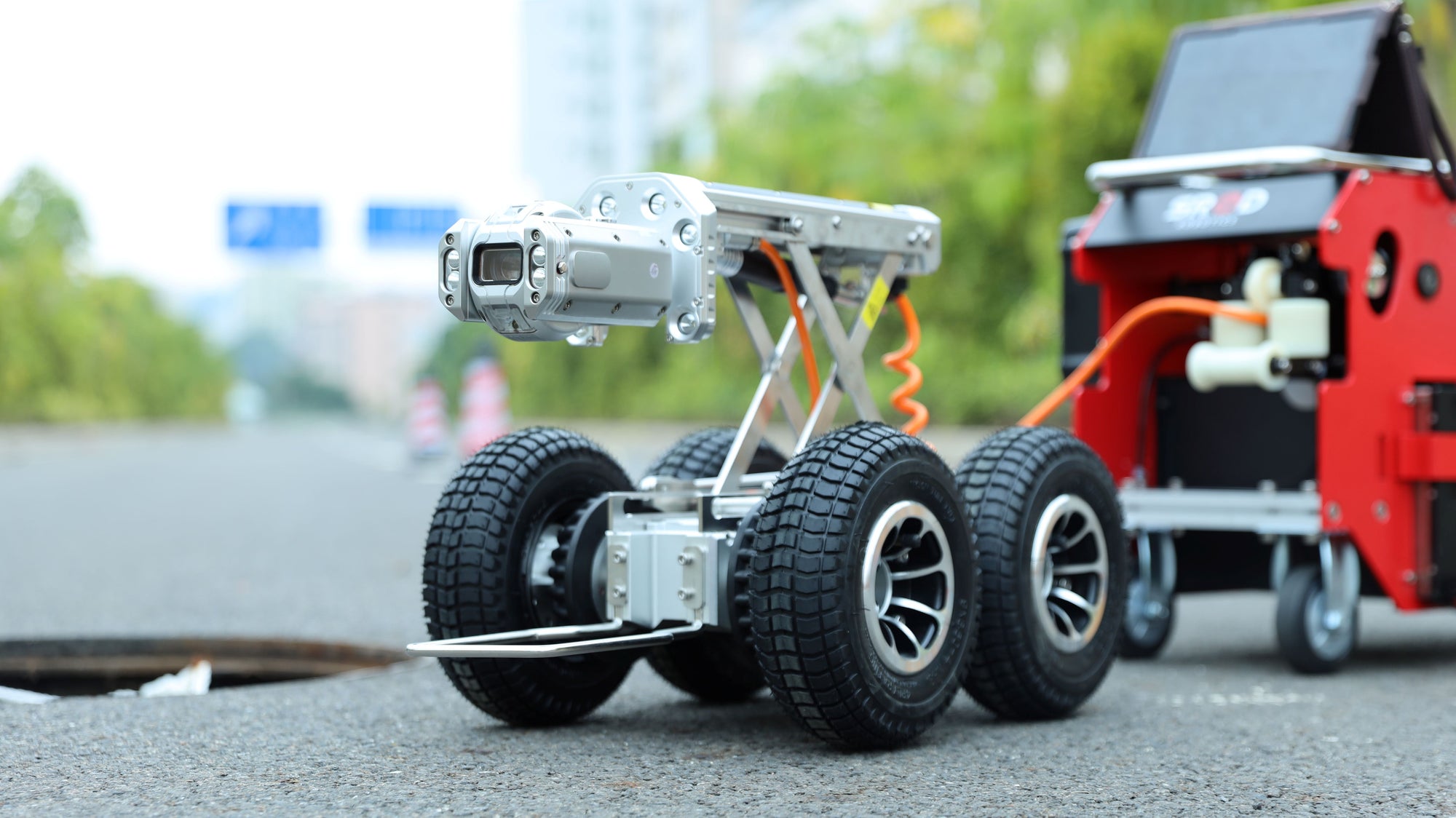

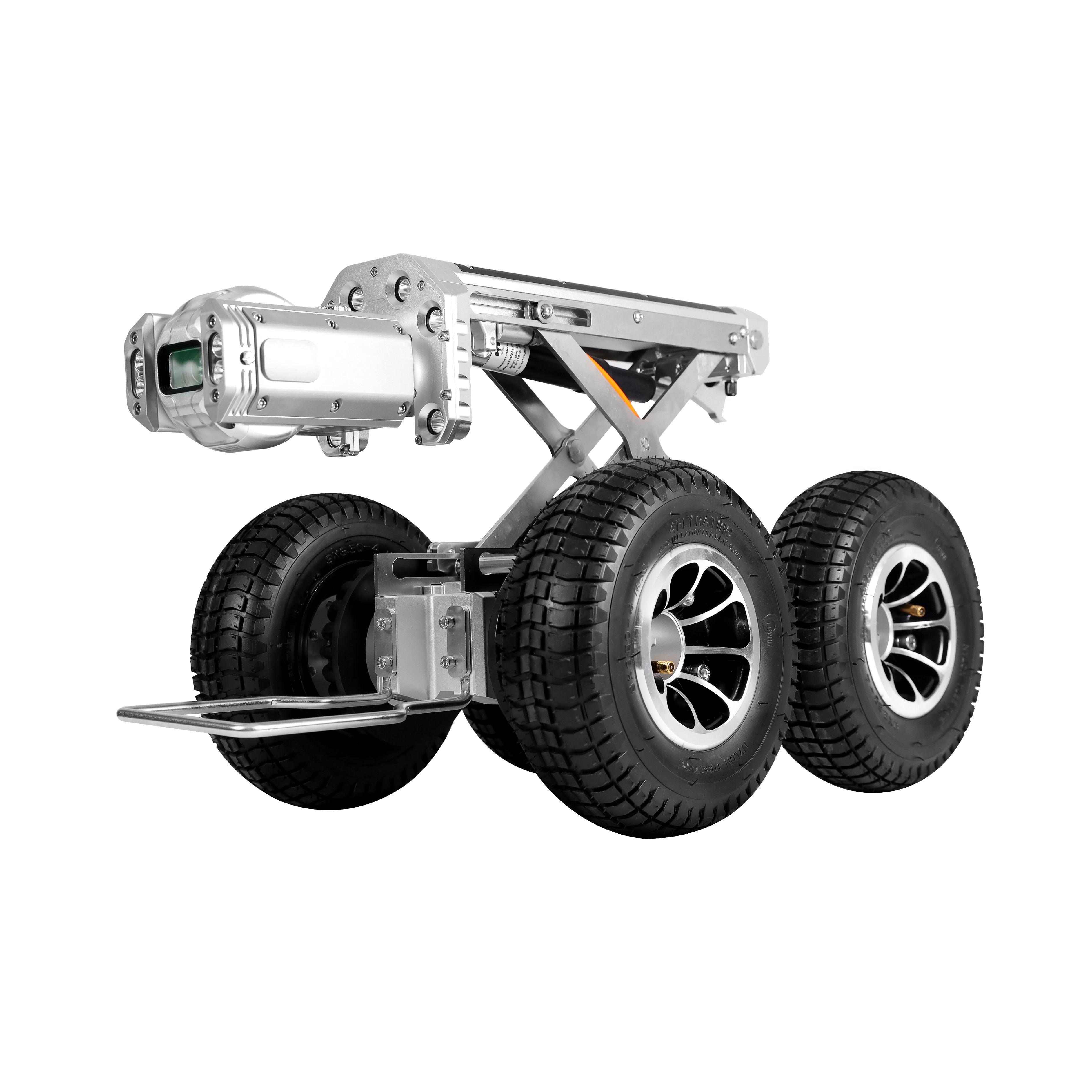

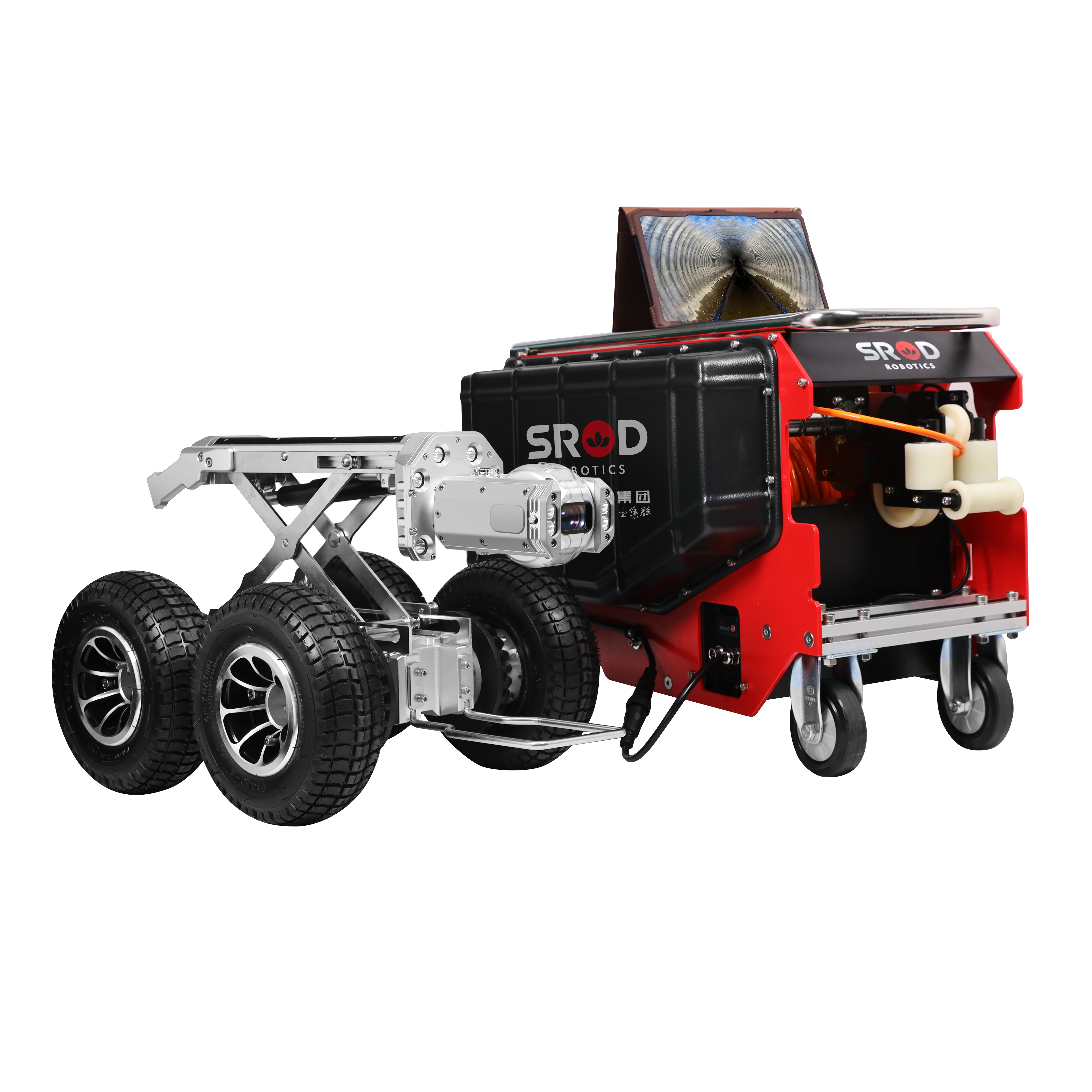

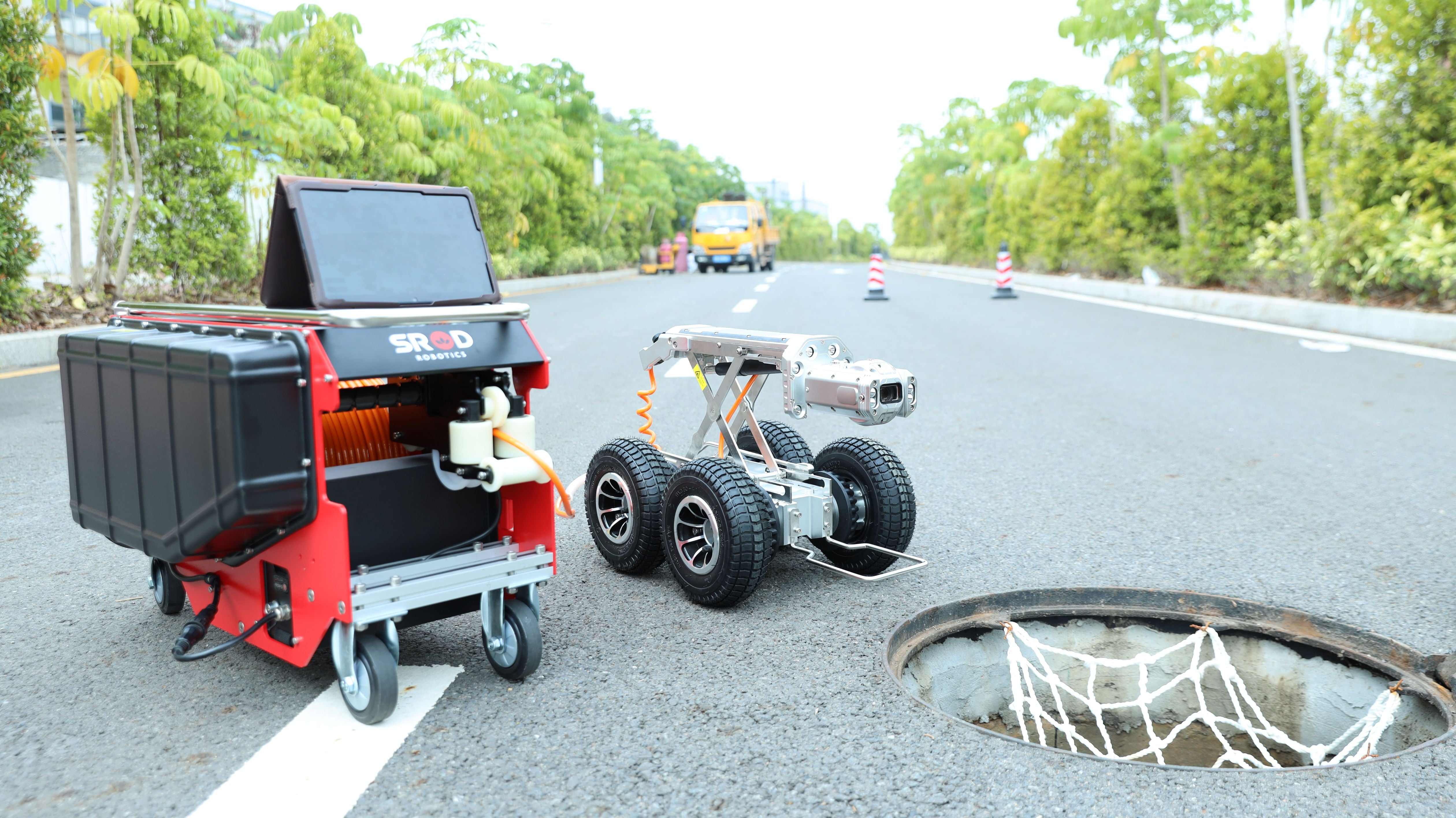

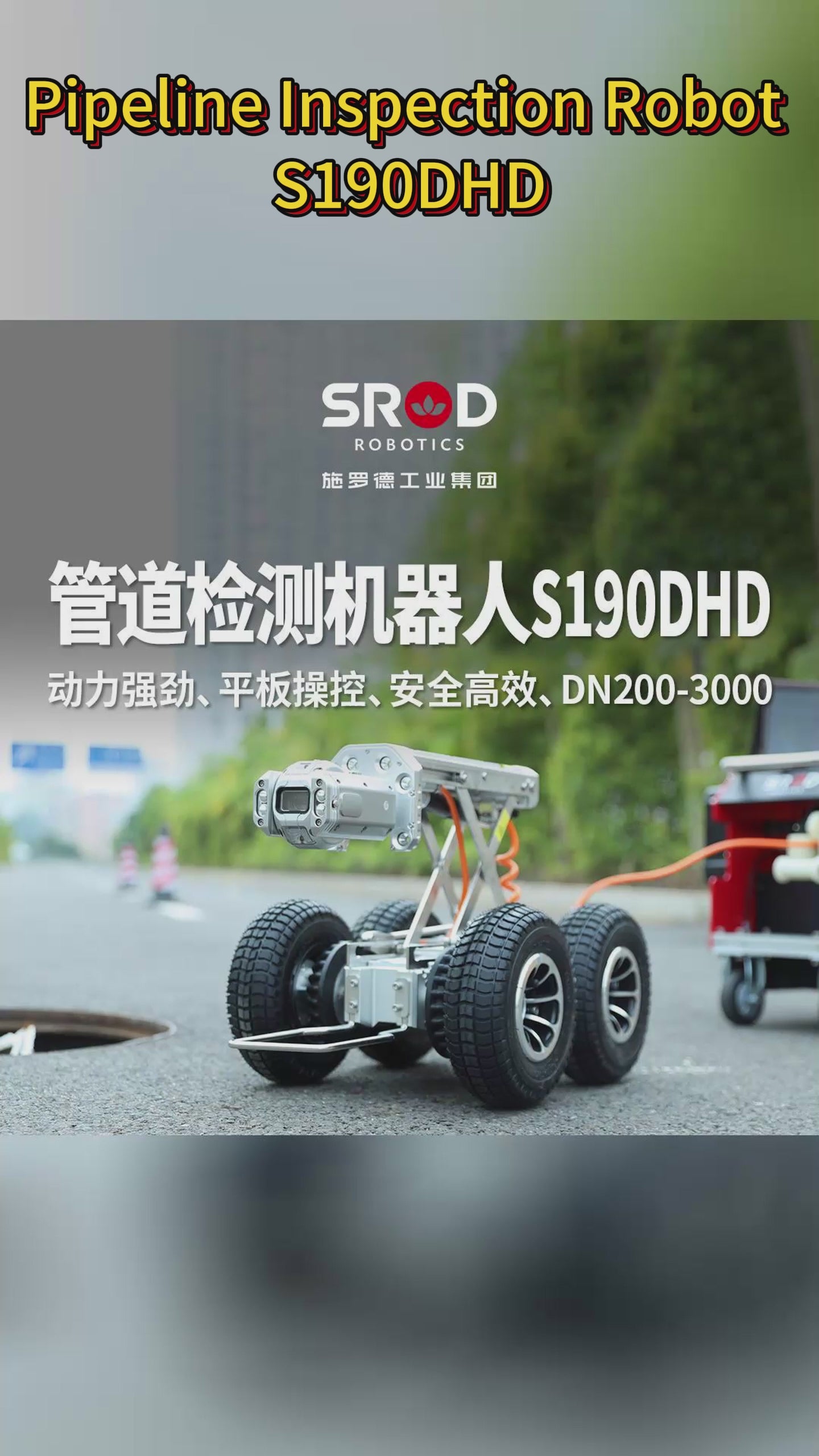

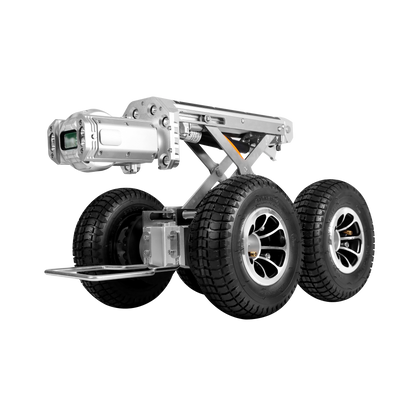

Next Generation Dual Digital High-Definition Pipeline Inspection Robot

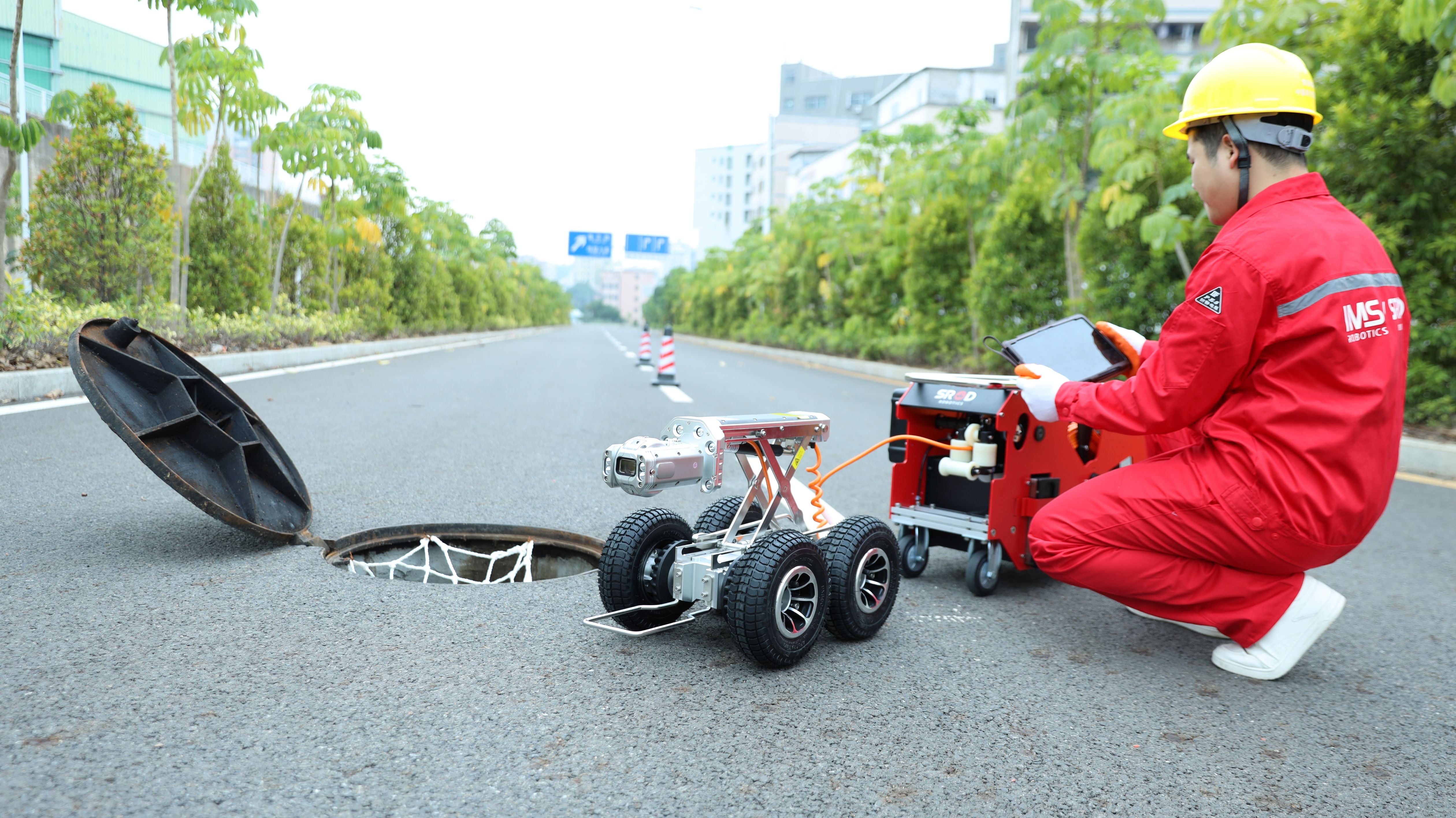

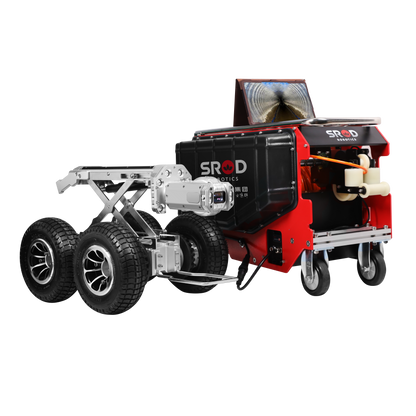

The S190DHD Pipeline Inspection Robot adopts front and rear digital high-definition camera units and is equipped with a portable handheld tablet control terminal. It is equipped with a powerful auxiliary lighting source and a high-precision meter-counting cable winding device, which can automatically match the winding and unwinding speed according to the vehicle's travel speed, and automatically arrange the cable during the winding process. It can enter the pipeline to record video, capture defects, record defect location information, and generate professional pipeline inspection reports.

  • IP68 - Protection Level
  • 1090F2 - Digital High-Definition Camera
  • GPS - High-Precision Positioning
  • 8-10h - Ultra-Long Battery Life
Request Quote
Need Support Financing The Product?

Simple and low cost finance available on this product. For more information click here.

Need More Info or Demonstration?

Demos and technical support are available from our UK team before you buy - more info.

Product Info

New Camera System Upgrade
Newly added laser width measurement and one-key defog function; the lens can scan 360° to achieve arbitrary control of the rotation angle; the head is independently sealed and equipped with an air pressure indicator light; 8 high-brightness lights provide clearer image quality

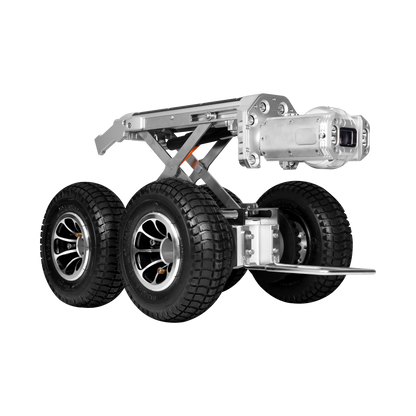

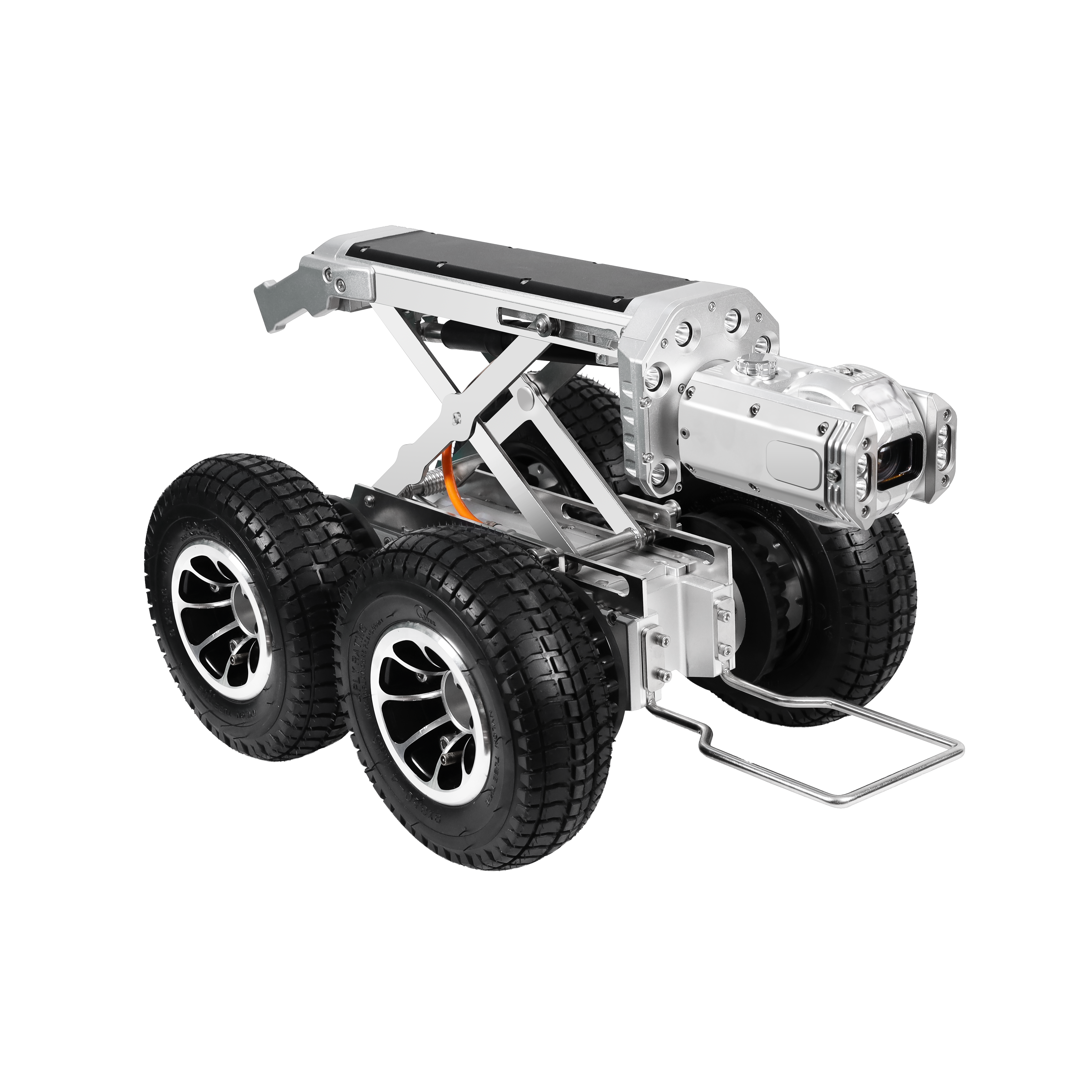

Modular Compartment Design
The S190DHD adopts a modular compartment design with two compartments that are independently sealed. It is easy to install, maintain, and has excellent interchangeability between equipment accessories

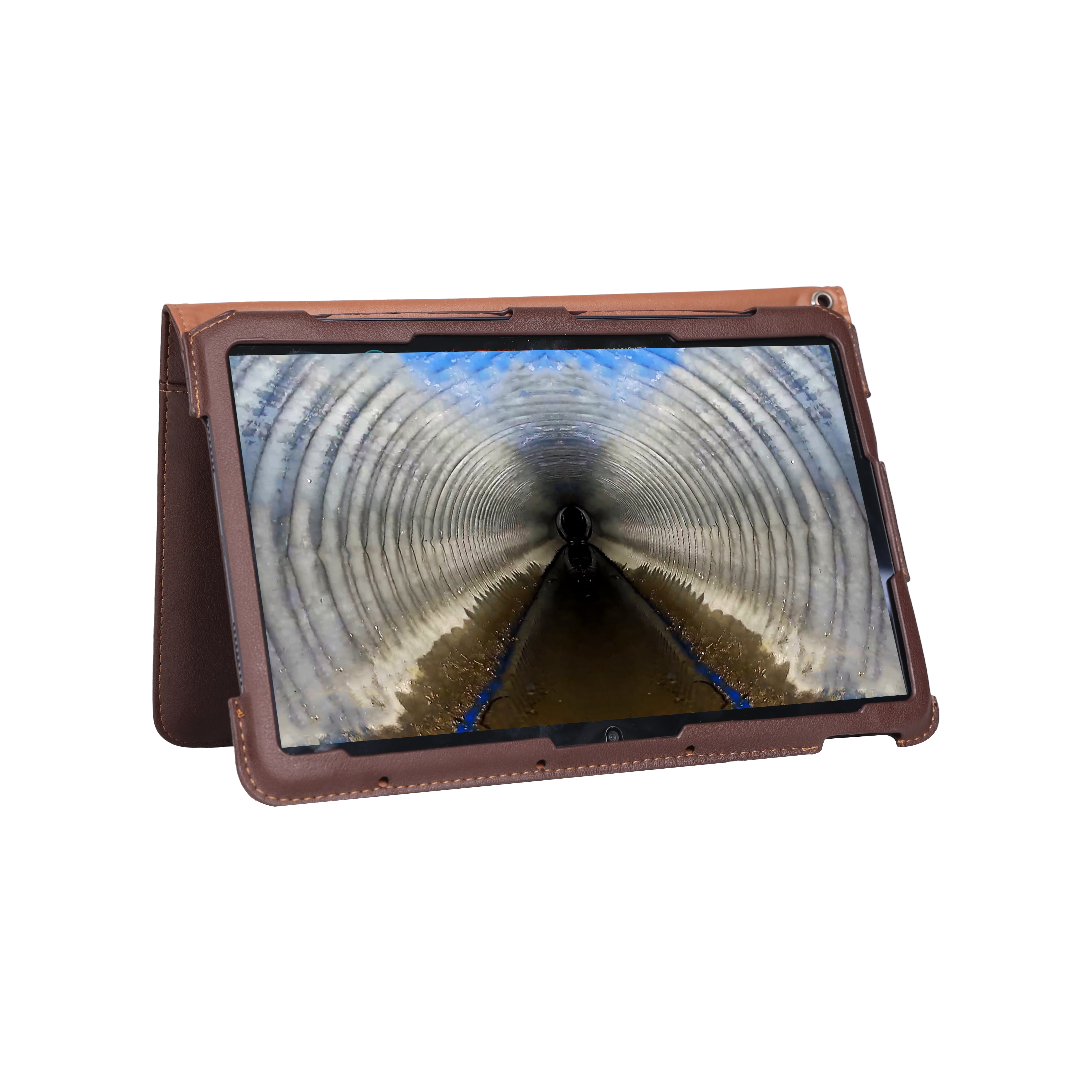

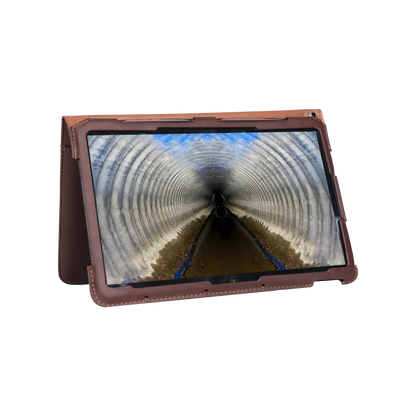

Tablet Wireless Control
Handheld 10.8-inch tablet, easy to carry

Comprehensive Inspection
360° pipe wall detection without blind spots, radial rotation (manual) can be automatically adjusted230°, axial rotation can be automatically (manually) adjusted 360°

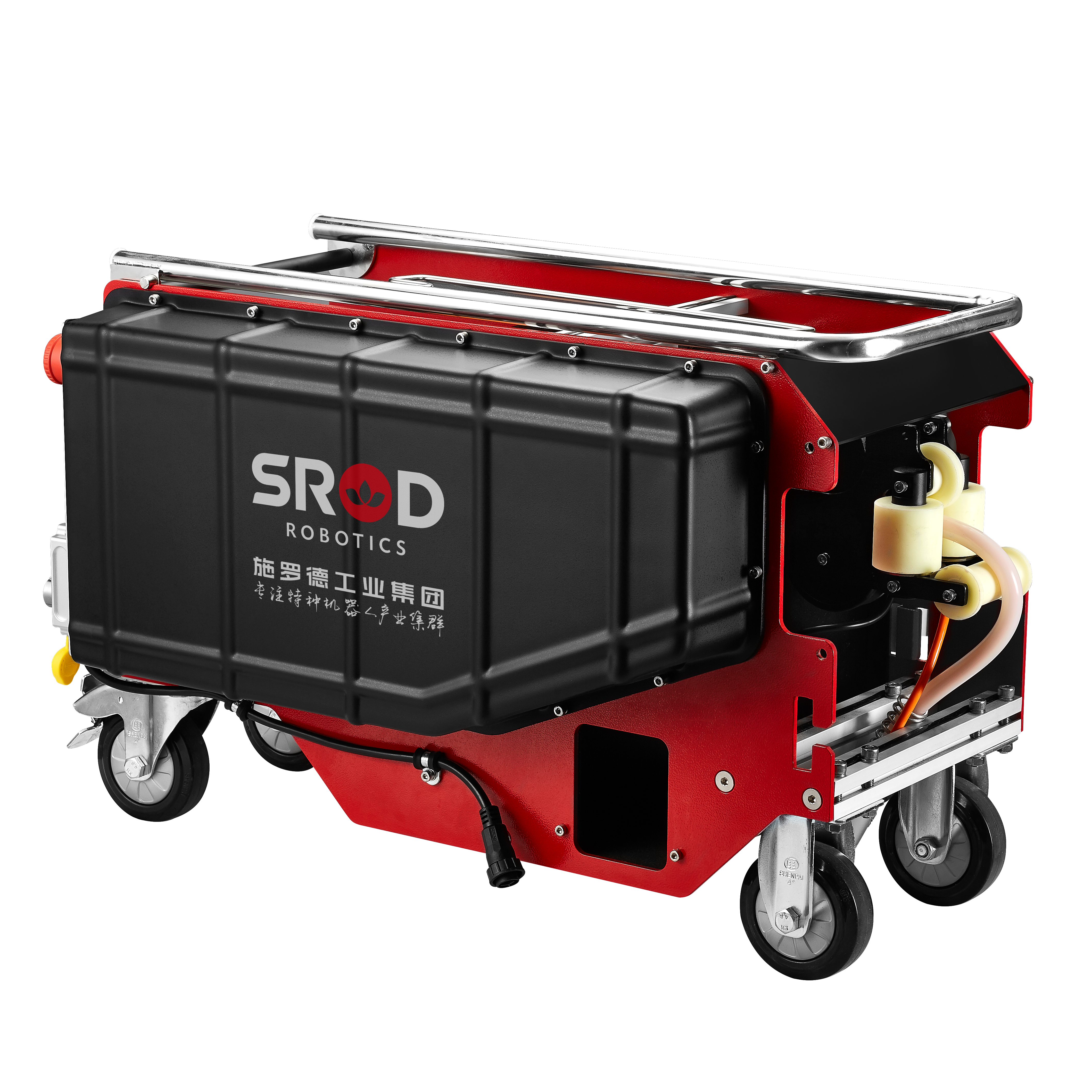

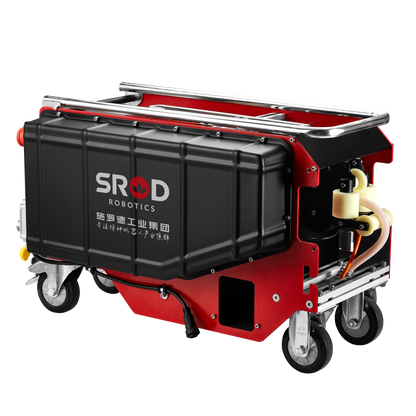

Automatic Cable Arrangement
The speed of the wire collection can be automatically matched according to the vehicle's travel speed, and the wire collection process can be automatically arranged

Sealed Dust And Water Proof Technology
More than ten years of experience in sports sealing and waterproofing technology, reaching IP68protection level

Multiple Configurations Available
S190DHD-A, S190DHD-B, S190DHD-C

Dual Digital High Definition
Digital high-definition acquisition cameras are used at both the front and rear, and the front camera has been completely upgraded to provide higher-definition images

Key Features

Scope Of Application - DN200mm-3000mm
Lens Protection - The front of the vehicle is equipped with a detachable anti-collision probe to prevent the nose from being damaged by external forces
Obstacle Surmounting Ability - Maximum climbing ability up to 40°
Protection Level - IP68
Camera Unit - Front and rear 210W digital HD cameras, 360° axial and 270° radial rotation
Drive - Six-wheel drive, maximum load capacity up to 65kg
Zoom - 10×optical, 16×digital
Reeling Method - Electric wire reel, wire reel speed is synchronized with crawler body backward speed

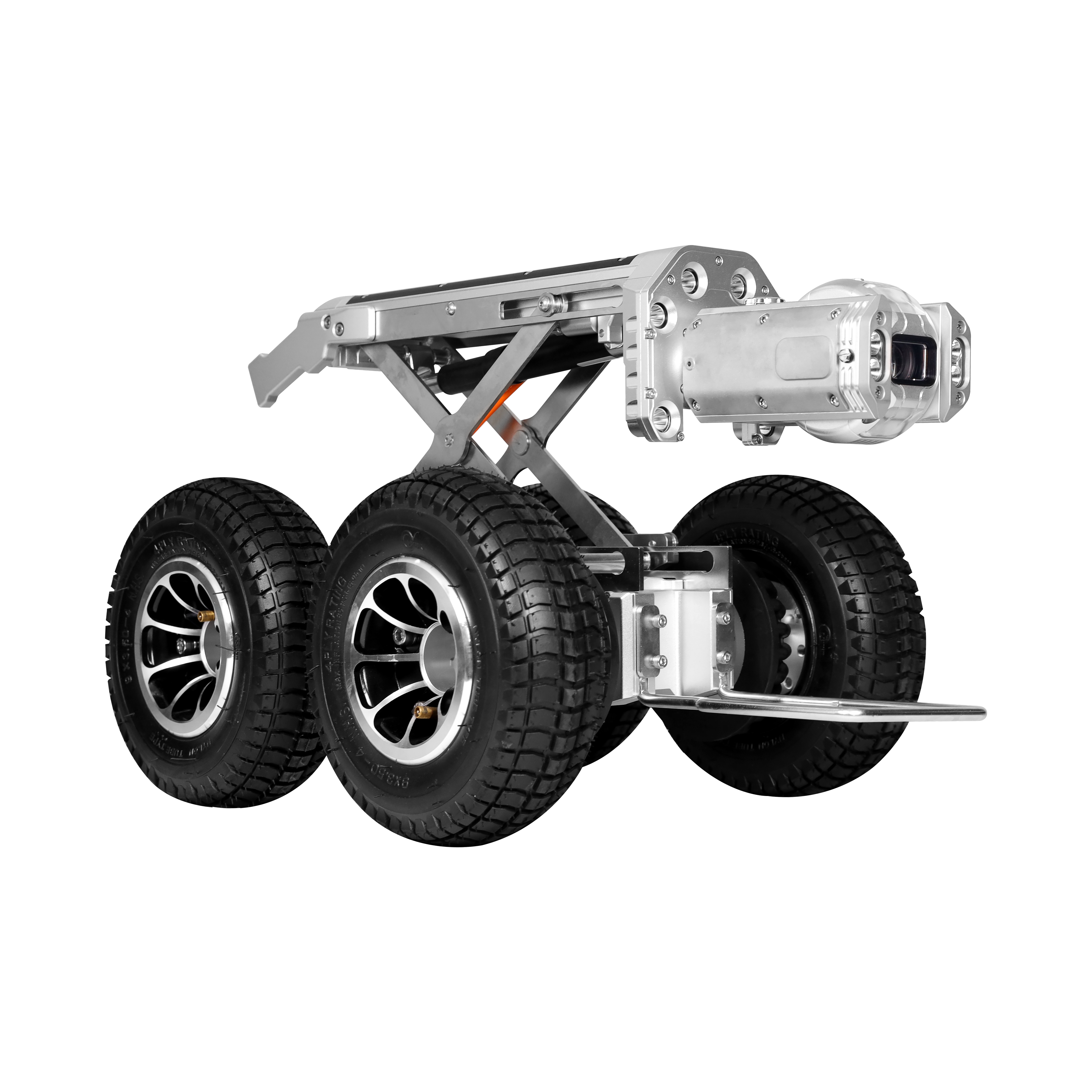

Lifting Method - "X" type electric lifting frame, with large lifting torque, can easily lift the equipment, lens lifting range 200mm
Cable - Special tensile cable, standard 120m, customizable
Positioning - With high-precision GPS positioning system, real-time positioning
Meter - Built-in high-precision electronic encoder, the meter value is continuously displayed on the control unit
Illumination - High brightness LED, Main light 8×2W, auxiliary light 6×3.5W
Anti-Rollover Design - Superimposed wheel hub and built-in anti-rollover software alarm function, real-time animation simulation to display the crawler's posture inside the pipeline (front and rear tilt angle, left and right tilt angle, lifting platform height)
Width Measurement - Optional laser width measurement function
Defogging - With one-button defog function
