Compact Design, small And Flexible

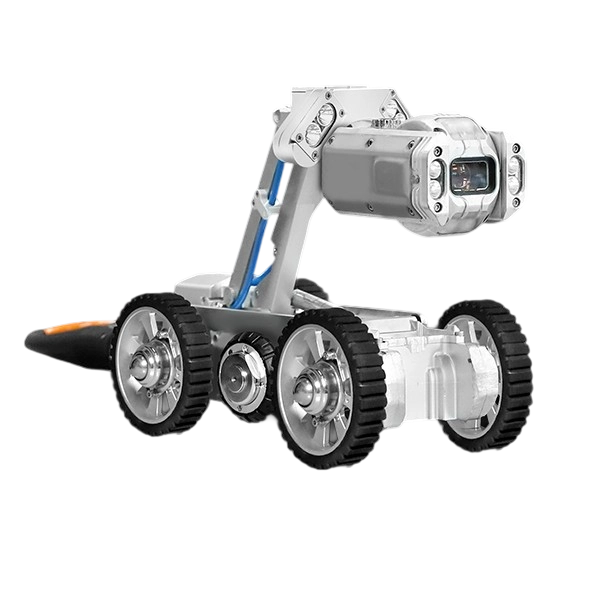

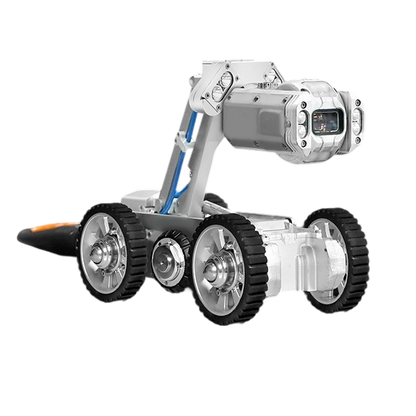

The S150AF wind turbine blade inspection robot is mainly used for endoscopic inspection of wind turbine blades, and can perform endoscopic inspection of defects such as bulges, wrinkles, delamination and cracks inside the blades. This robot is compact and lightweight, with a long detection range, reaching over 85% of the leaf length. It possesses superior climbing and obstacle-crossing capabilities, capable of climbing angles up to 35°. With multiple protection designs and different wheel combinations, it can adapt to the complex internal conditions of the blades, providing reliable video and image data for the acceptance and maintenance of wind turbine blades.

  • 120m - Cable Length
  • 35° - Maximum Climbing Ability
  • 150mm - Minimum Inlet Pipe Diameter
  • 210W - Front And Rear High Definition Cameras
Request Quote
Need Support Financing The Product?

Simple and low cost finance available on this product. For more information click here.

Need More Info or Demonstration?

Demos and technical support are available from our UK team before you buy - more info.

Product Info

Compact Design, small And Flexible
The robot boasts a compact design, with a blade length exceeding 85%. It is equipped with
omnidirectional wheels on the sides to reduce lateral friction and allow for unimpeded movement

Electric Lifting Frame Design
The lifting height can be increased by up to 150mm, providing a wider field of view for inspection

Climbing And Obstacle-Crossing

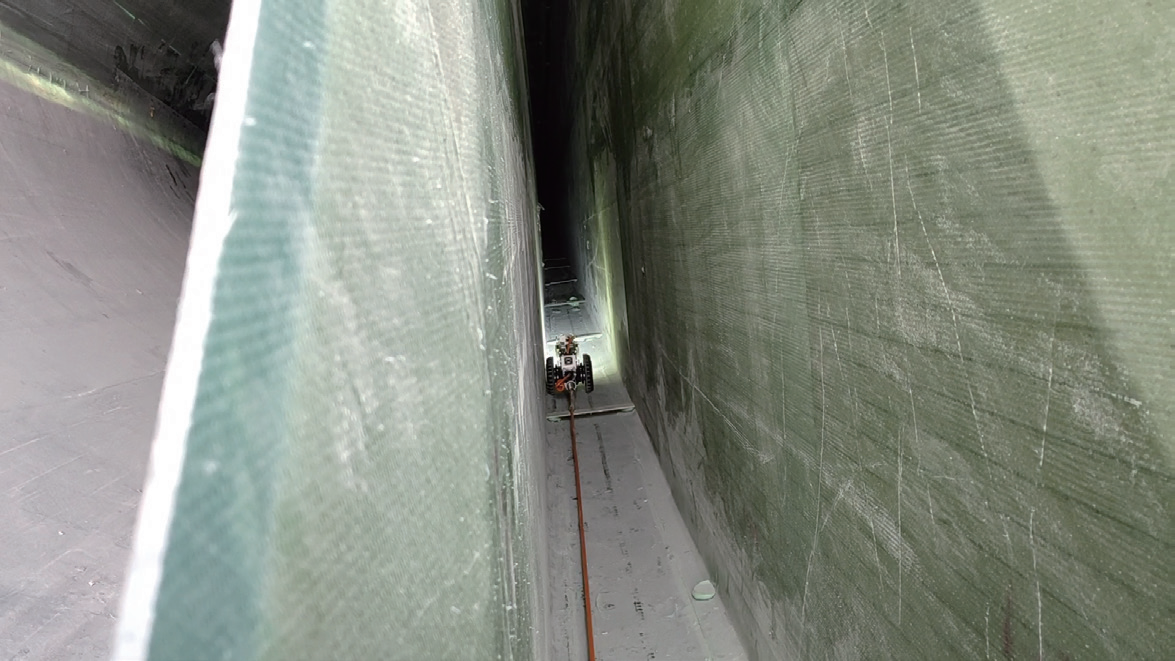

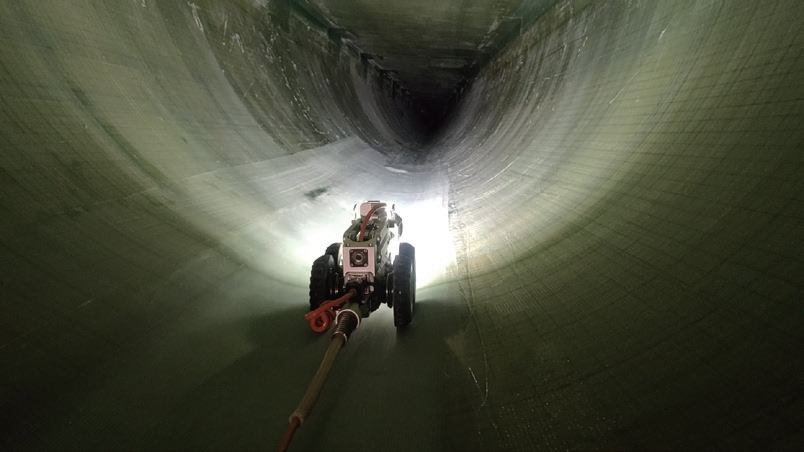

The robot possesses superior climbing and obstacle-crossing capabilities, with a climbing angle of up to 35°. Its multiple protection designs and various wheel combinations allow it to adapt to the complex internal conditions of blades

One-Click Defect Tracking And Locking
When an internal defect is detected, simply tap the defect location on the screen and the lens will automatically adjust its rotation angle to lock onto the defect, simplifying the operation and improving detection efficiency

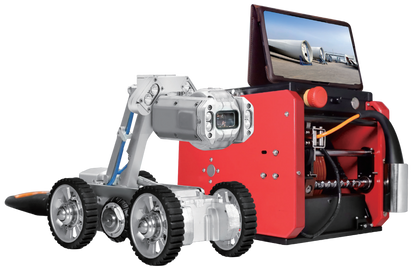

Small Portable Cable Reel
Compact size and lightweight, facilitating in-service inspection and relocation of wind turbine blades; standard configuration includes a 120-meter cable that automatically retracts during reversing

Laser Width Measurement

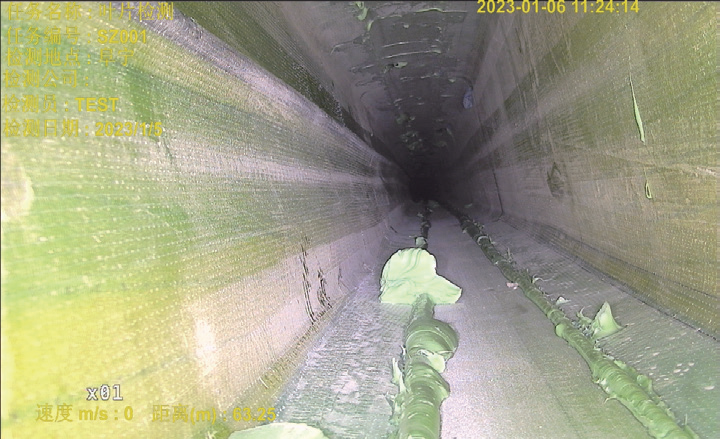

210W digital high-definition camera, supports one-click defogging; 10x optical zoom, free switching between front and rear camera views; laser width measurement helps operators quantify defects

Key Features

Scope Of Application - DN150mm-1000mm
Lens Protection - The front of the vehicle is equipped with a detachable anti-collision probe to prevent the nose from being damaged by external forces
Obstacle Surmounting Ability - Maximum climbing ability up to 35°
Protection Level - IP68
Camera Unit - Resolution: 1920x1080, 210W pixel non-delay high-definition camera
Drive - Six-wheel drive, carrying capacity not less than 50kg
Zoom - 10×optical, 16×digital
Wire Take-Up Vehicle - Built-in large-capacity lithium battery, can work continuously for 8-10 hours
Lifting Method - New lifting frame, the highest lifting frame can reach 150mm
Cable Length - 120m or customized
Positioning - With high-precision GPS positioning system, real-time positioning
Meter - Built-in high-precision electronic encoder, the meter value is continuously displayed on the control unit
Illumination - High brightness LED, main light 8×2W, auxiliary light 4×3.5W
Anti-Rollover Design - Equipped with front and rear, left and right tilt angle and travel speed sensors to monitor the vehicle posture in real time
Width Measurement - With laser width measurement function
Defogging - With one-button defog function
