Sino-German Joint Venture Quality, Stable and Reliable, Lightweight and Compact

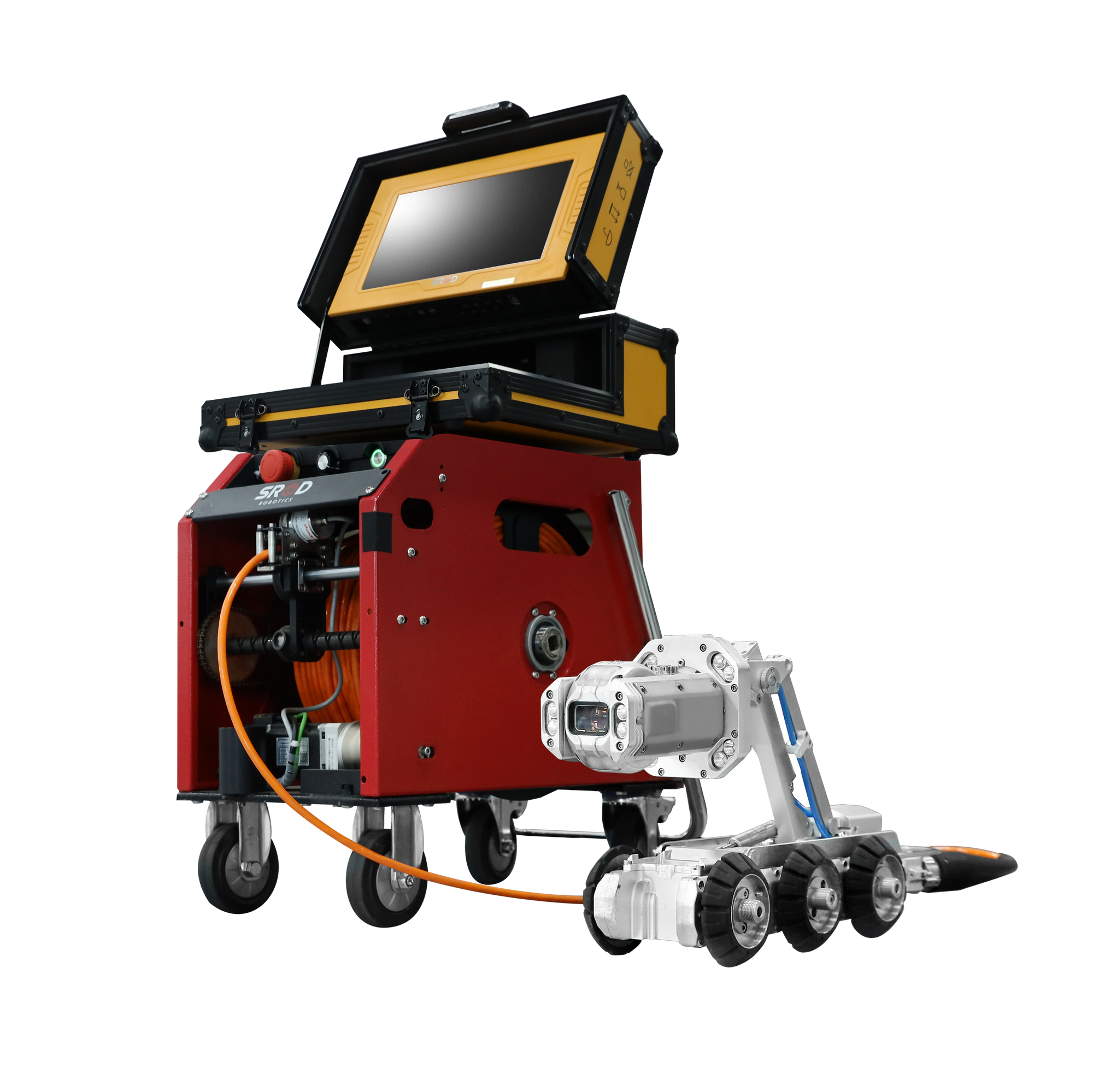

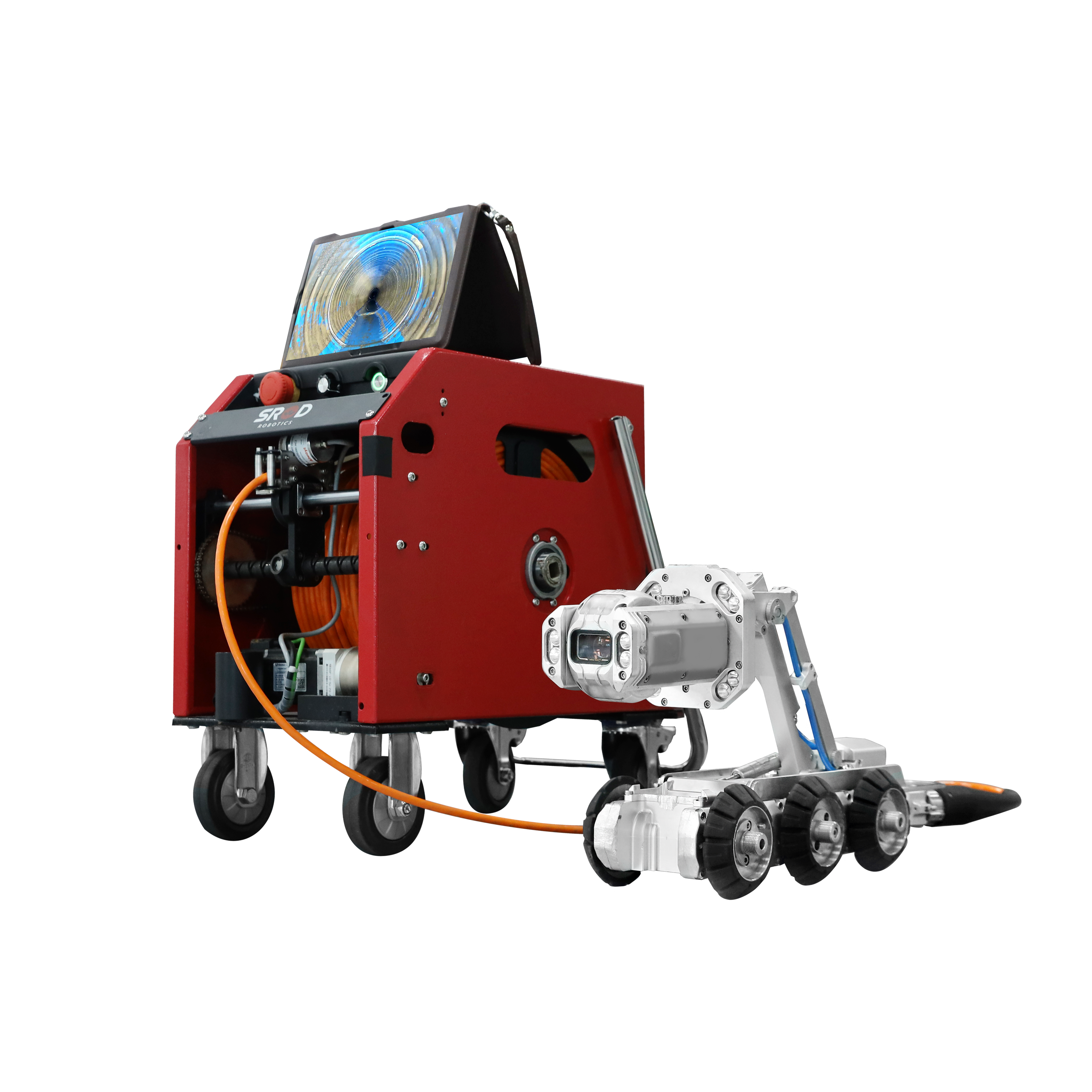

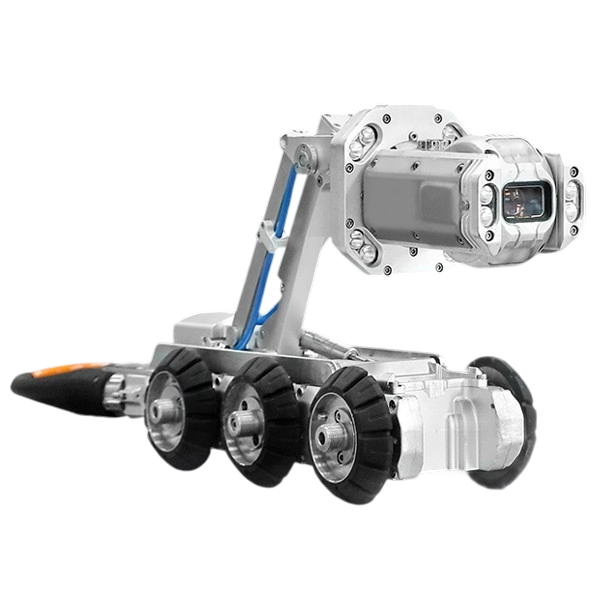

The S150A is a Sino-German joint venture digital high-definition pipeline inspection robot, mainly used for municipal drainage pipeline inspection, entering pipes with a minimum diameter of DN150mm. The S150A is equipped with a powerful lighting source and a high-precision meter-counting cable winding device, which can automatically match the winding and unwinding speed according to the vehicle's travel speed and automatically arrange the cable during the winding process. It can record video of the inside of the pipeline, capture defects, record defect location information, and generate professional pipeline inspection reports

  • DN150mm - Minimum Detectable
  • 210W- Digital High-Definition Camera
  • 150mm - Lifting Height
  • 8-10h - Ultra-Long Battery Life
Request Quote
Need Support Financing The Product?

Simple and low cost finance available on this product. For more information click here.

Need More Info or Demonstration?

Demos and technical support are available from our UK team before you buy - more info.

Product Info

Compact Design, Small and Flexible

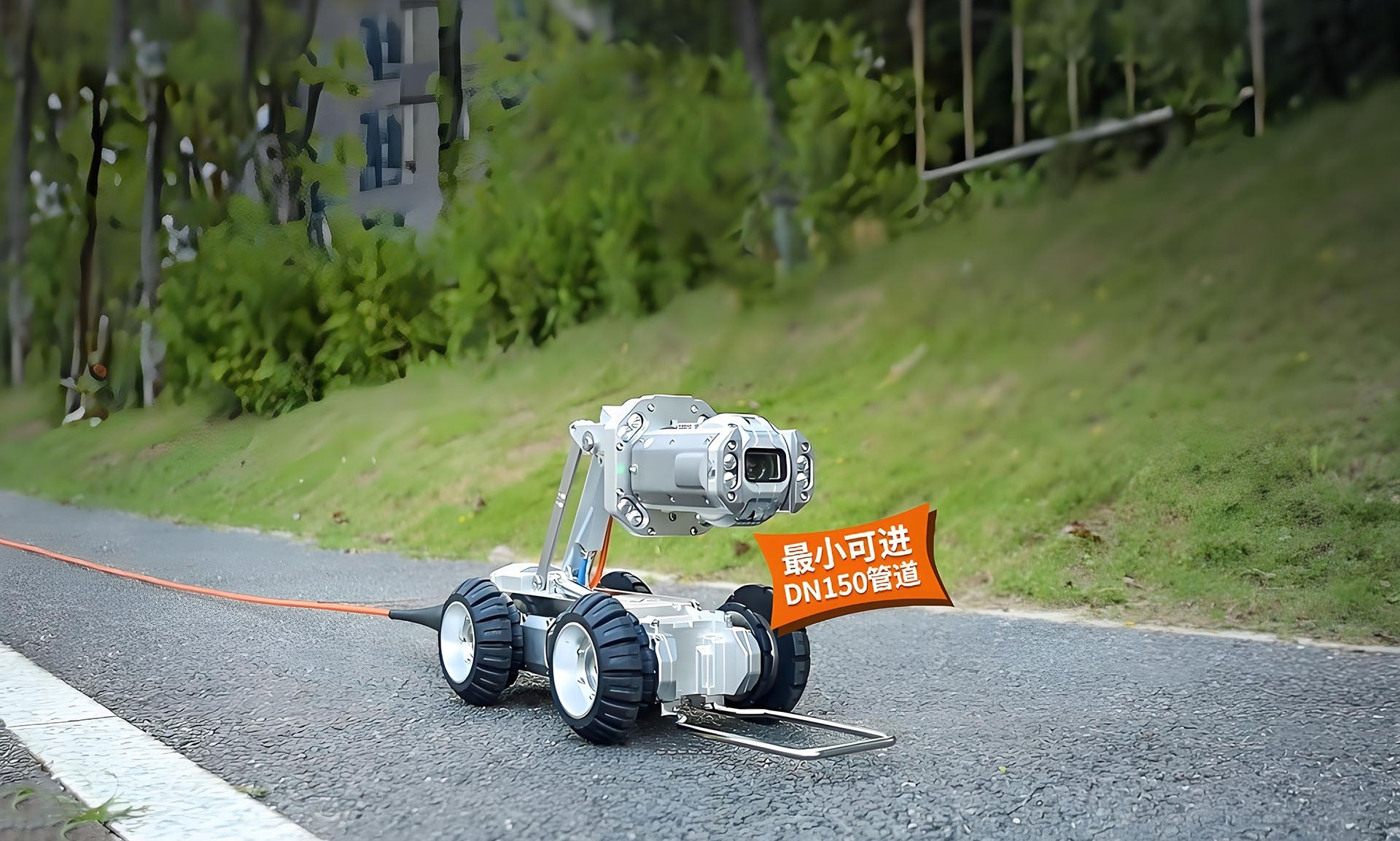

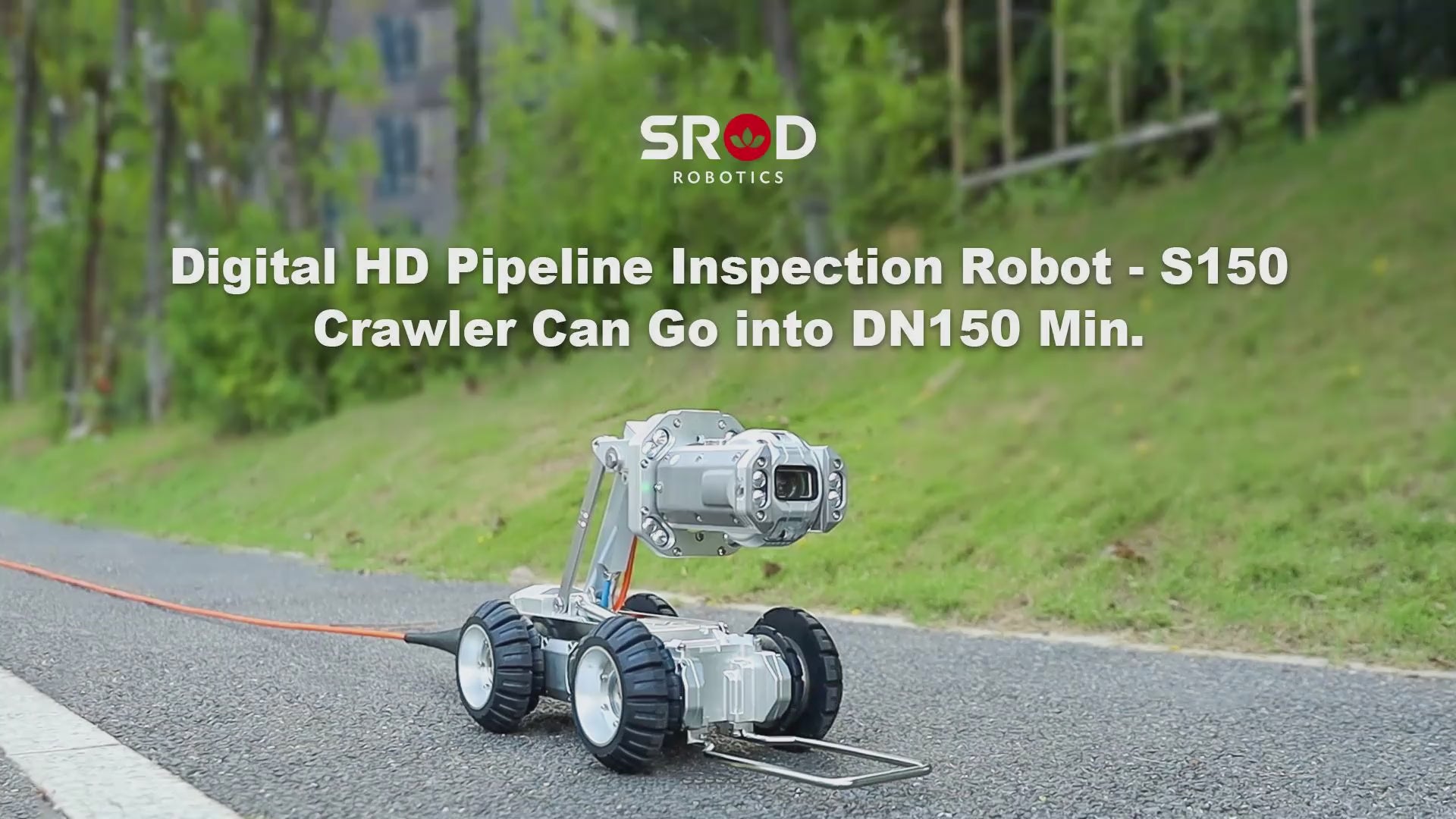

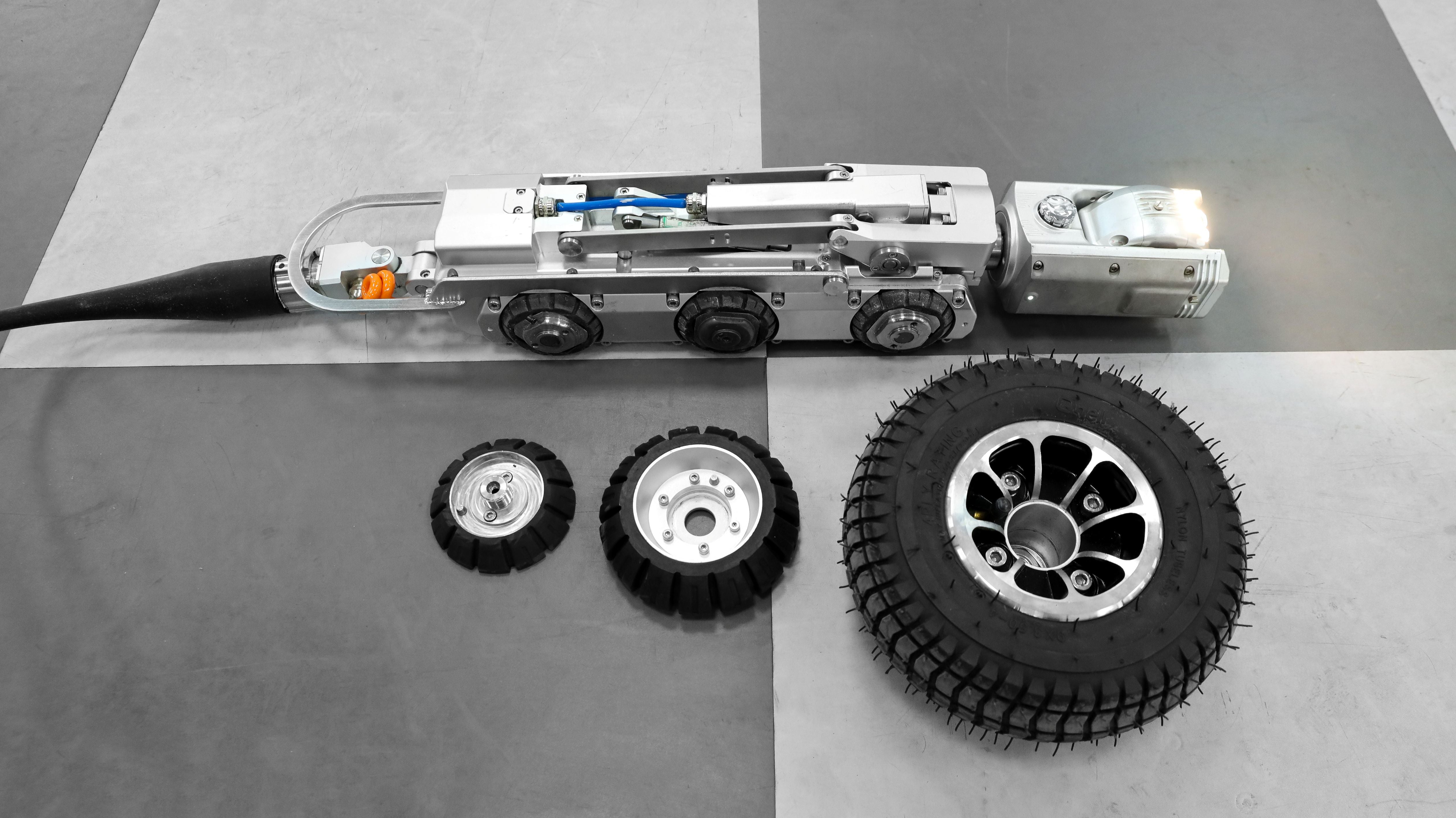

Lightweight and compact, it can be used for inspection of small-diameter pipes up to DN150mm by removing the auxiliary light, making it suitable for inspection in concealed and narrow spaces

High Reliability, Low Failure Rate
Dustproof, waterproof, and explosion-proof; three independently sealed compartments; IP68 protectionrating; stable and reliable

Digital High-Definition Laser Width Measurement
210W digital high-definition camera, supports one-click defogging; 10x optical zoom, free switching between front and rear camera views; laser width measurement helps operators quantify defects

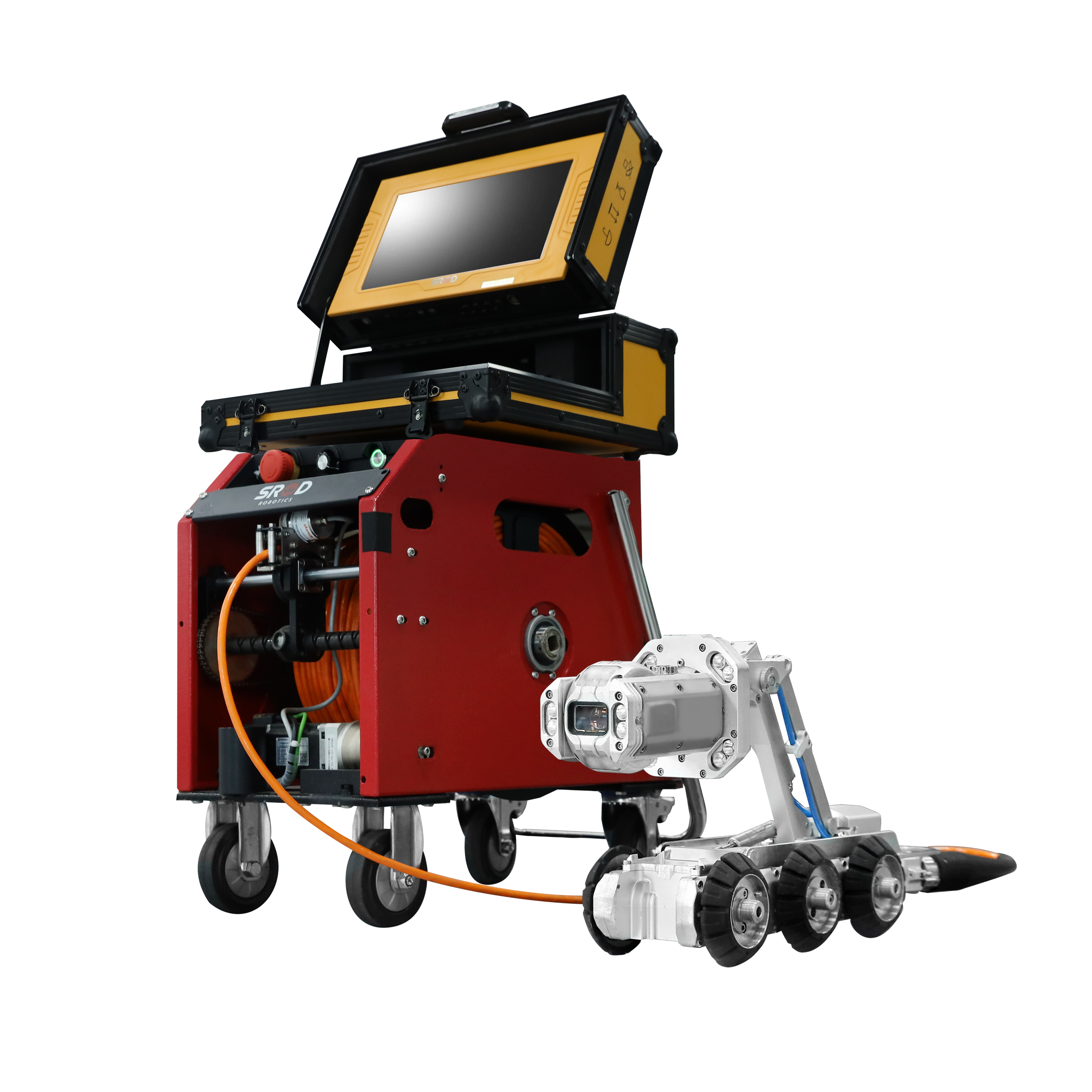

Portable Tablet Control Terminal
High-definition IPS full-view display, easy to carry, and simple interface operation

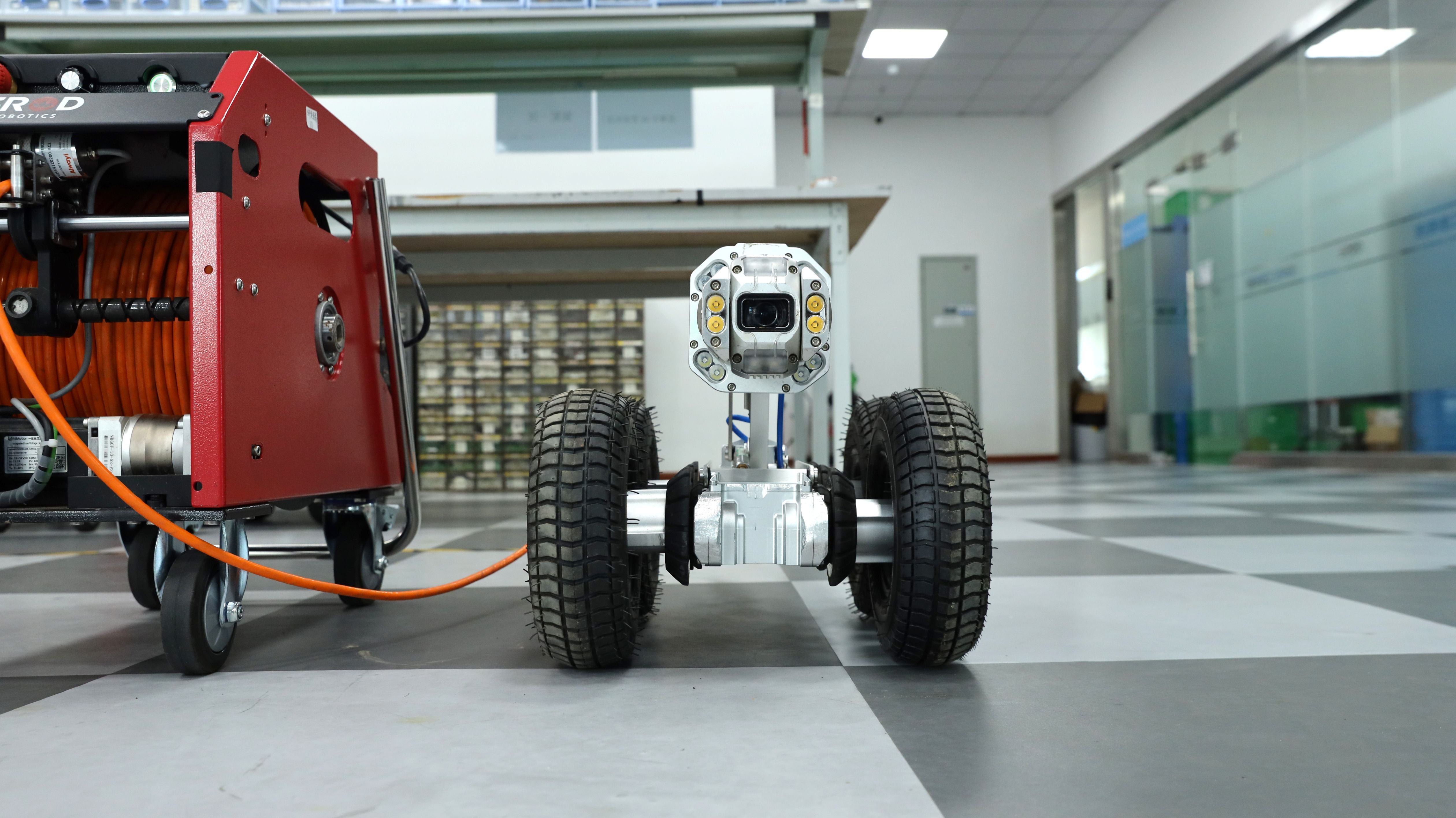

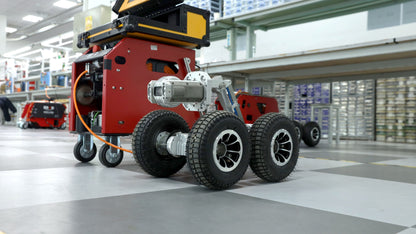

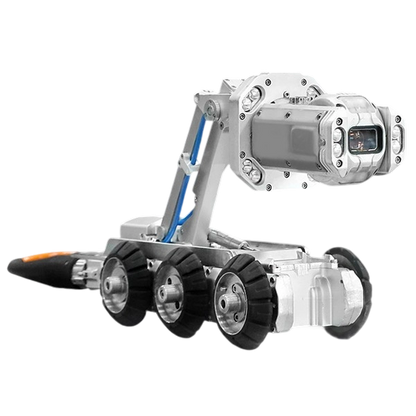

Electric Lifting Frame Design
The lifting height can be increased by up to 150mm, providing a wider field of view for inspection

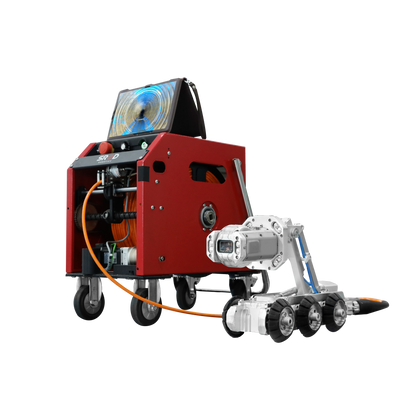

Portable Cable Reel
The cable cart features a lever-type design for easy relocation; it comes standard with 120 meters of cable and automatically retracts during reversing

Key Features

Scope Of Application - DN150mm-2000mm
Lens Protection - The front of the vehicle is equipped with a detachable anti-collision probe to prevent the nose from being damaged by external forces
Obstacle Surmounting Ability - The maximum climbing ability can reach more than 35°
Protection Level - IP68
Camera Unit - Front and rear 210W dual digital HD cameras, 360° axial and 270° radial rotation
Drive - Six-wheel drive with powerful motors
Zoom - 10×optical, 16×digital
Reeling Method - Built-in large-capacity lithium battery, can work continuously for 8-10 hours
Lifting Method - Independent electric lift, lens lift 150mm
Cables - Special tensile cable, standard 120m, customizable
Positioning - With high-precision GPS positioning system, real-time positioning
Meter - Built-in high-precision electronic encoder, the meter value is continuously displayed on the control unit
Illumination - High brightness LED, Main light 8×2W, auxiliary light 8×3.5W
Anti-Rollover Design - Superimposed wheel hub and built-in anti-rollover software alarm function, real-time animation simulation to display the crawler's posture inside the pipeline (front and rear tilt angle, left and right tilt angle, lifting platform height)
Defogging, Width Measurement - With one-button defog function and optional laser width measurement function
One-Click Defect Tracking - With one-click defect tracking function, quickly locate the defect location
