Blueprint Subsea Oculus M-Series Multibeam Sonar System

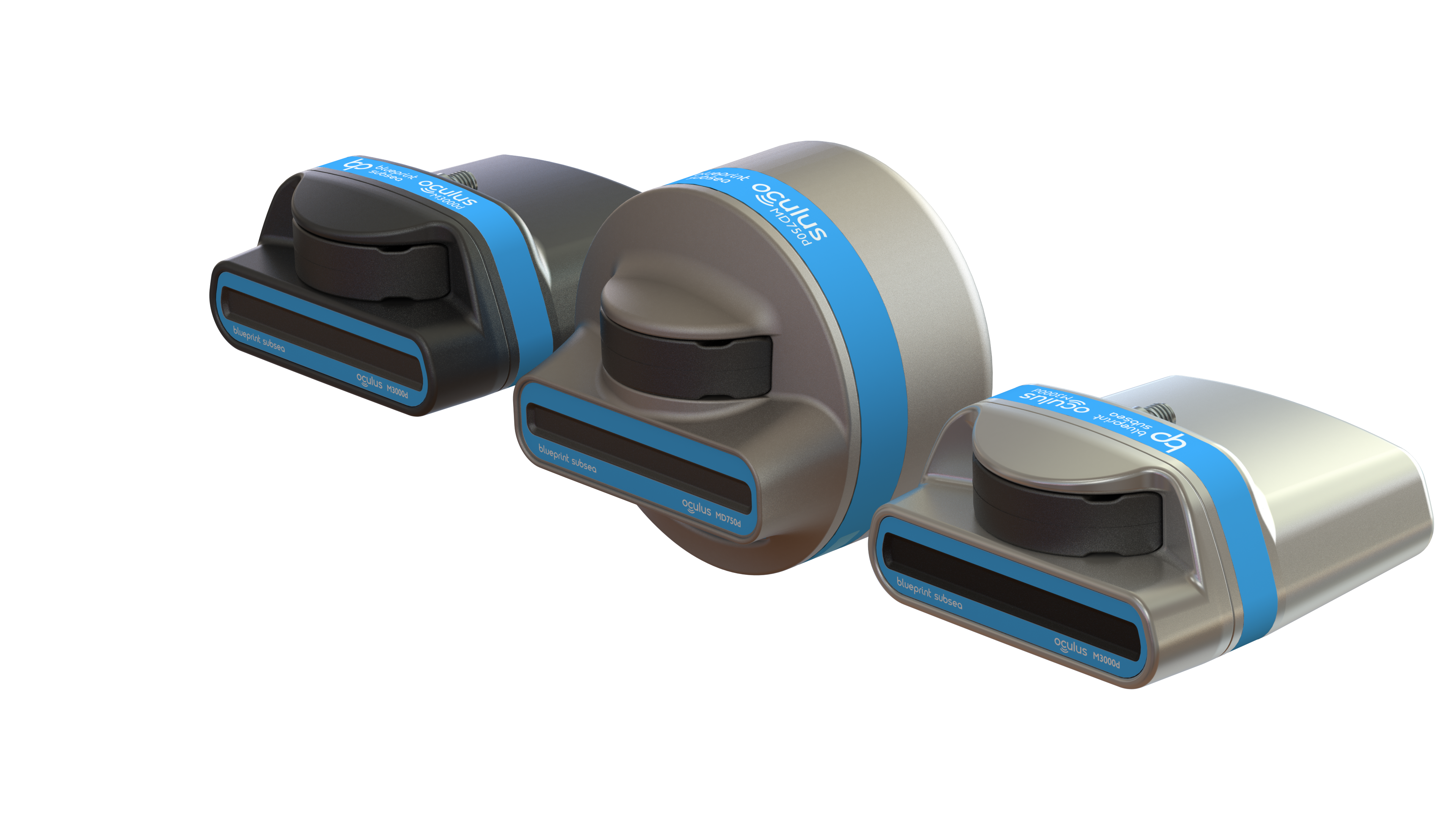

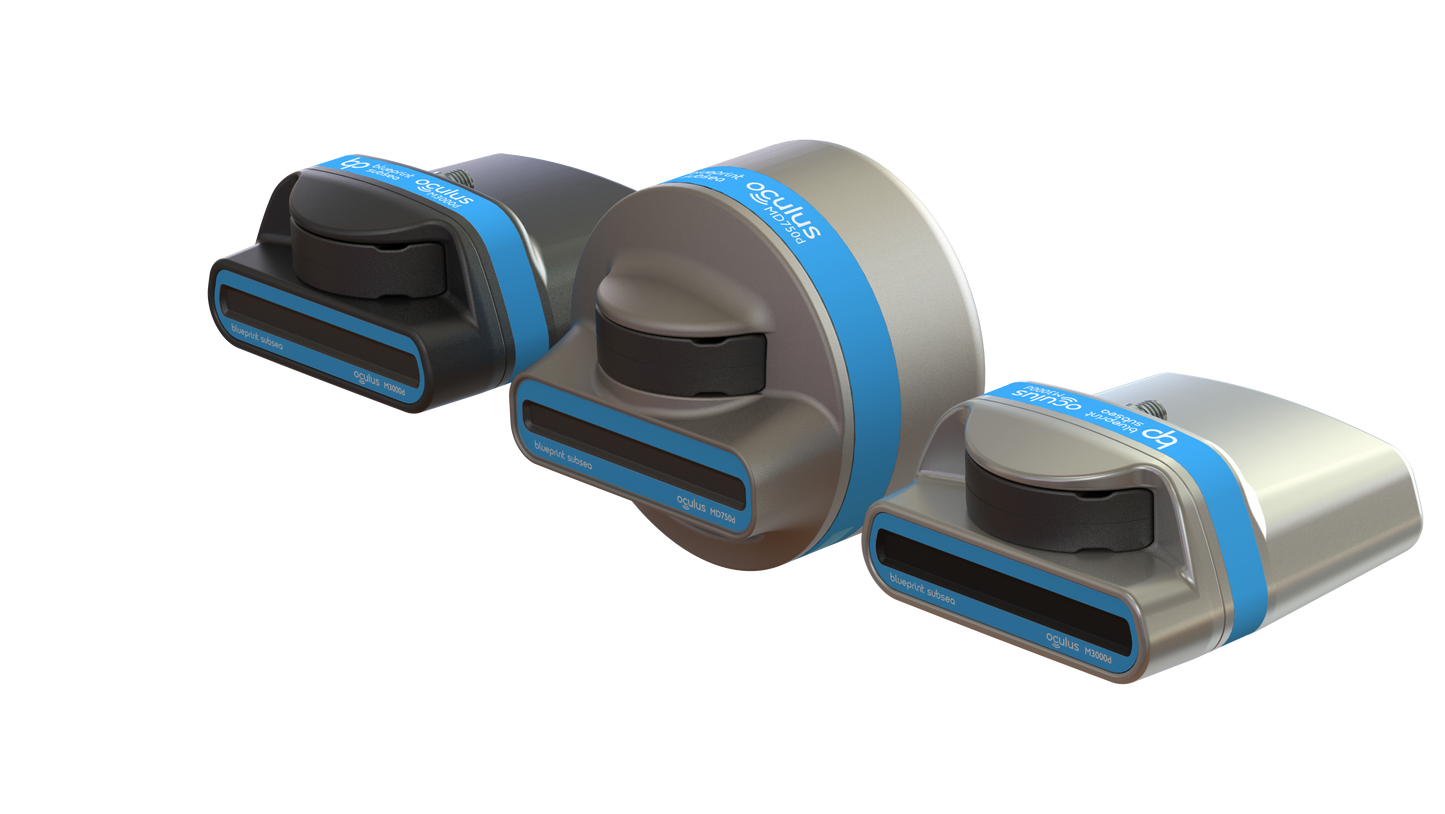

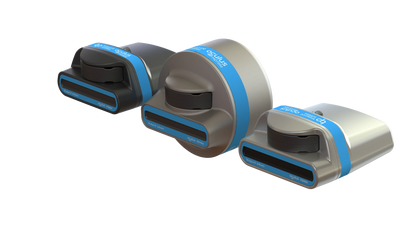

The benchmark in multibeam imaging sonars. The Oculus M-Series offers single and dual-frequency models, unparalleled image quality in a compact, rugged form factor and depth rated to 500m.
The M370s multibeam imaging sonar conveniently mounts to our ROVs or Utility Crawlers for effective target identification in turbid waters. The M370's low frequency allows for an operating distance up to 200m for extended visuals.

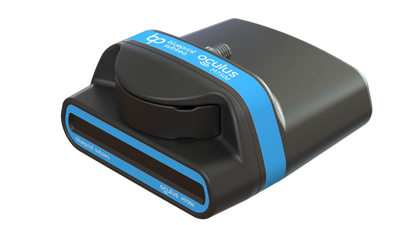

M750d a general purpose dual-frequency sonar offering 120 metre range capability at 750kHz and 40 metre range at 1.2MHz. Ideal for navigation and high resolution imagery for near field target identification.

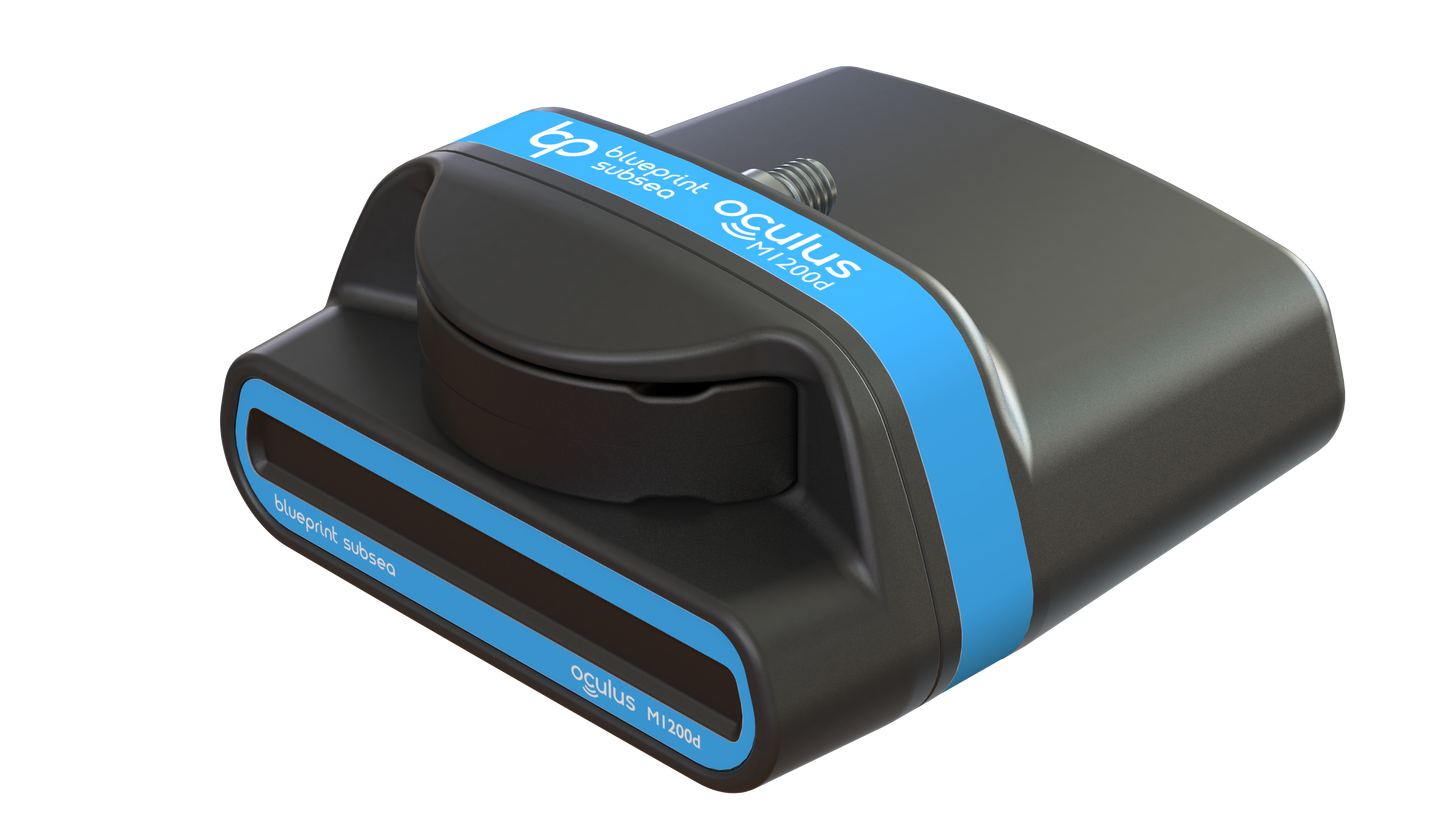

The M1200d multibeam imaging sonar conveniently mounts to our ROVs or Utility Crawlers for effective target identification in turbid waters. The M1200's high operational resolution features a peak frequency of 2.1MHz, an integrated velocimeter for improved accuracy, and a range resolution of 2.5mm for detailed close-range inspections. M1200d - a dual frequency (1.2MHz/2.1MHz) sonar ideal for short range navigation and detailed inspection work.

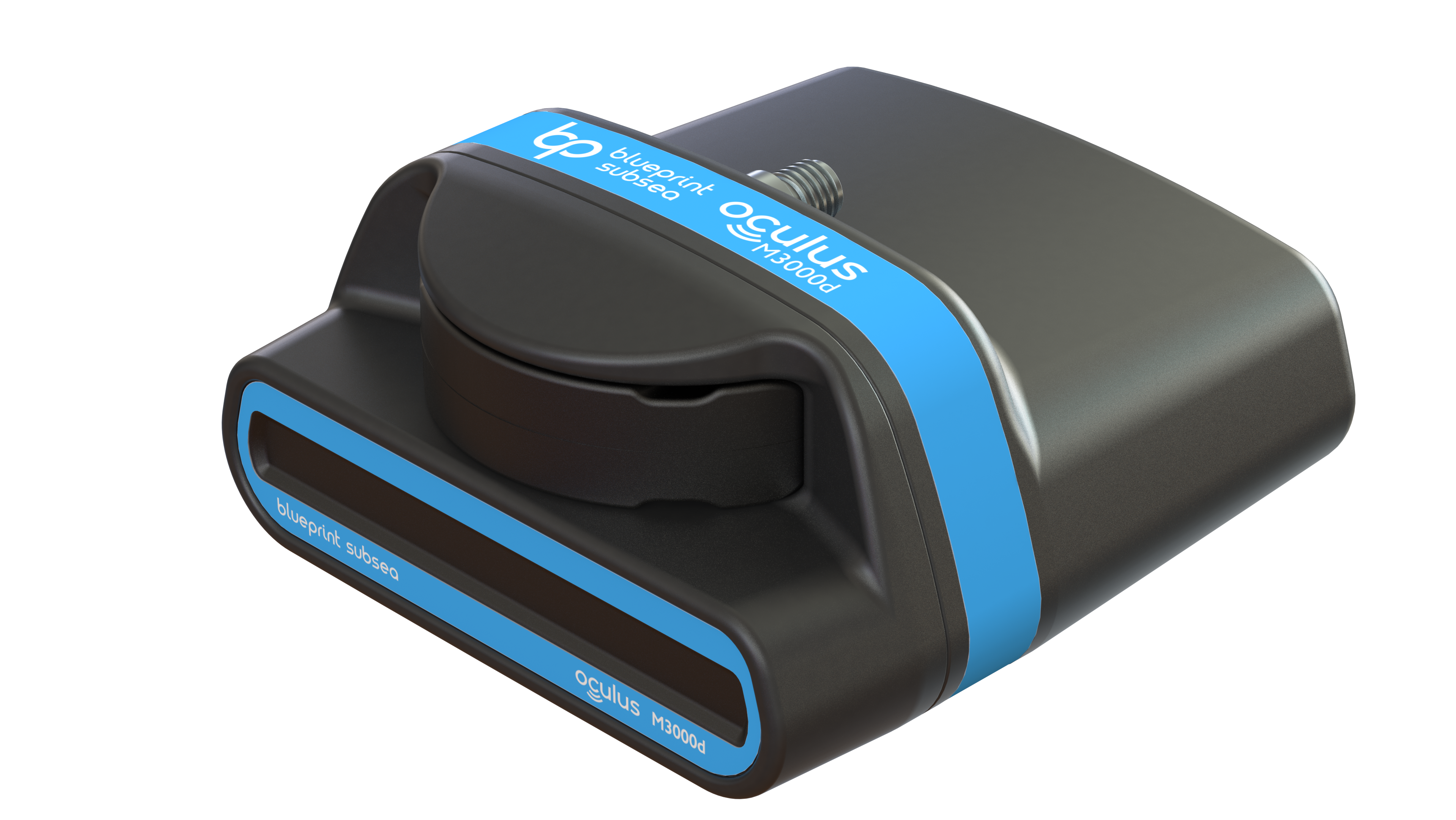

M3000d Performing inspections in murky water? The M3000D is the best sonar option for short range inspections. Utilizing the highest frequency in its class, the M3000D is perfect for identifying targets and close range navigation, as well as detailed inspections with the highest resolution of any 2D imaging sonar.
