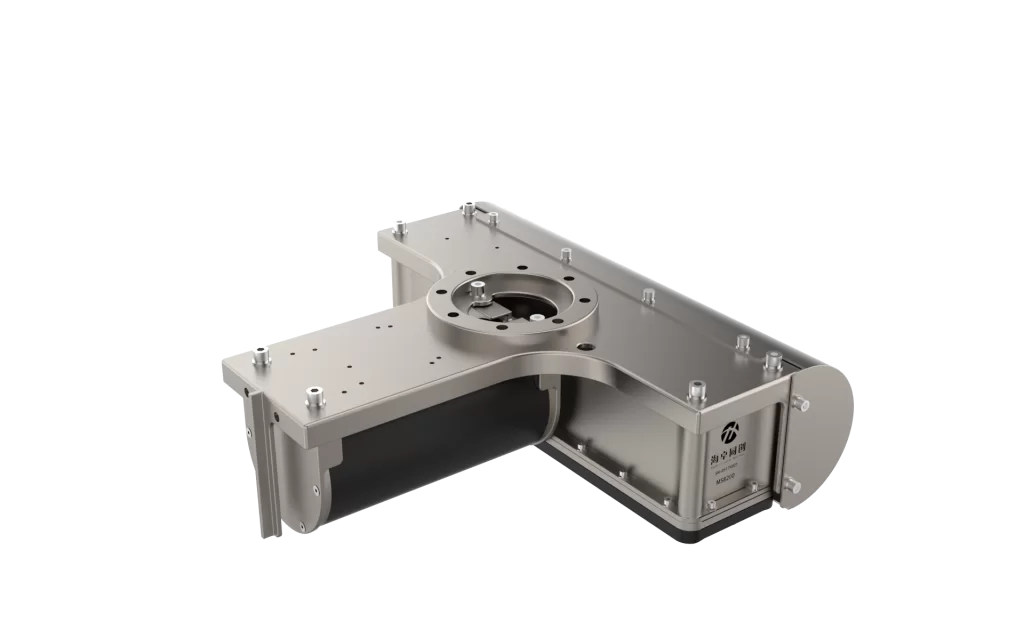

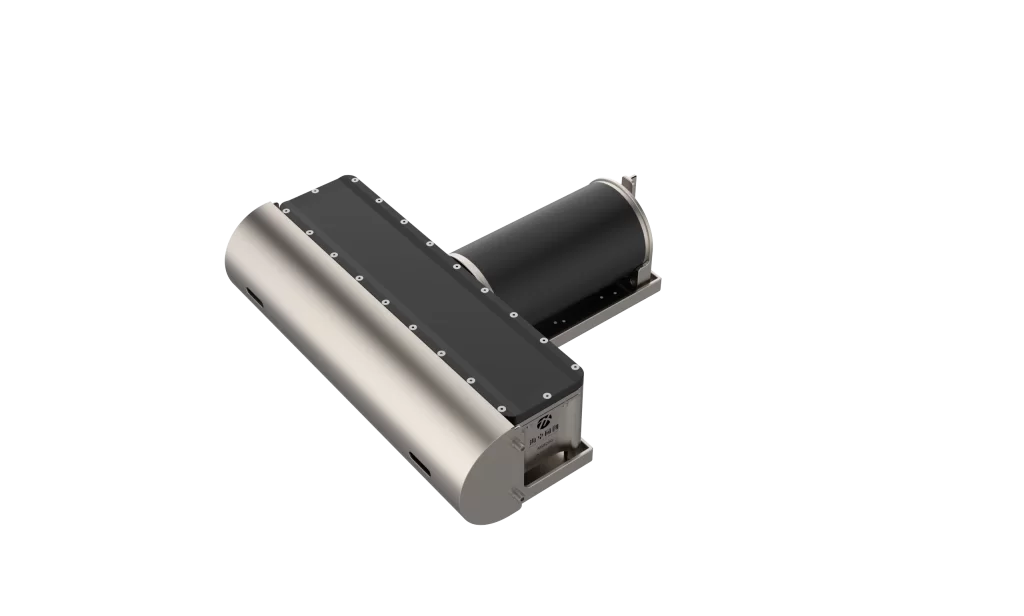

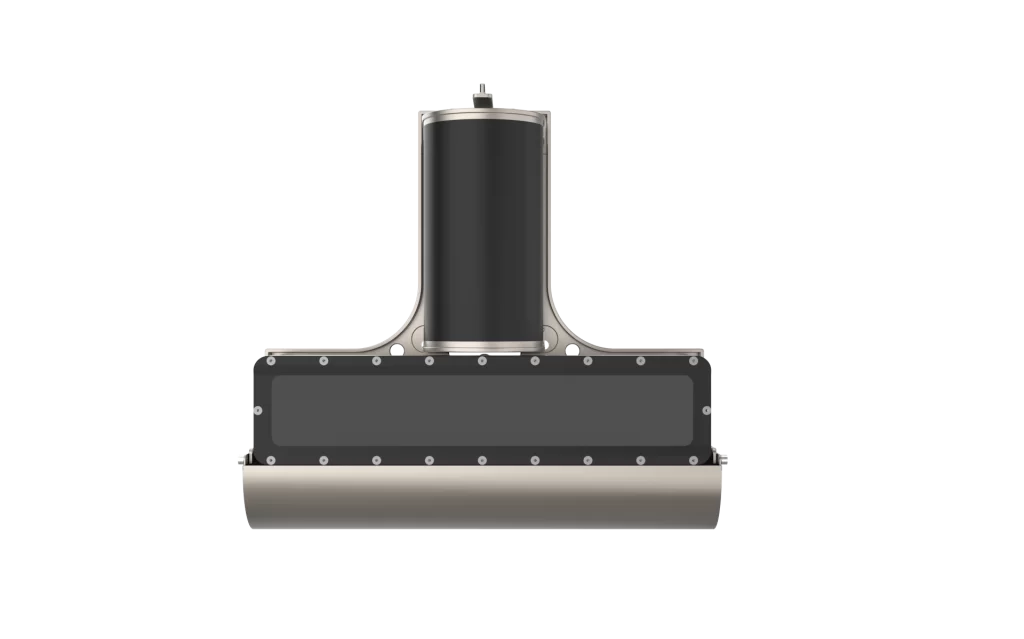

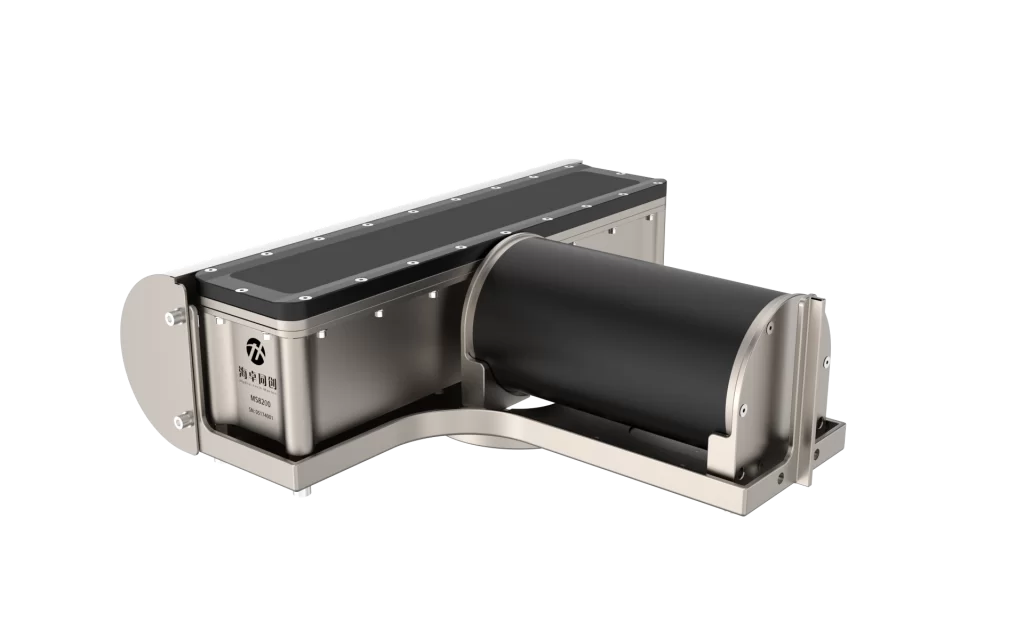

MS8240 Broad Band Frequency Multibeam Echo Sounder can achieve online continuously adjustment of 200kHz~400kHz and also support high frequency of 700kHz.With high resolution and convenient operation. They can fully adapt to complex terrain and multi-scene application environment and complete fine measurement in shallow water area. With large-scale sweeping and rapid operation, MS8240 could be widely used in various inland rivers, reservoirs, lakes and shallow sea survey & mapping projects.
MS8240 Broad Band Frequency Multibeam Echo Sounder Features
Real-time Adjustment Online continuous step 10kHz adjustable frequency, perfectly balance the relationship of measurement accuracy and operating distance.
Anti-interference Capability Adopting frequency modulation technology which has strong anti-interference ability and can work stably in complex underwater environments.
Multi-functionWith a variety of measurement functions such as water depth measurement, seabed terrain rendering, object detection, etc. to meet the needs of different application scenarios.
Excellent Quality Years of system and algorithm research to ensure reliable and stable data quality.
Specifications
Technical Specifications
Working Frequency
200kHz~400kHz/700kHz
Depth Resolution
0.75cm
No. of Beams
512
Working Modes
Equiangular or Equidistance
Across-track Beam Width
0.3°@700kHz 0.5°@400kHz 1°@200kHz
Along-track Beam Width
0.6°@700kHz 0.1°@400kHz 2°@200kHz
Max. Ping Rate
60Hz
Signal Type
CW/Chirp
Swath Coverage
160°
Pulse Width
30μs ~ 8ms
Sounding Range
0.2 ~ 500m+*
Max. Working Depth
50m
* Depending on environmental conditions.
Physical Specifications
Transducer
500mm x 457mm x 147mm
Transducer Weight
23.35kg (In the air)
Working Temperature
-2° ~ 40℃
Storage Temperature
-20℃ ~ 55℃
Power Supply
DC 10V – 32V / AC 110V – 240V
Power Consumption
70W~90W
Deck Unit Weight
1.9kg
Deck Unit Size
200mm x 145mm x 75.5mm
Deck Cable Length
15m (or Customized)
