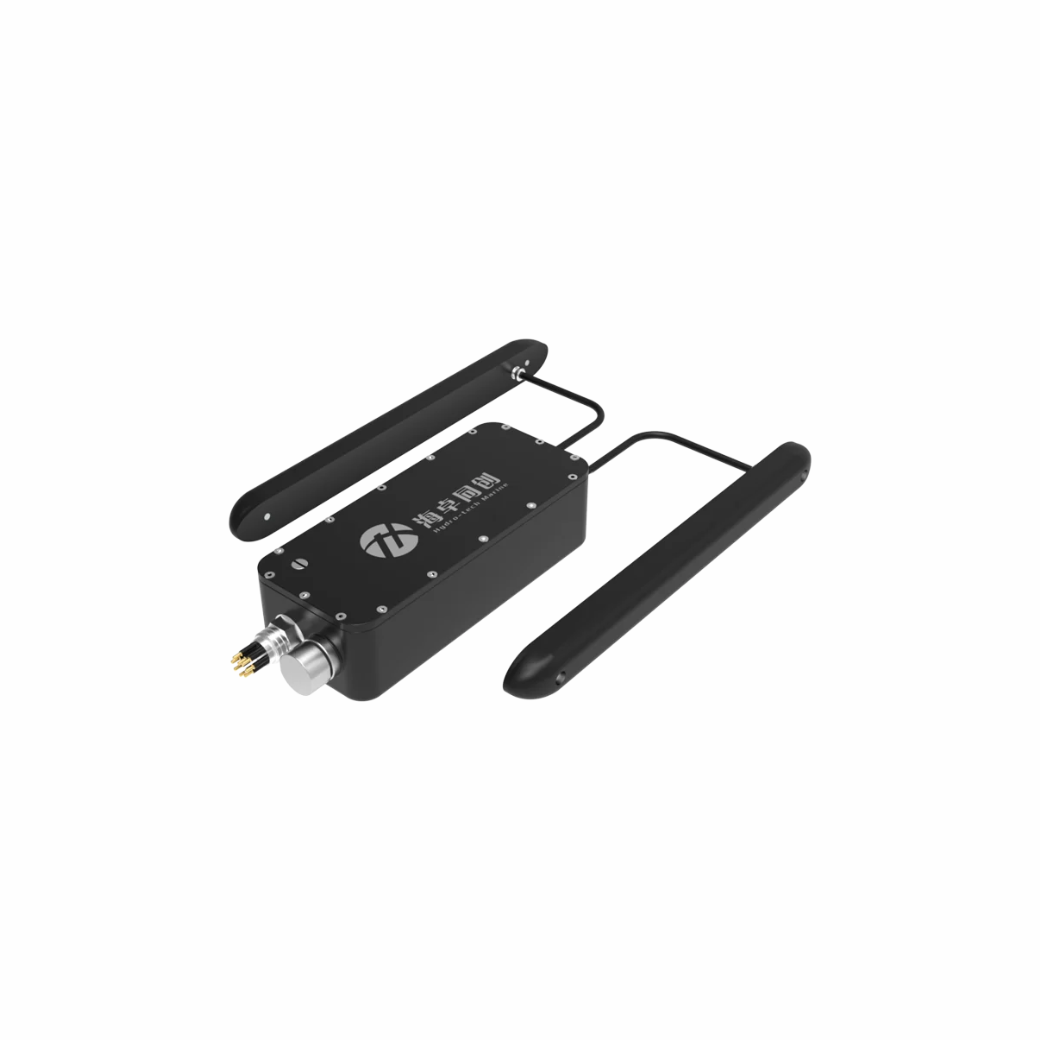

Hydro-Tech ES Series side scan sonar is an embedded type product with multi-frequency options specially designed for AUV, USV, ROV and other unmanned platforms. The selectable working frequency range is from 450 to 900kHz. The system has standard and customized version from single-frequency to dual-frequencies, different size and shape. ES series side scan sonar adopts self-adaptive wave adjustment technology combine broadband signal processing and image equalization technologies. It can clearly scan the image of small objects and complex underwater infrastructure. This is very helpful for underwater safety and small target detection applications.
Hydro-Tech ES Series side scan sonar Features

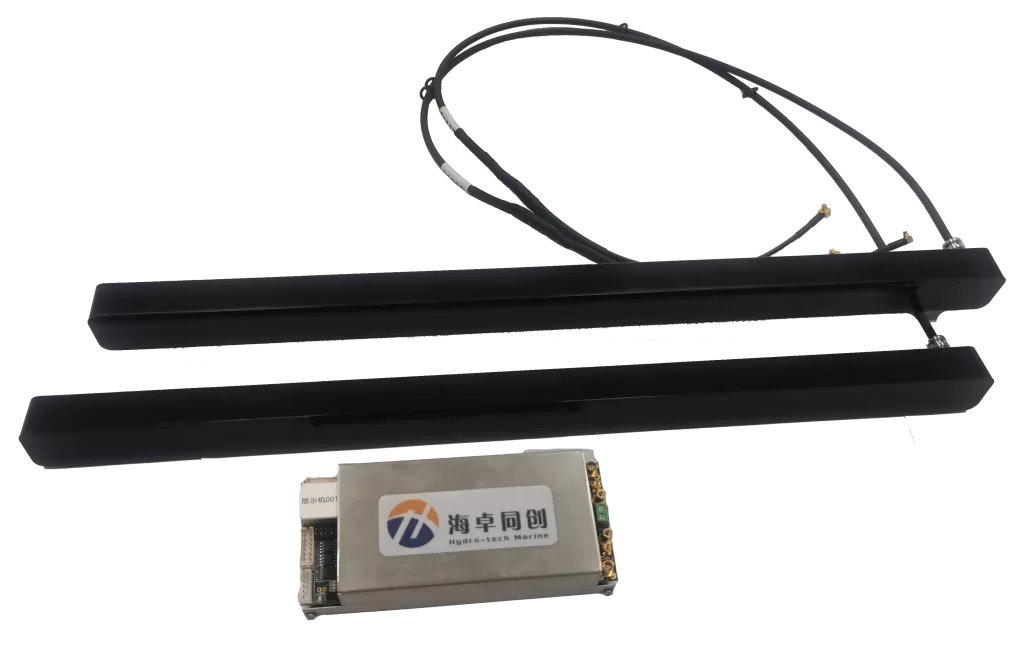

Embedded platform:Hydro-Tech ES series of side scan sonar has the features of small size, light weight, low power consumption. Its structure is simple, operation is easy, which is suitable for integration application. With different frequency, diversified shape and connector, ES series can meet the requirements of various small USV, ROV and AUV to do second development.
Compatibility:ES Series is compatible with various devices via Ethernet cable & RS232 Comport. Realize multi-module combination and collect all types of data of different sensors. It provides 8 output of sync signal by programmable TTL, which efficiently resolve complex sound interfering and synchronization control problem.

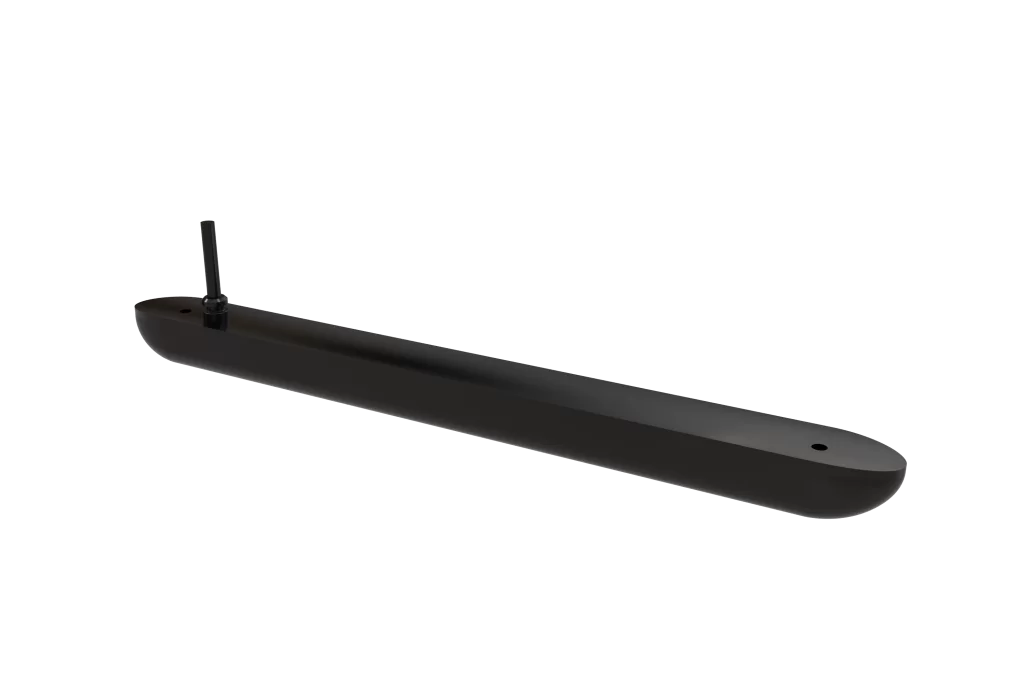

High Resolution Image: Innovative transducer design and advanced self-adaptive wave form adjustment technology combining broadband signal processing & image equalization technology, ES series side scan sonar can provide a larger scanning range and high definition results.
Diversified Applications:Cable and pipeline survey, hydrological survey, archaeological survey, ocean energy and mining resources survey, environmental protection investigation and port safety, etc.
Specifications
Hydro-Tech Side Scan Sonar Specifications
Model
ES900M
ES900
ES450
ES4590
Working Frequency
900kHz
900kHz
450kHz
450/900kHz
Across-track Beam Width
0.4°
0.2°
0.3°
0.2°
Along-track Beam Width
40°
50°
50°
50°
Max Slant Range
75m
75m
150m
150m / 75m
Along Track Resolution
0.14m@20m
0.35m@50m
0.07m@20m
0.17m@50m
0.26m@75m
0.26m@50m
0.52m@100m
0.78m@150m
450kHz
0.17m@50m
0.34m@100m
0.51m@150m
900kHz
0.07m@20m
0.17m@50m
0.26m@75m
Across Track Resolution
1cm
1cm
1.25cm
2cm@450kHz
1cm@900kHz
Max Working Depth
1000m
