GeoAcoustics GeoMB 401 Multibeam Echosounder

  • All-in-one 400 kHz multibeam echosounder delivering dependable, high-resolution bathymetric data.
  • Integrated Applanix AP+ GNSS/IMU and SVP reduce setup complexity while supporting consistent data quality.
  • Compact, low-power design for rapid deployment across small survey vessels, vessels of opportunity and USVs.
Request Quote
Need Support Financing The Product?

Simple and low cost finance available on this product. For more information click here.

Need More Info or Demonstration?

Demos and technical support are available from our UK team before you buy - more info.

Product Info

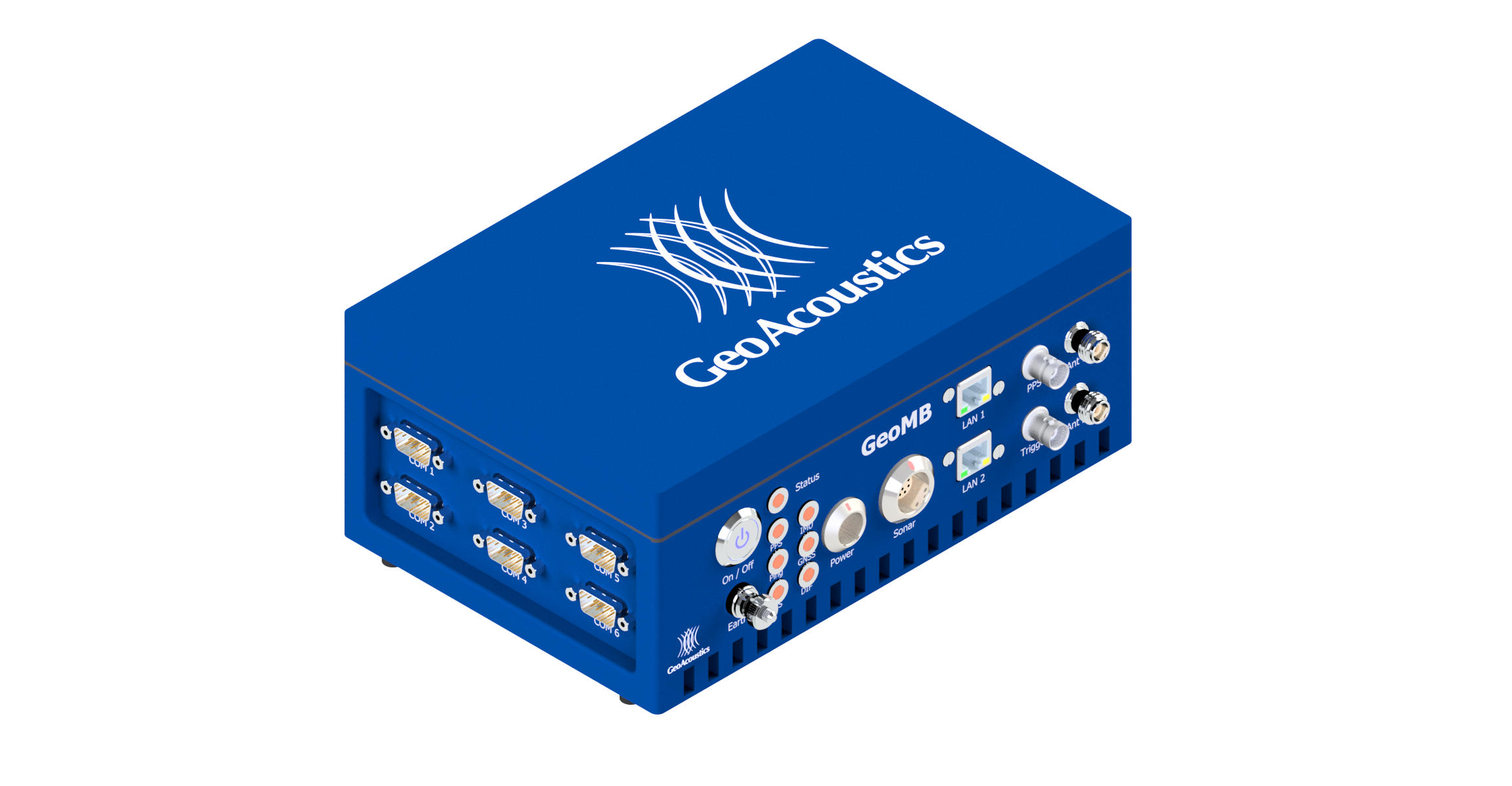

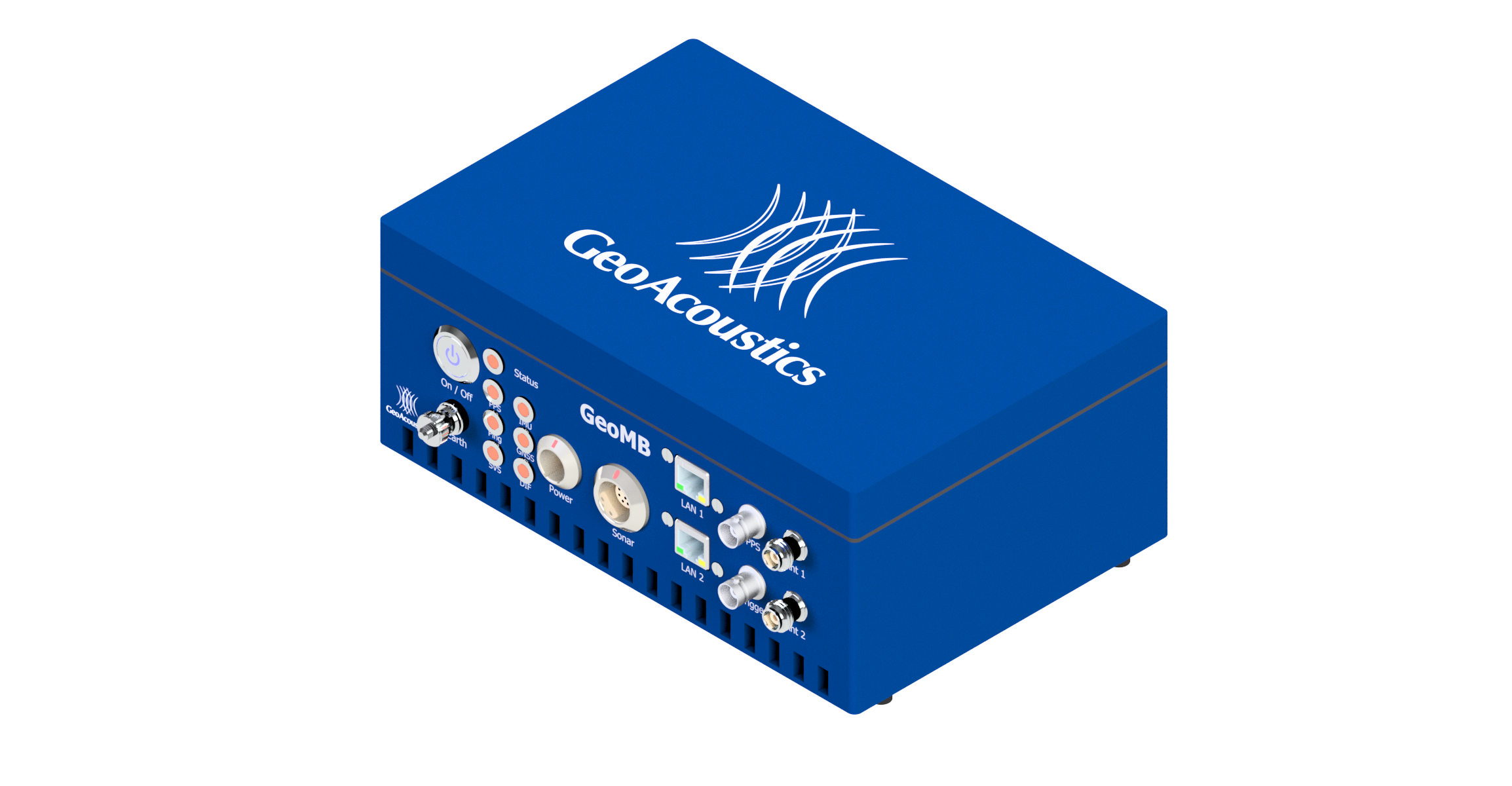

GeoMB 401 is a compact, all-in-one multibeam echosounder designed to deliver reliable, high-resolution bathymetric data in demanding survey environments. Operating at 400 kHz with 512 beams and more than 140° swath coverage, it combines multibeam processing, navigation, motion sensing and sound velocity measurement in an integrated system.

Integral Applanix AP+ GNSS/IMU and SVP help reduce setup complexity, alignment errors and latency between sensors, while real-time motion and sound velocity compensation support consistent data quality as conditions change. Third-party GNSS/IMU and SVP sensors are also supported, with navigation data available to external acquisition and processing software.

Compact, robust and low power, GeoMB is optimised for rapid mobilisation on small survey vessels, vessels of opportunity and uncrewed survey vessels. It is suited to hydrographic, dredging and environmental surveys, rapid environmental assessment, inland waterway and seabed mapping, and infrastructure inspection.

Key Features

1. High-Resolution Bathymetry: 400 kHz operation with 512 beams provides detailed depth data for accurate seabed mapping.

2. Wide Swath Coverage: Greater than 140° swath coverage maximises seabed coverage and survey efficiency while maintaining data quality.

3. Integrated Auxiliary Sensors: Integral Applanix AP+ GNSS/IMU and SVP combine positioning, motion and sound velocity measurement within the system, while third-party sensors are also supported.

4. Flexible, Survey-Ready Deployment: Compact, robust and low-power design supports rapid mobilisation across small survey vessels, vessels of opportunity and USVs, with compatibility for established survey software and workflows.

Product Specifications

Specification Details
Working Frequency 400 kHz
Number of Beams 512
Cross Track Beam Width 1°
Along Track Beam Width 2°
Swath Coverage > 140°
Sounding Depth 0.2–200 m+*
Depth Range 0.75 cm
Max Ping Rate 60 Hz
Sounding Mode Equiangular / Equidistant
Signal Type CW / Chirp

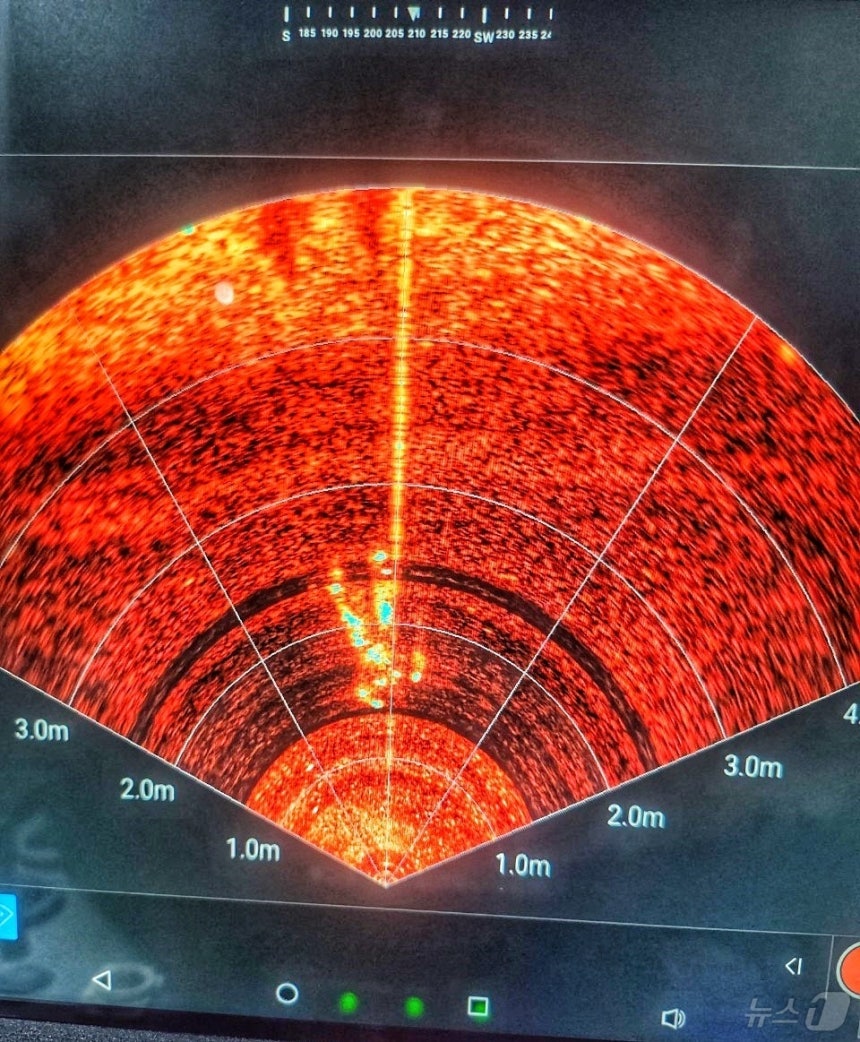

See it in Action
