  • Wide-swath bathymetric sonar systems delivering ultra-high-resolution seabed mapping with up to 240° coverage for rapid survey efficiency.

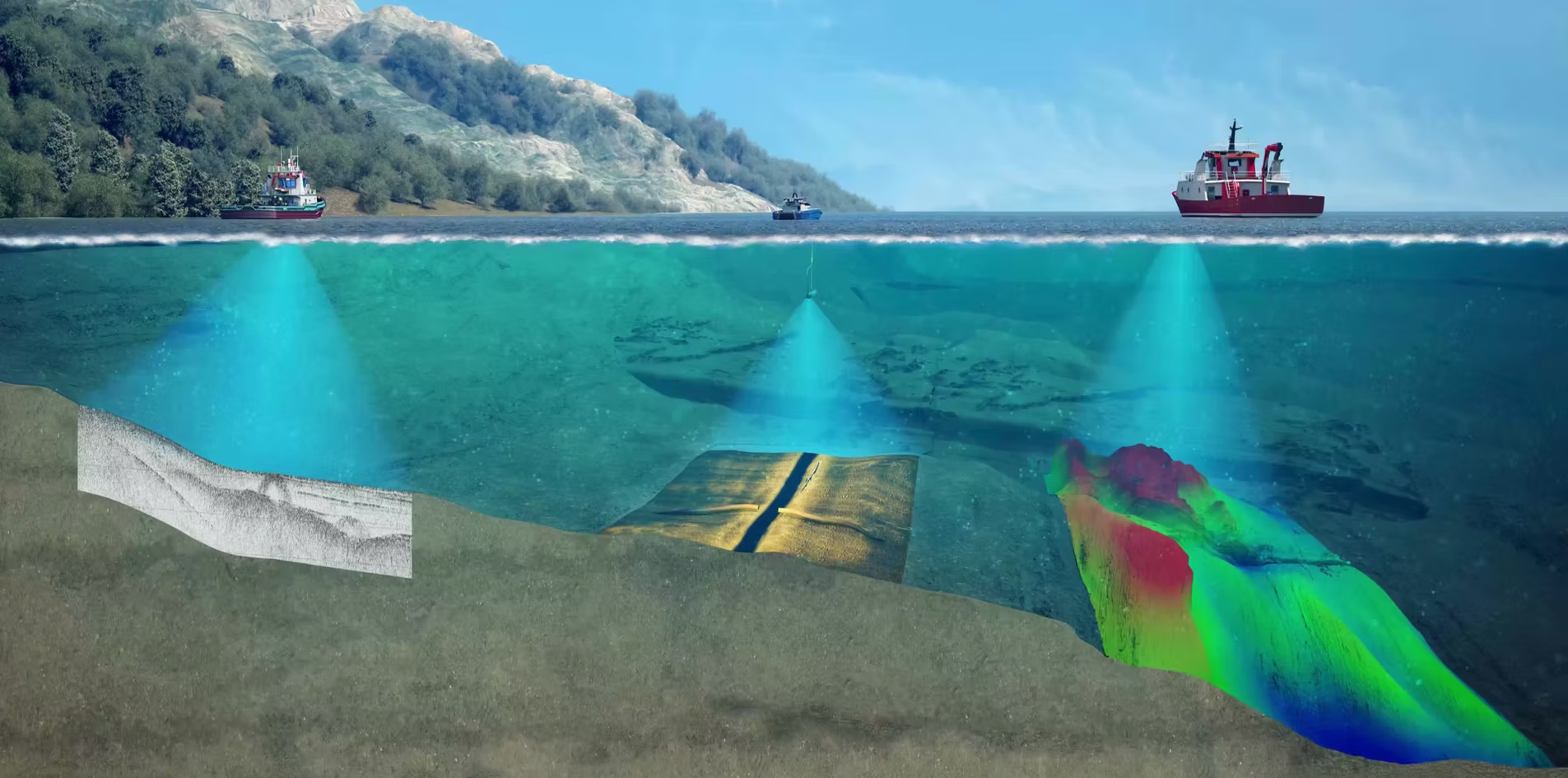

  • Simultaneous bathymetry and side scan sonar for accurate depth measurement and detailed seabed characterisation in one pass.
  • Survey-ready solutions with GS4 acquisition and processing software included, suitable for crewed vessels, USVs, and portable operations.
model
model: GeoSwath 4
Request Quote
Need Support Financing The Product?

Simple and low cost finance available on this product. For more information click here.

Need More Info or Demonstration?

Demos and technical support are available from our UK team before you buy - more info.

Product Info

GeoSwath 4 - High-resolution wide-swath bathymetric sonar with simultaneous side scan imaging. Supplied with an integrated deck unit and GS4 software for fast, accurate hydrographic surveys in coastal, inland, and offshore environments.

GeoSwath 4R - The GeoSwath 4 in a rugged, splash-protected deck unit. Designed for exposed decks and harsh marine conditions where reliability and durability are critical.

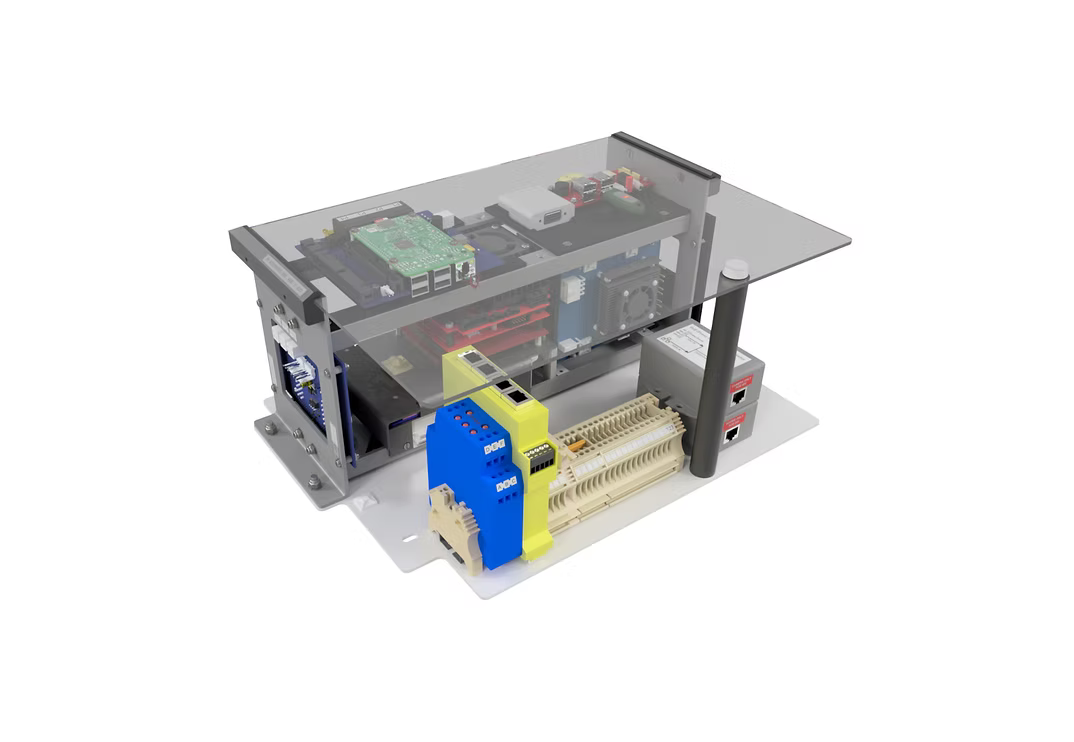

GeoSwath 4 USV Module - Compact, low-power wide-swath bathymetry system optimised for unmanned surface vehicles. Supports remote and autonomous seabed mapping in rapid-deployment survey missions.

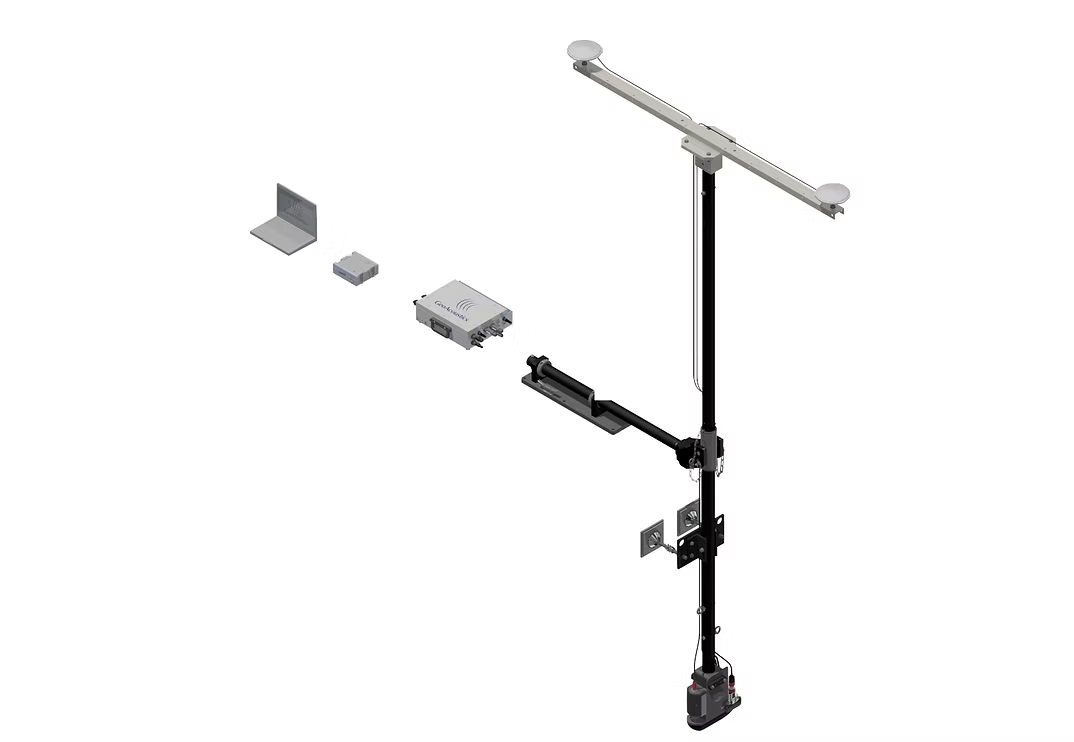

GeoSwath 4 PHS - Fully integrated portable hydrographic system combining GeoSwath sonar with GNSS, motion, and sound velocity sensors. Ideal for rapid response surveys and small vessels with minimal setup.

Key Features

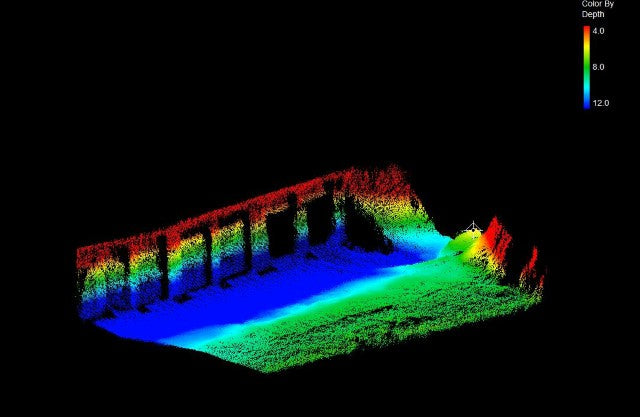

1 - Ultra-Wide Swath Coverage: Up to 240° field of view from nadir to waterline, covering up to 12× water depth in a single pass.

2 - Simultaneous Bathymetry & Side Scan: Capture precise depth data and high-resolution seabed imagery at the same time.

3 - Flexible Frequency Options: 125, 250, or 500 kHz configurations to balance depth penetration and resolution.

4 - GS4 Software Included: Complete workflow for acquisition, processing, 3D visualisation, and final deliverables.

Delivery

UK Delivery - Usually £18 - Use code FREEDEL26 for Free UK Delivery - Online Exclusive.

Delivery takes around 4-5 weeks to most UK addresses.

Conditions - Some locations outside mainland UK may incur additional charges, which are representative of the extra cost that we get charged by the courier. Contact us directly on sales@alphageouk.com if you need any help or have questions, before you order.

Product Specifications

Specification Details
Sonar type Wide-swath bathymetric sonar with integrated side scan
Operating Frequency Range 125 – 500 kHz (configuration dependent)
Swath Coverage Up to 240° (nadir to waterline)
Maximum Swath Width Up to 12× water depth
Depth Capability Shallow water (<1 m) to tens of metres, environment dependent
Side Scan Imaging Simultaneous high-resolution seabed imagery
Positioning Support GNSS (single / RTK / PPK) with external INS/MRU compatibility
Software GS4 acquisition, processing & 3D visualisation suite included
