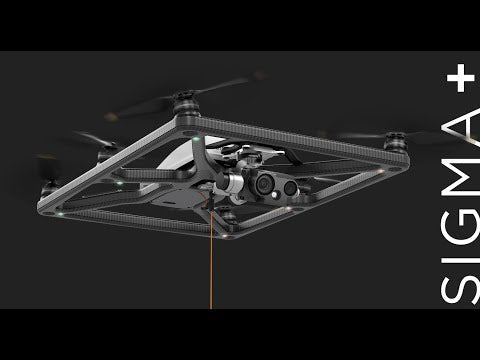

Fotokite Sigma - Tethered Drone

£36,225.60

Sale Sold out

Taxes included.

Free UK Delivery (Orders Over £100)
Price Checked (Best Price Guarantee)
UK Based (Approved Dealer)

Configurations Transport Case Rooftop Box (RTB) Tray Mount Rugged Tablet Remote Livestream Subscription: 1 time fee

Pre-Order Now - Delivered to you in around 4 weeks

Would you like a Full Demonstration?

No Purchase or Commitment, Contact Us For More Information.

Fotokite Sigma Tethered Drone provides public safety teams with mission-critical situational awareness from elevated perspectives. Fotokite’s actively tethered drones conserve personnel by launching, flying, and landing with the single push of a button; no piloting required.

Fotokite Sigma is authorised and recognised by aviation authorities as a safer alternative to non-actively tethered drones and free-flying public safety drone systems.

Fotokite Sigma Tethered Drones are available in three drone configurations:

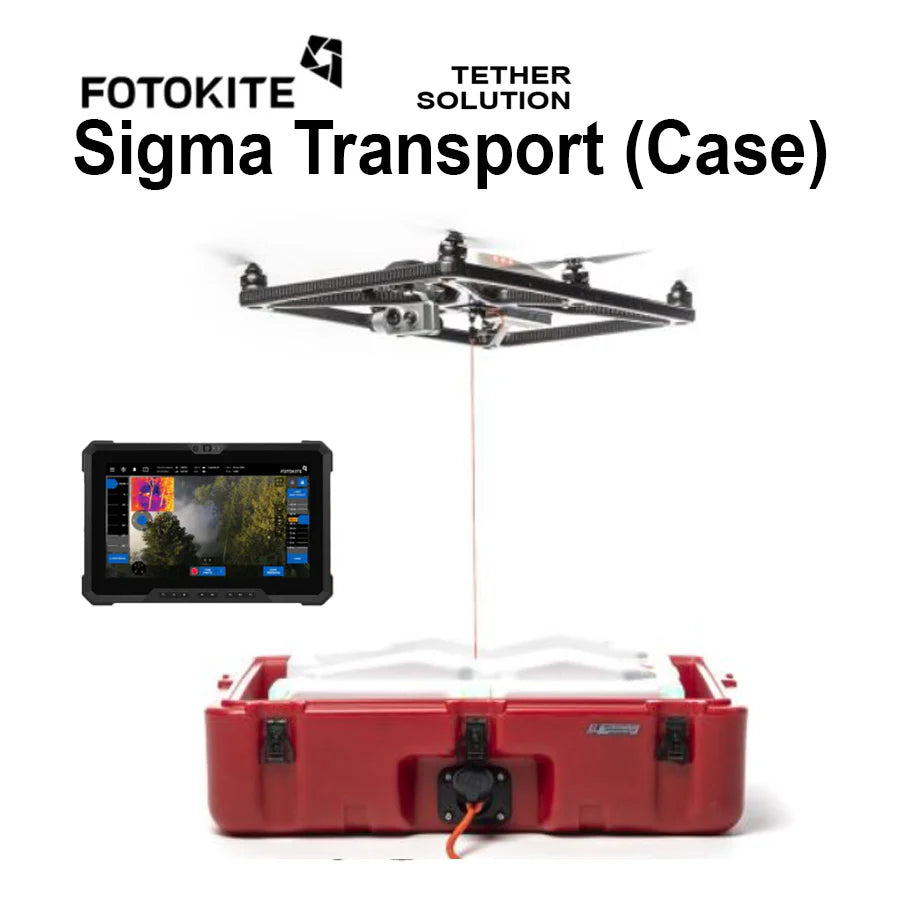

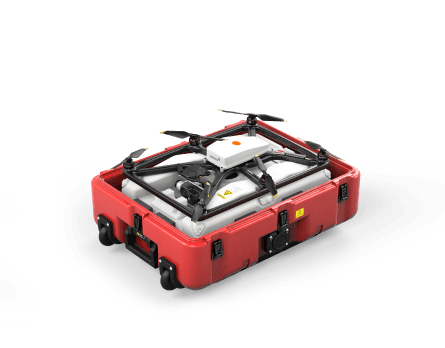

Transport Case

Transport Case configuration allows the use of the Fotokite Sigma to be interchangeable between vehicles and provides flexibility in deploying the system at the scene of an incident.

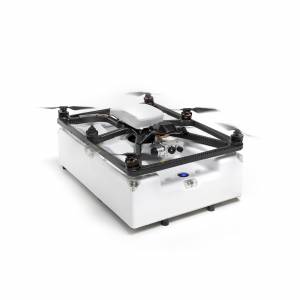

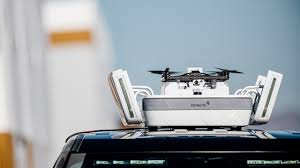

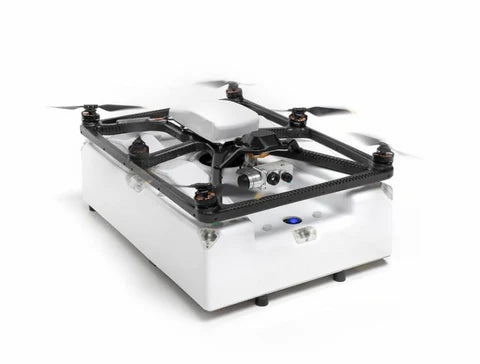

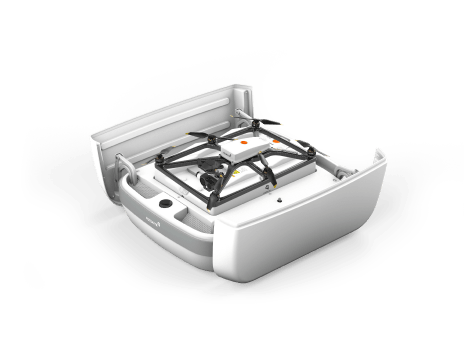

Rooftop Box

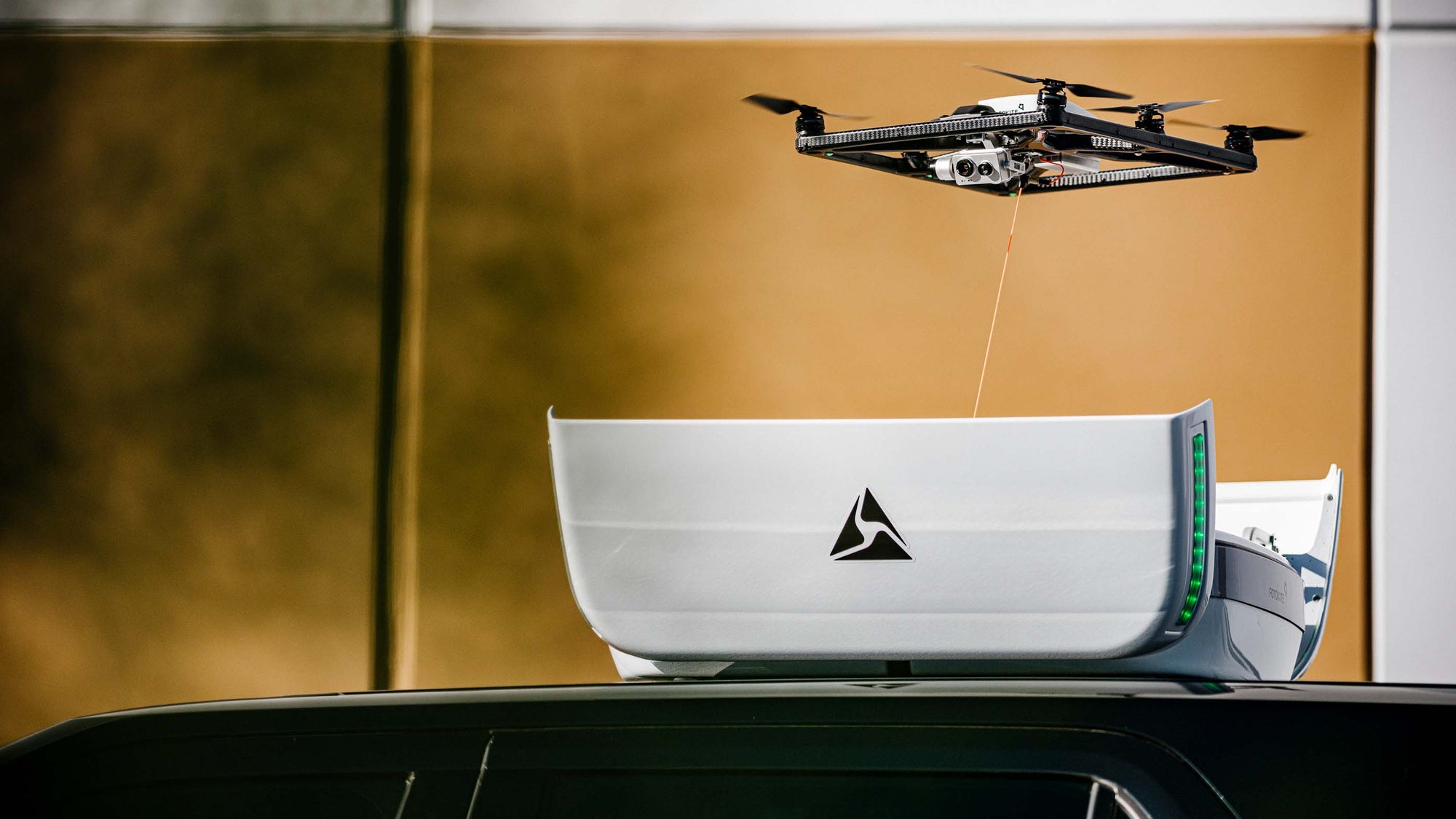

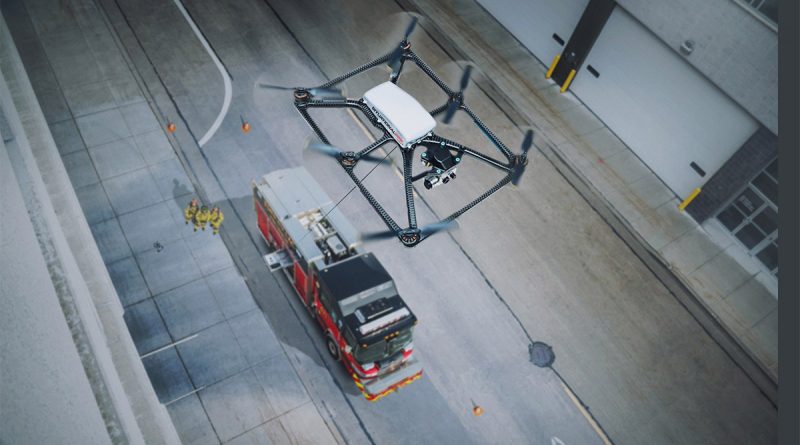

Rooftop Box configuration is Fotokite’s flagship configuration that provides immediate and completely hands-free increased situational awareness. Designed for integration into SUVs and heavy apparatus vehicle classes, the Rooftop configuration deploys with the push of a button.

Tray Mount

Tray Mount configuration allows the close integration of Fotokite systems into the side or back compartments of any command vehicle. Prewired to your vehicle's power, the Transport Case is ready for deployment within 30 seconds of arriving on scene.

Transport Case

Specifications For Transport Case

Flight Time	24 hours continuous (as long as vehicle is running or plugged into shore power)
Warranty	1-year / 200 flight hours, with optional extended warranty available
Servicing	Over-the-air software updates with auto flight log & service documentation
Log Storage	24 hour capacity, single button-push upload to optional cloud account at the station
Kite	1.3kg (2.8lbs) take-off weight, weather sealed carbon fiber & advanced composites
Cameras	Thermal stream resolution of 320 x 240 / 27 fps. Can measure absolute temperature in range -40°C – 400°C, accuracy ± 5%. Low-light RGB stream resolution of 1080p (1920 x 1080) / 30 fps / 12 MP / 16x Zoom (0.5x widest – 16x most zoomed).
Dimensions	Transport Case configuration size: 635 x 483 x 343 mm (25 x 19 x 13.5 in)
Weight	19.5 kg (43 lbs)
Weather Rating	-10°C to 40°C (14°F to 104°F), IP55, ready to operate in rain, snow, & wind
Range	Max height of 45m (150ft) from the Ground Station
Tether	Reinforced load rated ultrathin cable
LTE Modem & Video Streaming	Ethernet + WPA2 encrypted WiFi access point for live video streaming, plus integrated LTE Modem to stream live video remotely for mutual aid and remote incident command
Safety & Regulations Compliant	No piloting necessary; fully autonomous launching, flight, & landing
Security	Secure video streaming & control link to the ground station via tether cable
Flight Control	Fotokite Autopilot with no GPS dependency
System Reliability	Auto pre-flight system checks, single-motor failure redundancy, controlled descent, backup flight power system for up to 120 seconds, backup ground station power system for control & recovery in power blackouts, redundant flight control, tether separation detection, automatic maintenance alerts.

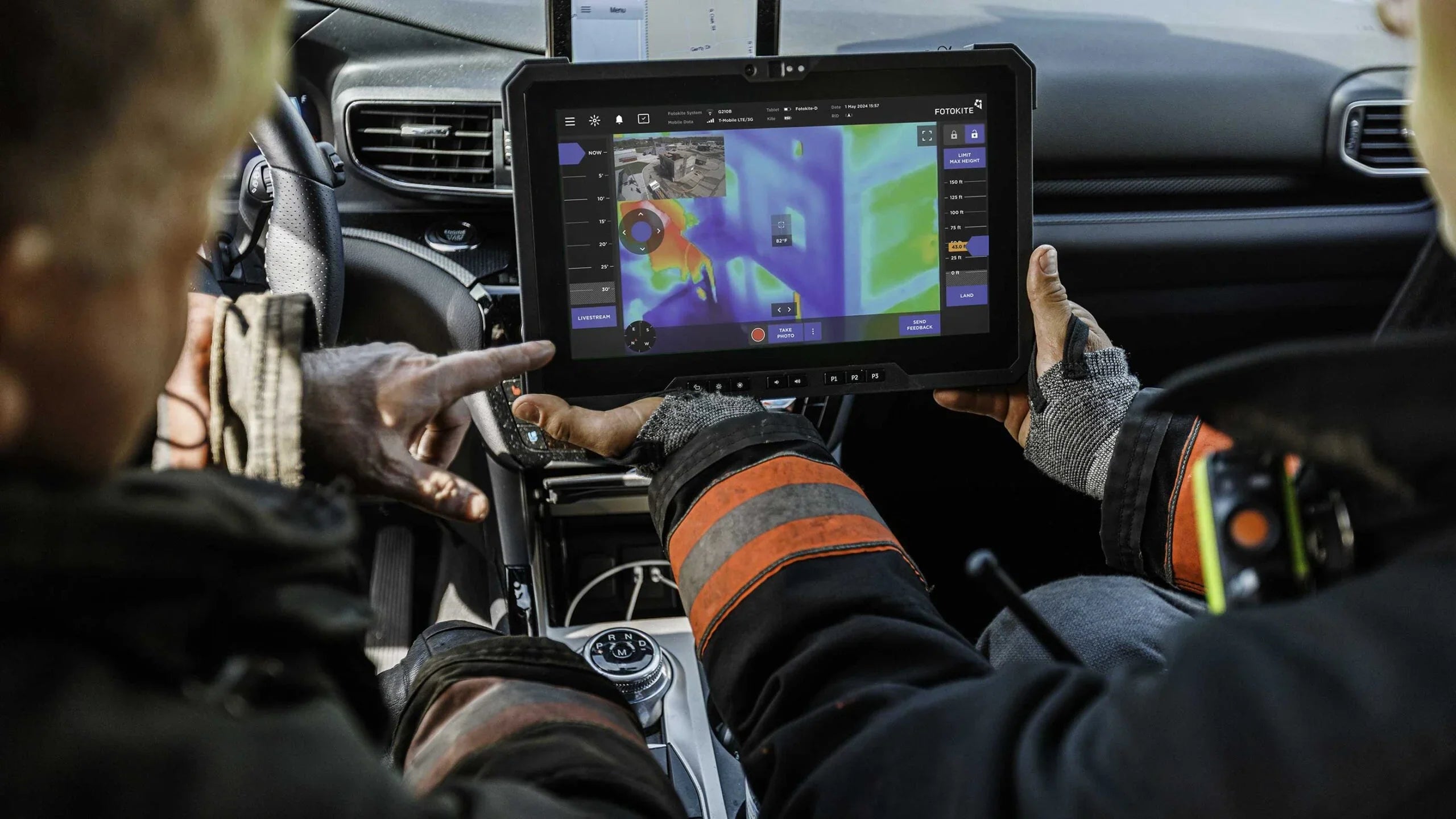

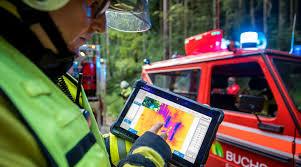

Control Software	Fotokite Live is the Windows App delivered with every Fotokite Sigma to provide important system information and camera video streams into a clean and easy to understand control interface. Fotokite Live’s simplicity is a testament to Fotokite’s unique technology and public safety focus: The Fotokite Sigma’s fully autonomous capabilities allow first responders to easily and safely operate their systems without taking up team resources or increasing operational complexity. Fotokite Live is also available for iOS and Android tablets.

Rooftop Box

Specifications For Rooftop Box

Flight Time	24 hours continuous (as long as vehicle is running or plugged into shore power)
Warranty	1-year / 200 flight hours, with optional extended warranty available
Servicing	Over-the-air software updates with auto flight log & service documentation
Log Storage	24 hour capacity, single button-push upload to optional cloud account at the station
Kite	1.3kg (2.8lbs) take-off weight, weather sealed carbon fiber & advanced composites
Cameras	Thermal stream resolution of 320 x 240 / 27 fps. Can measure absolute temperature in range -40°C – 400°C, accuracy ± 5%. Low-light RGB stream resolution of 1080p (1920 x 1080) / 30 fps / 12 MP / 16x Zoom (0.5x widest – 16x most zoomed).
Dimensions	Rooftop Box configuration size: 764 x 594 x 273 mm (30 x 23.5 x 11 in)
Weight	29kg (65lbs)
Weather Rating	-10°C to 40°C (14°F to 104°F), IP55, ready to operate in rain, snow, & wind
Range	Max height of 45m (150ft) from the Ground Station
Tether	Reinforced load rated ultra thin cable
LTE Modem & Video Streaming	Ethernet + WPA2 encrypted WiFi access point for live video streaming, plus integrated LTE Modem to stream live video remotely for mutual aid and remote incident command
Safety & Regulations Compliant	No piloting necessary; fully autonomous launching, flight, & landing
Security	Secure video streaming & control link to the ground station via tether cable
Flight Control	Fotokite Autopilot with no GPS dependency
System Reliability	Auto pre-flight system checks, single-motor failure redundancy, controlled descent, backup flight power system for up to 120 seconds, backup ground station power system for control & recovery in power blackouts, redundant flight control, tether separation detection, automatic maintenance alerts
Control Software	Fotokite Live is the Windows App delivered with every Fotokite Sigma to provide important system information and camera video streams into a clean and easy to understand control interface. Fotokite Live’s simplicity is a testament to Fotokite’s unique technology and public safety focus: The Fotokite Sigma’s fully autonomous capabilities allow first responders to easily and safely operate their systems without taking up team resources or increasing operational complexity. Fotokite Live is also available for iOS and Android tablets.
