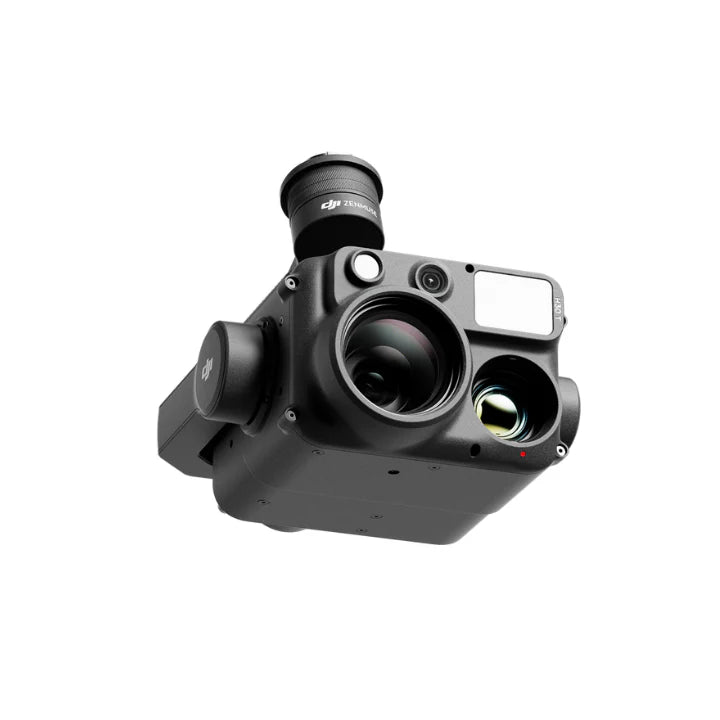

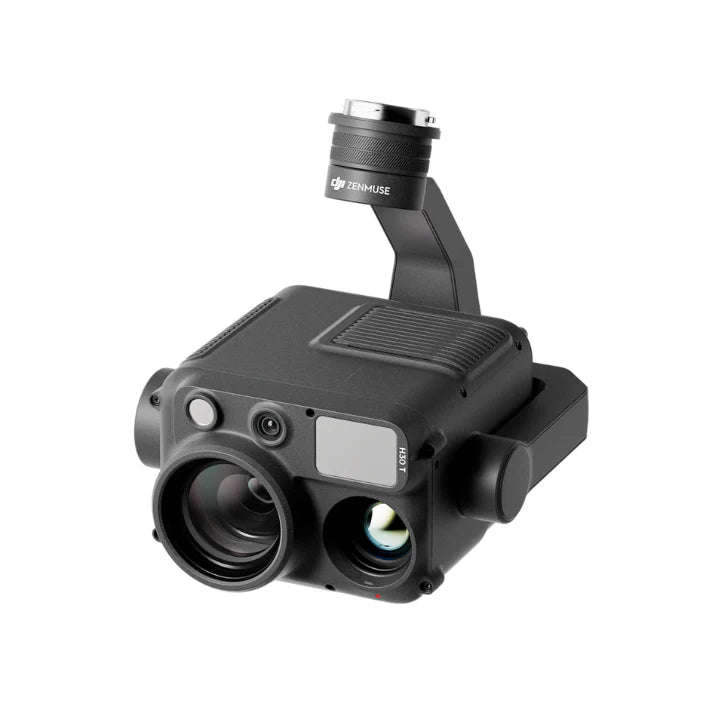

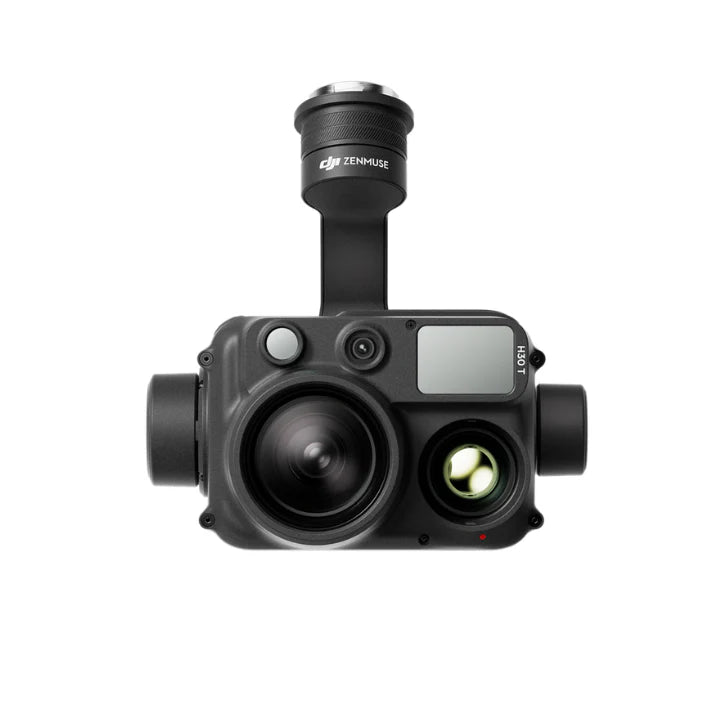

DJI Zenmuse H30T Drone Payload

The DJI Zenmuse H30T is an advanced 3-in-1 payload system integrating a 30× optical zoom gimbal camera, a radiometric thermal camera, and a laser rangefinder—designed for precision aerial inspection, search & rescue, and infrastructure monitoring.

Key Features

30× Optical Zoom Gimbal Camera

• • 28 mm to 840 mm equivalent focal length

  • High-res autofocus for intricate inspections

  • 4K video at 30 fps; effective surveillance across large area

Radiometric Thermal Camera

• 640×512 resolution, 12 μm pixel pitch

• Thermal measurement range: – 20 °C to + 150 °C

• Radiometric video output for temperature analysis

Improved Laser Rangefinder

• 1.6 km max range

• ±0.2 m accuracy

Stabilization & Integration

• • Multi-axis gimbal keeps steady footage

  • Seamless integration with DJI Matrice 300 RTK

  • D-Log M color mode, HDR, adjustable shutter and ISO

Advanced Imaging Modes

• PinPoint for quick target marking and telemetry capture

• Thermal area measurement; hot/cold spot tracking

What’s In the Box

DJI Zenmuse H30T payload

Lens covers

Calibration certificate

SkyPort 2.0 communication cable

Quick-start guide and safety manual
