CHNSpec FS60C Series Airborne/UAV Hyperspectral Camera

Info

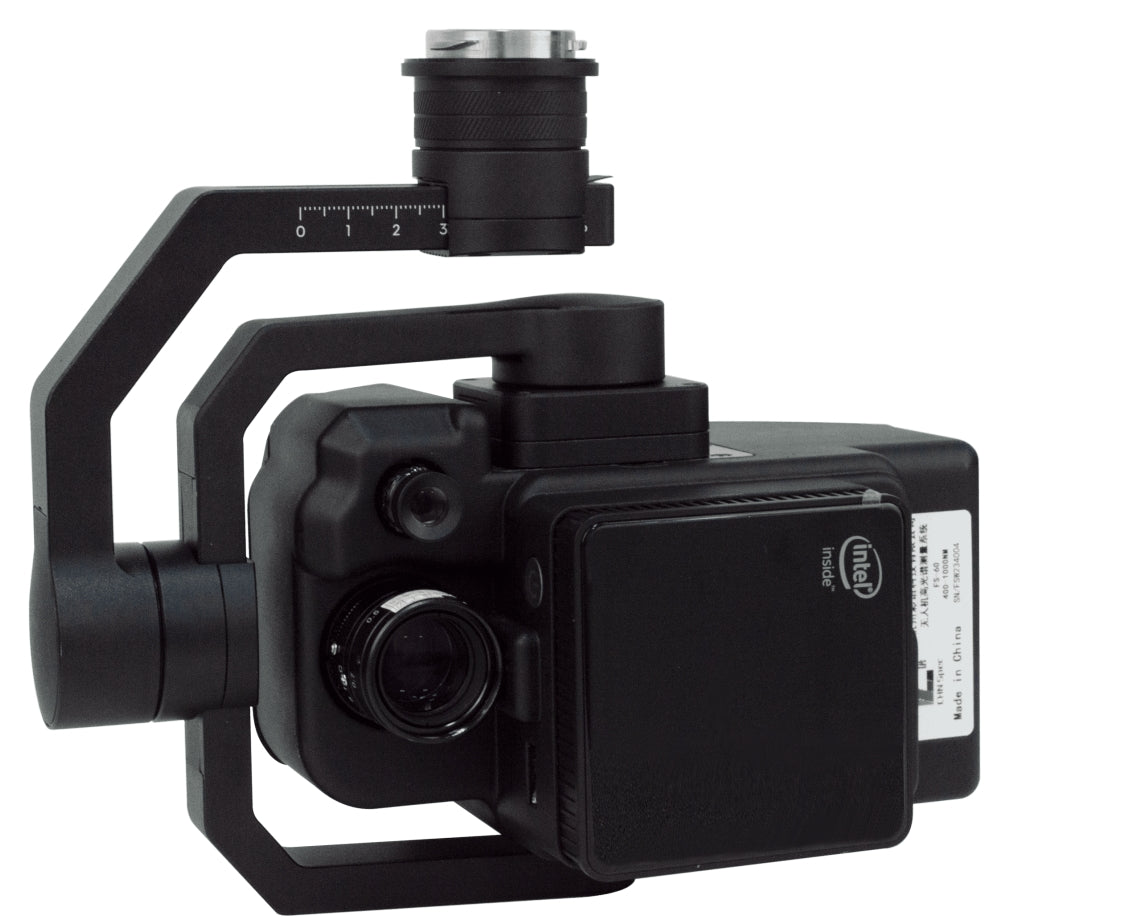

CHNSpec FS60C Series Airborne hyperspectral camera

The CHNSpec FS60C is a high-performance airborne hyperspectral camera designed for precise remote sensing applications across various industries, including agriculture, environmental monitoring, mining, and defence.

Key

Features

• Spectral Range: 400–1000 nm
• Spectral Bands: 1200
• Spectral Resolution (FWHM): 2.5 nm
• Slit Width: 25 µm
• Transmission Efficiency: >60%
• Stray Light: <0.5%
• Spatial Pixels: Up to 1920 (software-configurable)
• Pixel Size: 5.86 µm
• Imaging Speed: Full band at 128 Hz; up to 3300 Hz with ROI selection
• Detector: CMOS
• Signal-to-Noise Ratio (Peak): 600:1
• Camera Output: USB 3.0 or Gigabit Ethernet
• Camera Interface: C-Mount
• Embedded Data Acquisition Unit: Intel i7 processor with 512 GB SSD storage

Applications

The FS60C is suitable for a wide range of applications, including:

• Geological and mineral resource surveys
• Precision agriculture and crop monitoring
• Forest pest and fire prevention monitoring
• Coastline and marine environment monitoring
• Pasture productivity and grassland monitoring
• Lake and watershed environment monitoring
• Remote sensing research and education
• Meteorological studies
• Eco-environmental protection
• Mine environment monitoring
• Water quality and soil monitoring
• Agricultural and livestock product quality testing
• Military, national defense, and homeland security
• Disaster prevention and control

System Integration

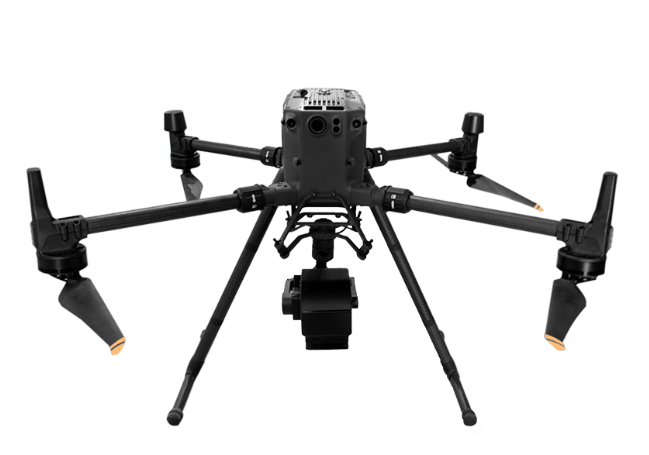

The FS60C is compatible with various UAV platforms, such as the DJI Matrice 350/300, enabling efficient aerial data collection. Its lightweight design and high-speed imaging capabilities make it ideal for dynamic and large-scale monitoring tasks.
