AgileX Cobot Magic Lift Wireless

AgileX Cobot Magic Lift Wireless

Enquire for Prices and Availability - Secure Yours Now

  • Free UK Delivery (Orders Over £100)
  • Price Checked (Best Price Guarantee)
  • UK Based (Approved Dealer)
Overview

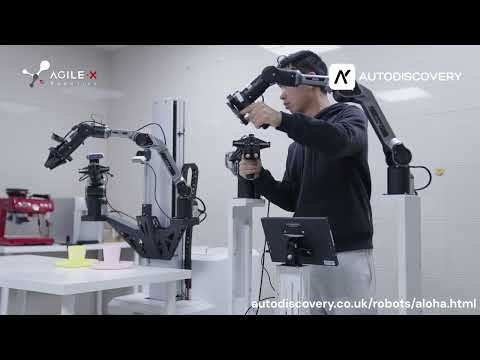

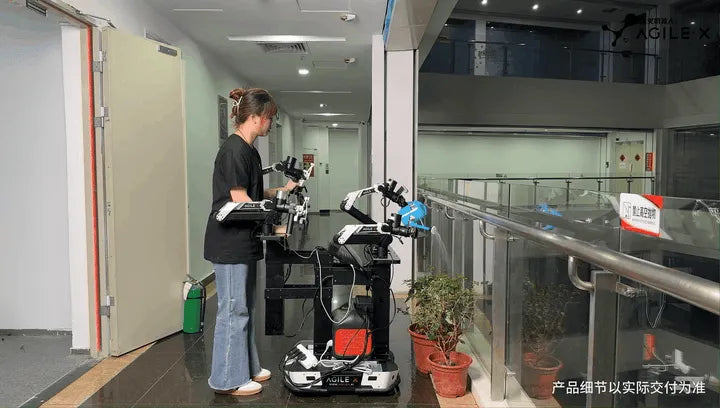

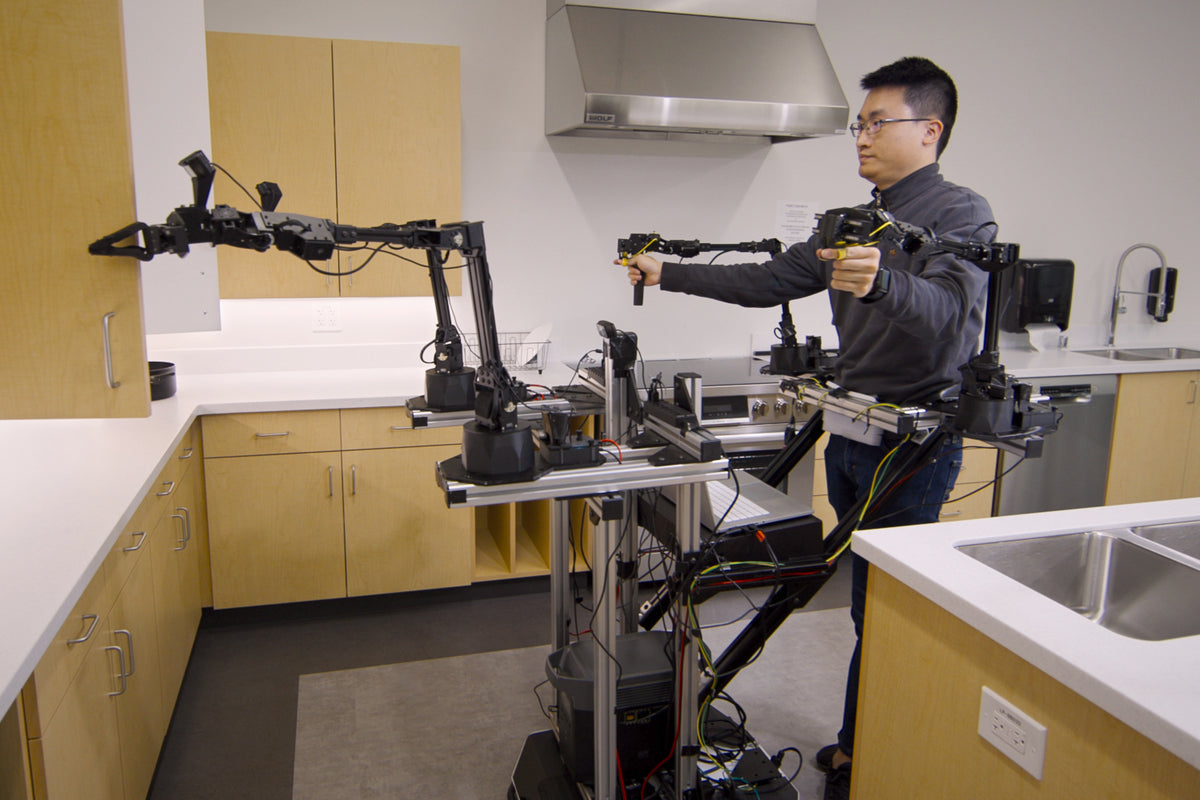

Autodiscovery ALOHA – AgileX Cobot Magic Lift Wireless is a cutting-edge robotic platform developed in collaboration with AgileX Robotics. It integrates the Mobile ALOHA system—a whole-body remote operation data collection framework developed by Zipeng Fu, Tony Z. Zhao, and Chelsea Finn from Stanford University—with AgileX's Tracer mobile base and dual-arm robotic system. This combination enables precise and dynamic manipulation tasks in various environments.

Features

Key Features

Dual Robotic Arms: Equipped with two 6-DOF robotic arms, each featuring a reach of 509 mm and a payload capacity of up to 1.5 kg. These arms are designed for tasks requiring dexterity and precision.

Mobile Base: The Tracer mobile base provides differential drive capabilities, allowing for agile movement and navigation in complex environments.

Advanced Sensing: Incorporates depth cameras and an IMU for spatial awareness and accurate task execution.

Open-Source Software: Utilises the Mobile ALOHA system, enabling whole-body remote operation and facilitating data collection for training and simulation.

High-Performance Computing: Powered by an NVIDIA Orin Nano 8GB Developer Kit, supporting real-time processing and AI inference.

Applications

The ALOHA platform is suitable for a range of applications, including:

Research and Development: Ideal for developing and testing robotic algorithms and AI models.

Industrial Automation: Can be deployed in manufacturing environments for tasks such as assembly and inspection.

Education and Training: Serves as an educational tool for teaching robotics and AI concepts.

Specification

Robotic Arms

  • 6-DOF, 509 mm reach, 1.5 kg payload
  • Mobile Base
  • AgileX Tracer, differential drive

Cameras

  • Orbbec Dabai depth cameras
  • IMU
  • CH110

Computing Platform

  • NVIDIA Orin Nano 8GB Developer Kit

Charging Time

  • Approximately 4 hours
  • Runtime
  •  Up to 240 minutes
Pricing is available upon request. Free shipping within the UK is included. Add-ons and spare parts are available.
