Tritex NDT Multigauge 6000 UAV/Drone Thickness Gauge kit

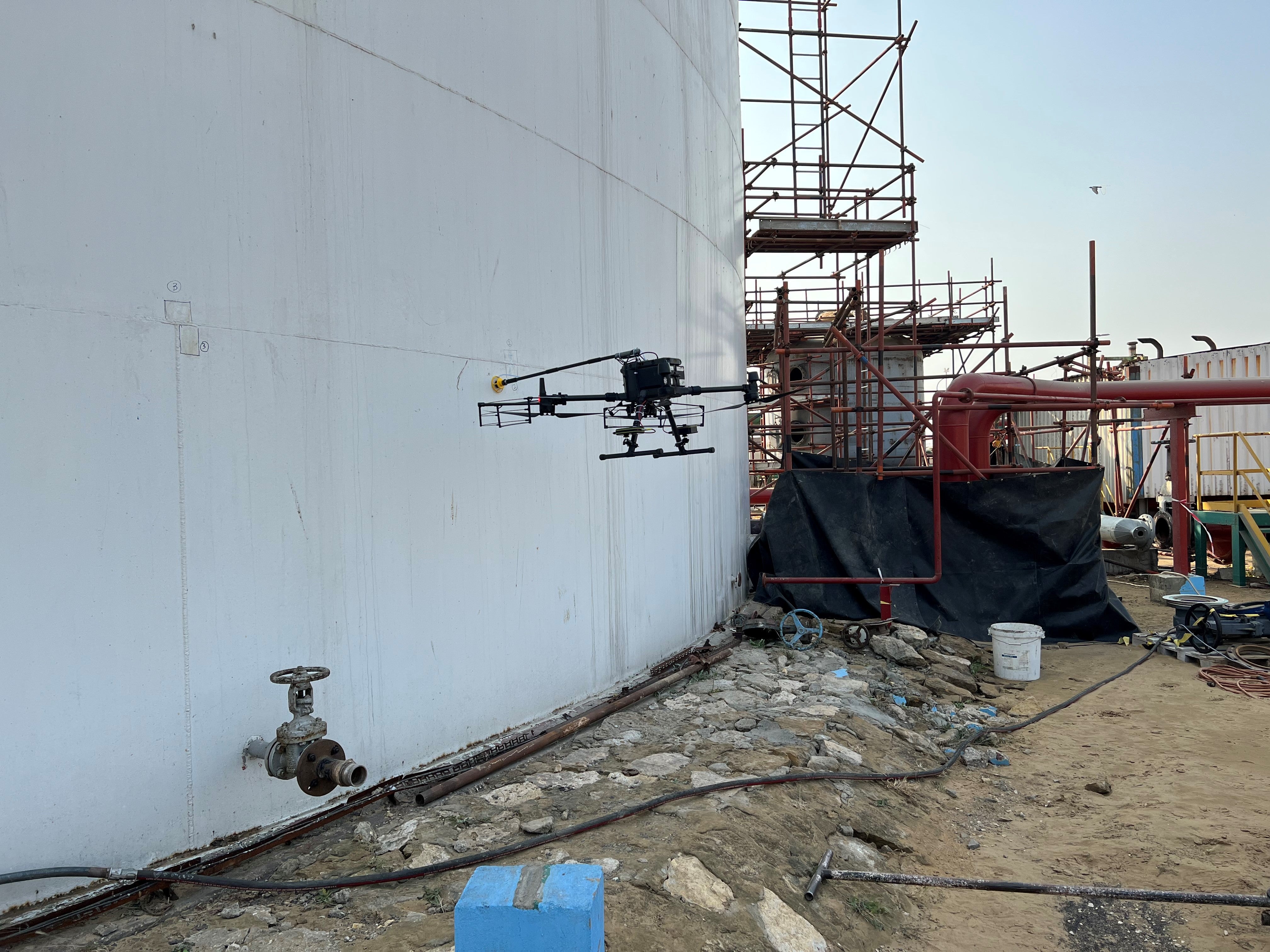

The Tritex NDT Multigauge 6000 Drone Thickness Gauge is a pioneering ultrasonic inspection system engineered specifically for UAV integration, enabling non-destructive metal thickness measurement from the air. Designed for infrastructure inspection, offshore maintenance, ship hull surveys, and corrosion assessment, it combines Multiple Echo Technology with drone mobility for unmatched versatility.

This advanced system measures through protective coatings up to 20 mm thick, requiring no zeroing or surface preparation. Its long-range wireless transmitter (up to 500 m) ensures reliable real-time data transmission to the operator or ground station, with all readings automatically logged and processed using the included Communicator software.

The gauge features Intelligent Probe Recognition (IPR) for automatic optimization and Automatic Measurement Verification System (AMVS) to ensure only true and valid readings are recorded. Built from lightweight, durable materials, it minimizes drone power consumption while maintaining resilience in challenging field environments.

The Multigauge 6000 kit includes all accessories required for seamless drone integration—compatible with most UAVs, including DJI Matrice 210 and M300 RTK models—and complies with BS EN 15317:2013, ISO 9001, ROHS, and WEEE standards.

What’s Included:

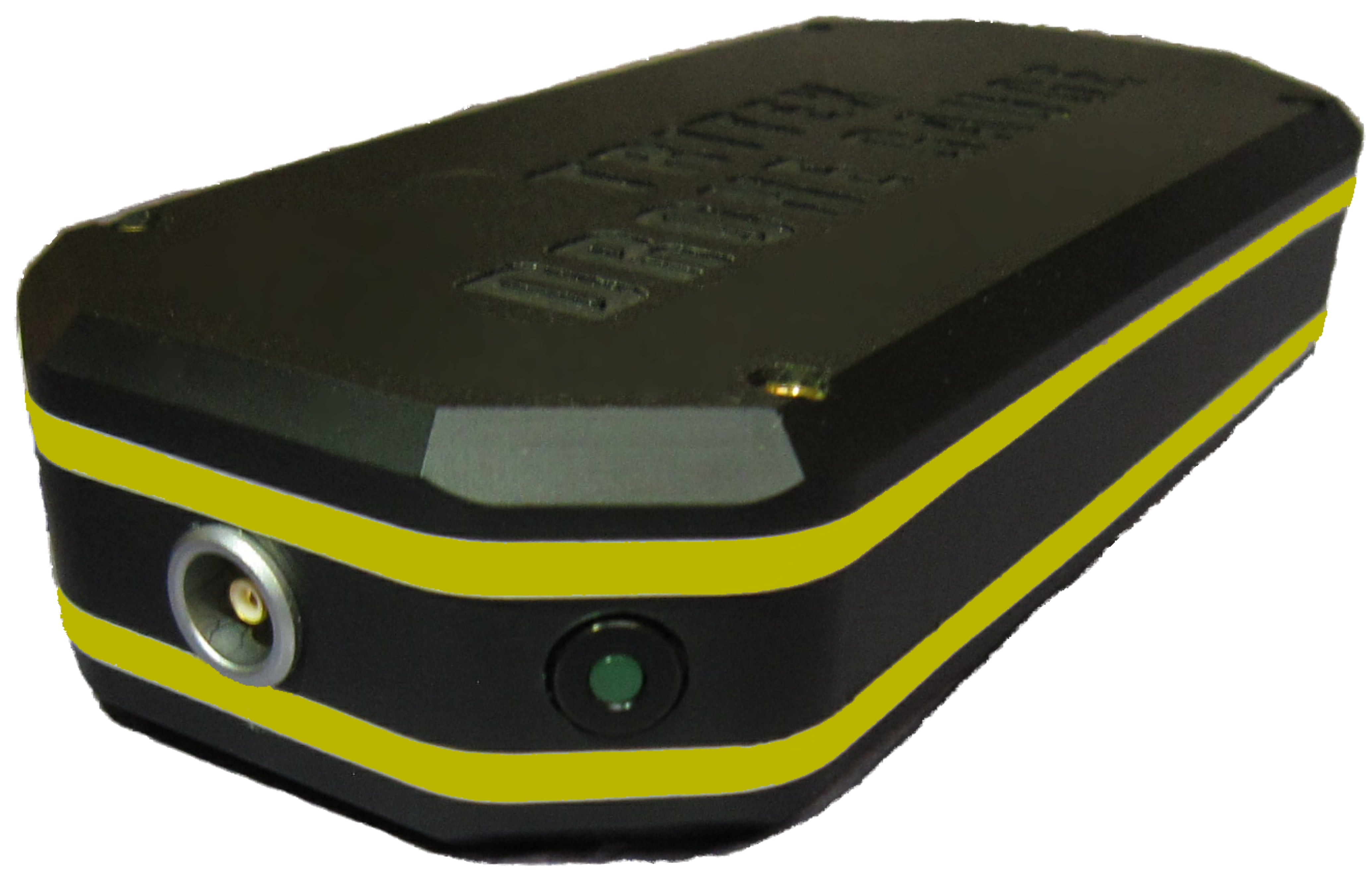

Multigauge 6000 Drone Thickness Gauge with 13 mm 2.25 MHz probe (1.5 m cable)
Long-range wireless transmitter (up to 500 m range)
Probe and power connections, spare membranes, membrane couplant, couplant, and 15 mm test block
Power cables: mains power to XT30 lead and USB to XT30 lead with adaptor
Communicator software (USB drive), manual, and calibration certificate

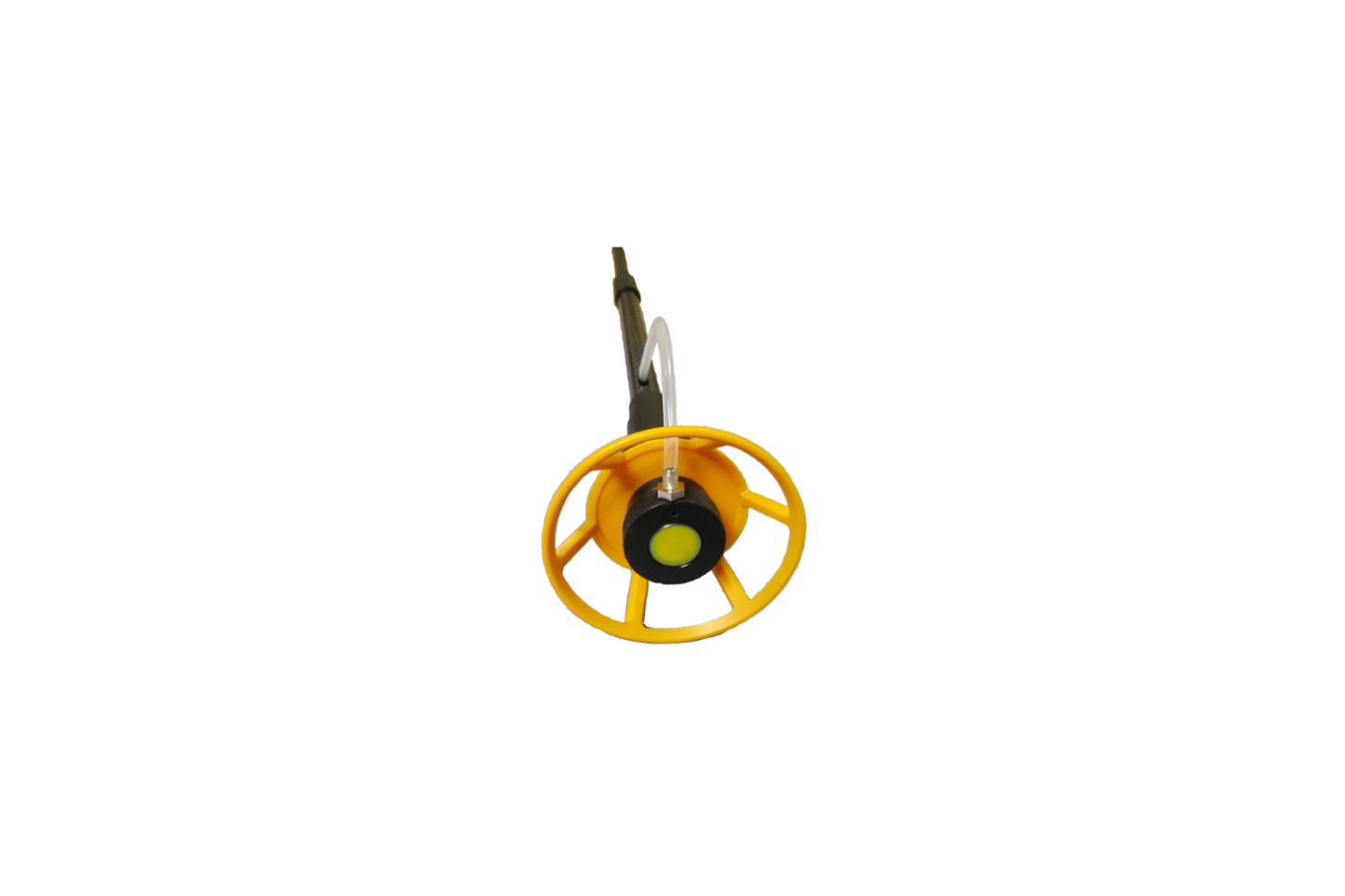

13 mm (½”) plastic probe holder with carbon tubes, connectors, and hex key

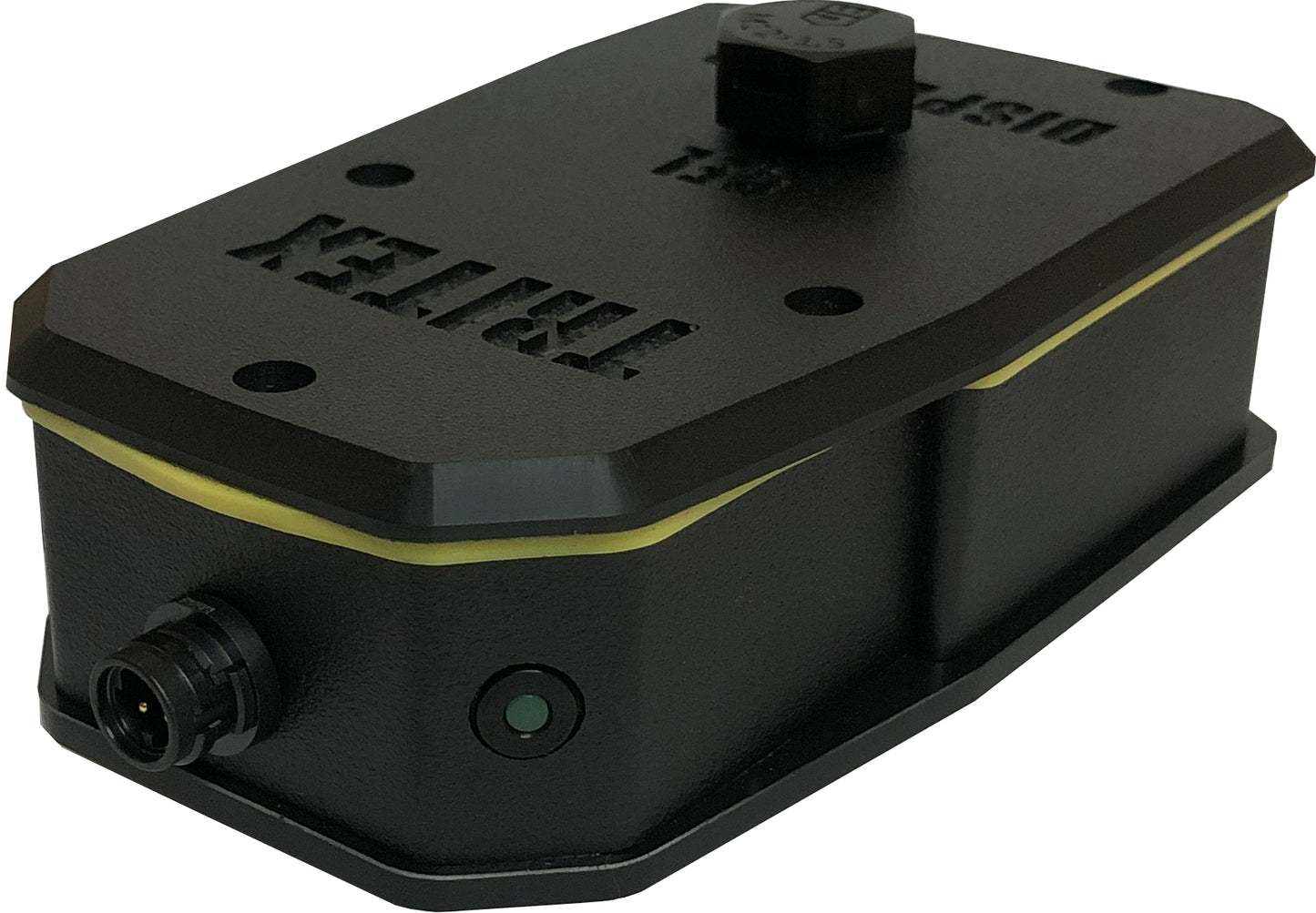

Couplant dispenser system with pump, 70 ml reservoir, and 1.5 m silicon tubing

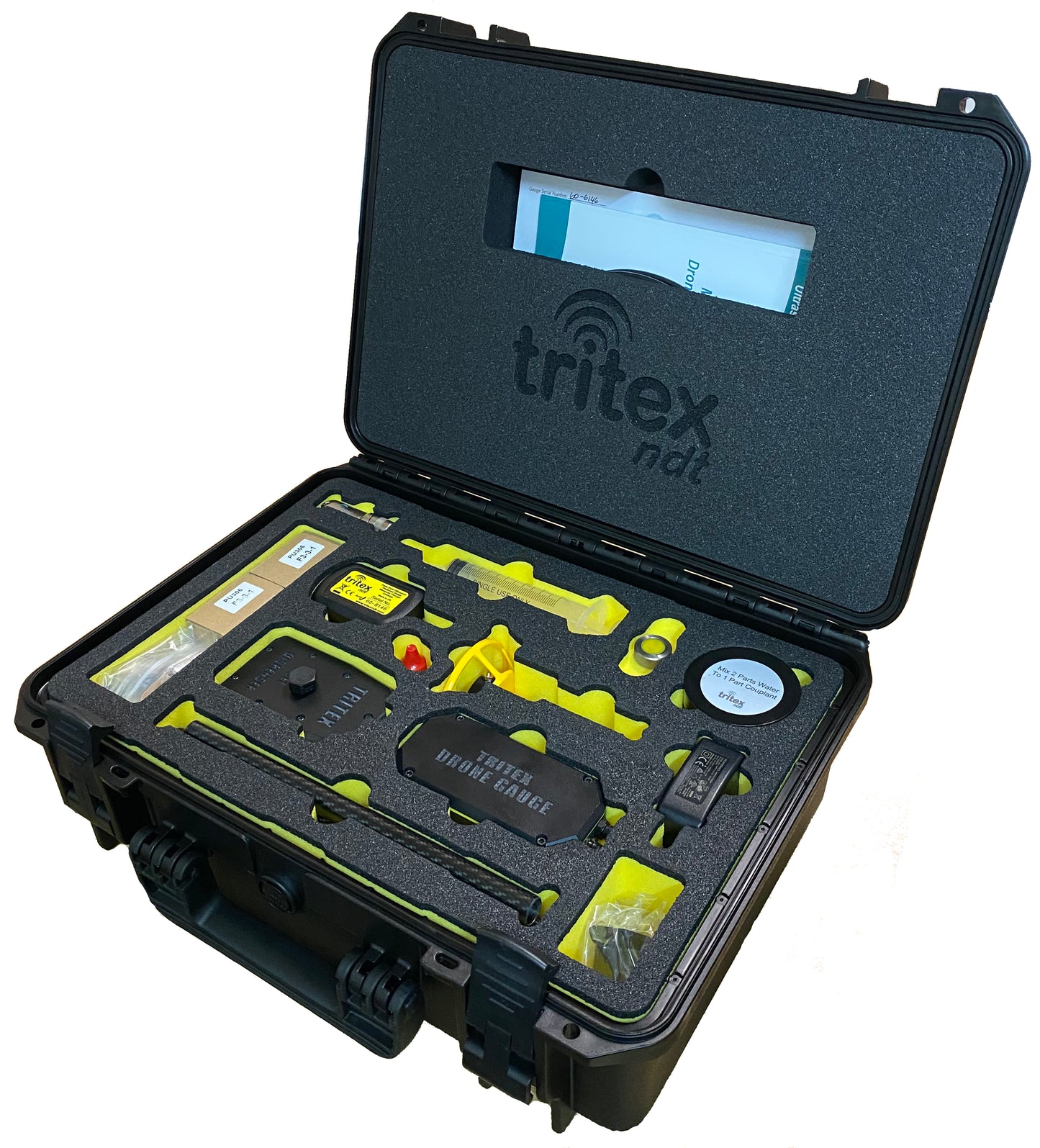

Carry case for complete portability

Key Specifications:

Measurement Range: Up to 500 m wireless transmission
Probe Type: 13 mm 2.25 MHz transducer
Accuracy: ±0.1 mm typical
Coating Compensation: Up to 20 mm (Multiple Echo Technology)
Power Supply: XT30 power connector (drone power compatible)

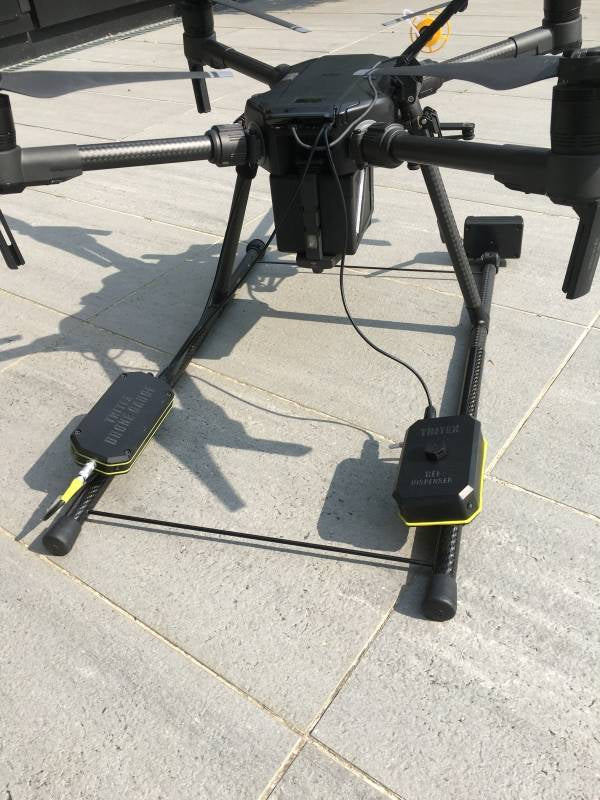

Compatibility: DJI Matrice 210 / 300 RTK and similar UAVs
Weight: Lightweight, drone-optimized design

1. Drone-Optimized Ultrasonic Measurement: Purpose-built for UAV integration, ideal for remote metal thickness inspections.

2. Multiple Echo Technology: Accurately measures through coatings up to 20 mm thick without surface prep or zeroing.

3. Smart Performance Systems: IPR and AMVS ensure automated setup and validation of each reading.

4. Reliable Wireless Operation: Long-range radio transmission (up to 500 m) enables efficient, real-time data capture in challenging conditions.
