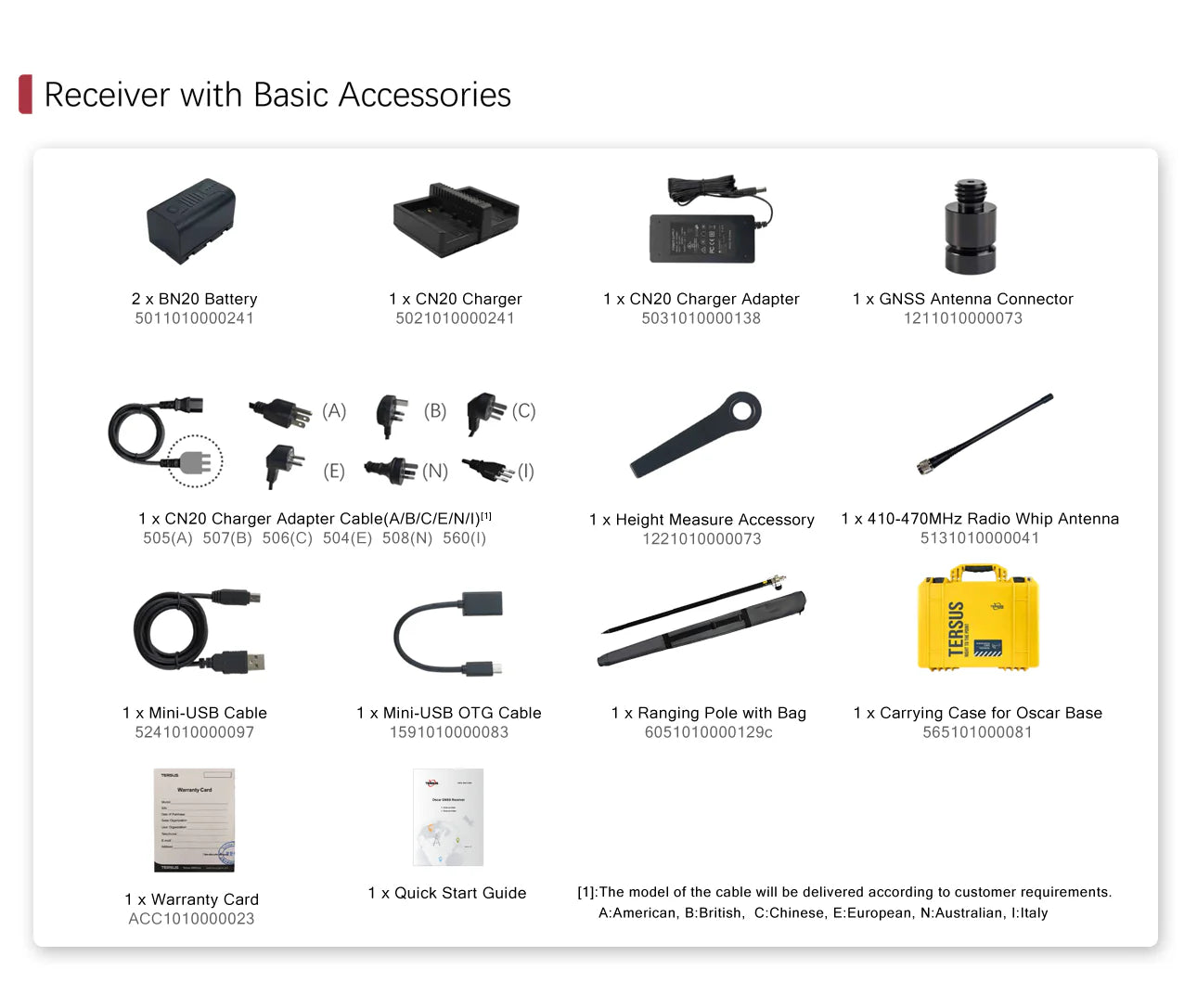

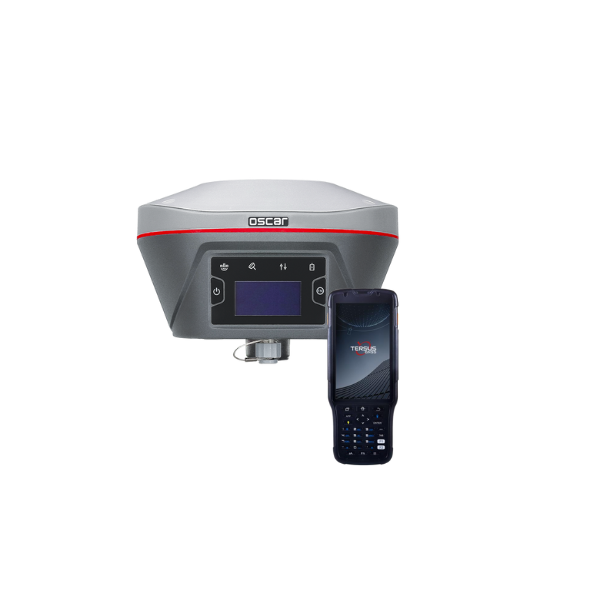

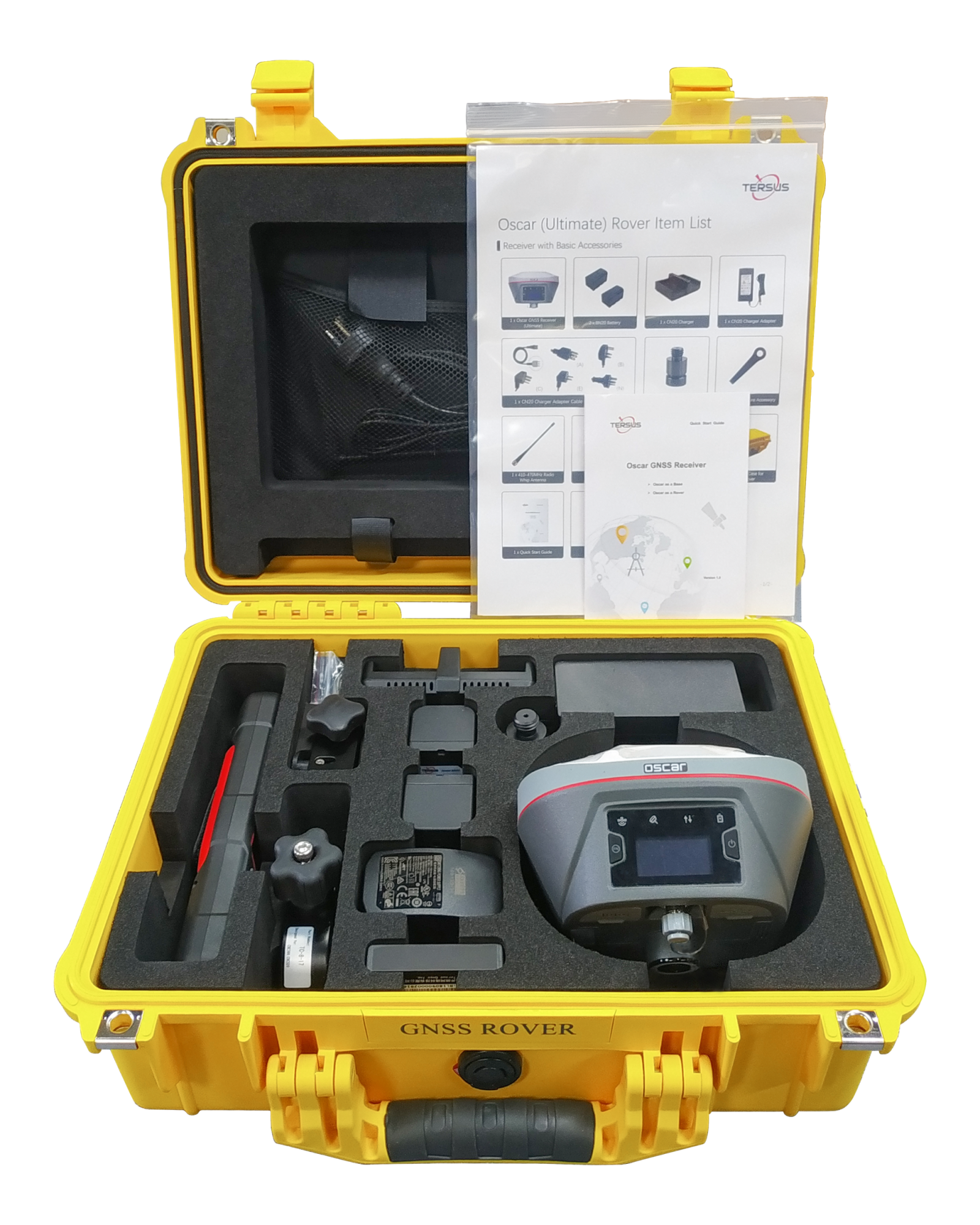

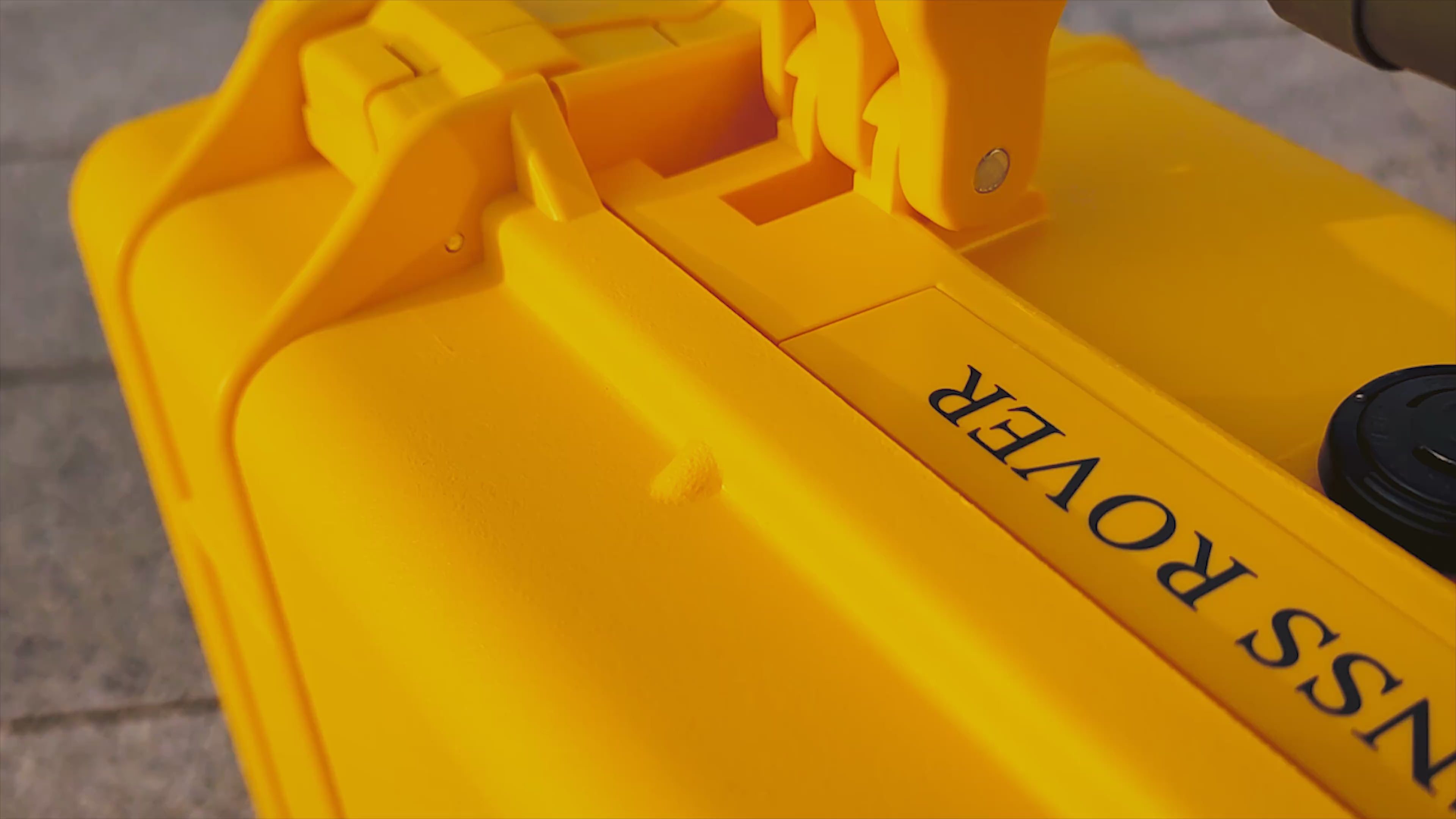

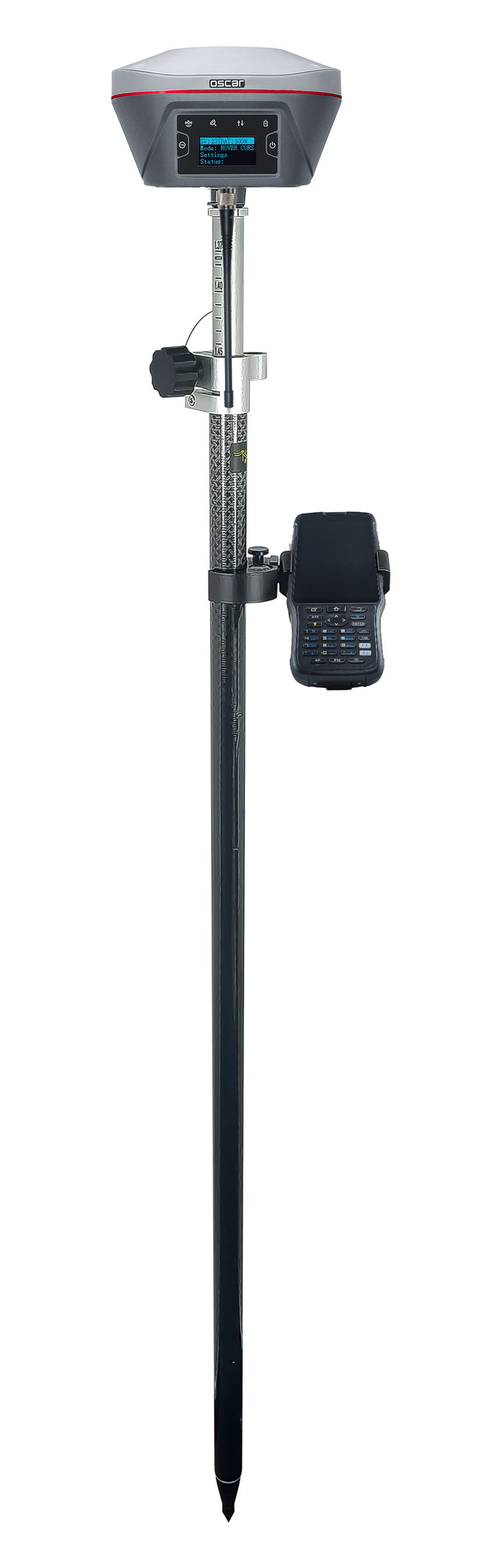

Tersus Oscar Ultimate GNSS Receiver Bundle includes survey pole, GNSS receiver, TC50 controller & hard carry case.
One WEEK Free Trial Available! Contact us for more information.

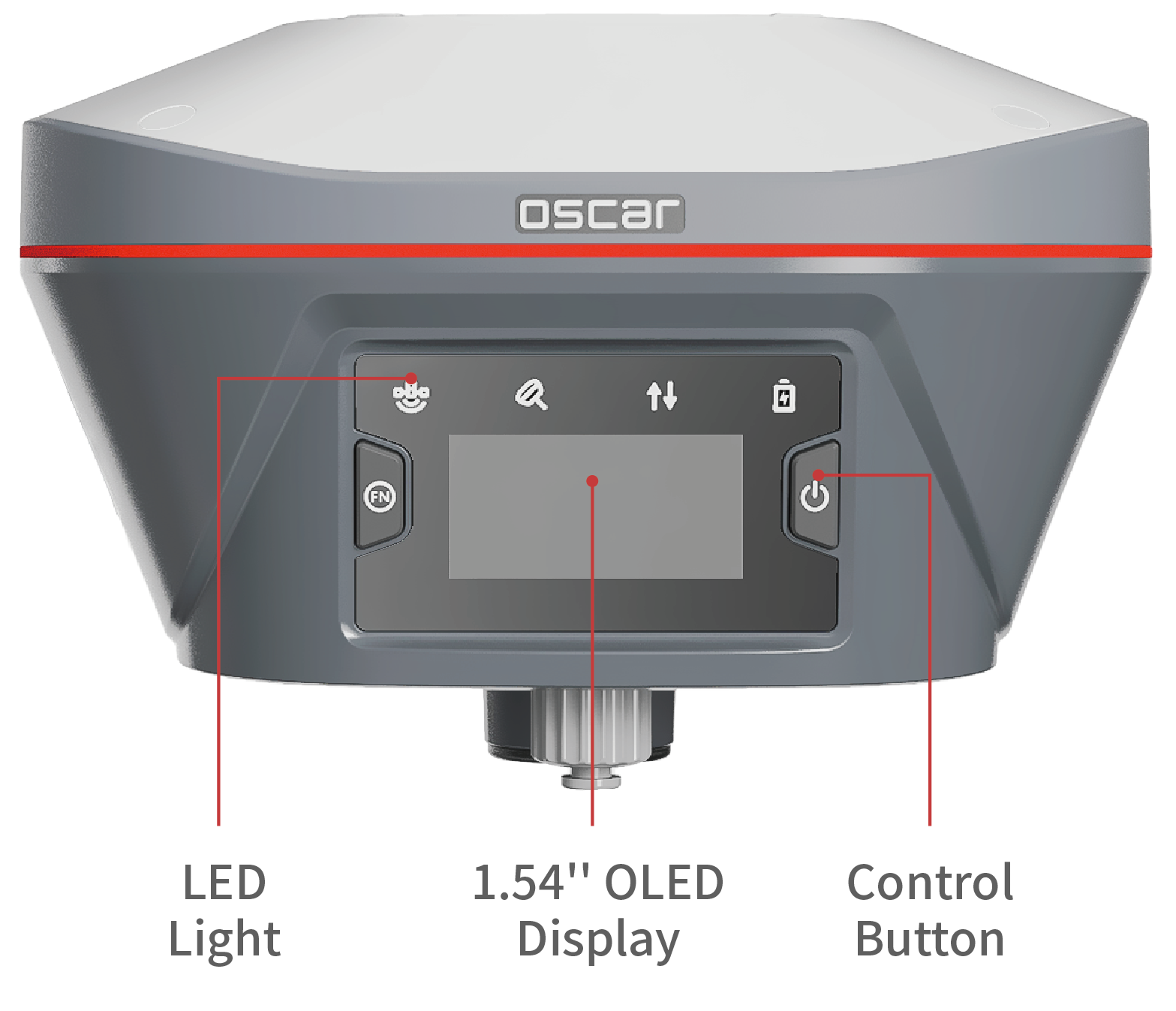

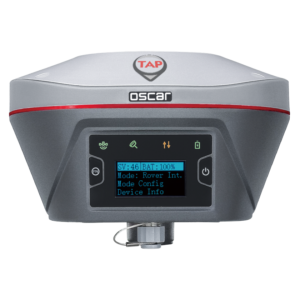

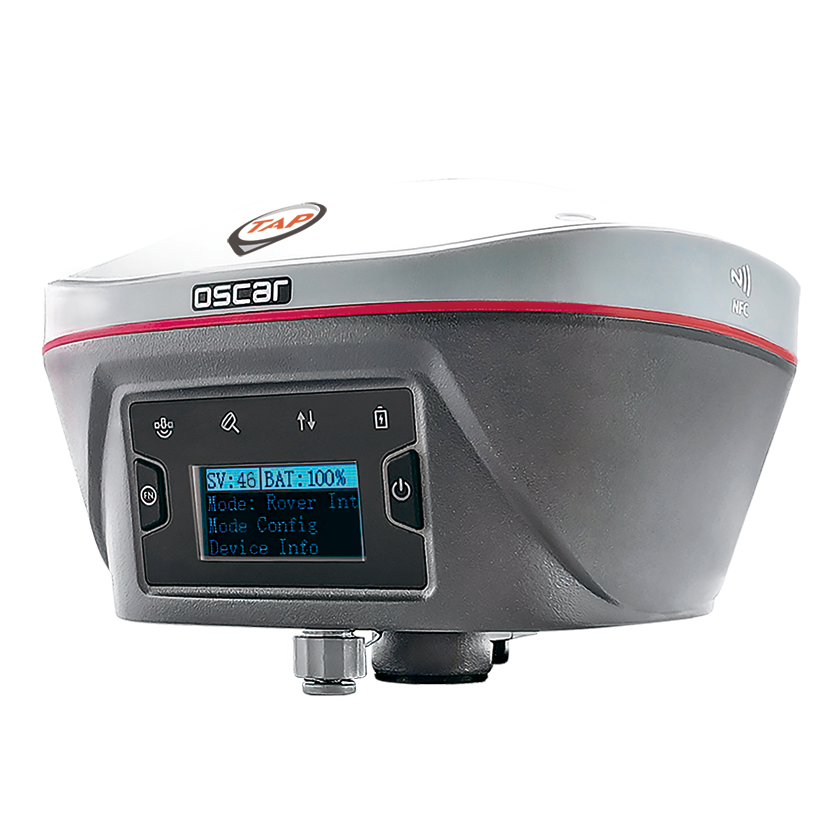

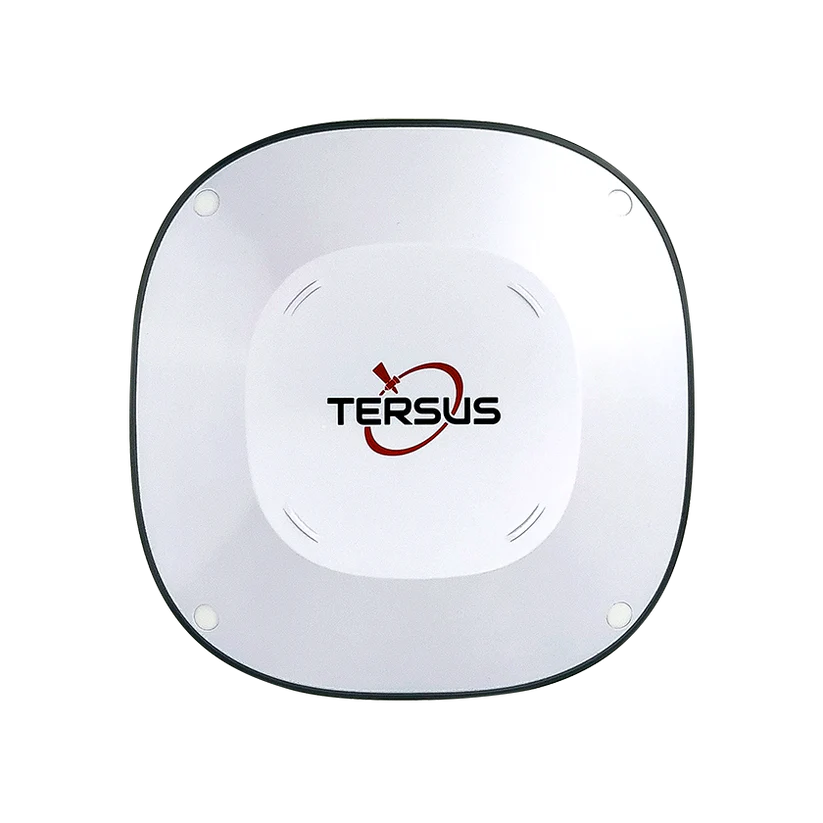

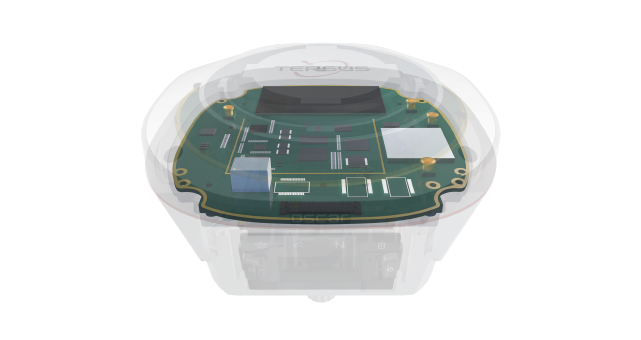

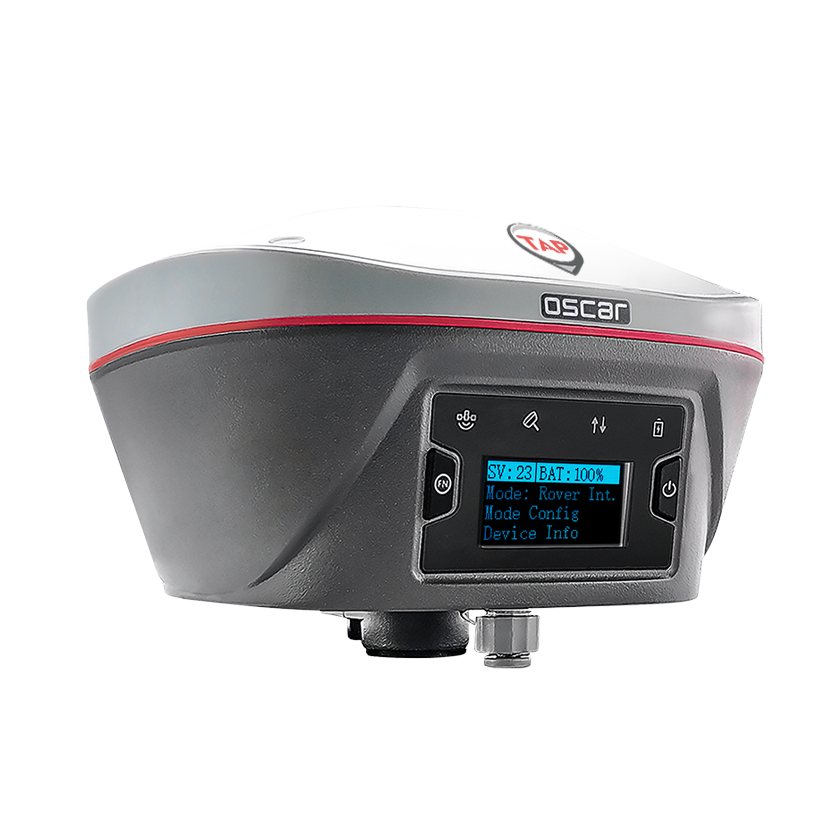

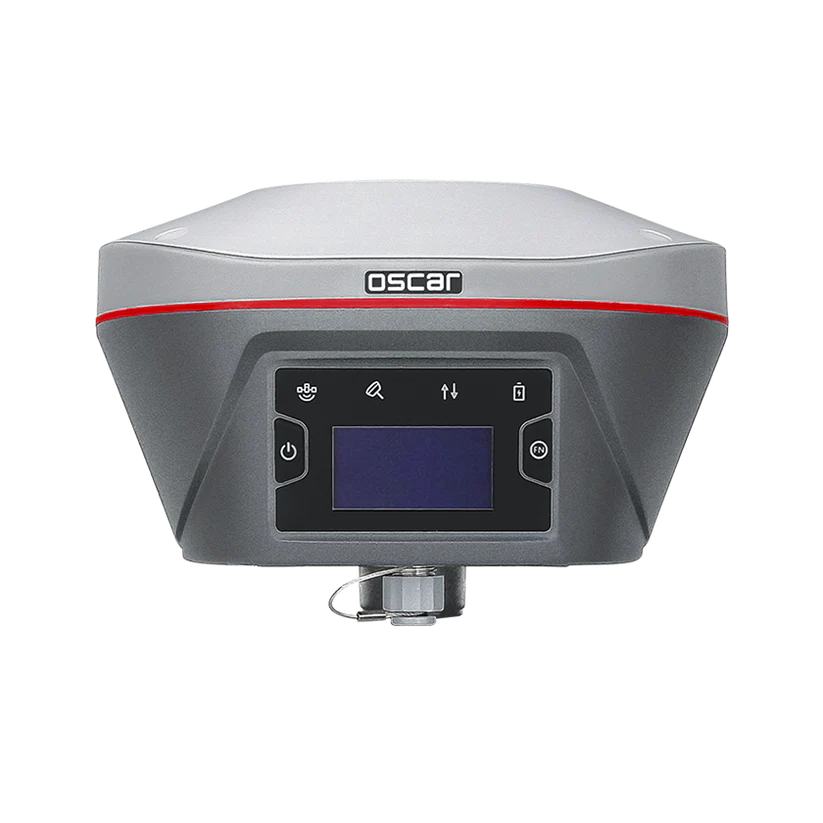

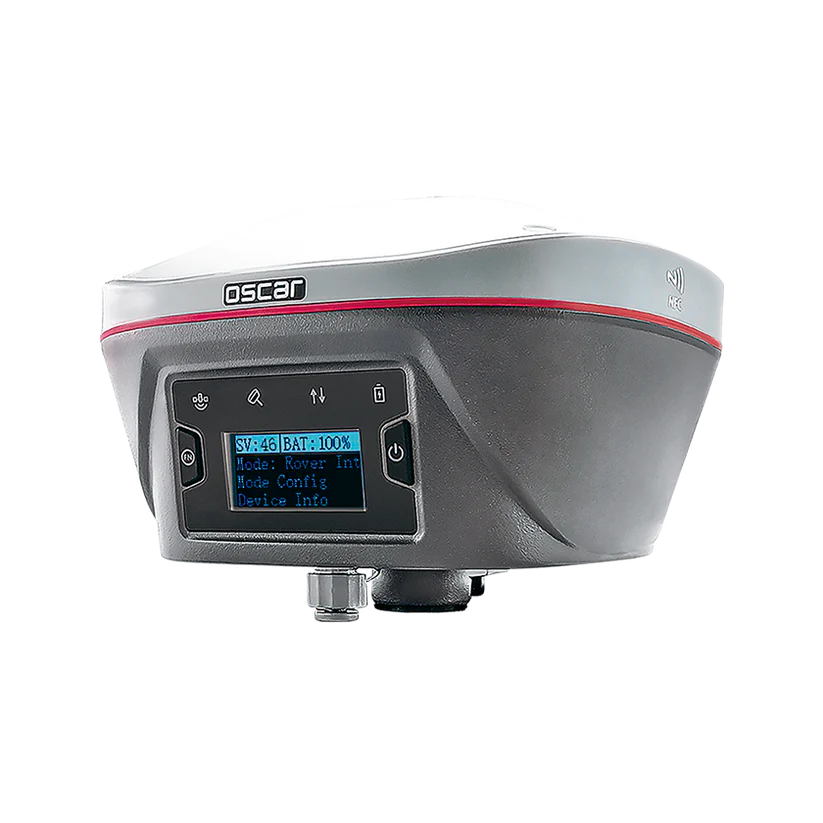

The Oscar GNSS Receiver is a new generation GNSS RTK system. It supports calibration-free tilt compensation function which is immune to magnetic disturbances, levelling pole is not required. Easy configuration with 1.54 inch interactive screen on Ultimate and Advanced versions. With an internal high-performance multi-constellation and multi-frequency GNSS board, the Oscar GNSS Receiver can provide high accuracy and stable signal detection. The high-performance antenna can speed up the time to first fix (TTFF) and improve anti-jamming performance. The built-in large capacity battery is detachable, two batteries support up to 16 hours of field work in 4G/3G/2G network and Rover radio mode. The built-in UHF radio module supports long distance communication. The rugged housing protects the equipment from harsh environments.
Tersus Oscar Data Sheet
Key Features
Supports multiple constellations and frequencies
GPSL1C/A,L1P,L1C,L2P,L2C,L5 GLONASSG1,G2,G3,P1,P2 BeiDouB1I,B2I,B3I, B1C, B2A, B2B, ACEBOC
GalileoE1BC, E5a, E5b, E6BC, AltBOC
QZSSL1C/A,L2C,L5,L1C,LEX
IRNSSL5 (optional)
SBAS support EGNOS,WAAS,MASAS, GAGAN,SDCM (optional)
Supports 576 channels

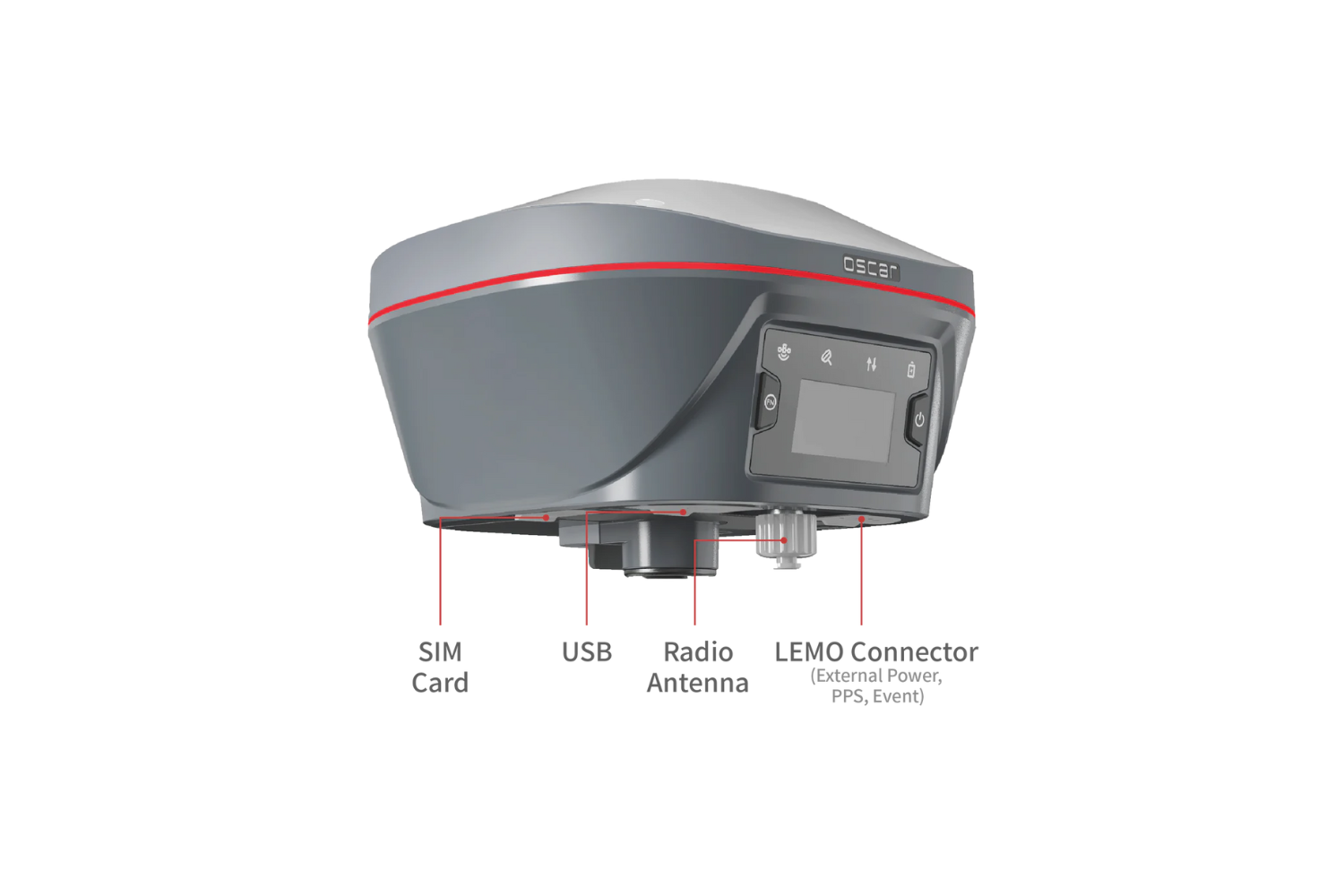

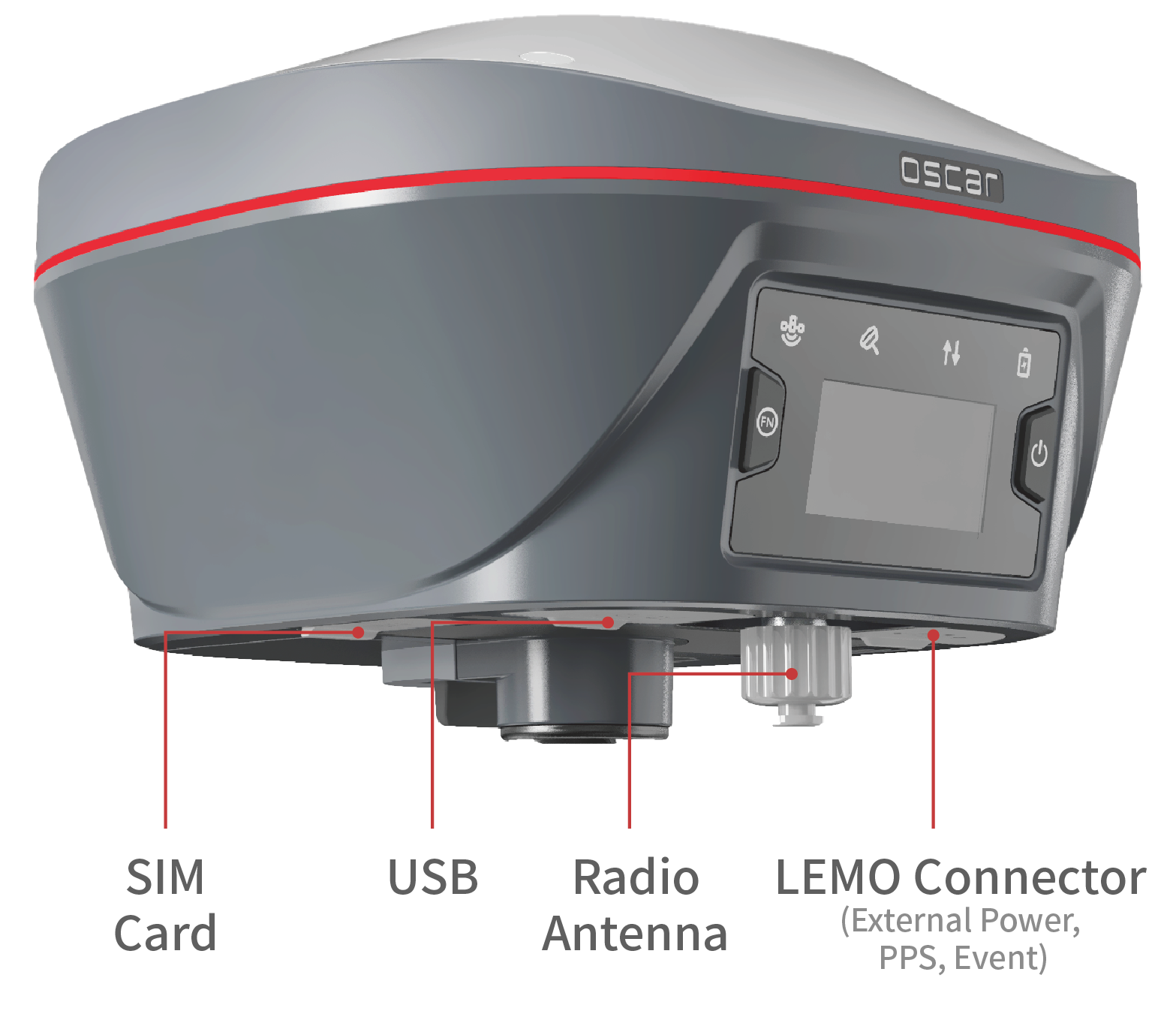

410-470MHzUHF radio,4G network, Wi-Fi, Bluetooth, NFC
Tilt compensation without calibration, immune to magnetic disturbances (1) 16 GB/8 GB internal storage (1)
Up to 16 hours working in 4G/3G/2G network and Rover radio mode

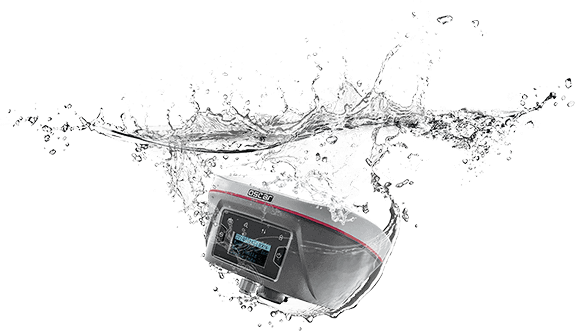

IP68-rated dust & waterproof enclosure, for reliability in harsh environmental conditions

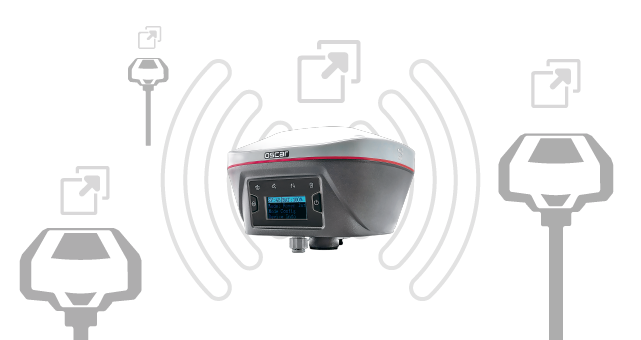

Free subscription of Tersus Caster Service (TCS): transmit the correction data from Oscar Base to Rover
Tersus_Oscar_Receiver_TCS_Internet_Base
Tersus Oscar Configuration Guide DJI RTK Internet Base
