Terra Xross 1

Info

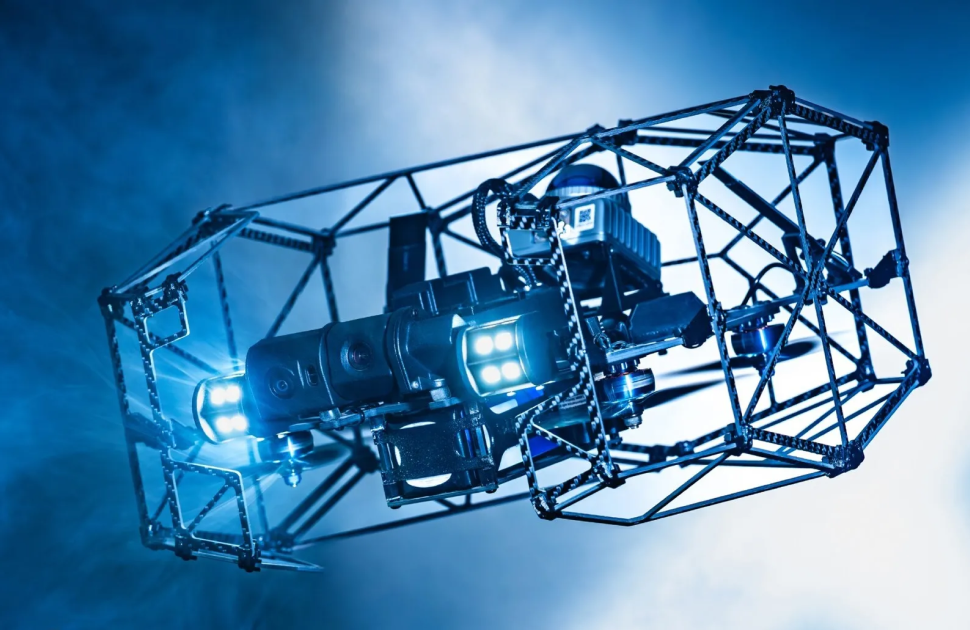

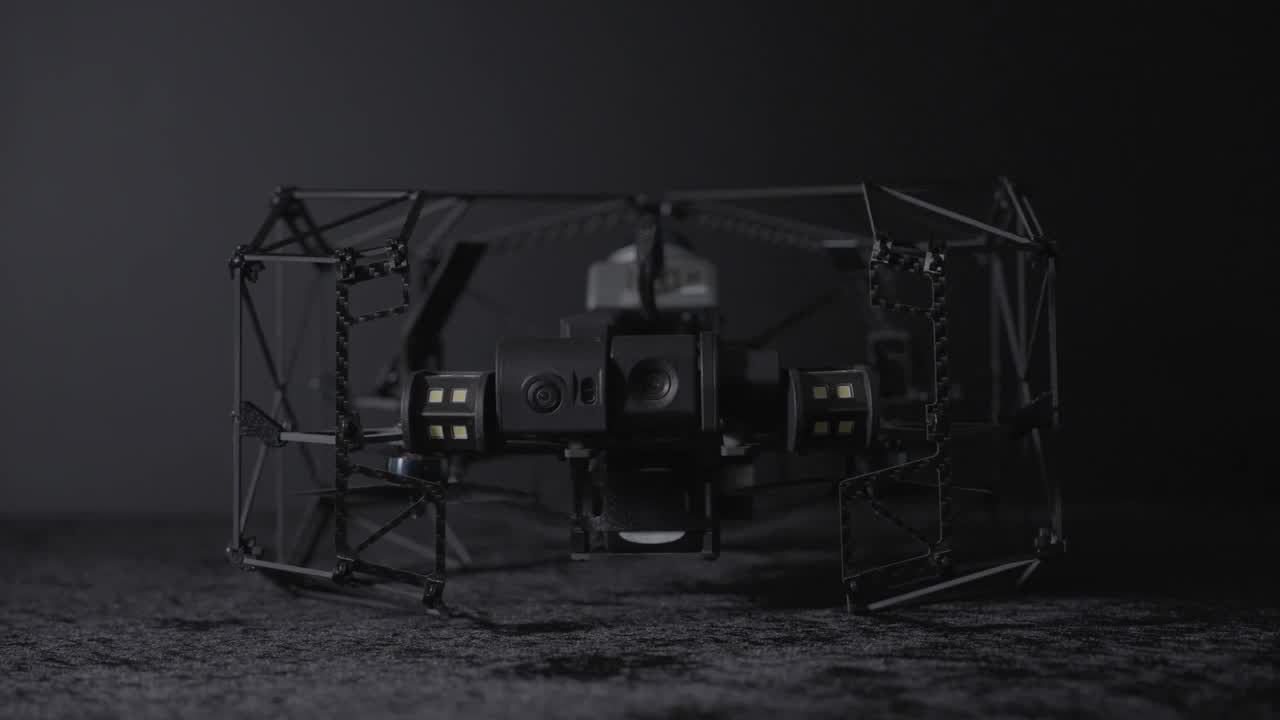

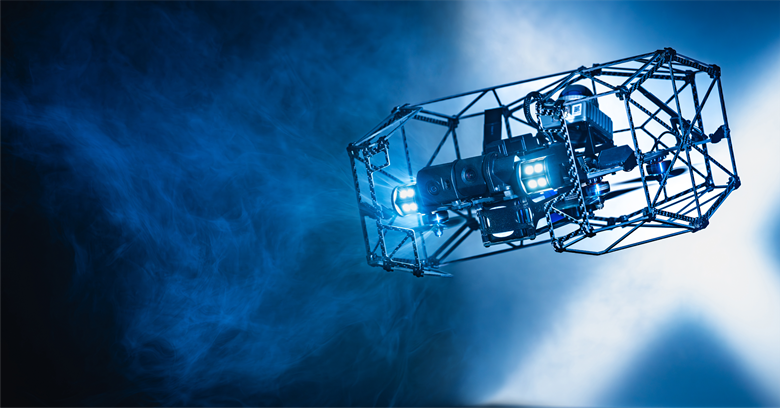

The Terra Xross 1 is a compact, caged drone engineered for indoor inspections in confined and GPS-denied environments. Designed for industries such as oil & gas, utilities, and chemical processing, it offers a cost-effective solution for navigating tight spaces like tanks, boilers, and chimneys.

Key Features

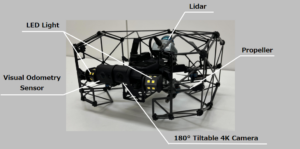

Stable Flight in Challenging Conditions: Integrates visual odometry sensors and LiDAR for stable navigation in dark, dusty, or confined spaces without the need for advanced piloting skills.

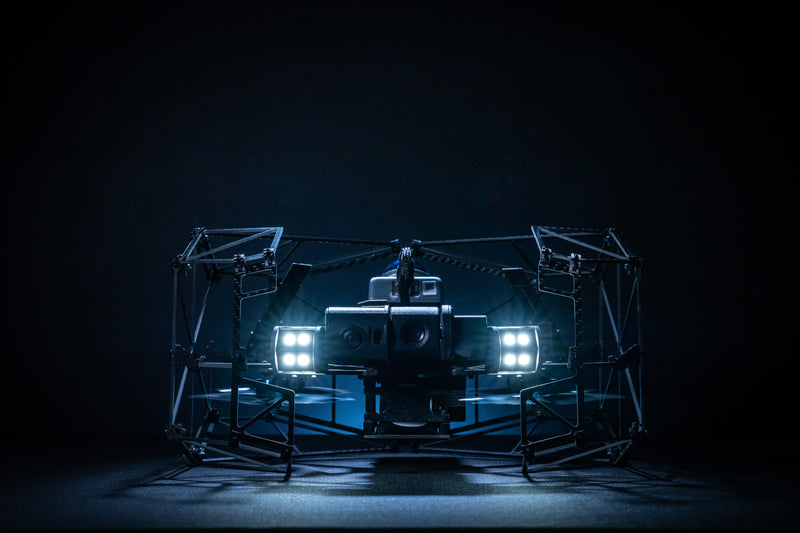

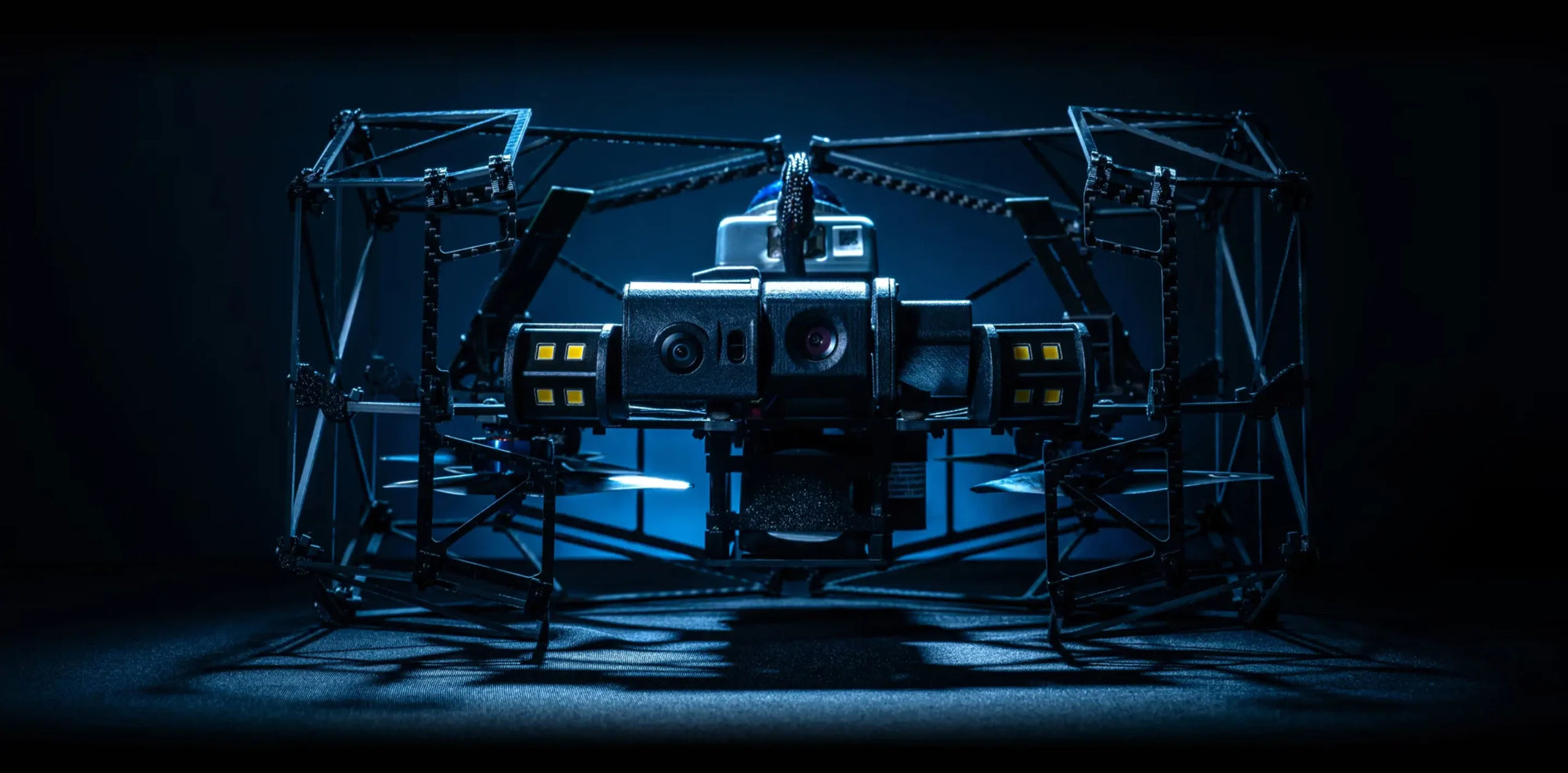

High-Resolution Imaging: Equipped with a 4K camera that tilts 180° and LED lighting, ensuring clear visuals even in low-light environments.

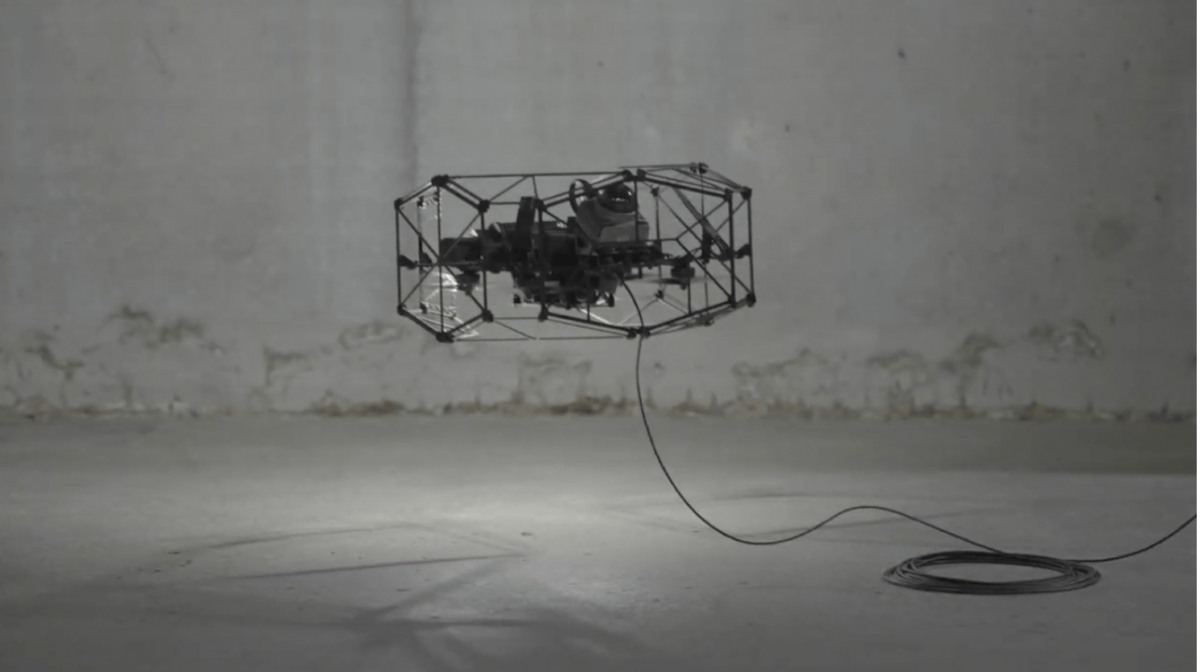

Flexible Power Options: Supports both battery-powered operation and an optional tethered power module, allowing for continuous flight and reducing the risk of power depletion during inspections.

Compact and Durable Design: Weighs 1.8 kg (2.4 kg with LiDAR), with dimensions of 36 x 31 x 21 cm, making it suitable for navigating tight spaces.

Advanced Data Management: Utilizes the Terra Xross Cloud platform for 3D data visualization and efficient information sharing among teams.

Specifications

Weight: 1.8 kg (2.4 kg with LiDAR)

Dimensions: 36 x 31 x 21 cm

Flight Time: 10 minutes (11.5 minutes without payloads; 9.1 minutes with LiDAR)

Max Flight Speed: 2.5 m/s

Wind Resistance: 3 m/s

Operating Temperature: 0°C to 45°C

Ingress Protection: Dust resistance

Battery: 5200 mAh, 18.5V, 99.4 Wh; charging time: 1 hour

Camera: 1/1.7-inch, 8MP sensor; 4K (3840×2160) video at 25 fps

LiDAR: Class 1 laser safety; range up to 40 m at 10% reflectivity

Applications

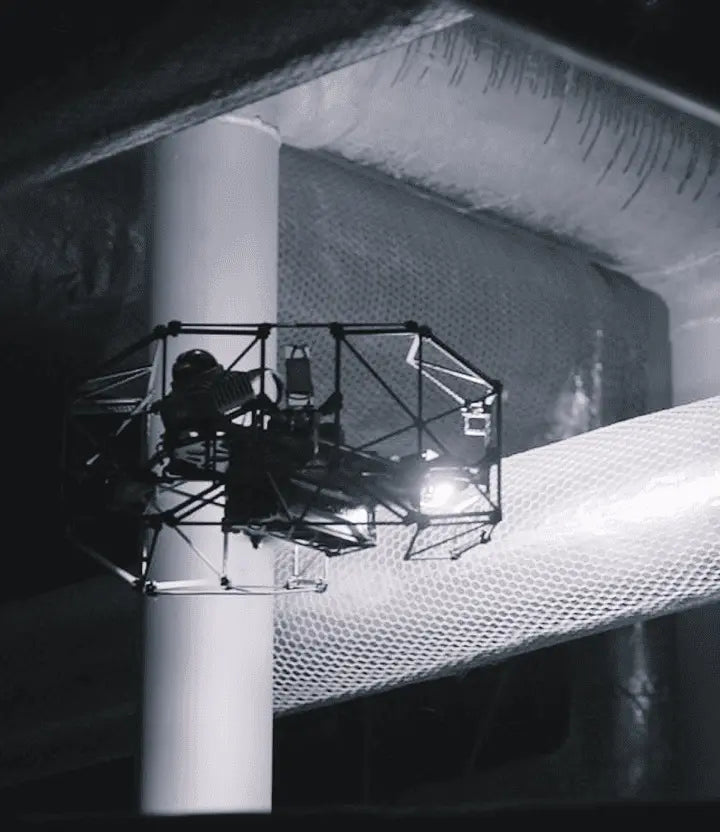

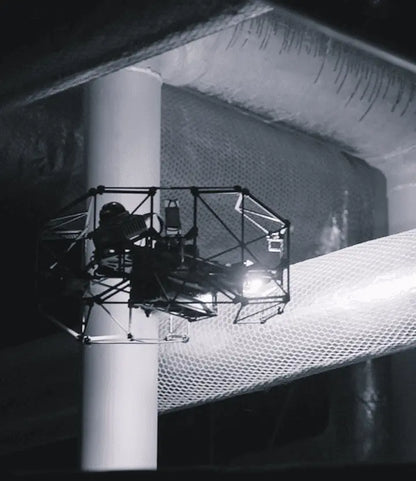

Infrastructure Inspection: Ideal for inspecting confined areas in oil and gas plants, power stations, and chemical facilities.

Mining Surveys: Conducts 3D mapping for excavation planning in tunnels and underground mines.

Disaster Assessment: Evaluates structural damage in disaster-affected locations, such as collapsed buildings or damaged infrastructure.

Pricing

The Terra Xross 1 is competitively priced  offering a cost-effective solution for indoor inspections.

Why Choose Terra Xross 1?

Ease of Use: Designed for operators without advanced piloting skills, enabling quick deployment and operation.

Affordability: Offers advanced features at a price point significantly lower than many competitors.

Safety: Reduces the need for personnel to enter hazardous or confined spaces, enhancing workplace safety.

Efficiency: Streamlines inspection processes with real-time data capture and cloud-based analysis.

For more information or to request a demo, please contact us

Tethered option due 2026
