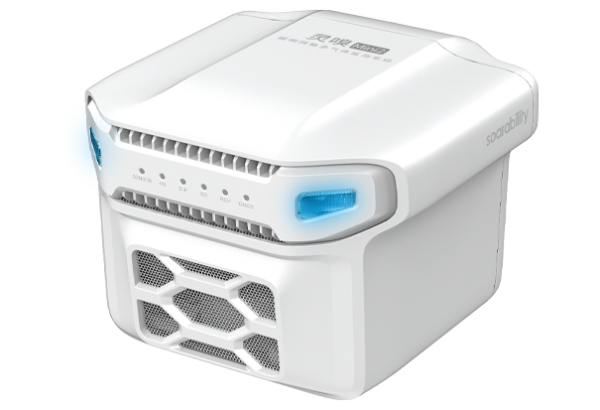

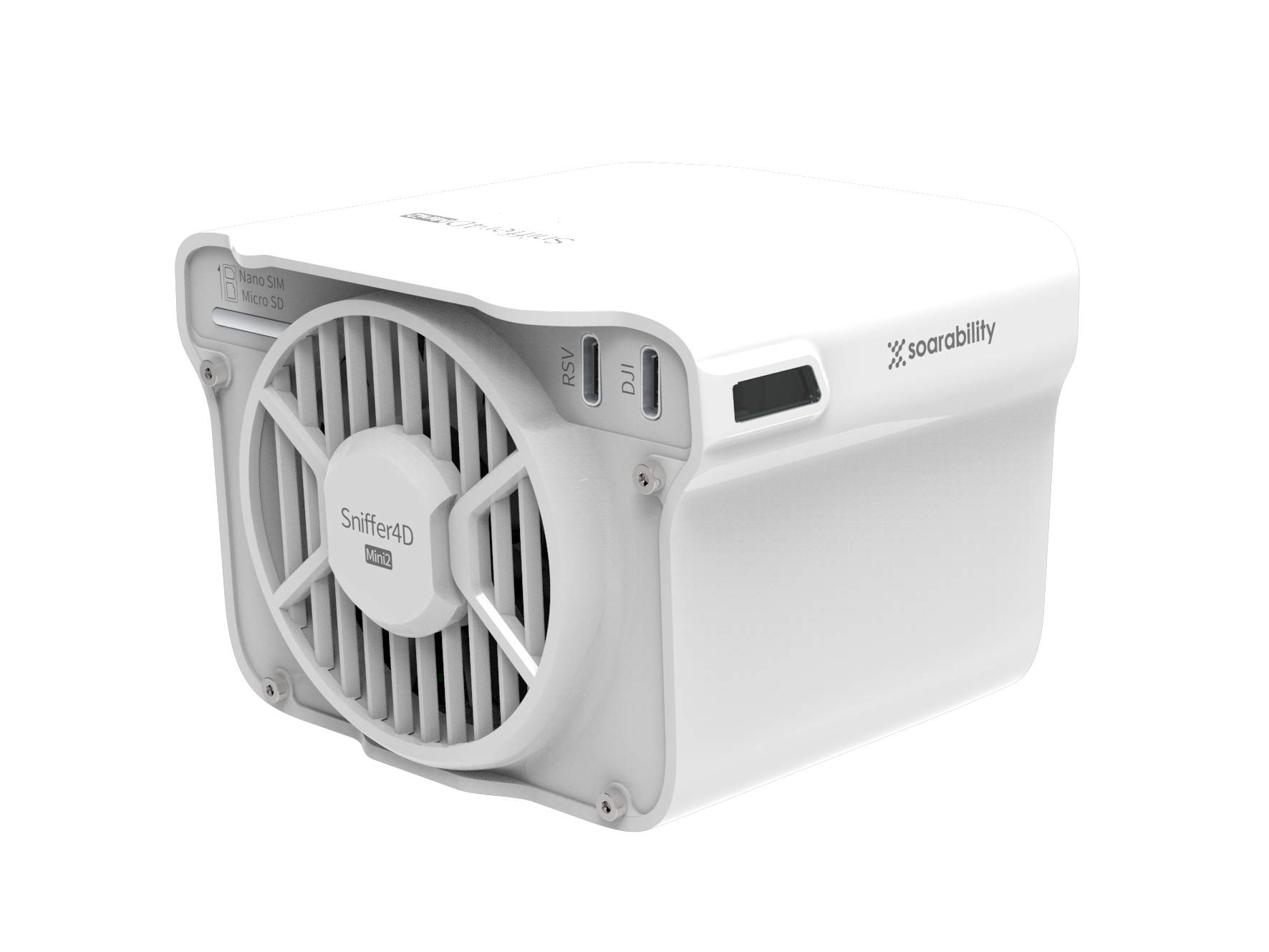

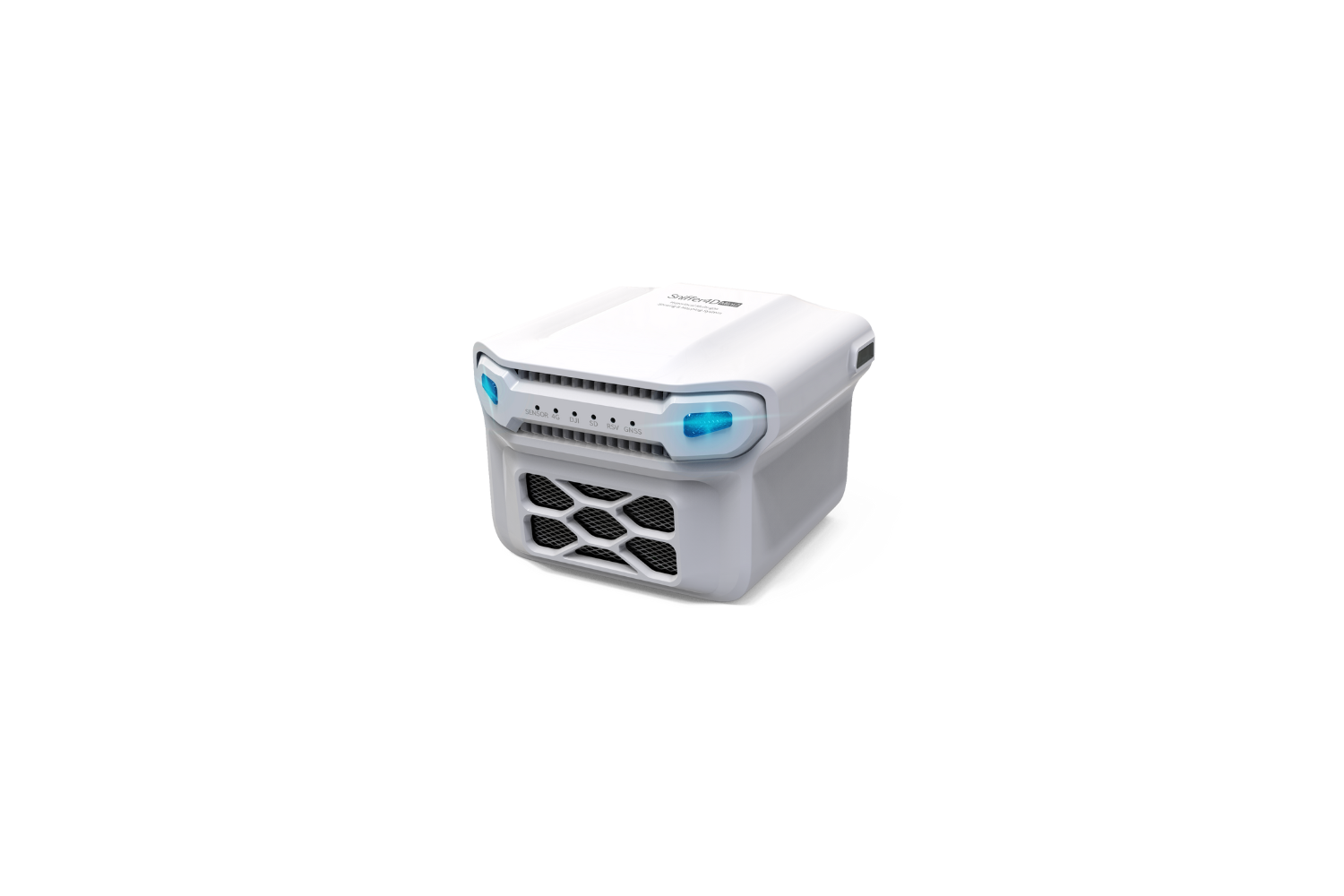

Soarability Sniffer4D Mini 2

The Soarability Sniffer4D Mini2 is an advanced multi-gas detection and mapping system designed for integration with a wide range of UAVs, including DJI Matrice 300/350 RTK, M30/M30T, Mavic 2/3 series, and Autel drones. This compact yet powerful payload enables real-time, 3D visualisation of gas distributions, empowering decision-makers with actionable insights for environmental safety, industrial inspection, and emergency response.

At its core, Sniffer4D Mini2 combines modular, high-sensitivity gas sensors with intelligent onboard data processing and the intuitive Sniffer4D Mapper software. Operators can monitor gas plumes live, generate detailed 2D/3D concentration maps, and export mission reports instantly for analysis and compliance.

Multiple configurable variants are available, each optimised for specific applications—from ambient air monitoring and pollution assessment to HAZMAT and oil & gas pipeline inspection. The system’s versatility, accuracy, and seamless compatibility with major UAV platforms make it a complete airborne sensing solution for diverse environmental and industrial needs.

Available Configurations & Supported Applications

Ambient Air Monitoring 1 - PM2.5, PM10, O₃, NO₂, CO, SO₂ - General air quality monitoring, urban pollution surveys
Ambient Air Monitoring 2 - PM2.5, PM10, O₃, NO₂, CO, SO₂, VOCs - Enhanced environmental monitoring, emission tracing
Ambient Air Monitoring 3 - PM2.5, PM10, O₃, NO₂, CO, SO₂, VOCs, Odor (OU) - Odor impact studies, industrial area monitoring
HAZMAT Response - VOCs, CxHy/CH₄/LEL, CO, CO₂, Cl₂, O₂, NO₂, H₂S - Emergency chemical spill response, disaster management
Oil & Gas / Pipeline - VOCs, CxHy/CH₄/LEL, H₂S, SO₂ - Leak detection, refinery and pipeline inspections
Landfill Inspection - SO₂, VOCs, Cl₂, H₂S, NH₃, CxHy/CH₄/LEL - Methane and gas emission mapping from waste sites

Each configuration is factory-calibrated and optimized for its mission profile, ensuring reliable detection accuracy and consistent data integrity across multiple flight operations.

Key Specifications

Compatible Platforms: DJI M300/M350 RTK, M30/M30T, Mavic 2/3 Series, Autel Drones
Weight: Approx. 500–600 g (depending on configuration)
Power Supply: Via drone payload interface (SkyPort or similar)
Detection Method: Electrochemical, NDIR, PID, or TDLAS (depending on gas type)
Response Time: Typically <5 seconds
Data Output: Real-time via Sniffer4D Mapper and optional cloud integration

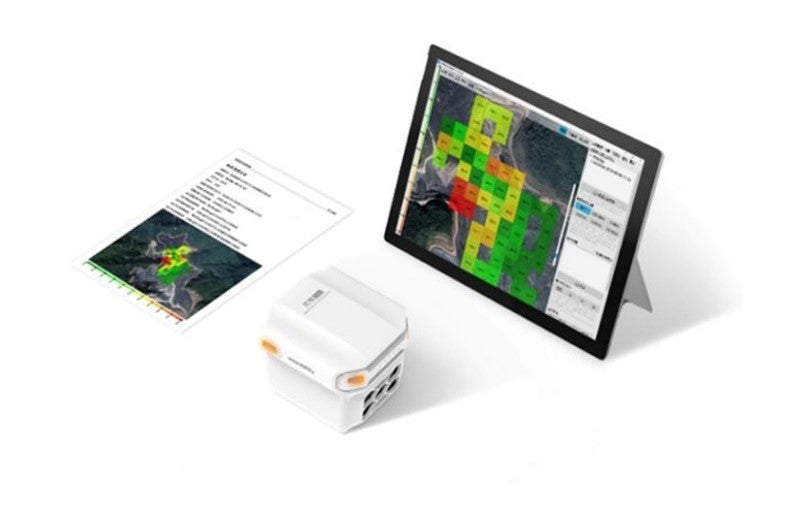

Software: Sniffer4D Mapper for live 3D mapping and PDF reporting
Operating Temperature: -10°C to +50°C

1. Modular Multi-Gas Detection: Configurable for specific missions—air quality, HAZMAT, landfill, or oil & gas.

2. Real-Time 3D Visualization: Generates live maps of gas dispersion in 2D and 3D for instant situational insight.

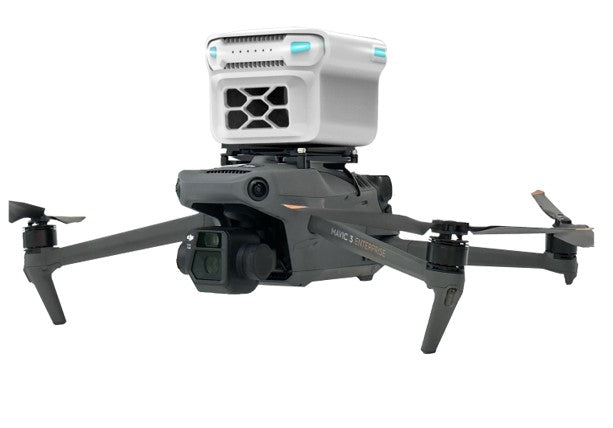

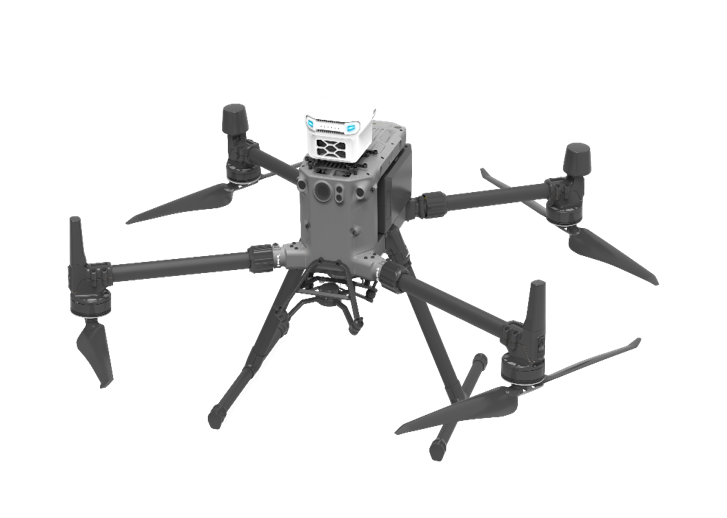

3. Seamless UAV Integration: Fully compatible with DJI and Autel drones via plug-and-play mounting and power.

4. Professional Data Ecosystem: Sniffer4D Mapper software delivers clear, shareable, and actionable environmental intelligence.
